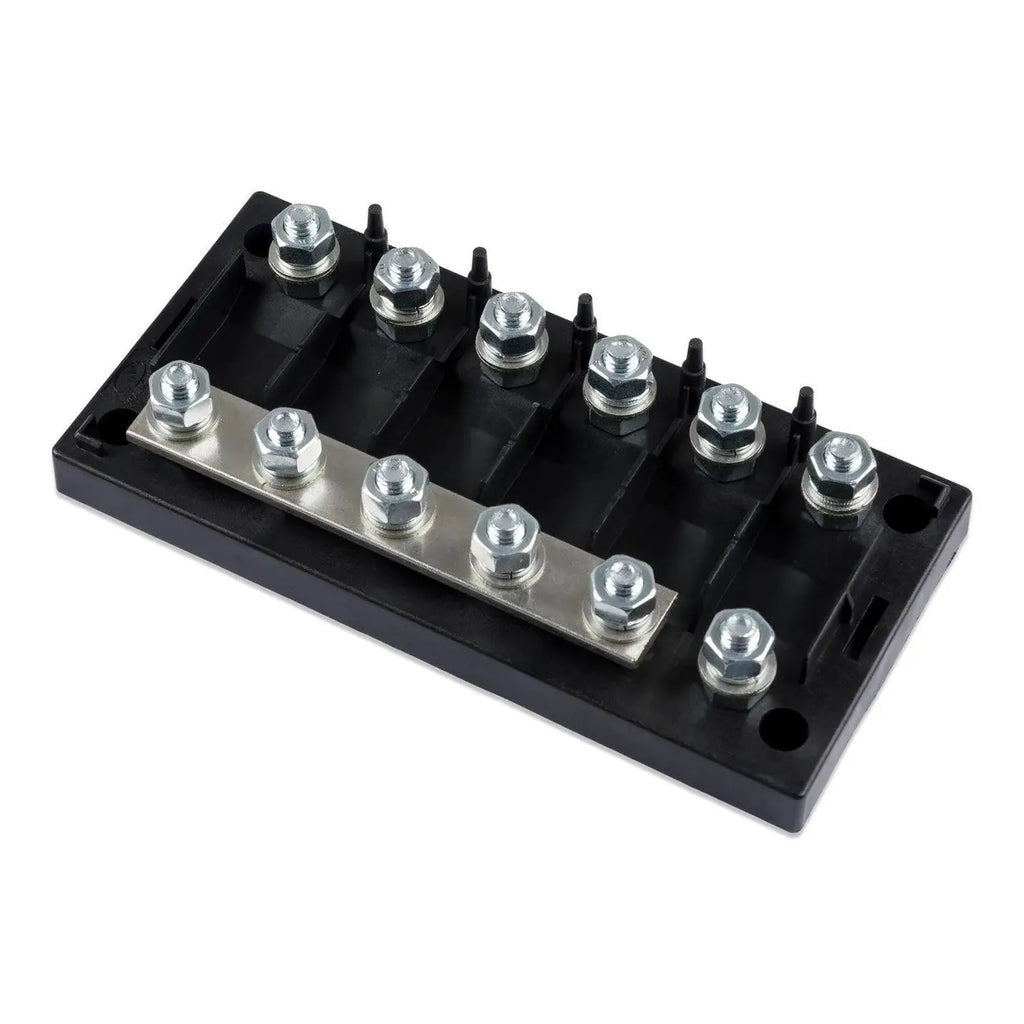

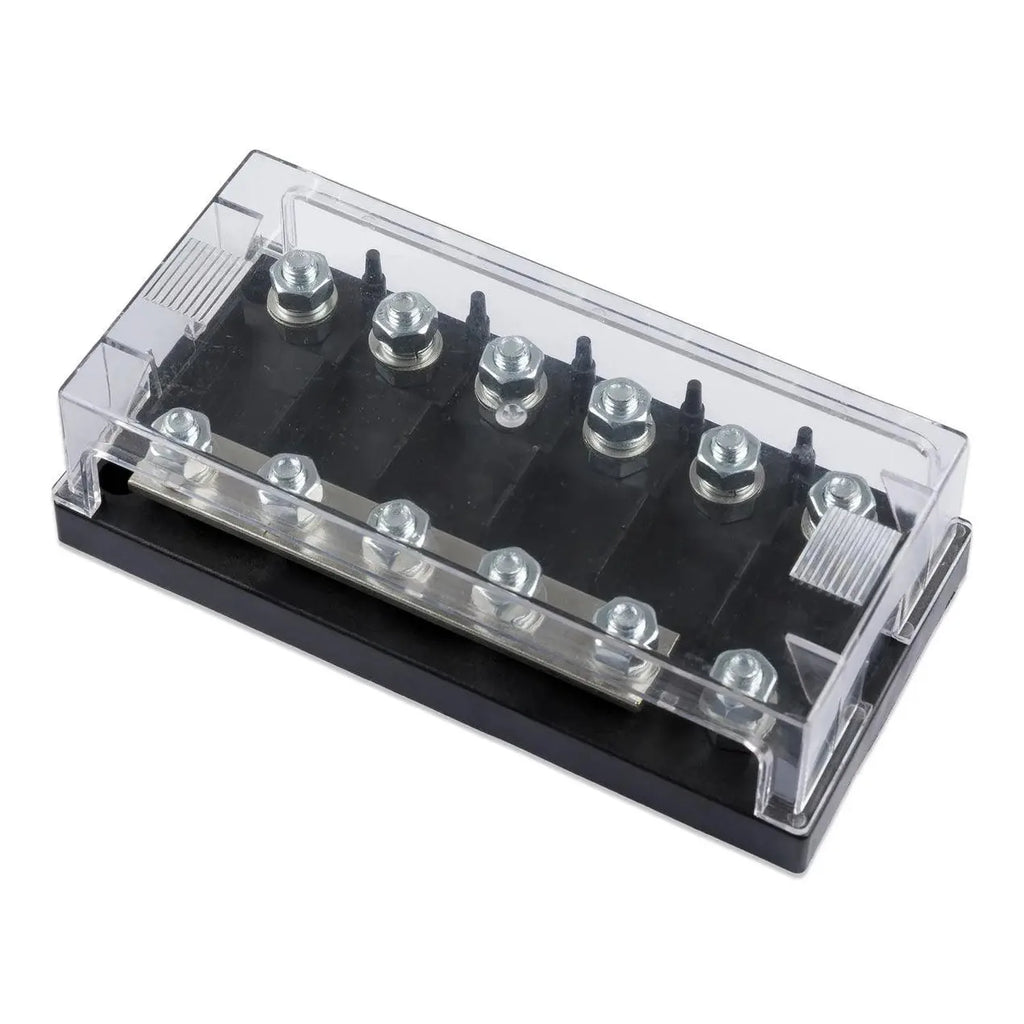

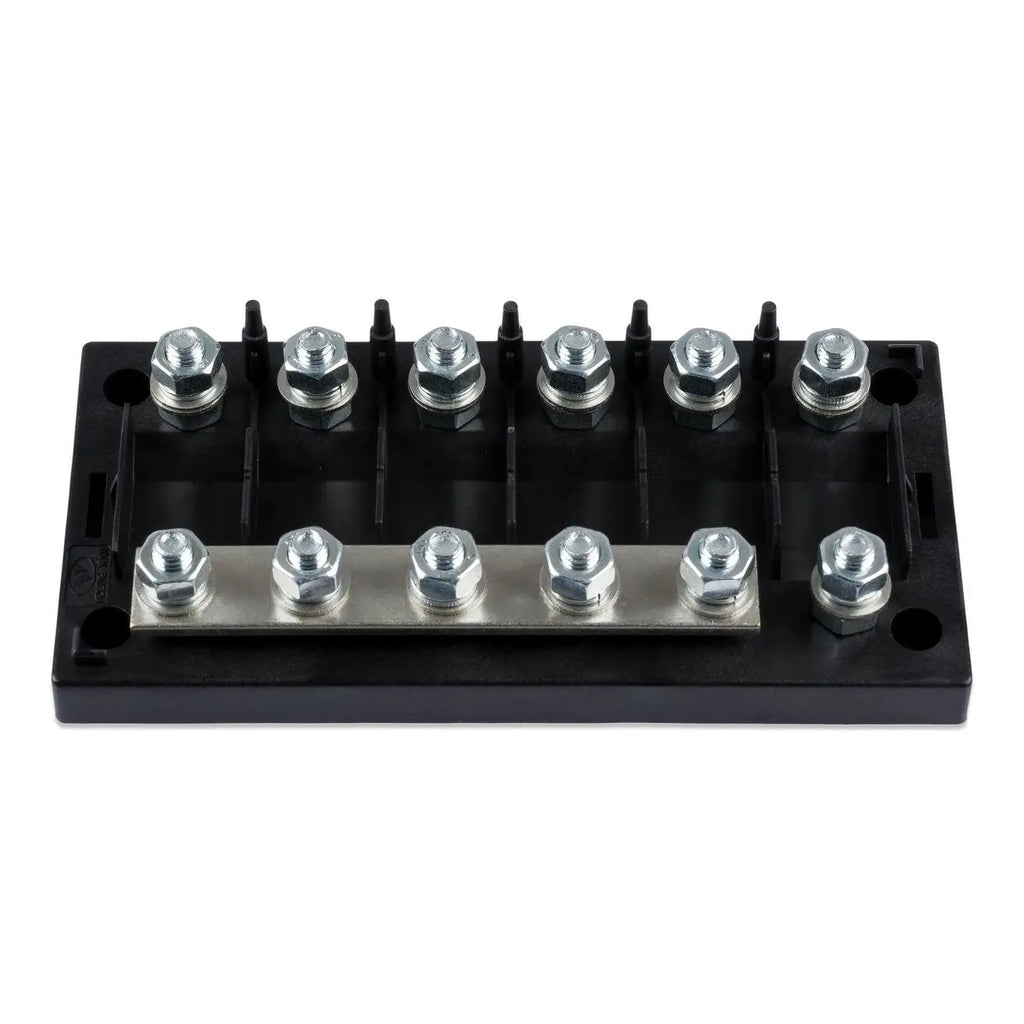

This Victron Energy 6-way MEGA fuse holder is a busbar-style distribution block that accepts up to six MEGA-fuses, giving individual overcurrent protection to six DC circuits from a single point. It suits 12V, 24V and 48V DC systems where a battery bank feeds several loads, such as inverters, chargers and distribution rails.

Key features

• Six fuse positions, accepts up to six MEGA-fuses for six individually protected circuits.
• Dedicated MEGA-fuse format, sized for a secure, low-resistance connection at each position.
• Single-unit build, reduces the number of separate fuse holders needed in an enclosure.
• Weight, 0.53 kg.
• Compatible with the Victron Energy MEGA-fuse range.

Applications

Used for multi-circuit DC distribution in off-grid solar systems, battery bank protection in marine and motorhome installations, and centralised fuse management on 12V, 24V or 48V battery systems. Each circuit can be isolated by removing its own fuse without disturbing the rest of the installation, which makes fault-finding easier.

Installation notes

MEGA-fuses are not included and should be sized separately for each circuit. Connections need to be torqued to the manufacturer's specification to avoid resistance heating at high currents. Work on battery fuse holders and busbars should be carried out by a qualified electrician, with the battery bank disconnected beforehand.

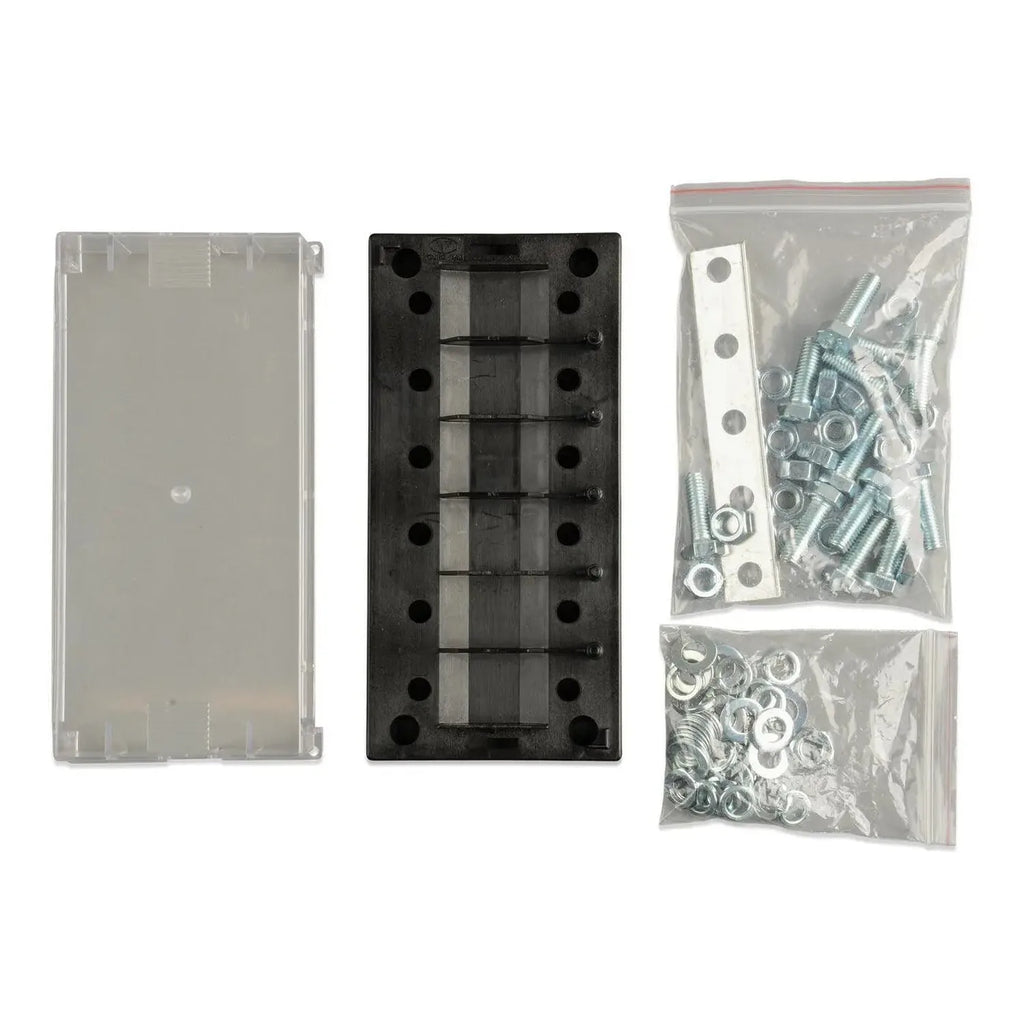

What's in the box

• 1 x Victron Energy 6-way MEGA fuse holder (CIP050060000)
