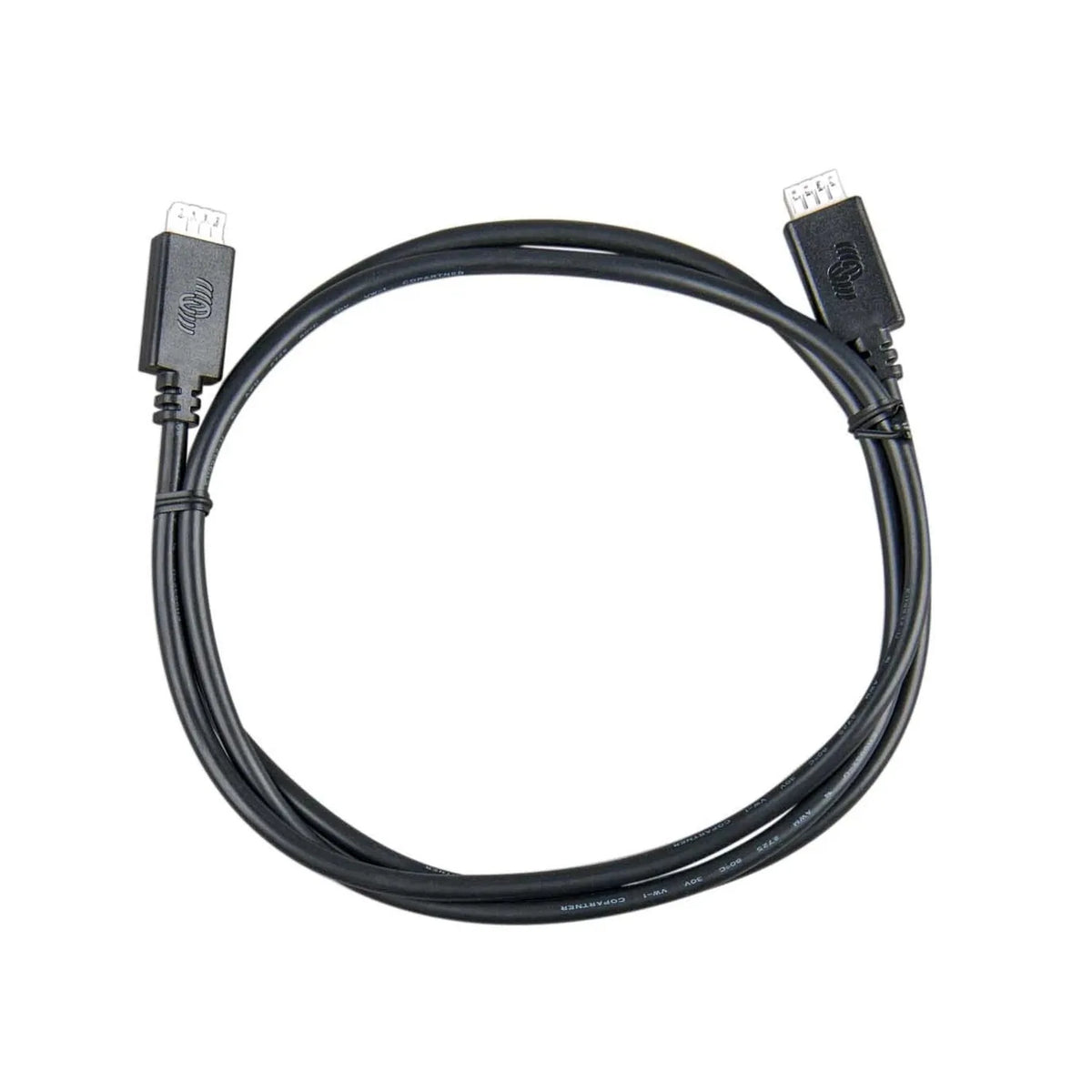

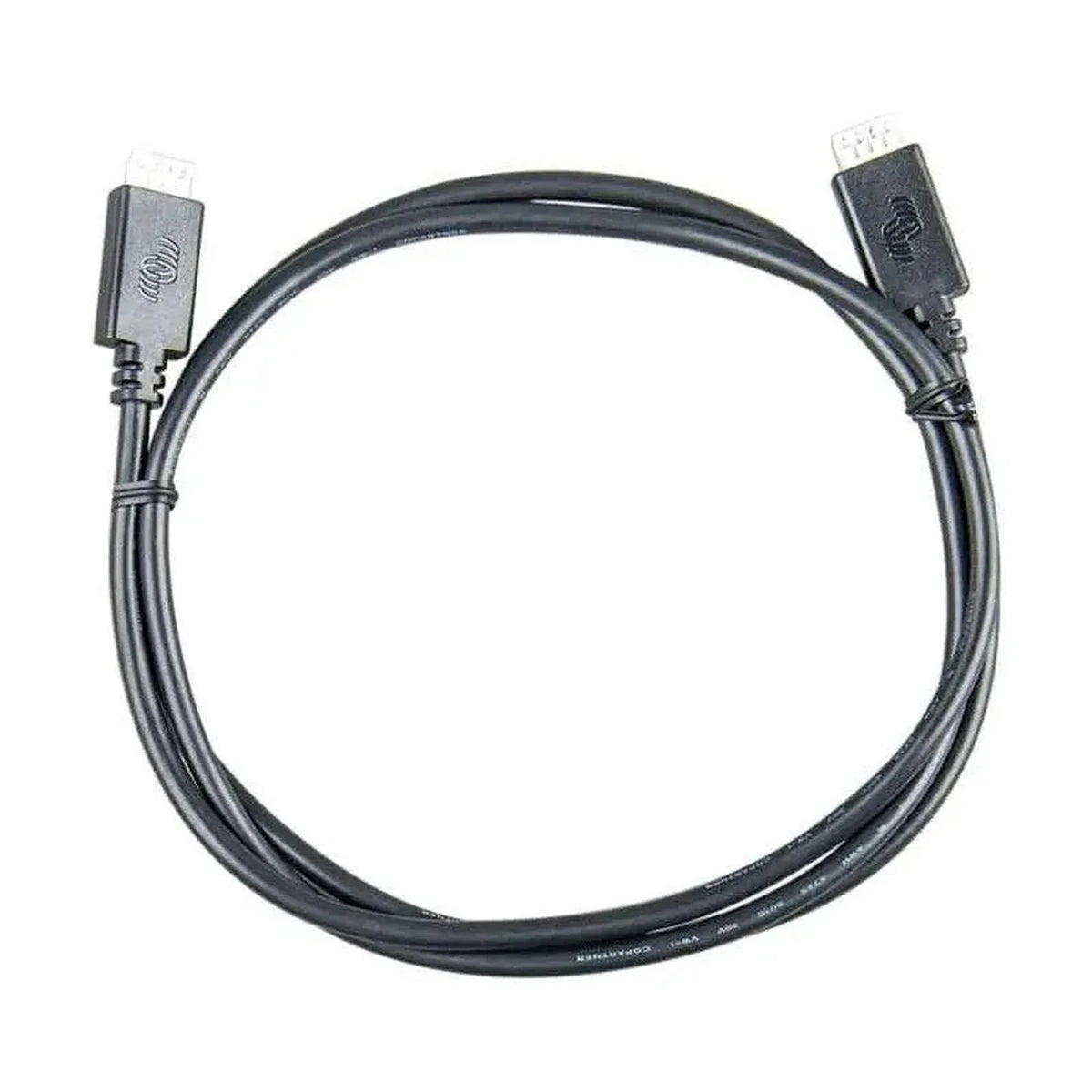

The Victron VE.Direct Cable links VE.Direct-compatible devices to each other, or to a computer, phone or display, for monitoring and configuration. At 1.8 metres it suits panel-mounted and cabinet installations where the device and monitoring interface sit close together.

Key features

• Length, 1.8m, suited to short to medium-distance runs between VE.Direct devices and monitoring equipment.
• Compatibility, works with all Victron products using the VE.Direct port, including BMV battery monitors, SmartSolar MPPT charge controllers and Phoenix inverters.
• Data and power, carries both over the VE.Direct interface, allowing configuration and live monitoring without a separate power supply.
• Used with, the VE.Direct to USB interface or VE.Direct Bluetooth Smart dongle to connect devices to VictronConnect or the VRM Portal.
• Weight, 55g, with a compact connector profile for tight cable spaces.
• Part number, ASS030530218, GTIN 8719076019619.

Product overview

VE.Direct is Victron's own serial communication protocol, used across their product range. The cable uses a dedicated connector at each end and passes data between devices such as MPPT charge controllers, BMV battery monitors and Phoenix inverters. It is the physical link required before any VE.Direct adapter, whether USB, Bluetooth or RS232, can function.

The 1.8m length is the most commonly specified option where the charge controller or inverter sits within roughly a metre of the monitoring display or interface dongle. Victron also offers 3m and 5m variants for longer runs. This cable carries no mains or battery power; it is a data cable only.

Applications

• Connecting a SmartSolar or BlueSolar MPPT charge controller to a BMV battery monitor for combined system data.
• Linking a Phoenix inverter or MPPT to a VE.Direct to USB interface for configuration via VictronConnect on a laptop or PC.
• Connecting devices to a Cerbo GX or Color Control GX for system integration and VRM Portal monitoring.
• Off-grid and mobile installations, including narrowboats, motorhomes and remote cabins, using Victron VE.Direct devices.
• Replacing a damaged or missing cable in an existing Victron installation.

What's in the box

• 1 x VE.Direct Cable, 1.8m (ASS030530218)

Installation notes

This is a low-voltage data cable, not a mains or high-current battery cable. It can be connected and disconnected without specialist electrical knowledge. Check that the VE.Direct port on each device is free before connecting. If it forms part of a larger solar or battery system, the wider installation should be carried out by a qualified electrician or MCS-accredited installer.
