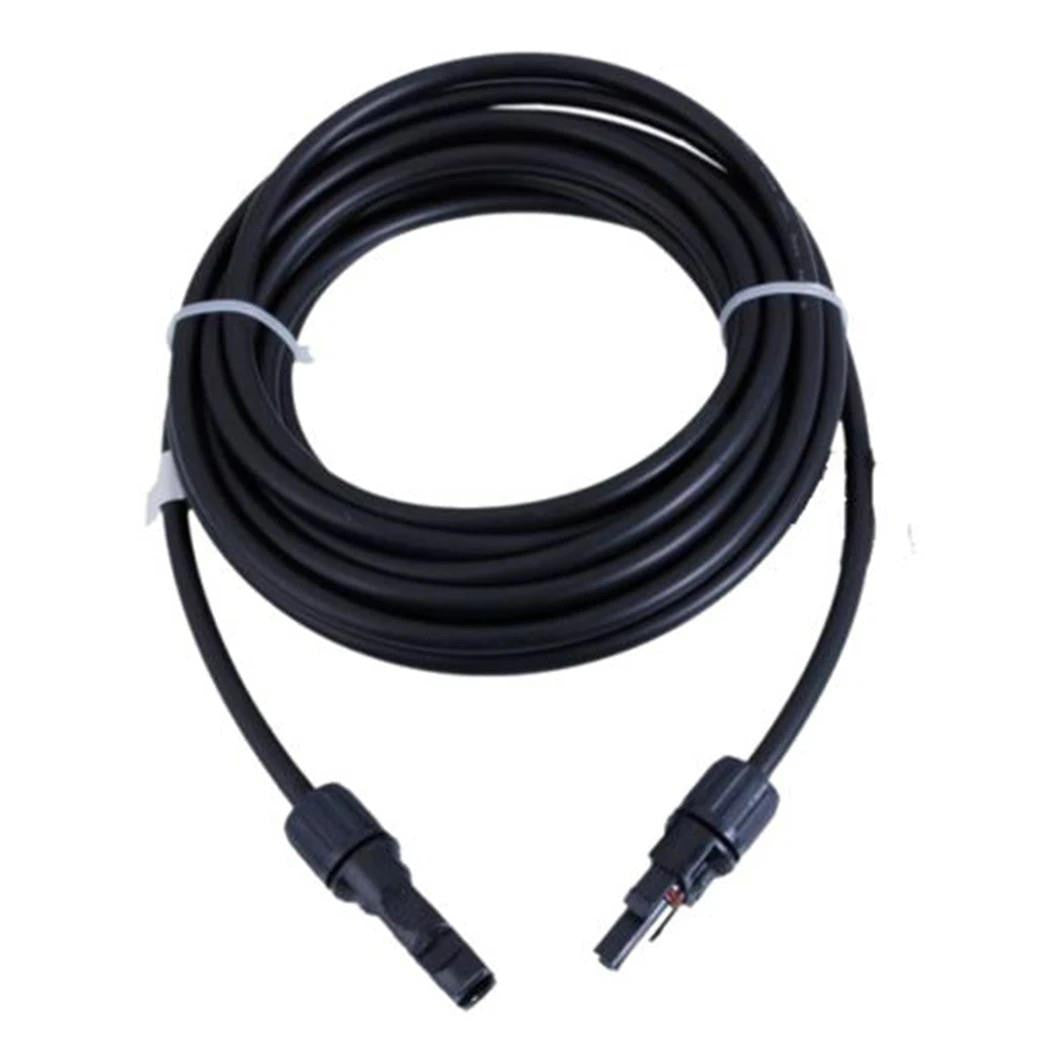

A pre-assembled 20 metre solar DC cable from Victron Energy, fitted with MC4-compatible male and female connectors (PV-ST01 type) at each end. It is intended for connecting solar panels to charge controllers, combiner boxes or other DC system components in off-grid and grid-tied installations.

Key features of this solar panel cable

• Length, 20 metres, enough for most roof-to-inverter or panel-to-combiner runs without extra joins
• Conductor, 6mm² cross-section, suited to higher-current PV string runs
• Connectors, MC4-compatible male and female (PV-ST01), pre-fitted for direct plug-in to standard MC4 leads
• Build, solar-rated cable construction for outdoor UV exposure, temperature cycling and PV DC voltage levels
• Ends, one male, one female, for straightforward polarity management
• Weight, 3.024kg

Applications

Use it to extend PV string leads from roof-mounted panels down to a ground-floor inverter or charge controller, or to link a combiner box output to the DC input of a Victron MPPT controller or MultiPlus inverter/charger. It also suits off-grid cabins, caravans, marine installations and ground-mount arrays where the panels sit some distance from the battery or inverter enclosure.

Installation notes

Fitting should be carried out by a qualified electrician or MCS-accredited installer. Check the cable rating against the maximum open-circuit voltage and short-circuit current of the array before connecting anything. Do not mix MC4-compatible connectors from different manufacturers on the same circuit, as tolerances vary and can affect contact and ingress protection. Confirm the 6mm² cross-section is adequate for the system's maximum current and run length. Grid-connected systems must meet the relevant requirements of BS 7671 and any applicable G98 or G99 agreement.

What's in the box

• 1 x 20 metre solar cable, 6mm², with MC4-compatible male connector (PV-ST01) at one end and female connector (PV-ST01) at the other
