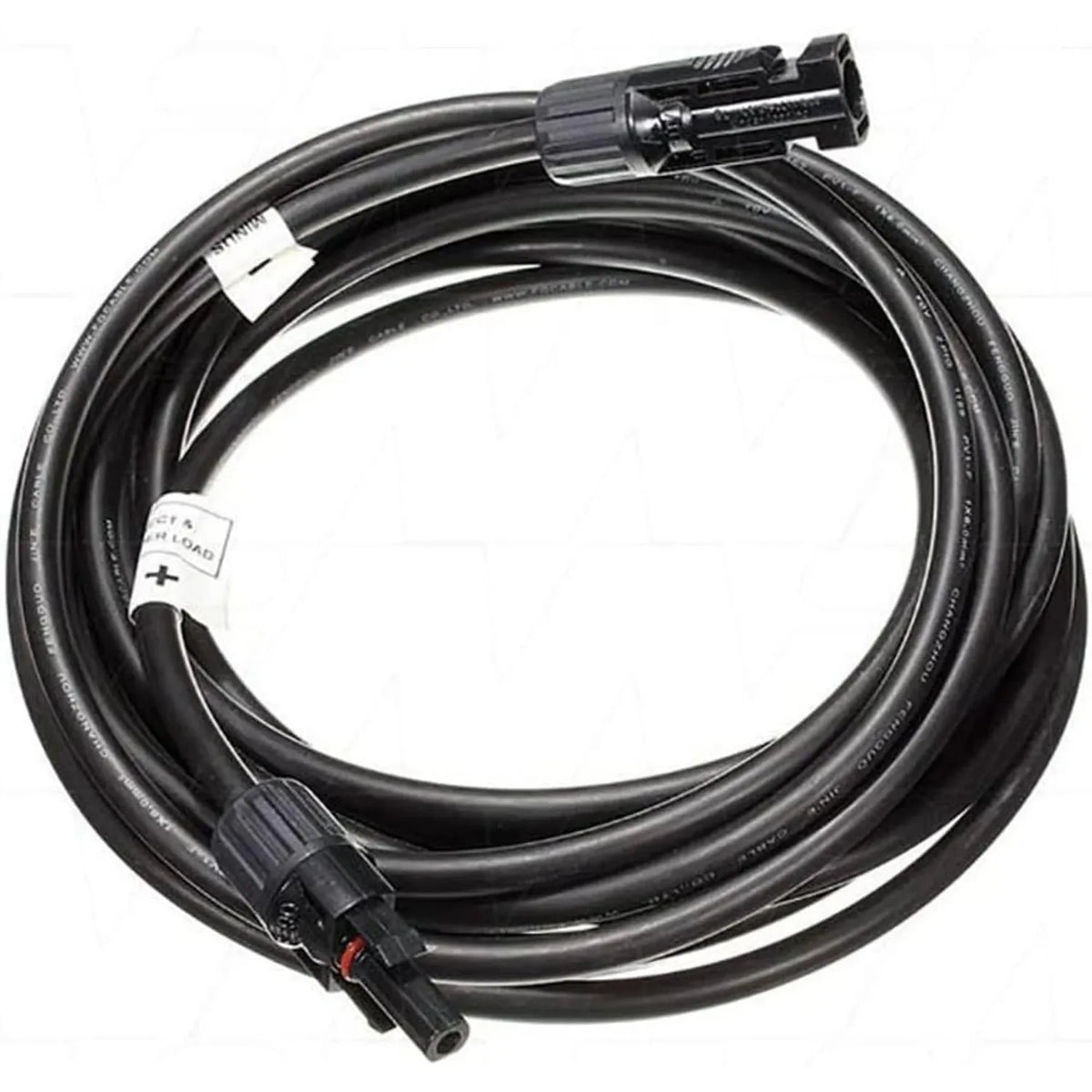

A pre-terminated solar cable from Victron Energy, 5 metres long with a 4mm² conductor cross-section, fitted with MC4-compatible male and female connectors of the PV-ST01 type. It links solar panels to combiner boxes, charge controllers or other parts of a PV system, and suits both residential and commercial installations.

Key features

• Length, 5 metres
• Cross-section, 4mm²
• Connectors, MC4-compatible male and female (PV-ST01), pre-fitted and ready to connect
• Sheathing, double-insulated, UV-resistant, suited to outdoor and rooftop use
• Application, DC solar wiring for panels and arrays
• Compatibility, works with Victron MPPT charge controllers and other Victron PV system components

Applications

Use it to extend or interconnect solar panel strings on a roof, to wire an individual panel to a combiner box or DC isolator, or as a weatherproof cable run in an off-grid, mobile or marine system built around a Victron MPPT controller. The male and female ends on the same cable also make it suitable as a direct interconnect between two PV components.

Installation notes

DC solar wiring should be carried out by a qualified electrician or MCS-accredited installer. Check the cable rating against the short-circuit current of the array before fitting it. MC4 connectors should only be mated or separated with the correct disconnect tool, and never under load. Grid-connected UK systems must meet BS 7671 and any applicable G98 or G99 network operator conditions.

What's in the box

• 1 x 5-metre solar cable, 4mm², MC4-compatible male connector at one end and female at the other (PV-ST01)
