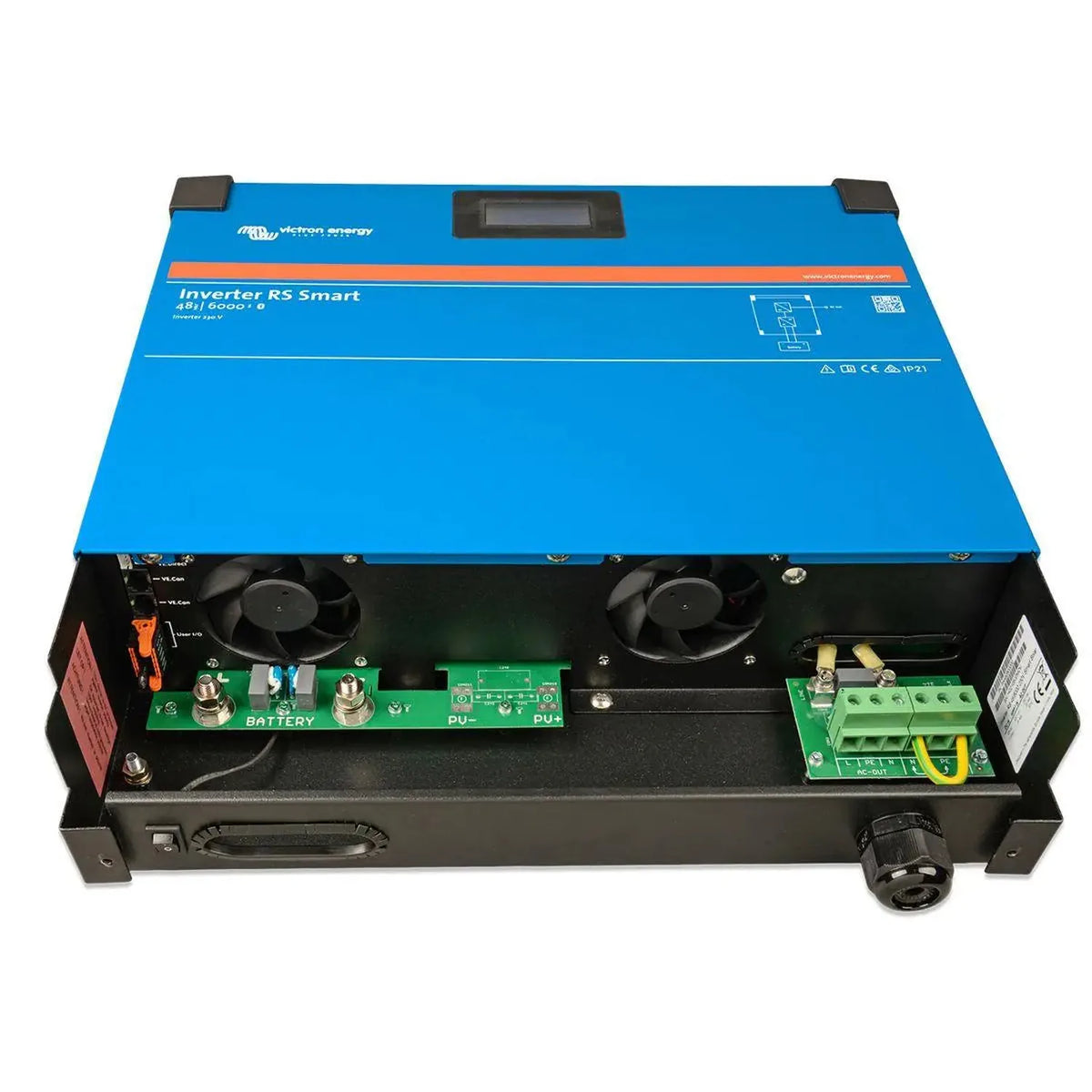

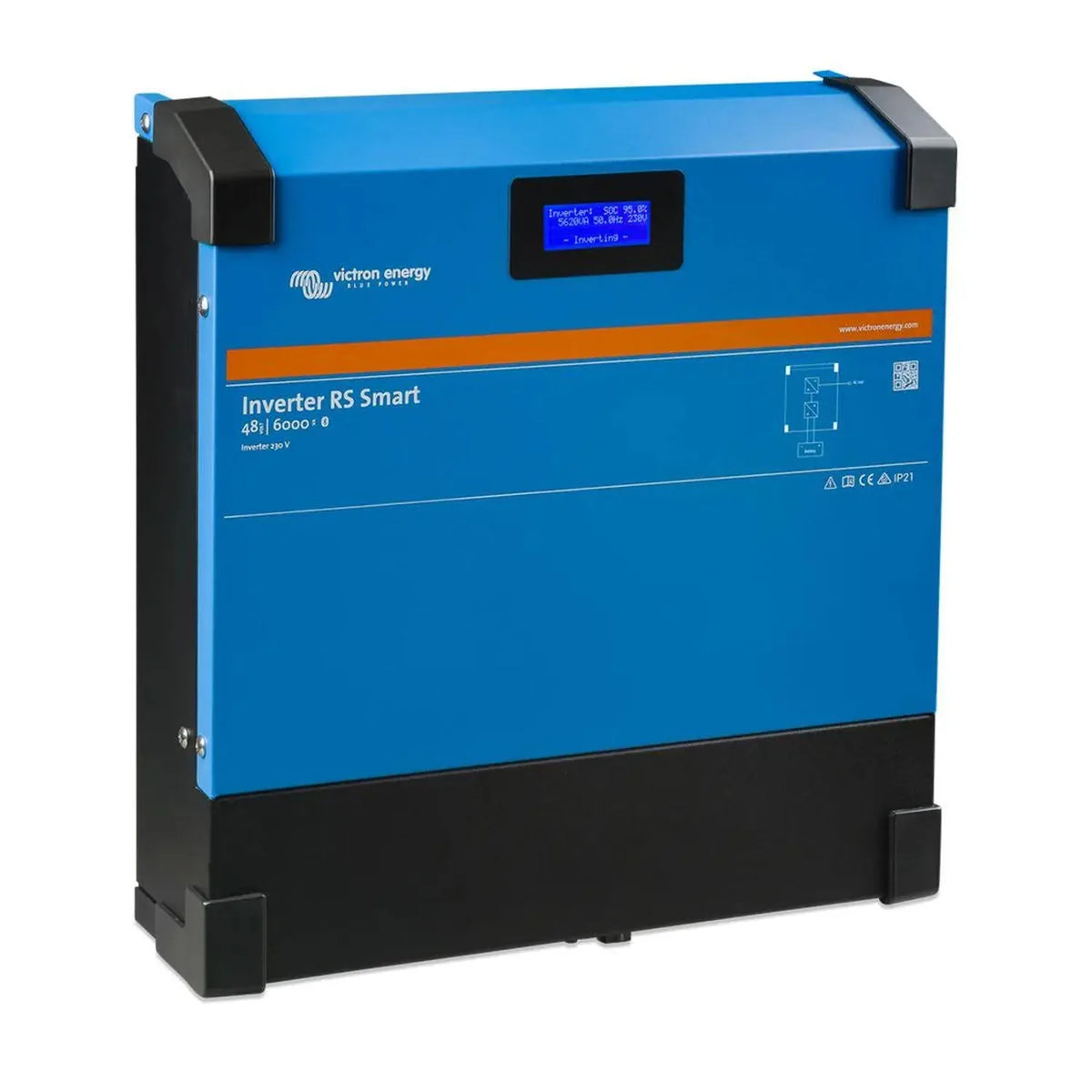

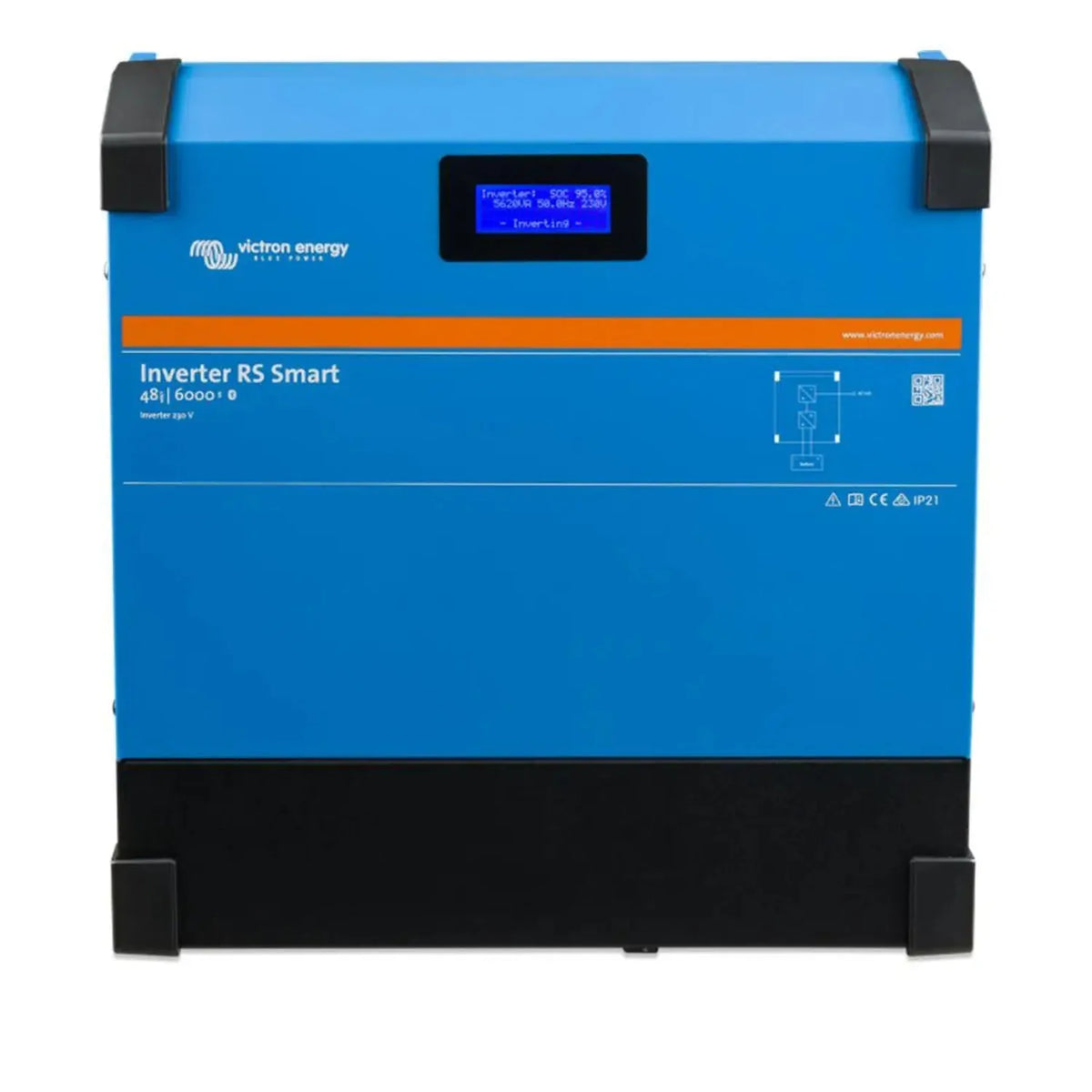

The Victron Inverter RS 48/6000 230V Smart is a 6000VA pure sine wave inverter built for 48V battery banks, outputting 230V AC. It suits off-grid installations, backup power systems and other setups where continuous high-power output and remote monitoring matter.

Victron inverter key features

• Output, 6000VA continuous from a 48V DC bank to 230V AC single phase.
• Waveform, pure sine wave output for sensitive loads such as motors and compressors.
• Bluetooth, built-in VictronConnect connectivity for wireless setup, monitoring and firmware updates.
• PowerControl and PowerAssist, lets the inverter supplement an AC source instead of overloading it.
• Battery compatibility, configurable for lead-acid and lithium battery chemistries.
• Protection, over-temperature, overload, short circuit and low battery voltage shutdown.

System integration

Pairing the inverter with a Victron GX device, such as a Cerbo GX, extends monitoring to the VRM portal for remote oversight. The RS series uses a high-frequency topology, keeping the unit compact at 11 kg for its power rating.

Applications

• Off-grid residential systems needing high continuous AC output from a 48V bank.
• Remote commercial or agricultural sites running AC loads without a grid connection.
• Backup power installations covering mains failure from stored battery energy.
• Marine and vehicle 48V DC systems with high AC load requirements.
• Hybrid systems built around Victron GX devices for MPPT, battery and load management.

Installation notes

Installation should be carried out by a qualified electrician or accredited installer experienced with DC battery systems and off-grid AC wiring. At 6000VA from a 48V bank, DC cable sizing and fusing matter: use correctly rated cable and a fuse or breaker close to the battery. This is not a grid-tied inverter and does not hold G98 or G99 approval for export to the UK grid.

What's included

• Victron Inverter RS 48/6000 230V Smart unit
