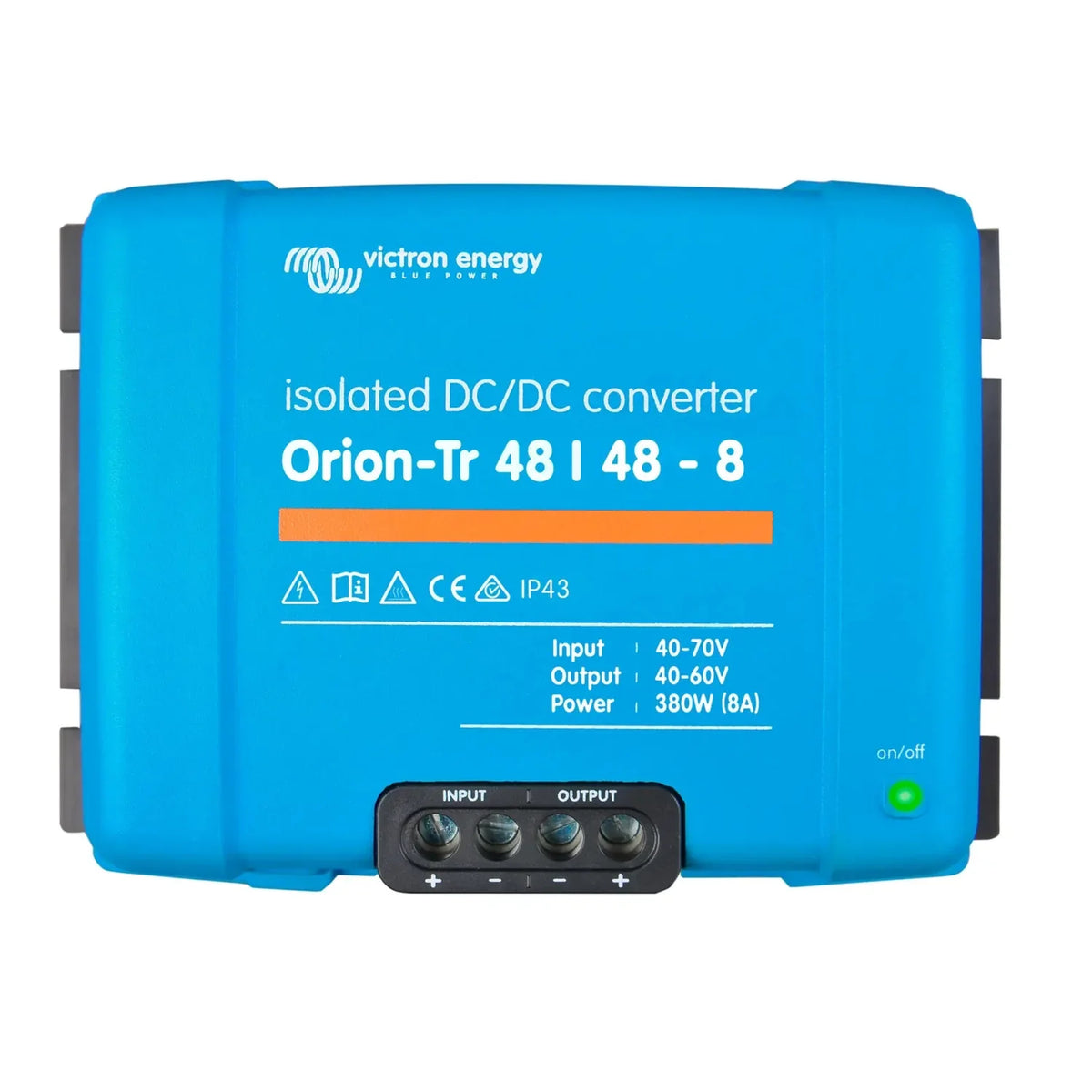

The Victron Orion-Tr 48/48-8A is a galvanically isolated DC-DC converter rated at 380W, built for 48V to 48V applications where the input and output need to stay electrically separate. It suits off-grid, marine, vehicle and industrial installations where two separate 48V systems must connect without sharing a ground reference.

Key features

• Isolation, galvanic, transformer-based, breaking the ground path between input and output circuits.
• Power output, 48V input to 48V output at up to 8A continuous, delivering 380W of regulated DC power.
• Housing, enclosed aluminium casing weighing 1.8kg, sized for fixed installation in confined spaces.
• Duty cycle, designed for continuous operation, suited to permanent installations rather than intermittent use.
• System fit, works alongside Victron's 48V range, including lithium and lead-acid battery banks.

Why isolation matters

A shared ground between two battery systems lets faults, leakage currents and noise travel between them. The Orion-Tr's transformer-based isolation removes that path. This is relevant to split charging on vehicles with sensitive electronics, marine installations with corrosion concerns, and industrial systems where isolated circuits are a safety requirement.

Keeping 48V on both sides looks unusual for a converter, but it lets the unit take a 48V source that varies under load or during charging and turn it into a stable, regulated 48V output. Downstream equipment then sees consistent voltage regardless of the source battery's state of charge.

Applications

• Split charging between two isolated 48V battery banks in off-grid or vehicle systems.
• Marine DC systems needing isolation to prevent corrosion between hull and battery circuits.
• Industrial equipment requiring a regulated, isolated 48V supply from a 48V bus.
• Telecommunications and data equipment powered from a 48V battery bank where isolation is specified.
• Auxiliary power in electric vehicle conversions or specialist vehicles with dual 48V systems.

What's in the box

• 1x Victron Orion-Tr 48/48-8A (380W) Isolated DC-DC Converter

Installation notes

Fit by a qualified electrician or systems integrator experienced with DC power. Rate input and output wiring correctly for the current and voltage, and fuse both sides. Check polarity before powering up. Marine installs should follow NMEA or flag state wiring standards. Avoid locations exposed to water ingress or without enough ventilation to manage heat build-up.
