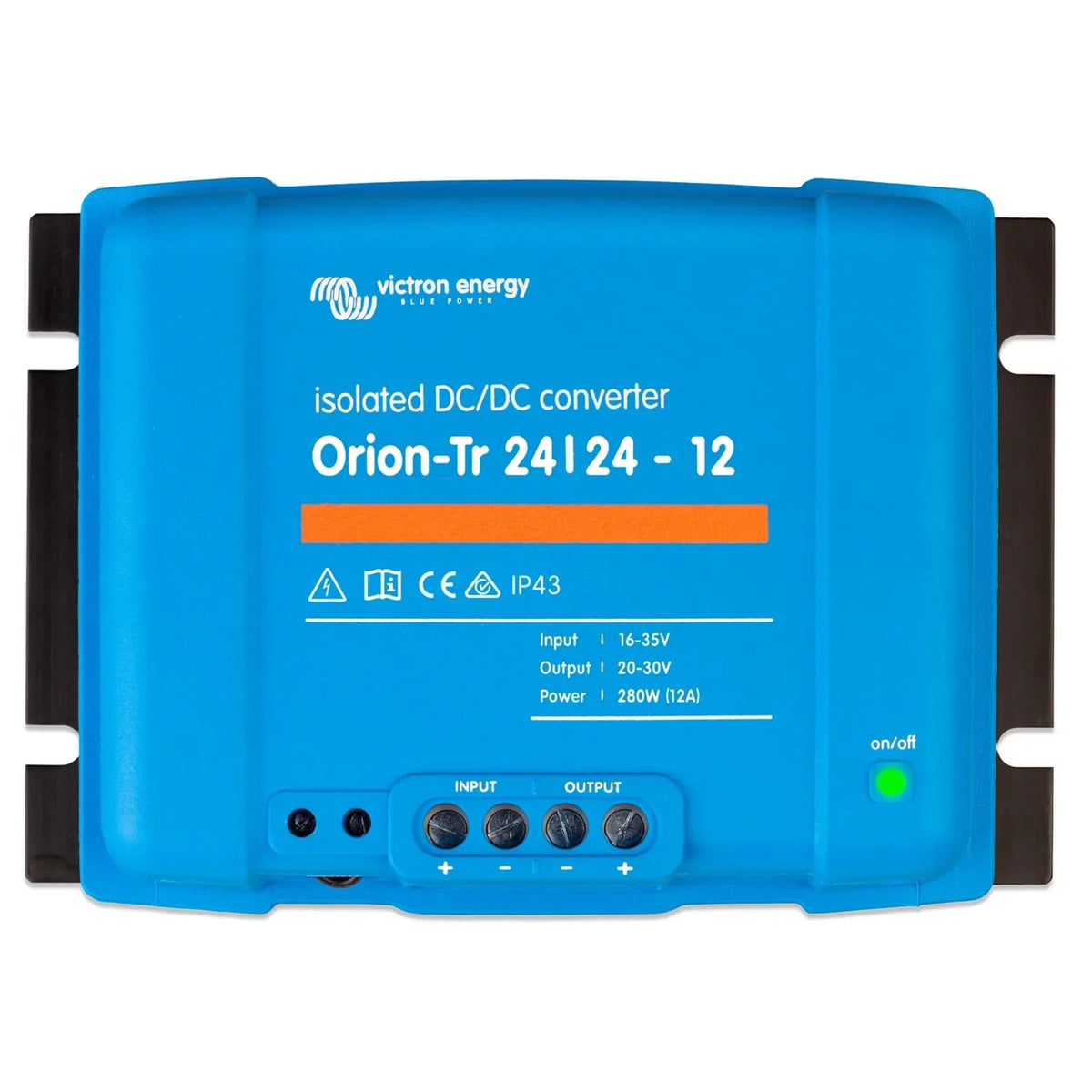

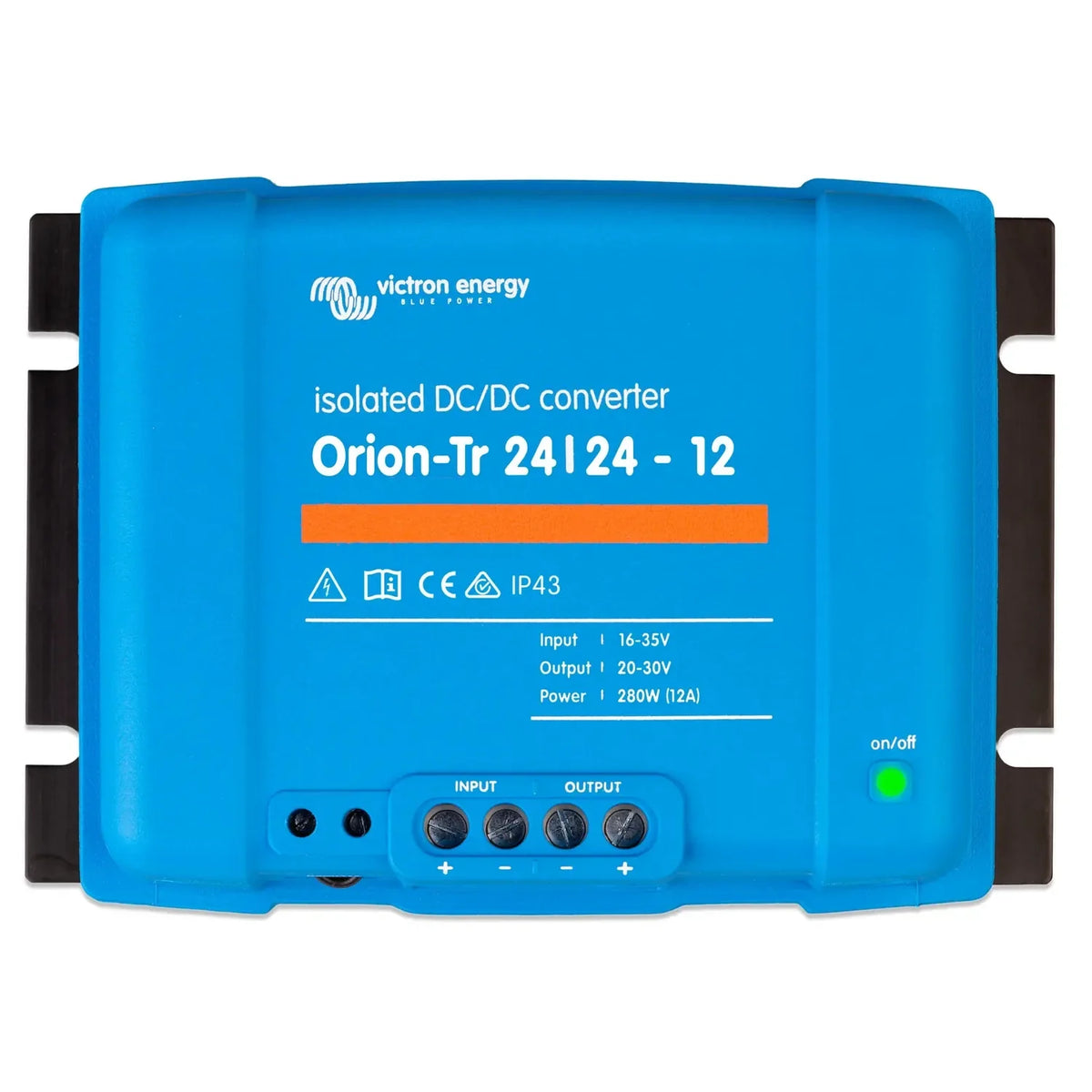

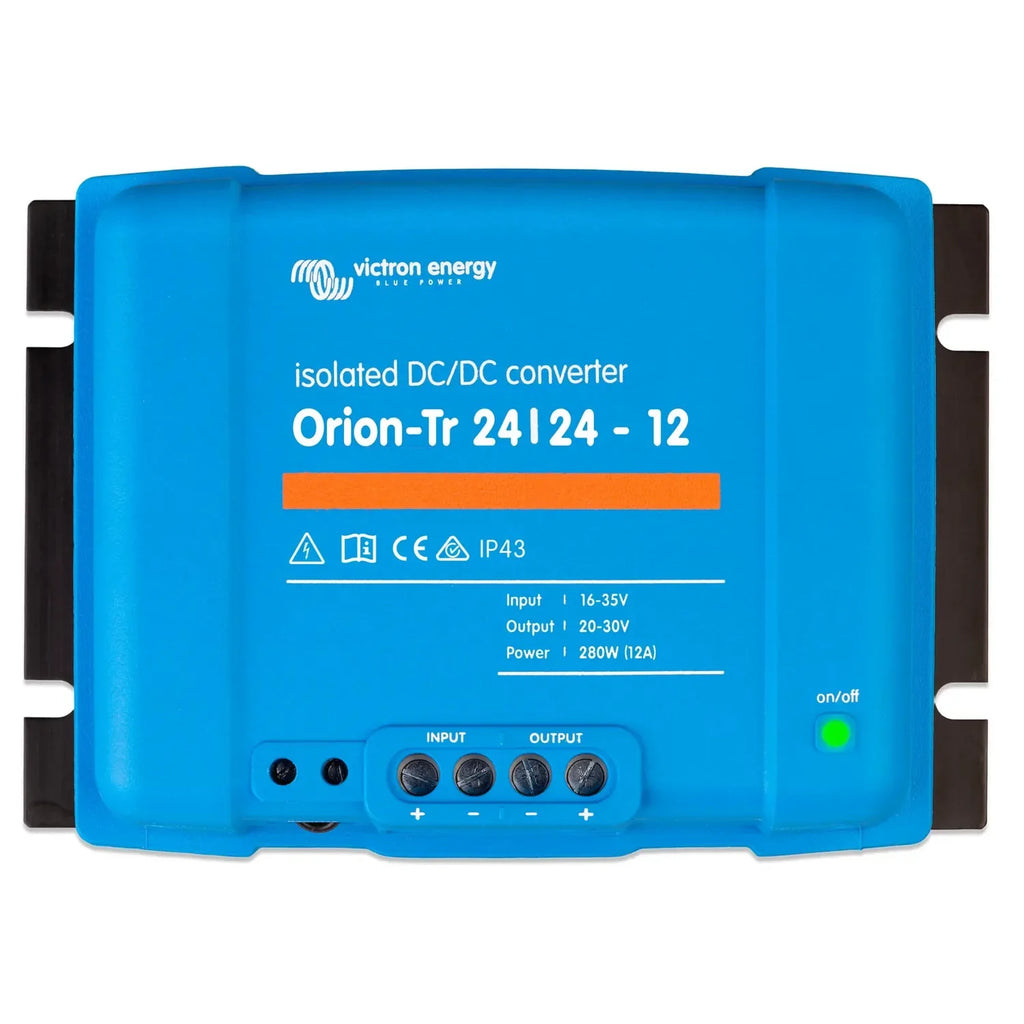

The Victron Orion-Tr 24/24-12A is a galvanically isolated DC-DC converter that steps or maintains a 24V input to a regulated 24V output at up to 12A, delivering up to 280W. It suits vehicle, marine and off-grid installations where the two DC circuits need to stay electrically separate.

Key features

• Isolation, galvanic, transformer-based, keeping input and output circuits electrically separate to prevent ground loops.
• Output, 24V DC input to 24V DC output (adjustable) at up to 12A, up to 280W.
• Cooling, convection cooled, no fan.
• Housing, enclosed aluminium casing weighing 1.3kg, suited to permanent mounting in confined spaces.
• Adjustable output, an internal trimmer allows the output voltage to be fine-tuned for different battery types or load requirements.

Product overview

The Orion-Tr uses an isolated, transformer-based topology, so the input and output share no common electrical path. That matters in vehicles, vessels and off-grid systems where two battery banks must stay separate for safety, noise rejection or regulatory reasons. Unlike a non-isolated converter, it can charge a secondary battery from a primary bank without creating a ground fault path between them.

At 280W and 12A output it can charge a secondary 24V service battery from a 24V starter or house bank, power 24V DC loads from an isolated supply, or feed sensitive electronics with a clean, regulated voltage. It is part of Victron's Orion-Tr series, which covers a range of input and output voltage combinations sharing the same isolated design.

Applications

• Charging a 24V secondary service battery from a 24V starter battery in commercial vehicles or HGVs, with full isolation between banks.
• Marine dual-battery systems where galvanic isolation helps prevent corrosion and ground loop interference.
• Off-grid and mobile installations needing a regulated, isolated 24V DC supply for control electronics.
• Motorhome and coach conversions with separate chassis and habitation battery circuits.
• Telecom and industrial DC distribution panels where circuit isolation is a design requirement.

What's in the box

• 1x Victron Orion-Tr 24/24-12A (280W) Isolated DC-DC Converter

Installation notes

Fitting should be done by a qualified electrician or an experienced 12/24V DC systems installer, with correct cable sizing and fusing on both input and output sides. In marine applications, follow the relevant DC wiring and bonding standards. Mount in a ventilated location away from water ingress, and confirm input voltage compatibility before connecting to any battery system.
