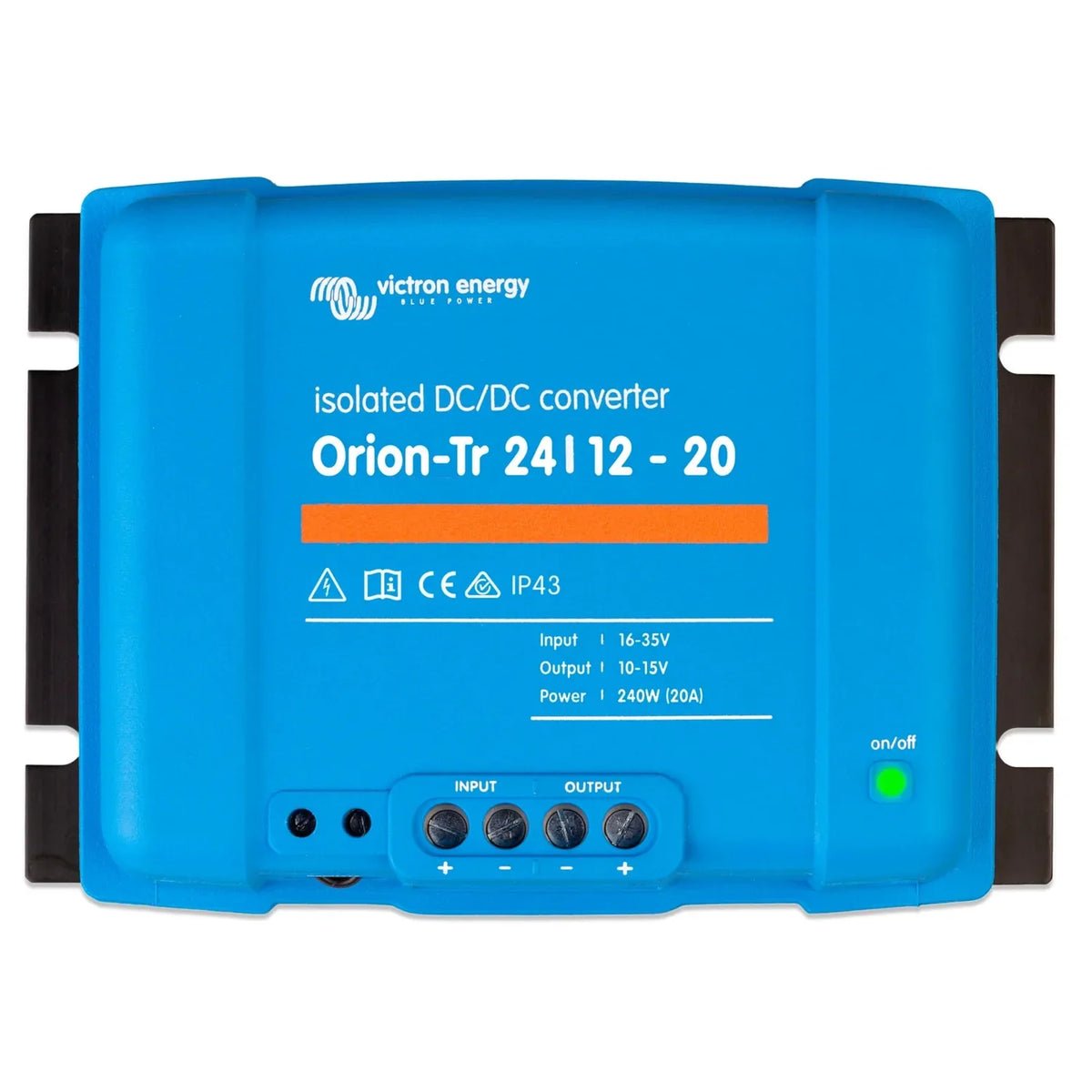

The Victron Orion-Tr 24/12-20A is a galvanically isolated DC-DC converter that steps a 24V DC input down to a regulated 12V DC output at up to 20A (240W). It suits vehicles, vessels and off-grid systems where two DC voltage rails need to stay electrically isolated from each other.

Key features

• Galvanic isolation, transformer-based isolation between input and output, preventing ground loops and protecting sensitive 12V electronics.
• Voltage conversion, 24V input to 12V output at a continuous 20A (240W) rating.
• Input range, copes with real-world 24V battery conditions, including partial charge and absorption voltages.
• Weight, 1.3 kg, in a compact enclosed housing suitable for confined mounting spaces.
• Adjustable output, output voltage can be tuned to match connected 12V loads or a battery's charge requirements.

Product overview

The Orion-Tr range uses a transformer-based topology for true galvanic isolation between input and output circuits. This matters in marine and vehicle installations, where a shared ground between battery banks can cause corrosion, interference or fault propagation. The two circuits stay electrically independent even though power passes between them.

At 240W continuous output, this unit suits powering 12V loads from a 24V house bank, charging a 12V service battery from a 24V alternator system, or feeding a 12V distribution circuit in a mixed-voltage installation. The adjustable output lets installers compensate for cable voltage drop or set a specific charge voltage when topping up a secondary battery.

This is a non-smart converter: no MPPT, no Bluetooth, no load detection or programmable charge algorithms. Victron's Orion-Tr Smart range covers those requirements instead.

Applications

• Powering 12V accessories from a 24V vehicle or vessel battery bank.
• Charging a 12V service battery from a 24V starter or house battery system.
• Supplying an isolated 12V feed in mixed-voltage off-grid DC systems.
• Marine installations needing galvanic isolation between battery circuits.
• Commercial vehicle conversions with separate 24V and 12V distribution rails.

Installation notes

Fit should be carried out by a qualified electrician or system integrator familiar with DC power systems. Fuse the input wiring close to the source battery and size cabling for the input current at 24V; fuse the output independently too. Marine installs should follow NMEA or RCD 2013/53/EU wiring standards as applicable. Mount in a ventilated location, clear of water ingress, and never exceed the rated input voltage range.

What's in the box

• 1 x Victron Orion-Tr 24/12-20A (240W) Isolated DC-DC Converter
