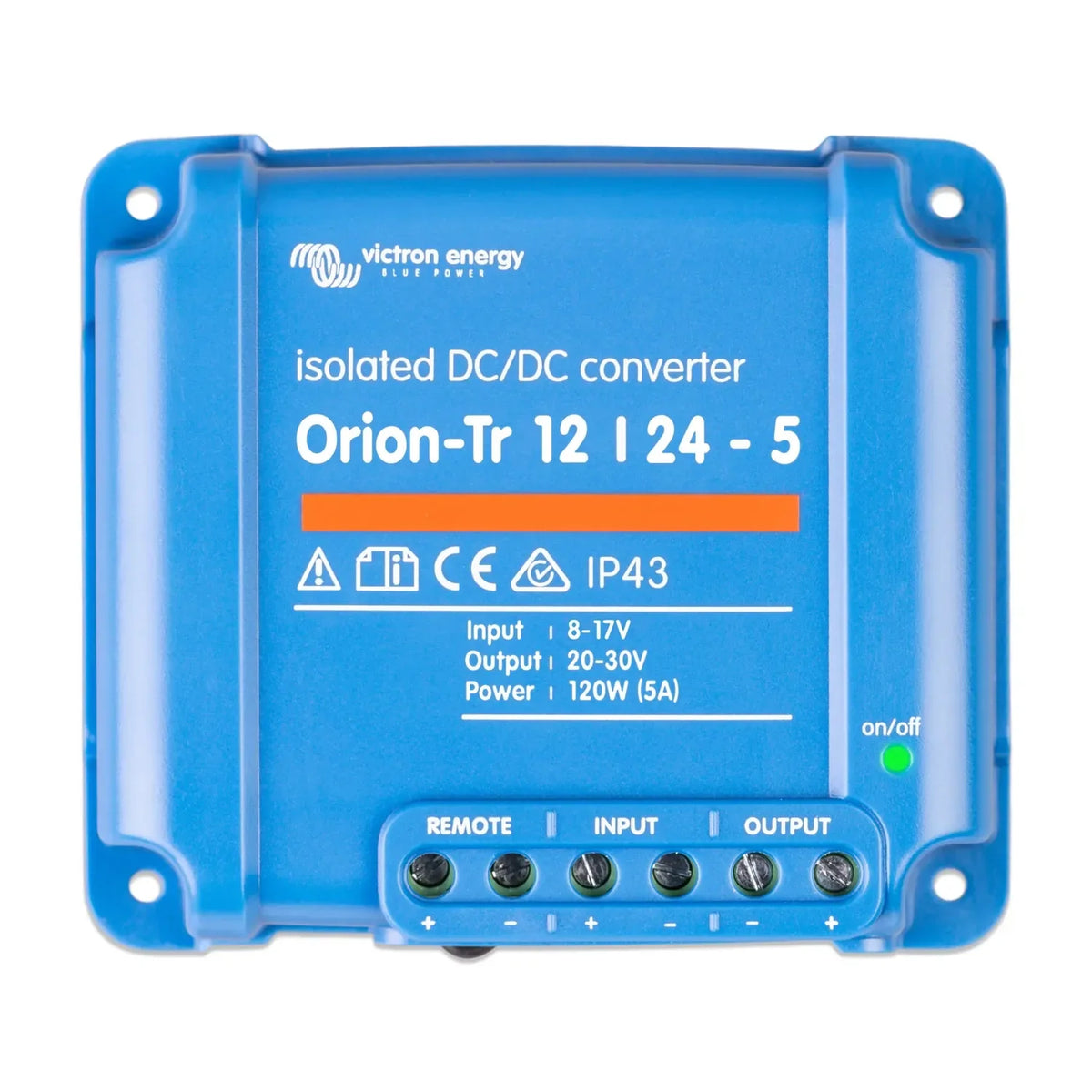

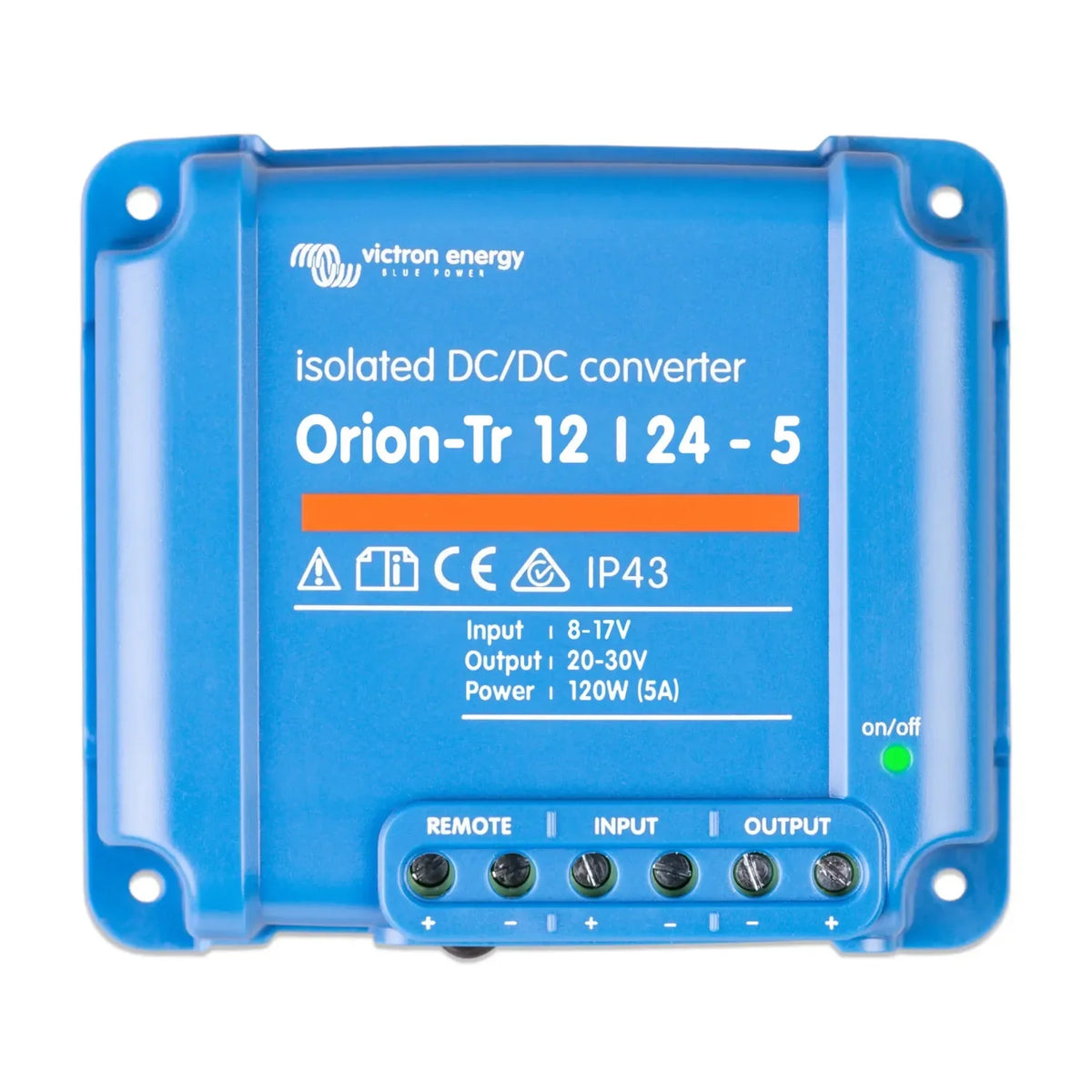

The Victron Orion-Tr 12/24-5A is a galvanically isolated DC-DC converter that steps a 12V input up to a regulated 24V output at 5A continuous, delivering up to 120W. It suits mobile, marine and off-grid installations where electrical isolation between two DC systems is needed for safety or compatibility.

Key features

• Galvanic isolation, transformer-based, separating input and output circuits and removing ground loop issues between dual-battery or mixed-voltage systems.
• Voltage conversion, 12V nominal input to a regulated 24V output at 5A continuous, 120W maximum.
• Input tolerance, wide input voltage range copes with battery voltage sag under load.
• Weight, 0.5kg, compact enough for confined spaces on vehicles, vessels or off-grid enclosures.
• Fixed output, stable regulated voltage, suitable for powering 24V loads directly from a 12V battery bank.
• Ecosystem fit, compatible with Victron's wider range of battery management and monitoring products.

Product overview

The Orion-Tr range uses a transformer-based topology for true galvanic isolation between input and output. That matters when linking two independent battery systems, or when powering 24V equipment from a 12V source in a vehicle or vessel where a shared ground could cause interference, corrosion or safety concerns. The isolation barrier also shields downstream equipment from voltage spikes on the input side.

At 120W output, the unit is suited to moderate 24V loads: communication equipment, control panels, instrumentation, or secondary battery charging from a 12V source bank. Output voltage stays regulated across the input range, useful given how battery voltage moves during charge and discharge.

This is a fixed-voltage converter without remote on/off control or programmable output adjustment. Victron's Orion-Tr Smart range covers those needs instead. Installation is straightforward, but correct cable sizing and fusing on both input and output sides matters given the current levels involved.

Applications

• Powering 24V loads from a 12V vehicle or vessel battery system.
• Isolated DC supply for marine electronics, communication equipment or instrumentation.
• Off-grid cabins and mobile installations with mixed 12V and 24V circuits.
• Secondary battery charging where input and output isolation is required.
• Eliminating ground loops in dual-battery or dual-voltage DC systems.

Installation notes

Installation should be carried out by a qualified electrician or experienced system integrator familiar with DC wiring practices. Both circuits need correct fusing as close to the source as practicable, and cable cross-sections rated for the full input current, which runs higher than the output current due to the voltage step-up. Marine installs should follow NMEA or flag-state wiring standards where applicable. Not intended for connection to AC mains circuits.

What's in the box

• Victron Orion-Tr 12/24-5A (120W) Isolated DC-DC Converter (ORI122410110)
