Off Grid Solar System - 1KW PV - 4 x 100 A/h - 1600W Inverter & 50 Amp Reg.

This system has proven performance with 1200w of continuous power - Perfect for fridge, lights and small draw appliances.

If you want to run powertools, microwaves, toasters and maybe a small a/c - we have the option to step up to a 3000w inverter and 2 more batteries. Contact us for more info.

THIS PACKAGE INCLUDES

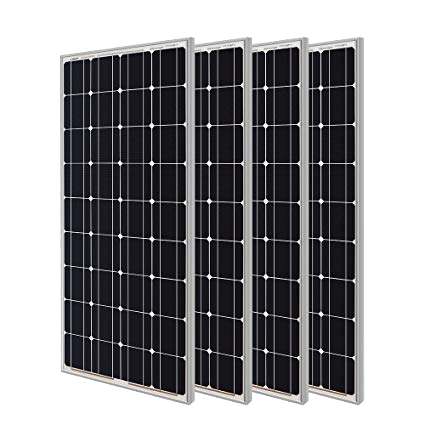

• 4x 250w Solar Panels (EX DISPLAY) 10 years warranty
• BlueSolar MPPT 100/50 (12/24V-50A)

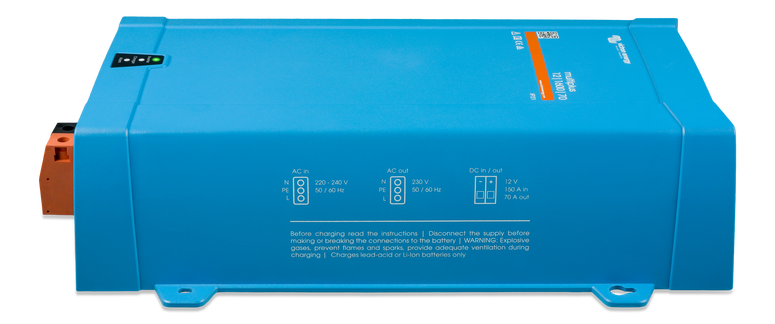

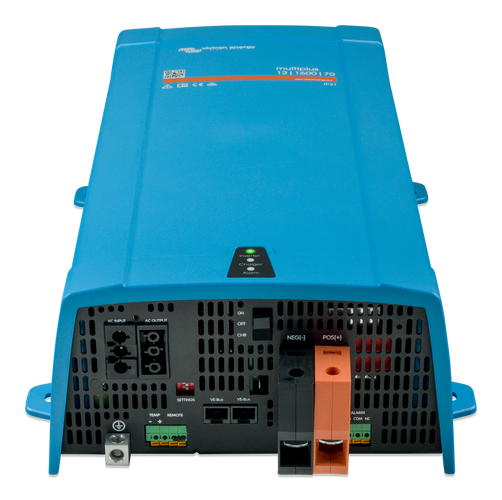

• Victron EasySolar 24/1600 Inverter Charger

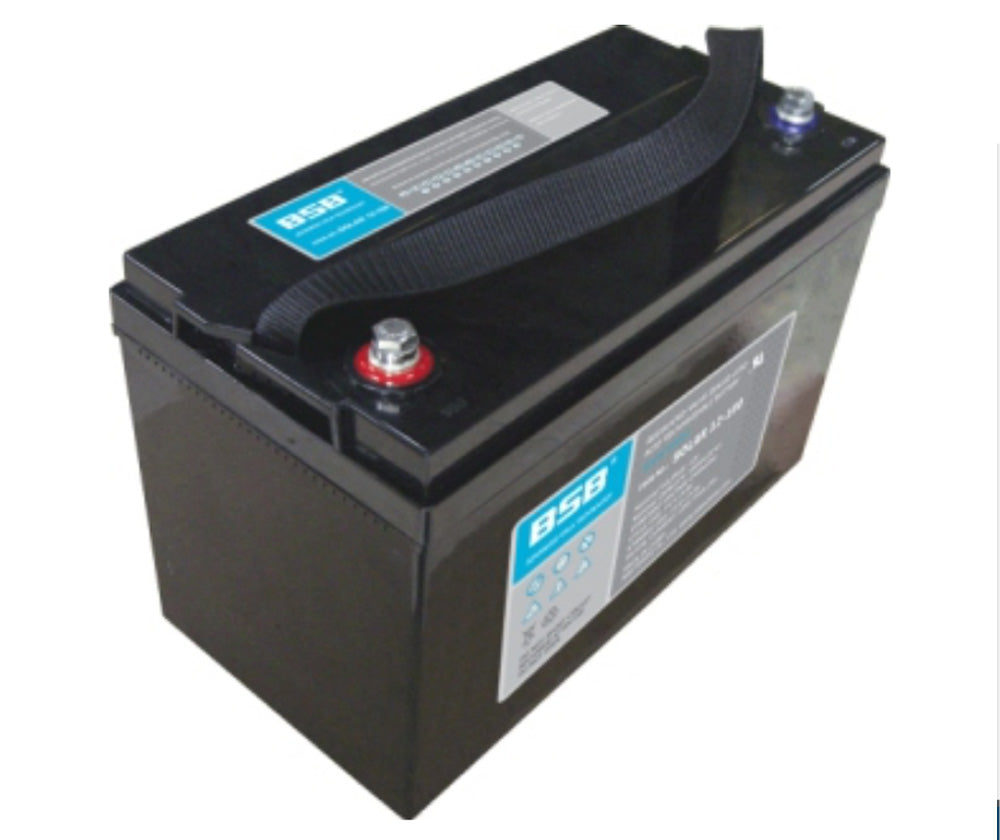

• 4x 100Ah 12v AGM batteries
• DC Disconnect / Battery Breaker
• DC Solar PV breakers
• 5 Metres of Battery Cabling 70mm2 – in suitable lengths with lugs fitted
• 20 Metres of Solar Cable
• Solar Panel racking to suit Tin roof (Tile & Tilt upgrades available)
• Safety Sticker Kit

INVERTER CHARGER

Features Proven reliability The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverter is short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

PowerControl - Dealing with limited generator, shore side or grid power With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.

PowerAssist - Boosting the capacity of shore or generator power Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery.

When the load reduces, the spare power is used to recharge the battery. High start-up power Needed to start high inrush loads such as power converters for LED lamps, halogen lamps or electric tools. Search Mode When Search Mode is ‘on’, the power consumption of the inverter in no-load operation is decreased by approx. 70%. In this mode the Multi, when operating in inverter mode, is switched off in case of no load or very low load, and switches on every two seconds for a short period. If the output current exceeds a set level, the inverter will continue to operate. If not, the inverter will shut down again.

Programmable relay By default, the programmable relay is set as an alarm relay, i.e. the relay will de-energise in the event of an alarm or a pre-alarm (inverter almost too hot, ripple on the input almost too high, battery voltage almost too low).

Specs - Check them out HERE.
