Description

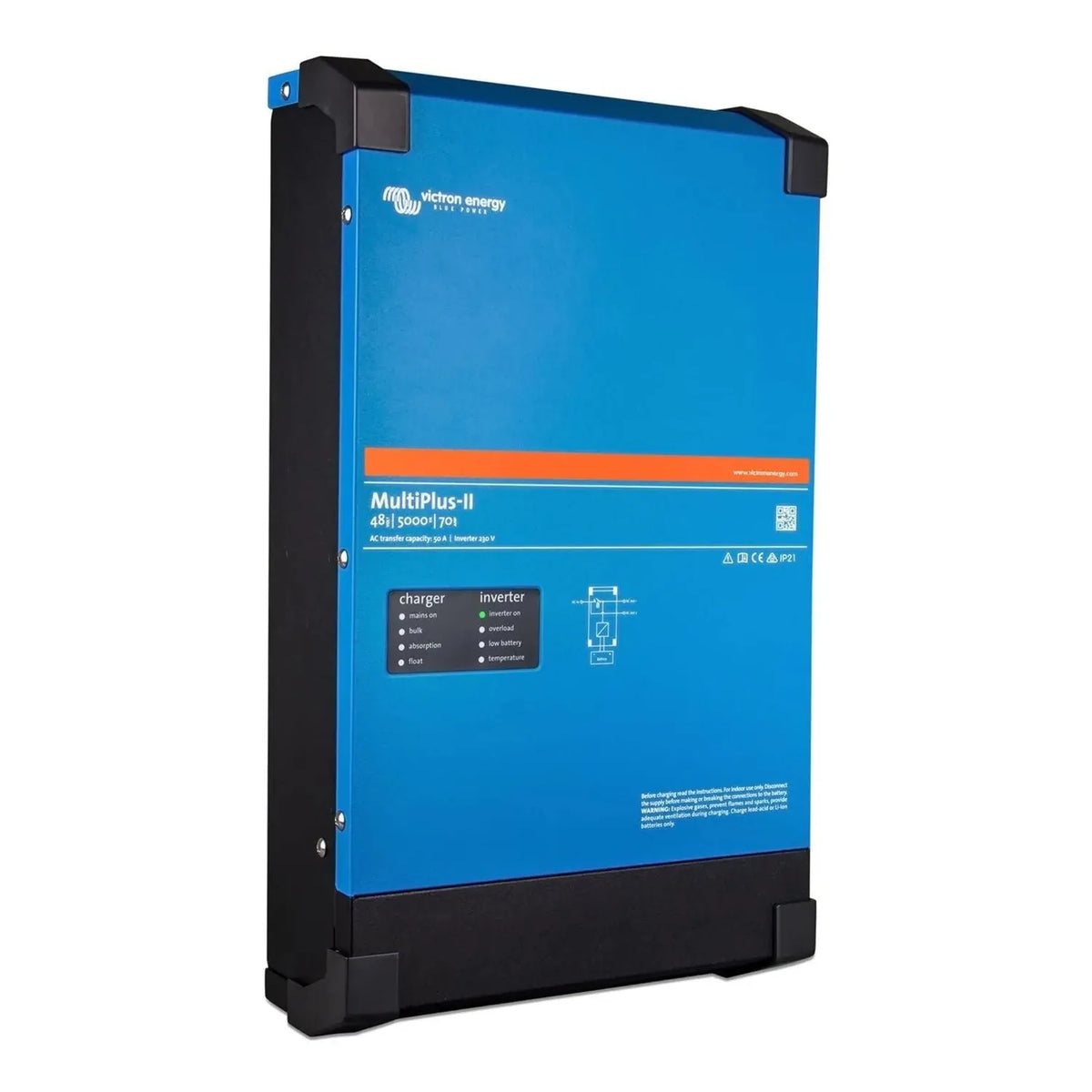

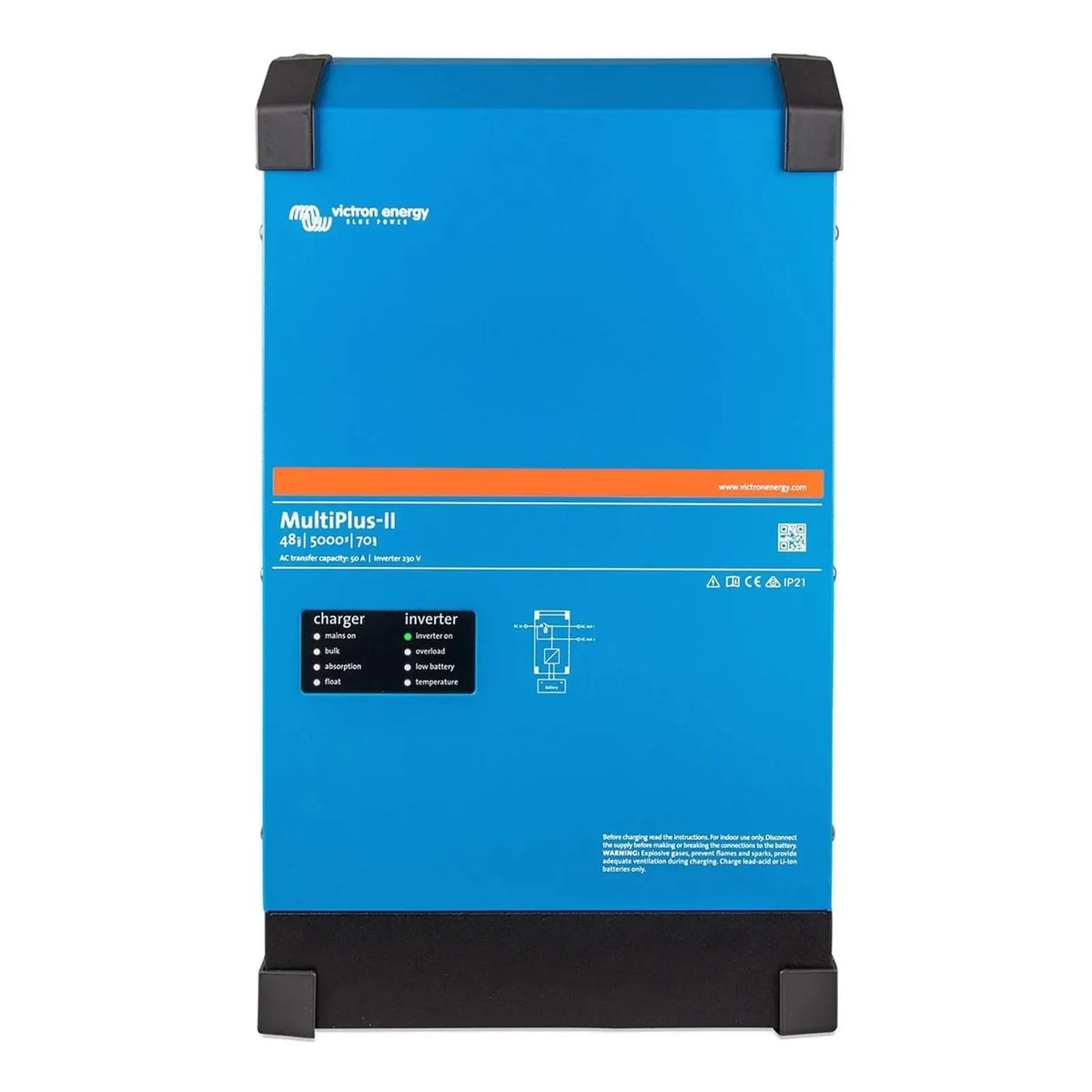

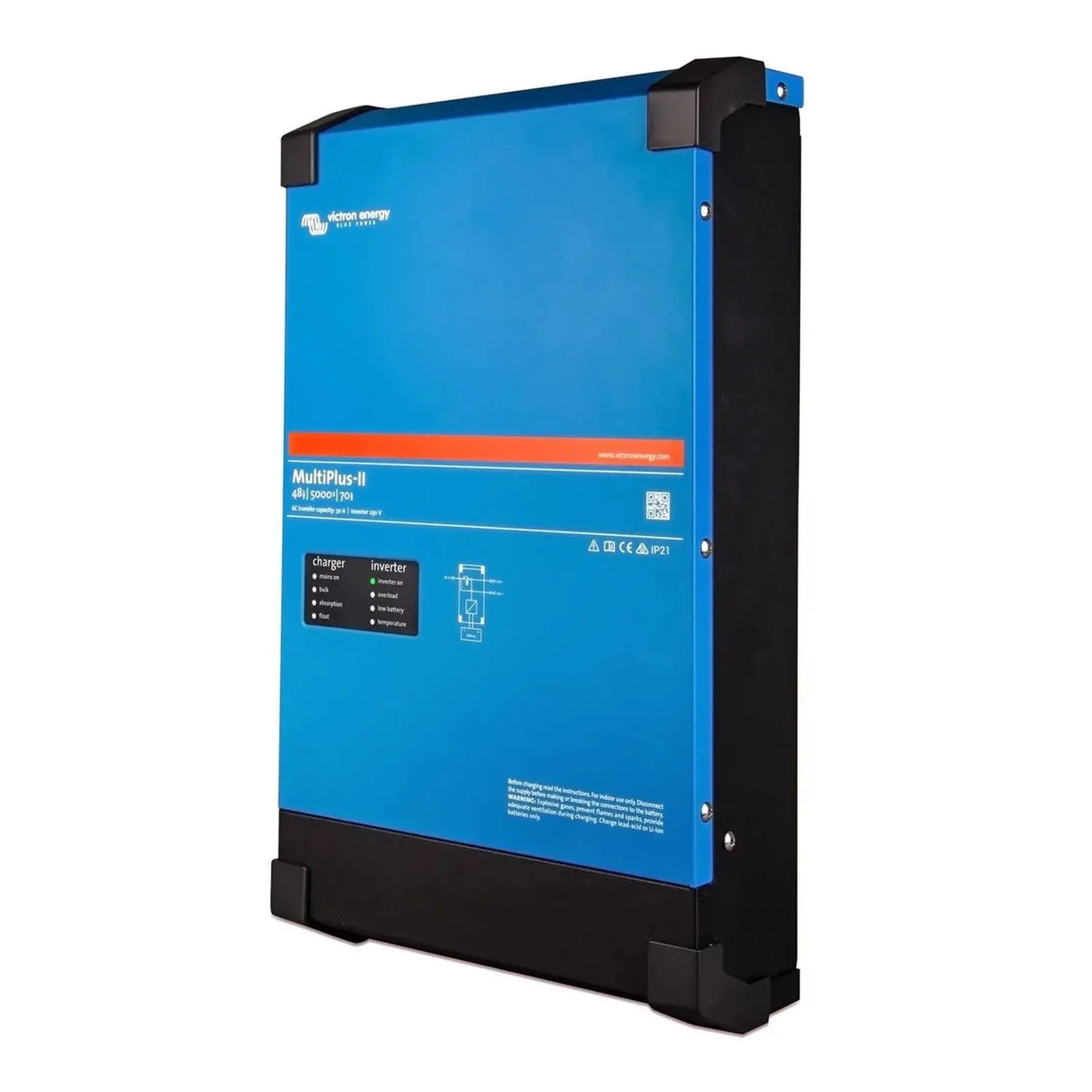

The Victron MultiPlus-II 48/5000/70-50 230V (PMP482505012) is a 5000VA inverter charger built around a 48V battery bank. It combines a pure sine wave inverter, a 70A battery charger and an automatic transfer switch in one unit, delivering 230V AC output for off-grid, backup and solar storage installations.
Battery charger with inverter for 48V systems
- Inverter output, 5000VA continuous, 48V DC input, 230V AC pure sine wave output.
- Battery charger, 70A output with adaptive charge management for lead-acid and lithium batteries.
- AC input limit, 50A, with PowerControl and PowerAssist to avoid overloading a generator or shore power feed.
- Transfer switch, automatic changeover between mains and inverter output in less than 20ms.
- Parallel and three-phase, multiple units can be combined for higher power or three-phase systems.
- Communication, VE.Bus for monitoring and configuration via VictronConnect or Venus OS, plus a programmable relay and two-signal BMS connection.
PowerAssist and PowerControl
PowerAssist draws extra current from the battery when load exceeds what a limited AC source, such as a generator or shore power connection, can supply on its own. This stops a generator overloading or a shore breaker tripping in marine, vehicle or remote site setups. PowerControl works the other way, capping AC input draw at a set limit and sending any spare capacity to charging.
Up to six units can run in parallel for a maximum of 30kVA, or three units per phase for a three-phase configuration, useful on larger off-grid or commercial sites. Configuration and firmware updates go through VE.Bus, using a GX device or an MK3-USB interface.
Technical specifications
| Parameter | Value |
|---|---|
| SKU | PMP482505012 |
| Inverter Output Power | 5000VA |
| DC Input Voltage (Nominal) | 48V |
| AC Output Voltage | 230V AC |
| AC Output Waveform | Pure sine wave |
| Battery Charger Output | 70A |
| AC Input Current Limit | 50A |
| Transfer Switch Time | Less than 20ms |
| Communication Interface | VE.Bus |
| Parallel Operation | Up to 6 units (max 30kVA) |
| Phase Configuration | Single phase or three phase |
| Weight | 28 kg |
| GTIN | 8719076058366 |
Applications
- Off-grid residential and commercial solar installations with 48V battery banks.
- Hybrid solar systems needing both generator or grid charging and battery backup.
- Marine and vehicle power systems.
