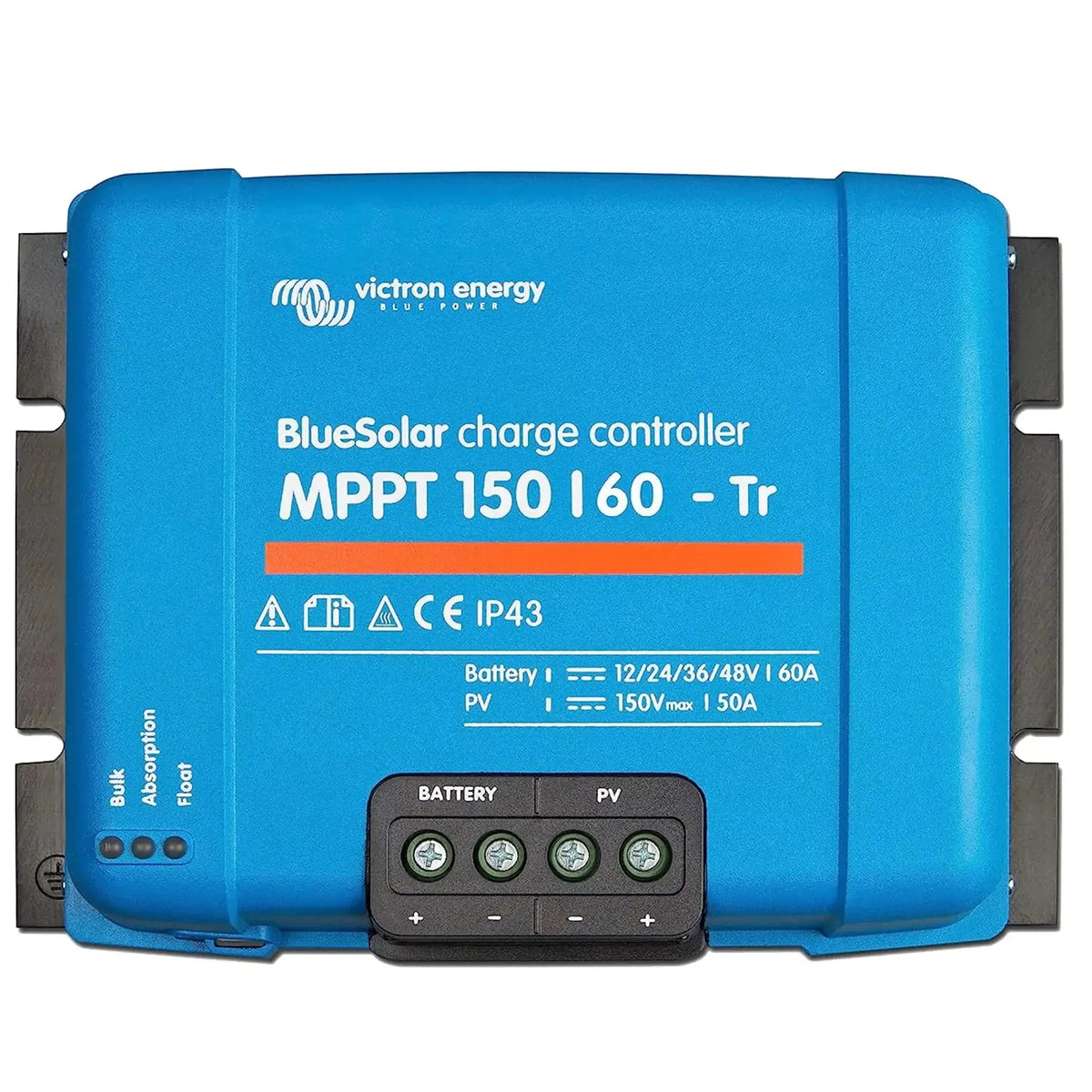

The Victron BlueSolar MPPT 150/60-Tr is a solar charge controller for off-grid and battery-based solar systems. It takes a maximum PV open-circuit voltage of 150V and delivers up to 60A of charge current, making it suited to medium and large battery banks on 12V, 24V or 48V systems.

Key features

• PV input, 150V maximum open-circuit voltage, allowing series-connected panel strings without a separate combiner in many setups.
• Charge current, 60A maximum, compatible with 12V, 24V and 48V battery systems.
• MPPT tracking, continuously adjusts to extract available power from the array.
• Connections, Tr screw terminals on both PV and battery sides.
• Communication, VE.Direct port for connection to Victron GX products and other compatible devices.
• Battery chemistries, supports lithium (LiFePO4), AGM, gel and flooded batteries with configurable charge algorithms.
• Load output, built-in output for direct connection of DC loads.

Product overview

This unit sits in Victron's BlueSolar range, which does not include the Bluetooth radio built into the SmartSolar series. Bluetooth monitoring can be added with the optional VE.Direct Bluetooth Smart dongle. Charge profiles are set through the VictronConnect app or a compatible MPPT Control display. The Tr designation means screw terminal connections, suited to installations wired through a combiner box or junction enclosure. The controller weighs 3.88kg and is housed in a metal enclosure for wall or panel mounting.

Applications

• Off-grid residential systems with 12V, 24V or 48V battery banks.
• Marine and narrowboat installations needing a high-current 150V MPPT controller.
• Remote telecoms, monitoring stations and rural off-grid buildings.
• Motorhome and vehicle systems with roof-mounted arrays.
• Victron GX-integrated systems using VE.Direct for centralised monitoring.

What's in the box

• Victron BlueSolar MPPT 150/60-Tr charge controller
