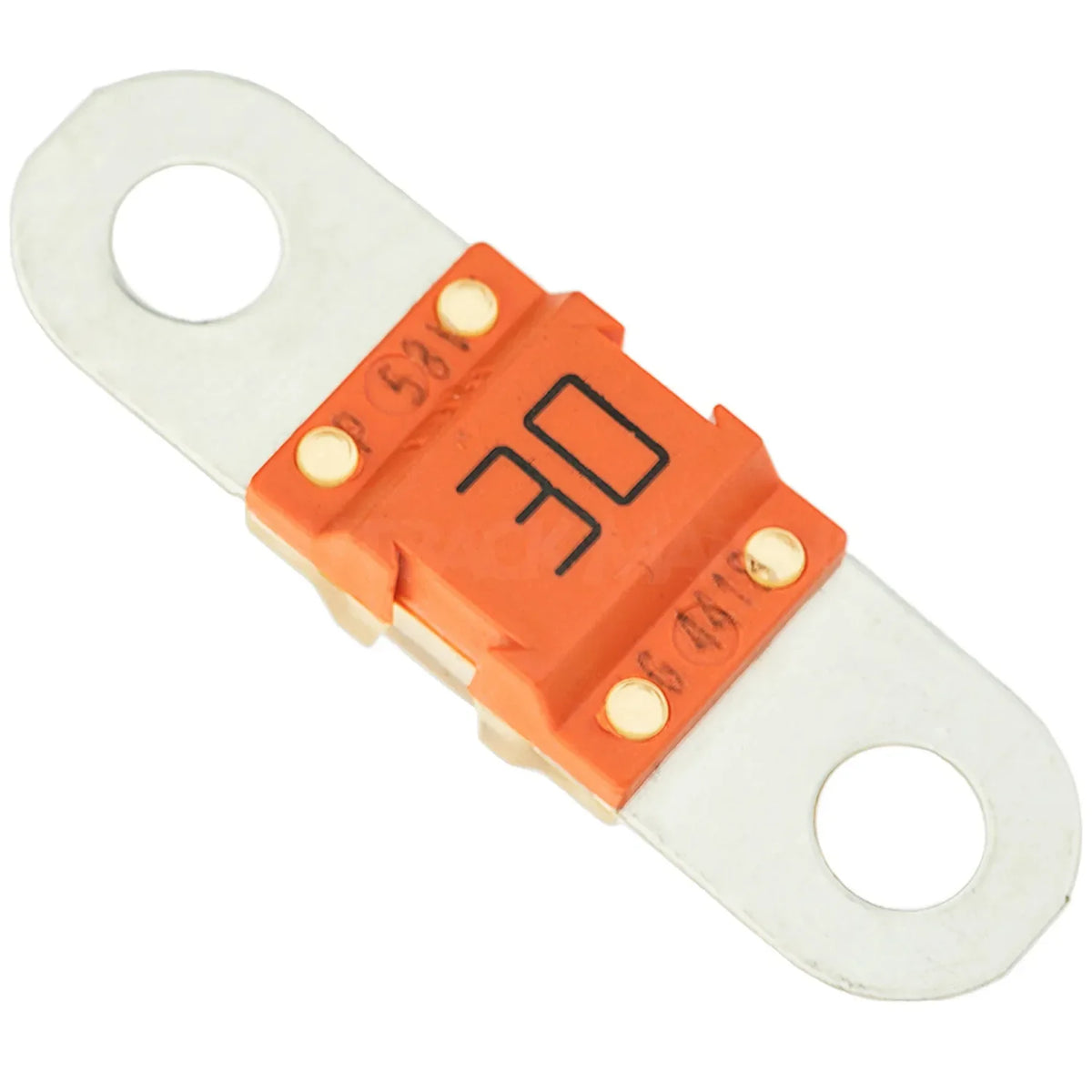

A pack of five Victron Energy MIDI fuses rated at 30A and 58V DC, fitted with an M6 bolt connection for standard MIDI fuseholders. They protect DC wiring in solar, battery and inverter installations where a MIDI-format fuse is called for.

Key features

• Current rating, 30A continuous
• Voltage rating, 58V DC
• Connection, M6 bolt for a secure, low-resistance termination
• Format, MIDI, compatible with Victron and third-party MIDI fuseholders
• Pack quantity, 5 pieces
• Weight, 0.015kg per pack

Applications

These fuses suit 12V, 24V and 48V DC battery systems, sitting within branch circuits or between inverters, charge controllers and battery banks. The M6 fixing keeps the connection tight in the fuseholder, which helps avoid resistance building up at the terminal. Because MIDI fuses show a clear visual indication when blown, they are quick to check and replace during fault-finding.

A pack of five suits installers commissioning several circuits at once, or those keeping spares for service visits.

What's in the box

• 5 x Victron MIDI fuse 30A/58V M6

Installation notes

Check the fuseholder is rated for the circuit's voltage and current before fitting, and isolate the DC circuit before replacing a fuse. These fuses are rated for DC use only, up to 58V maximum. Fitting within battery and inverter systems should be carried out by a qualified electrician or accredited installer familiar with DC protection work.
