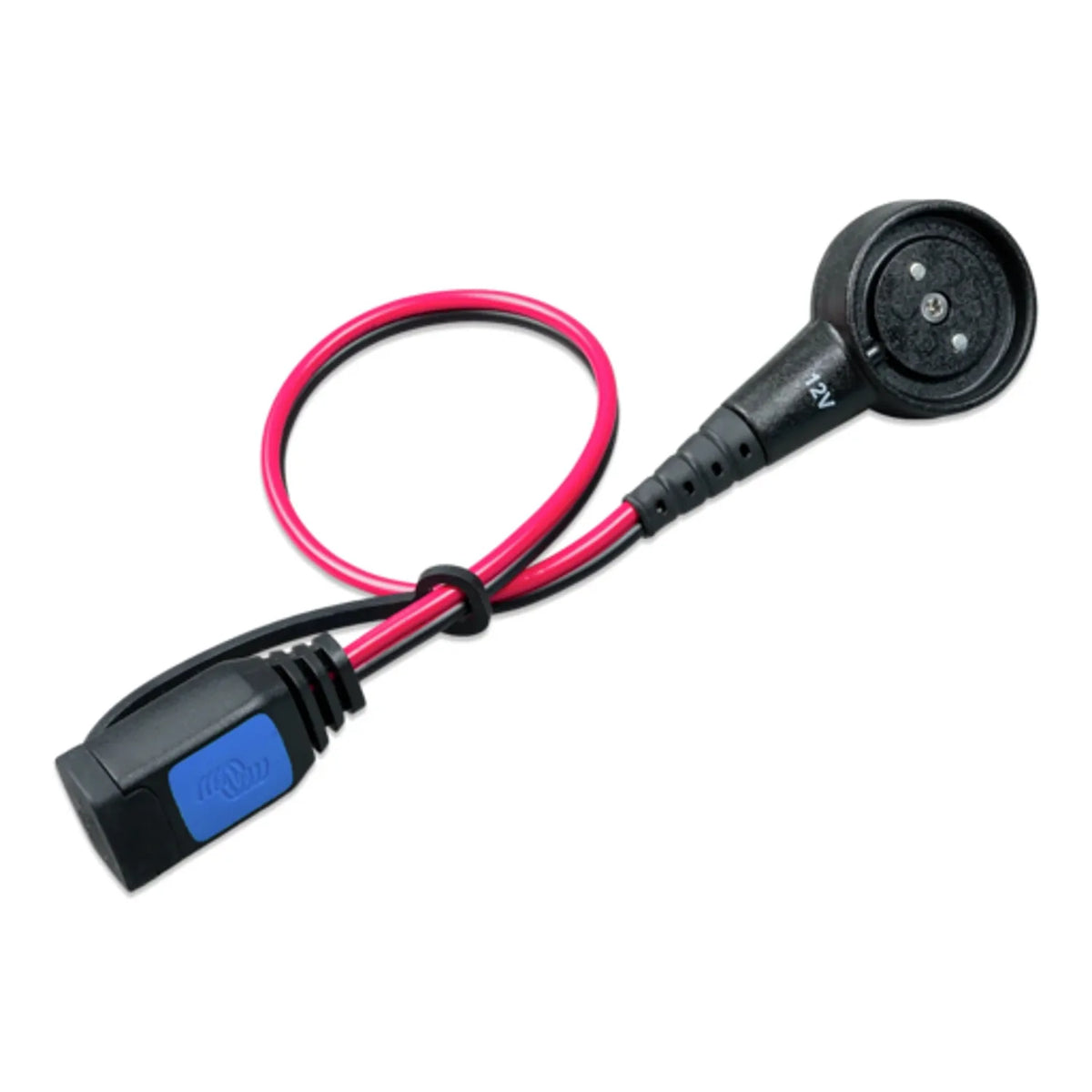

The Victron MagCode Power Clip is a magnetic quick-connect accessory for Victron Blue Power IP65 chargers. It gives a 12V DC output point rated to a maximum of 15A, so a charger can be attached or removed without handling bare terminals or plugs.

Key features

• Connection type, magnetic coupling for tool-free attachment and detachment.
• Voltage, 12V DC.
• Maximum current, 15A.
• Weight, 0.08 kg.
• Compatibility, accessory for Victron Blue Power IP65 chargers.

Product overview

The clip's magnetic design lets it seat correctly without manual pin alignment, and it releases cleanly under tension rather than pulling on the wiring. That makes it useful anywhere a charger gets connected and disconnected often, such as a workshop, a boat, or a vehicle.

At its 15A maximum, the connector matches the output range of the Blue Power IP65 charger series. It is not intended for use beyond this current or voltage rating. Wiring on both sides of the clip should be rated to at least 15A and protected by a correctly sized fuse.

Applications

Fits workshop and garage charging where a charger is swapped in and out regularly. Suits marine installations needing a fast disconnect, caravan and vehicle maintenance charging, and light commercial fleet setups running Blue Power IP65 chargers.

What's in the box

• 1 x MagCode Power Clip 12V (max. 15A)

Installation notes

Wire the clip to a circuit with a fuse or breaker rated no higher than 15A, and check all cabling is sized for that current before use. Connections to vehicle, marine or battery systems should be made by someone familiar with 12V DC wiring practice. Do not exceed the 15A rating.
