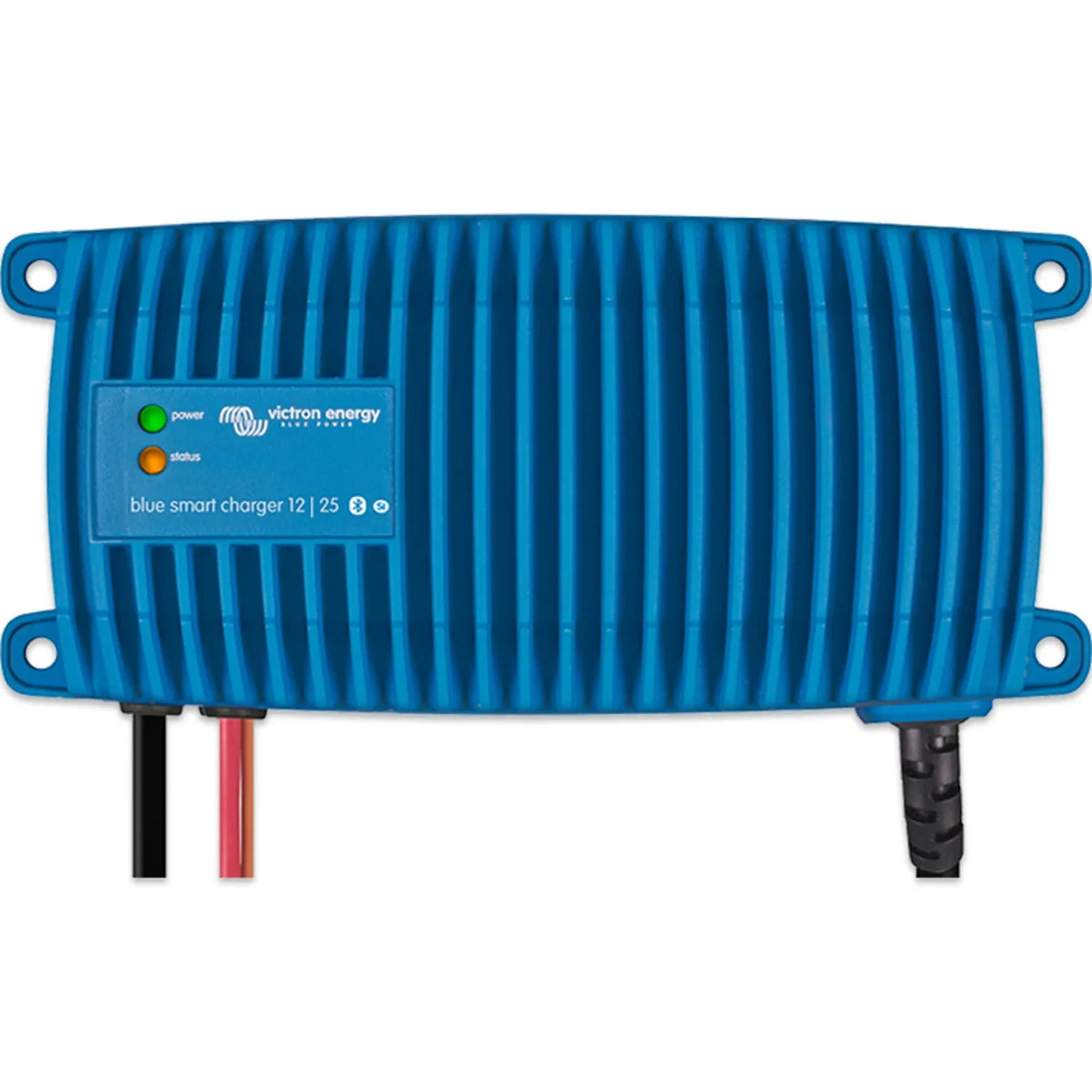

The Victron Blue Smart IP67 12/25(1+si) is a 25A charger for 12V battery banks, sealed to IP67 so it can withstand dust and short-term submersion to 1 metre. It plugs straight into a 230V mains supply via a CEE 7/7 Schuko plug and connects to a smartphone over built-in Bluetooth, with no separate dongle or display panel needed.

Key features

• IP67 enclosure, protected against dust ingress and temporary submersion to 1 metre.
• Charge output, 25A for 12V lead-acid (AGM, gel, flooded) and lithium (LiFePO4) batteries.
• Bluetooth built in, configure and monitor through the VictronConnect app on iOS and Android.
• Seven-step adaptive algorithm, automatic battery type detection with conditioning modes.
• Storage mode, maintains battery health during long periods of inactivity.
• Weight, 2.4 kg, with a sealed housing for permanent or semi-permanent mounting.

Overview

The "(1+si)" designation means one main output plus a small isolated output, so a secondary battery such as a starter battery gets a maintenance charge alongside the primary bank. This suits marine and vehicle setups where two banks need charging from a single unit. Temperature-compensated charging adjusts the charge voltage to ambient conditions to protect battery life.

Applications

Marine vessels, motorhomes and campervans, commercial vehicles and plant equipment, off-grid cabins and outbuildings, and workshop or fleet maintenance where a 12V charger may face damp, dust or wash-down conditions.

What's in the box

• Victron Blue Smart IP67 12/25 charger with integrated CEE 7/7 Schuko mains cable
• DC output cables with ring terminals
• Mounting hardware

Installation notes

Connect to a 230V mains supply through the fitted CEE 7/7 plug. DC connections should be made by someone familiar with battery systems, with the correct chemistry and capacity set in VictronConnect before first use. Secure the unit using the mounting points provided and allow ventilation around the sealed housing. Check lithium battery profiles against the manufacturer's specifications before use.
