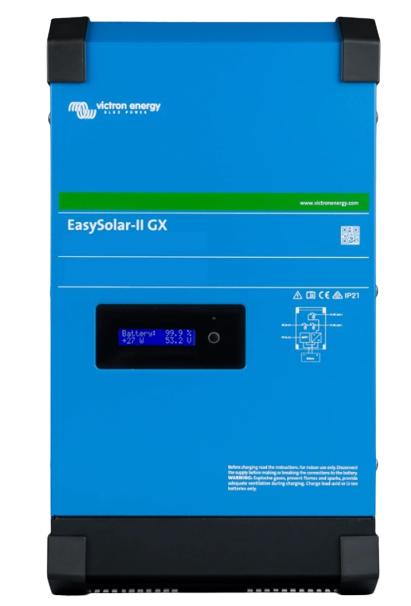

The EasySolar-II 48/6k5/100-50 GX is a compact, high-performance all-in-one solar power system that combines the inverter/charger, MPPT solar controller, and GX monitoring in one pre-wired enclosure. This design simplifies installation, reduces cabling, and saves valuable space and labor costs.

What's Included

• MultiPlus-II Inverter/Charger — delivers pure sine-wave power with intelligent grid and generator management.
• SmartSolar MPPT 250/100 — provides fast, efficient solar harvesting, even in variable shading conditions.
• Integrated GX Controller — enables local and remote system monitoring and control.

Key Features

• 6 kW continuous inverter output, with up to 6.5 kW for 3 hours, 8 kW for 1 hour, and 11 kW peak power.
• SmartSolar MPPT 250/100 supports up to 5.8 kW of PV, 250 V Voc, and up to 99% efficiency.
• Integrated GX monitoring with LCD display, Wi-Fi, Ethernet, USB, VE.Direct, and VRM remote access.
• 48 V / 100 A battery charger for fast, intelligent multi-stage charging.
• Low self-consumption, down to 7 W in Search Mode.
• 50 A transfer switch for reliable grid or generator switching.
• PowerControl & PowerAssist automatically manage peak loads and prevent source overload.
• BMS-Can connection for direct communication with compatible LiFePO₄ battery systems.
• Operating temperature: –20°C to +65°C with active cooling.
• IP21 steel enclosure, finished in RAL 5012 blue; 40 kg.

Solar & Power Management

The MPPT 250/100 supports large PV arrays with charging stages that automatically optimize battery performance. Its 250 V maximum PV voltage also allows longer panel strings, helping reduce cable losses.

PowerControl limits grid or generator demand to a safe level, while PowerAssist supplements available power from the battery when loads exceed the source capacity—ideal for systems with limited grid connections.
