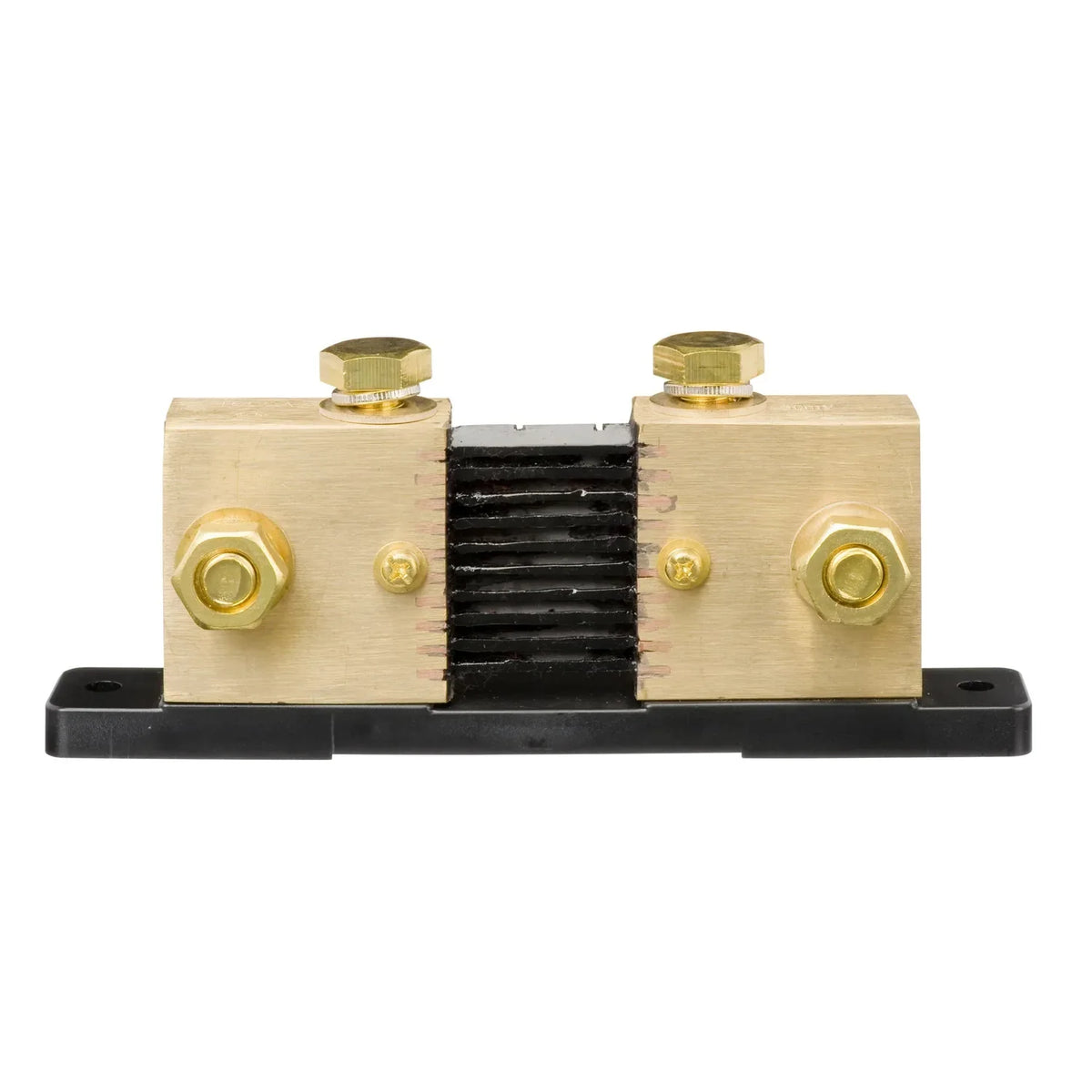

The Victron Energy 1000A/50mV shunt is a precision current measurement component for battery monitoring systems. It works with Victron BMV battery monitors and compatible energy meters, and suits high-current DC applications in off-grid, marine and commercial installations.

Victron shunt for accurate current monitoring

• Rated current, 1000A continuous with a 50mV full-scale voltage drop.
• Terminals, 2x M10 bolts for secure, low-resistance connections to heavy-gauge DC cabling.
• Accuracy class, 0.5%, for reliable state-of-charge and current data.
• Compatibility, works with Victron BMV-700, BMV-712 and other Victron monitors that accept a 50mV shunt input.
• Construction, compact, solid build suited to battery enclosures, distribution boards and switchgear panels.

How it works

A shunt inserts a known, very low resistance into the main DC current path. The voltage drop across it is proportional to the current flowing through the circuit. At 1000A this shunt produces exactly 50mV, which a connected battery monitor reads and converts into a current figure. The 50mV standard is used across Victron's monitoring range, so this shunt can serve as a replacement or upgrade component in an existing system.

Installation

The M10 terminal bolts suit the heavy-gauge cable used in high-current battery banks, inverter connections and DC distribution systems. Connections must be torqued correctly: an under-tightened terminal at this current rating causes localised heating and measurement error. Fit the shunt in the negative conductor, between the battery negative terminal and all other loads and charge sources, following standard single-shunt monitoring practice. Installation should be carried out by a qualified electrician or experienced solar installer.

Applications

Used for battery current monitoring in off-grid solar systems with large battery banks, marine DC systems, motorhome and vehicle conversion builds with lithium or AGM batteries, and commercial or industrial backup power systems using Victron BMV monitors.

What's included

• 1x Victron Energy 1000A/50mV shunt with 2x M10 terminals
