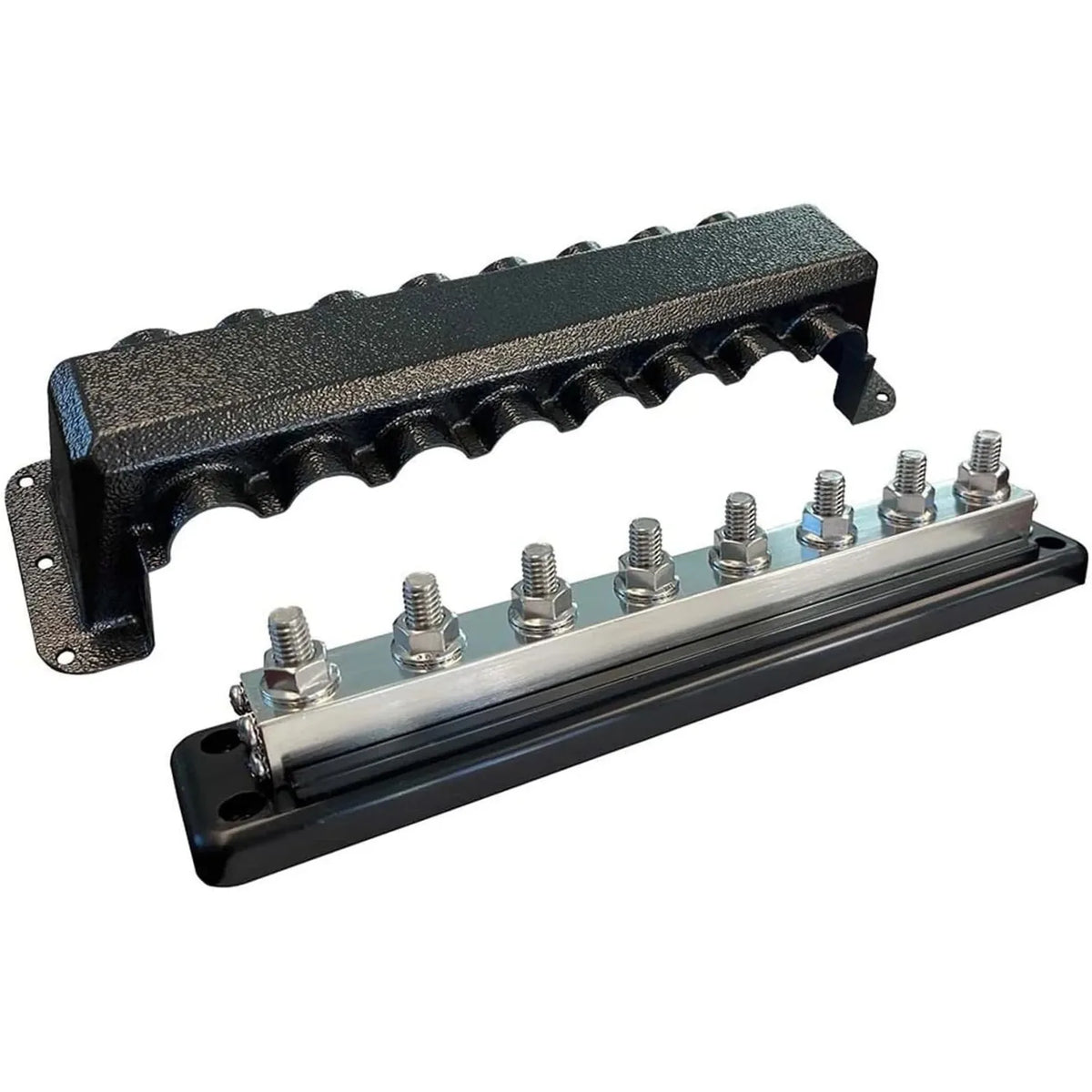

The Victron Energy busbar 600A 8-position is a DC distribution component for battery banks, inverter systems and off-grid power installations. It gives a single, organised connection point for multiple high-current circuits, cutting cable clutter and keeping high-current wiring tidy.

Key features

• Current rating, 600A continuous
• Positions, 8 connection points on one busbar
• Cover, protective cover included to guard against accidental short circuits
• Cable capacity, accepts large-section cables and lugs typical of battery and inverter wiring
• Weight, 1.228 kg

Product overview

A busbar at this rating acts as the central distribution point in a DC system, linking the battery bank or main supply to several loads or sub-circuits. Instead of running individual cables back to the battery terminals, each circuit terminates at the busbar, which carries the combined current from one well-rated connection. This cuts down the number of connections at the battery and makes fault-finding and isolation simpler.

The 8-position layout suits systems with several inverters, charge controllers, DC loads or battery strings, each needing its own dedicated connection. The included cover stops tools, debris or accidental contact from bridging the terminals, which at 600A would be a serious arc and fire risk.

Applications

• Battery bank distribution in off-grid solar systems with multiple charge controllers or inverters
• Marine electrical systems needing multiple high-current feeds
• Vehicle and motorhome conversions with complex 12V or 24V DC wiring
• Industrial and commercial off-grid installations with several DC loads
• Centralised positive or negative distribution in larger Victron MultiPlus or Quattro system builds

What's in the box

• 1 x Victron Energy 600A 8-position busbar
• 1 x Protective cover

Installation notes

Fit this busbar with correctly rated cables, lugs torqued to the manufacturer's specification, and the protective cover in place once wiring is complete. Installation should be carried out by a qualified electrician or experienced system integrator familiar with high-current DC wiring, and any grid-connected solar work must comply with relevant UK wiring regulations.
