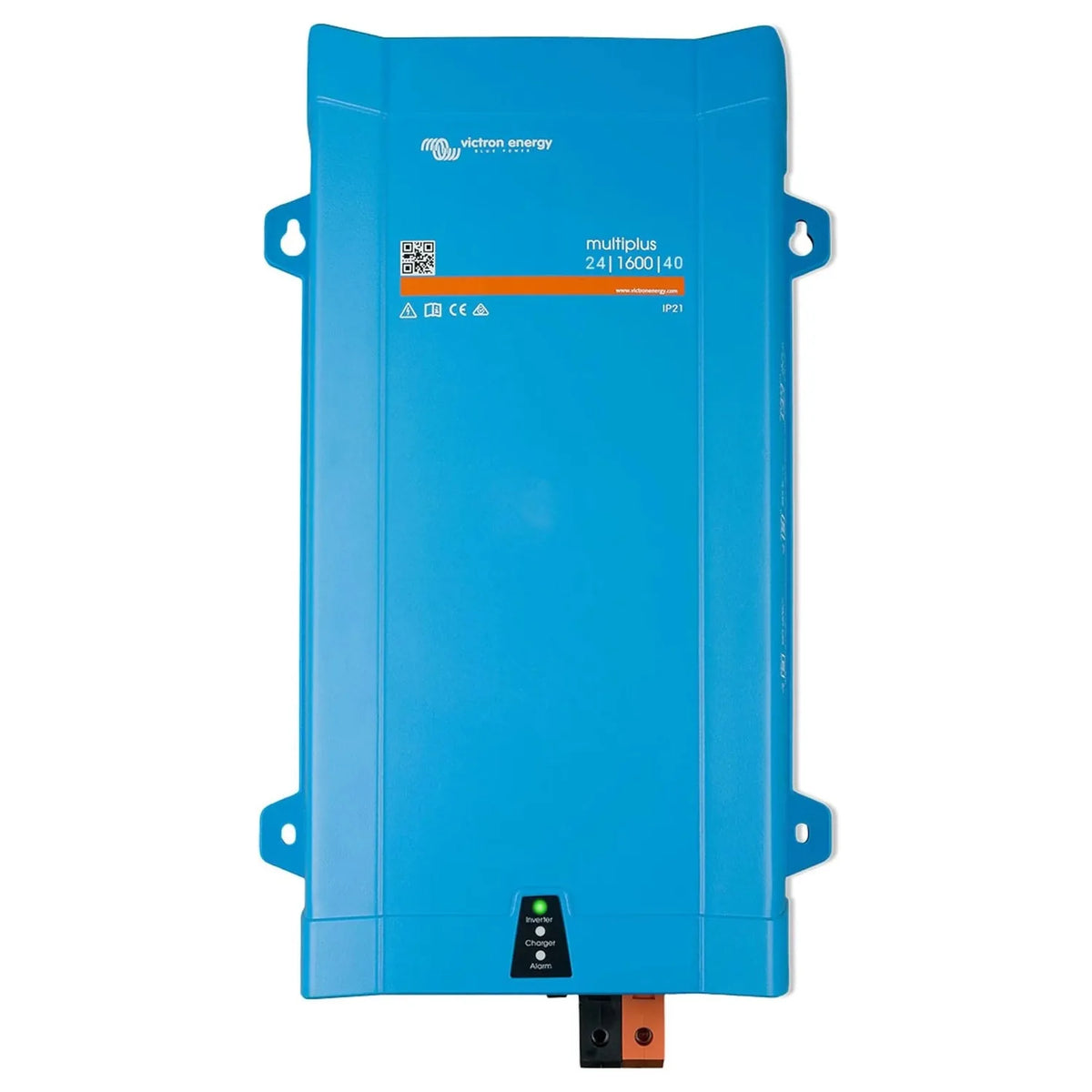

Victron MultiPlus 24/1600/40-16 Inverter Charger 230V | PMP242160000
£254.00
Sale price
£254.00
Regular price
£406.00
Skip to product information
Victron MultiPlus 24/1600/40-16 Inverter Charger 230V | PMP242160000
£254.00
Sale price
£254.00
Regular price
£406.00
Shipping calculated at checkout.
PMP242160000
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
The Victron MultiPlus 24/1600/40-16 combines an inverter and a battery charger in one unit, built for 24V battery systems with a 230V AC output. It suits off-grid installations, marine and vehicle systems, and backup power setups where a compact inverter charger is needed.
Key features of the Victron MultiPlus 24/1600/40-16
- Inverter output, 1600VA continuous at 230V AC from a 24V DC battery bank.
- Battery charger, 40A three-stage charging (bulk, absorption, float) with an adaptive algorithm.
- Transfer switch, 16A AC transfer switch for shore power or generator, with automatic switchover.
- PowerAssist, draws on battery power to supplement a limited AC supply and prevent overload.
- VE.Bus port, supports remote monitoring, parallel operation, and three-phase configuration.
- Output waveform, pure sine wave, with a transfer time fast enough for most sensitive electronics.
How it works
When AC input is available from shore power or a generator, the MultiPlus passes power through to connected loads while charging the battery bank. When that supply is lost, it switches to inverter mode. The 40A charger adjusts absorption time according to the previous discharge depth, which reduces unnecessary charge time over repeated cycles.
VE.Bus connectivity allows configuration through VE.Configure software and monitoring via a GX device such as the Cerbo GX. Multiple units can run in parallel, or be set up for split-phase or three-phase output.
Applications
- Off-grid cabins and remote properties with 24V battery banks.
- Marine vessels needing shore power passthrough and charging.
- Motorhomes and campervans with 24V electrical systems.
- Backup power for critical loads in commercial or residential settings.
- Parallel installations combining multiple MultiPlus units for higher capacity.
Specification
| Parameter | Value |
|---|---|
| SKU | PMP242160000 |
| Battery voltage | 24V DC |
| Inverter output | 1600VA / 230V AC |
| Charger output | 40A |
| AC transfer switch | 16A |
| AC output voltage | 230V AC |
| Output waveform | Pure sine wave |
| Communication | VE.Bus |
| Weight | 10 kg |
| GTIN | 8719076044987 |
Installation notes
Installation should be carried out by a qualified electrician or accredited installer. The unit needs a correctly rated 24V battery bank with suitable DC cabling and fusing. AC wiring must comply with BS 7671. Any grid-connected or export application requires G98 or G99 compliance and DNO notification. VE.Configure software lets an installer set charge voltages and thresholds to match the battery chemistry in use.
What's in the box
- 1 x Victron MultiPlus 24/1600/40-16 230V VE.Bus inverter charger unit.
