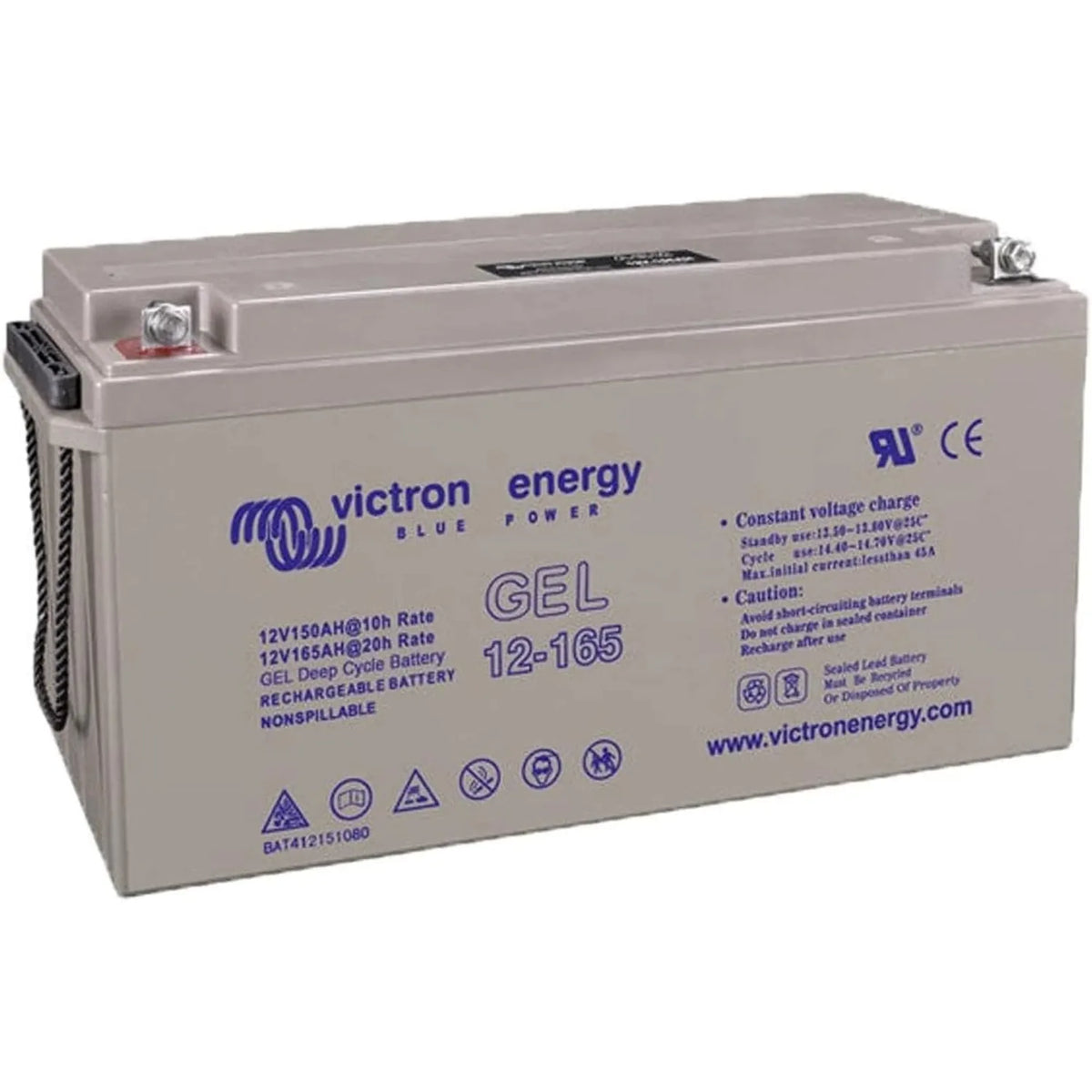

The Victron Energy 12V 165Ah Gel Deep Cycle Battery is a sealed, maintenance-free VRLA battery built for cyclic and standby duty in solar, off-grid and marine systems. Rated at 165Ah (C20), it gives predictable discharge performance without water topping or acid fumes.

Key features of this victron gel battery

• Capacity, 165Ah rated at C20 for consistent system sizing.
• Electrolyte, gel construction with no free liquid, safe for enclosed or tilted mounting.
• Sealed design, valve-regulated, no water topping required.
• Deep cycle rating, built for repeated discharge and recharge cycles.
• Voltage, 12V nominal, works with standard 12V charge controllers, inverters and chargers.
• Weight, 48.4kg.

Product overview

Gel electrolyte prevents stratification and acid spills, which suits installations that aren't always perfectly upright or well ventilated. Gel chemistry also tends to cope better than flooded lead-acid when left in a partial state of charge, which happens often in weather-dependent solar charging.

At 165Ah (C20), usable capacity works out to around 82Ah when discharged to the recommended 50% depth of discharge for cyclic use. Factor this into autonomy calculations. The 12V format allows series wiring for 24V or 48V banks, or parallel wiring to add capacity at 12V.

Gel batteries need a charge profile matched to their chemistry. Charging voltages sit lower than for flooded types, and exceeding them causes permanent damage to the gel structure. Set any charge controller, inverter-charger or standalone charger to the correct Victron gel profile before it's ever connected.

Applications

Used in solar off-grid battery banks at 12V, 24V or 48V, marine and narrowboat house banks, motorhome leisure installations with limited ventilation, remote telecoms and monitoring equipment on solar or wind charging, and UPS or backup power systems needing a maintenance-free standby battery.

Installation notes

This battery weighs 48.4kg, so two people and lifting equipment are needed for safe handling. Confirm the charge source uses a gel-specific profile, not one intended for flooded or AGM batteries, before connecting. Installation as part of a solar PV or off-grid system should be carried out by a qualified electrician or MCS-accredited installer, with terminal protection and fusing in line with BS 7671.

What's included

• 1x Victron Energy 12V 165Ah Gel Deep Cycle Battery
