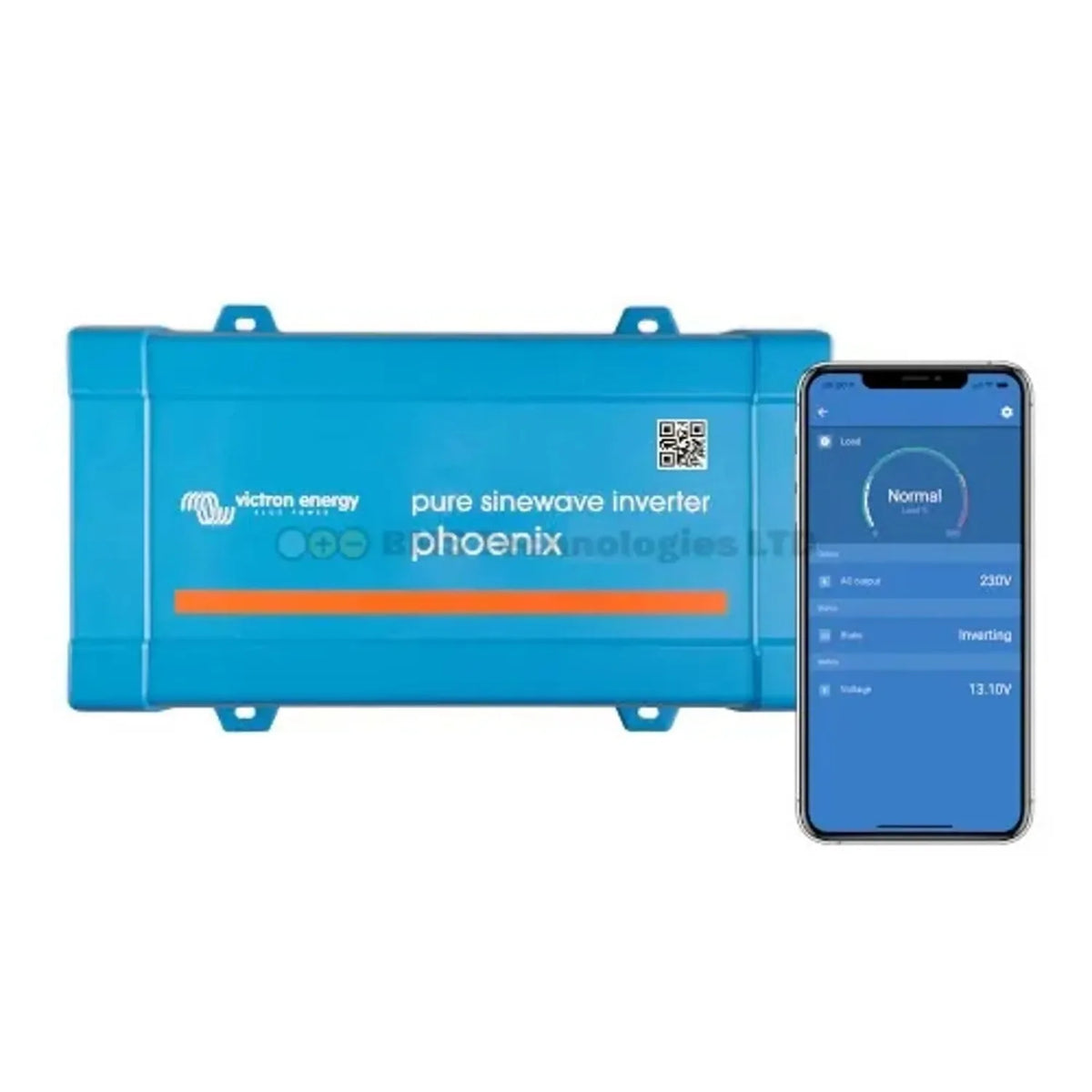

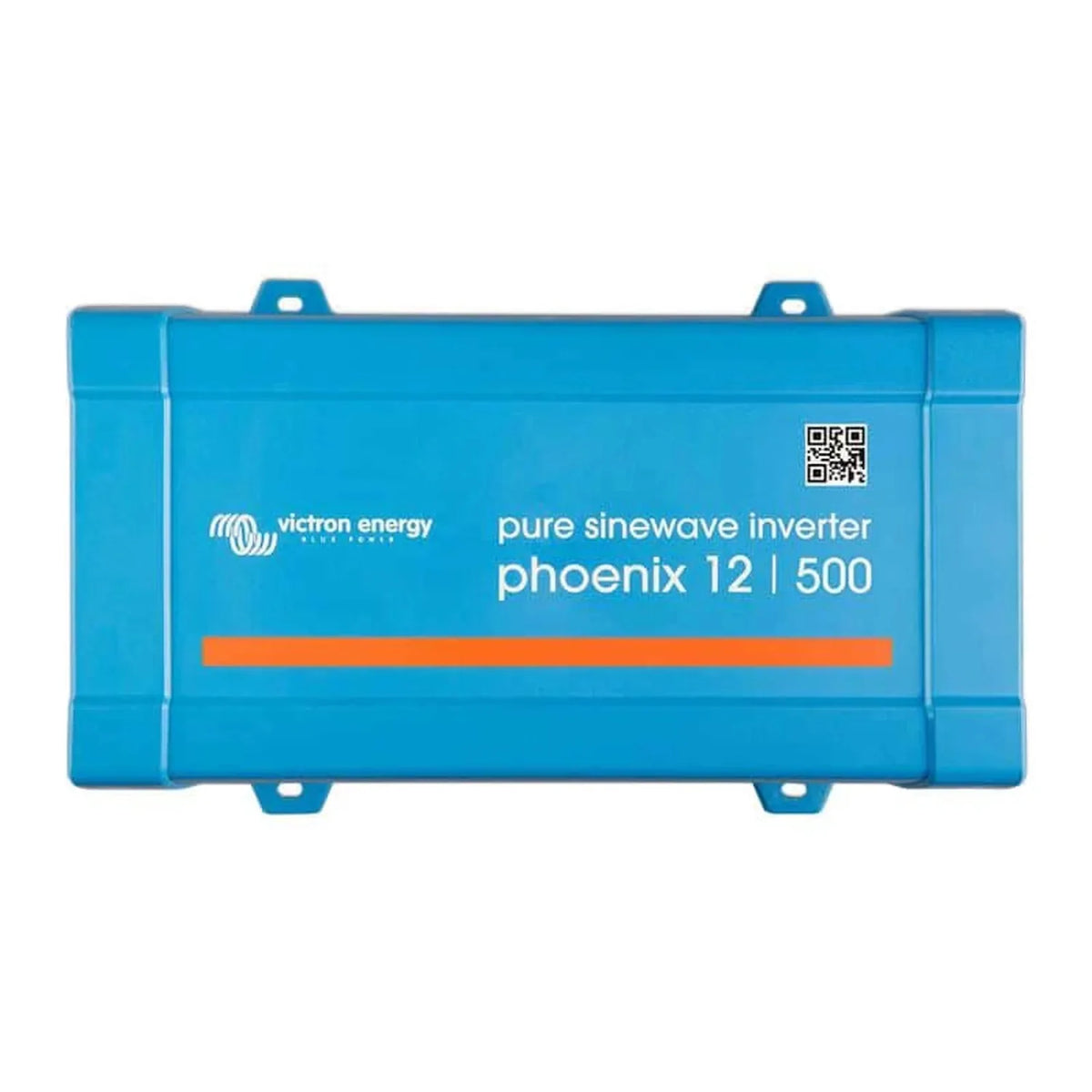

The Victron Inverter 12/500 converts 12V DC battery power into 230V AC mains voltage at 500VA continuous output. It suits installers working on small off-grid systems, vehicles, boats and backup power setups. A VE.Direct communication port allows direct monitoring and integration with Victron's ecosystem without extra hardware.

Key features of the Victron 12/500 inverter

• Output, 500VA continuous at 230V AC from a 12V DC battery bank.
• Waveform, pure sine wave, suitable for sensitive electronics and motor loads.
• Monitoring, VE.Direct port for communication with compatible Victron monitoring devices and the VictronConnect app via a VE.Direct to USB or Bluetooth dongle.
• Connector, IEC AC output connector for standardised wiring.
• Protection, low battery voltage shutdown, over-temperature and overload protection built in.
• Weight, 4.1kg, suited to space-constrained installations.

Product overview

The 12/500 sits at the entry level of Victron's VE.Direct inverter range. At 500VA it is sized for individual loads such as lighting circuits, small appliances, power tools or communications equipment run from a 12V battery. The pure sine wave output handles inductive motors, variable speed drives and audio equipment that a modified sine wave inverter struggles with.

The VE.Direct port lets installers monitor and configure the unit through VictronConnect, and it integrates into a wider Victron system via a GX device such as a Cerbo GX. That gives a single point of visibility without extra wiring or proprietary adapters. The IEC output socket keeps panel and enclosure builds simple.

Protection is automatic. The inverter shuts down on low battery voltage to prevent deep discharge, and guards against overload and over-temperature conditions without manual intervention.

Applications

• Off-grid cabins needing a small 230V AC supply from a 12V battery bank.
• Marine and narrowboat installations powering 230V appliances from a 12V system.
• Campervans and motorhomes needing occasional 230V loads.
• Backup power for communications or security equipment during mains outages.
• Small solar off-grid systems already using the Victron VE.Direct ecosystem.

Installation notes

Install with a qualified electrician or competent person familiar with DC and AC systems. Size DC cabling for the current draw at 12V, which will be higher than the AC output current, and ensure the battery bank is properly fused. This unit is not grid-tied and does not require G98 or G99 compliance. A VE.Direct interface cable is needed for GX device or VRM integration and is not included.

What's in the box

• Victron Inverter 12/500 230V VE.Direct IEC unit.
