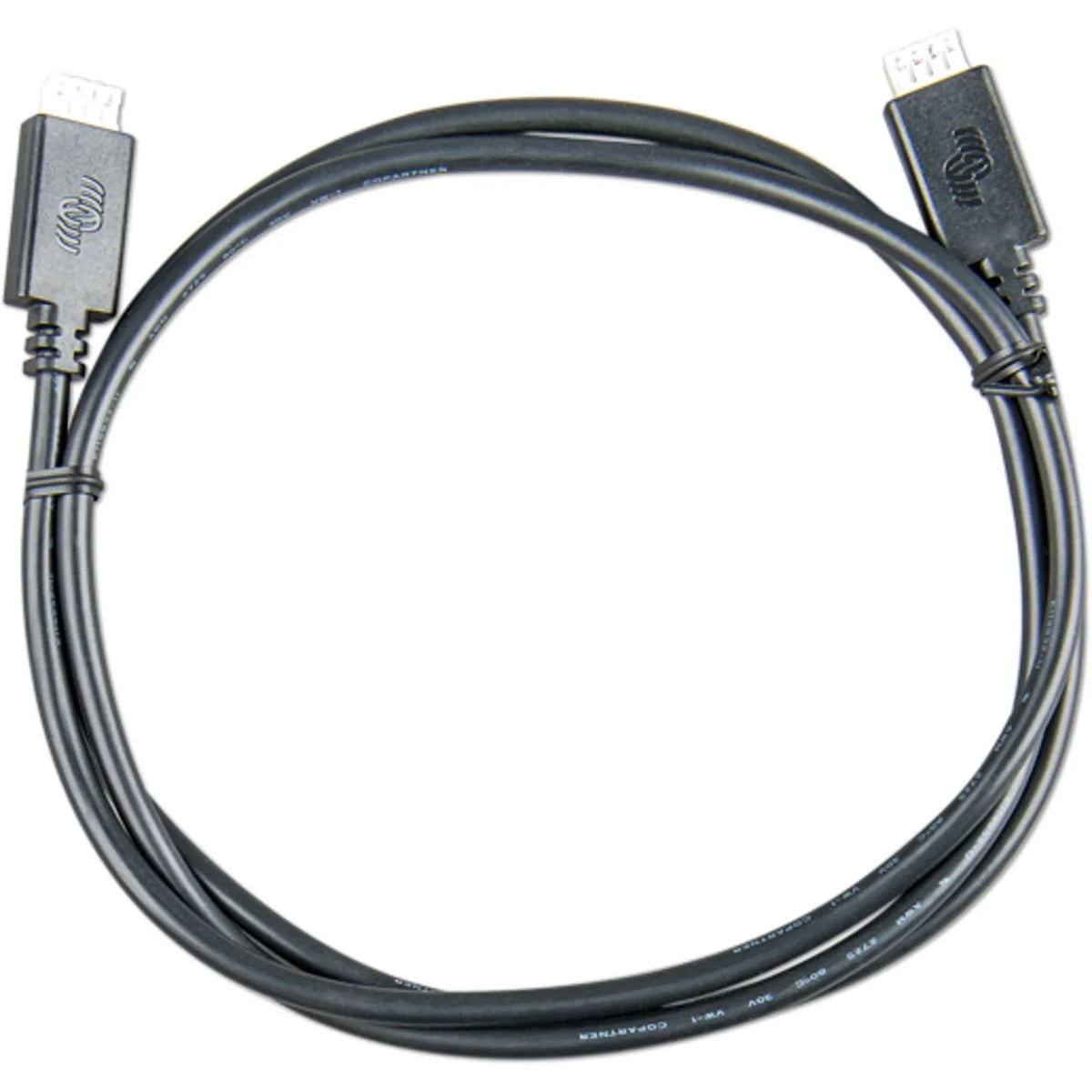

A 0.9m VE.Direct cable with a right angle connector on one end and a straight connector on the other, used to link Victron devices that communicate over the VE.Direct protocol. It suits MPPT solar charge controllers, BMV battery monitors and Phoenix inverters connecting to compatible displays, interfaces or other VE.Direct-enabled equipment.

Key features

• Length, 0.9m, suited to short runs between adjacent devices or panels.
• Right angle connector, one end, for flush mounting against walls, enclosures or tight cabinets.
• Straight connector, opposite end, fits any standard VE.Direct port.
• Compatibility, works with all Victron devices using the VE.Direct interface, including MPPT charge controllers, BMV monitors and Phoenix inverters.
• Weight, 25g.

Applications

The right angle end reduces the clearance needed behind a device, which helps in flush-mounted enclosures, narrow battery cabinets or anywhere a straight exit would strain the cable or block a panel door. Typical uses include connecting an MPPT controller to a Color Control GX or Cerbo GX in a compact enclosure, linking a BMV battery monitor to a GX device or VE.Direct to USB interface, or wiring a Phoenix inverter to a monitoring display where space is limited. It also suits off-grid battery cabinets, narrowboats, motorhomes and marine installations.

Installation notes

This cable carries data only; it does not supply power to connected devices. Power down both devices before connecting or disconnecting, since VE.Direct ports are not hot-swap rated on all equipment. Check the relevant device documentation first. No special electrical qualification is needed to fit this cable, though the wider installation, inverters, charge controllers and battery connections, should be handled by a qualified electrician or competent person.

What's in the box

• 1x VE.Direct cable, 0.9m, with one right angle connector and one straight connector
