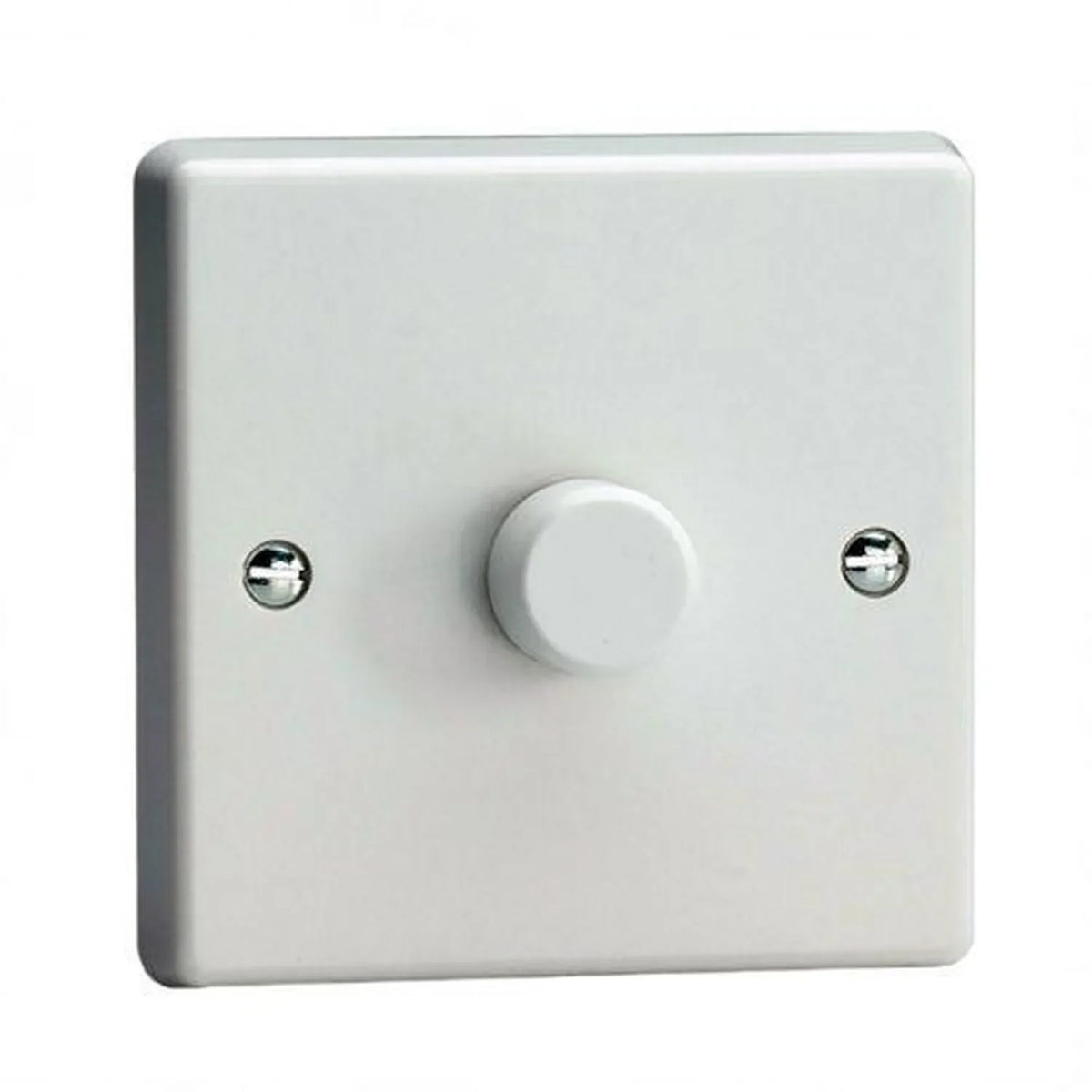

The Varilight V-Pro is a 1-gang, 1 or 2-way push-on/off rotary LED dimmer switch handling a load of 10-300W. It uses trailing and leading edge (AC triac) control, giving it wide compatibility with dimmable LED lighting, mains lighting and most dimmable electronic transformers.

Key features of this varilight dimmer switch

• Load range, 10-300W, suitable for up to 30 LEDs
• Control type, 1-gang, 1 or 2-way push-on/off switch with rotary dimming
• Dimming technology, trailing edge and leading edge (AC triac) for broader LED compatibility
• Minimum load setting, the user can set a minimum brightness level using pushes of the dimmer control and signals from the connected lamps, to optimise the dimming range
• Overload protection, a microprocessor monitors the connected load and will turn lights down or off if too many fittings or transformers are connected, protecting the switch from failure

Applications

This dimmer suits mains lighting circuits and most dimmable electronic transformers. Because it has no minimum load requirement, it also works with dimmable low-energy lighting, including many dimmable LEDs, making it a practical choice where fitting types and wattages vary across a room.

Setting up the dimmer

Programming instructions are included on the leaflet supplied with the dimmer. Varilight also provides a video guide covering the push-button and rotary programming steps for setting the minimum brightness level.

Part of the V-Pro range

The V-Pro series includes several dimming modes for different installation needs, from push-on/push-off rotary control to touch and remote-controlled versions (V-Pro IR). Each is designed to deliver dimming performance suited to its connected load.
