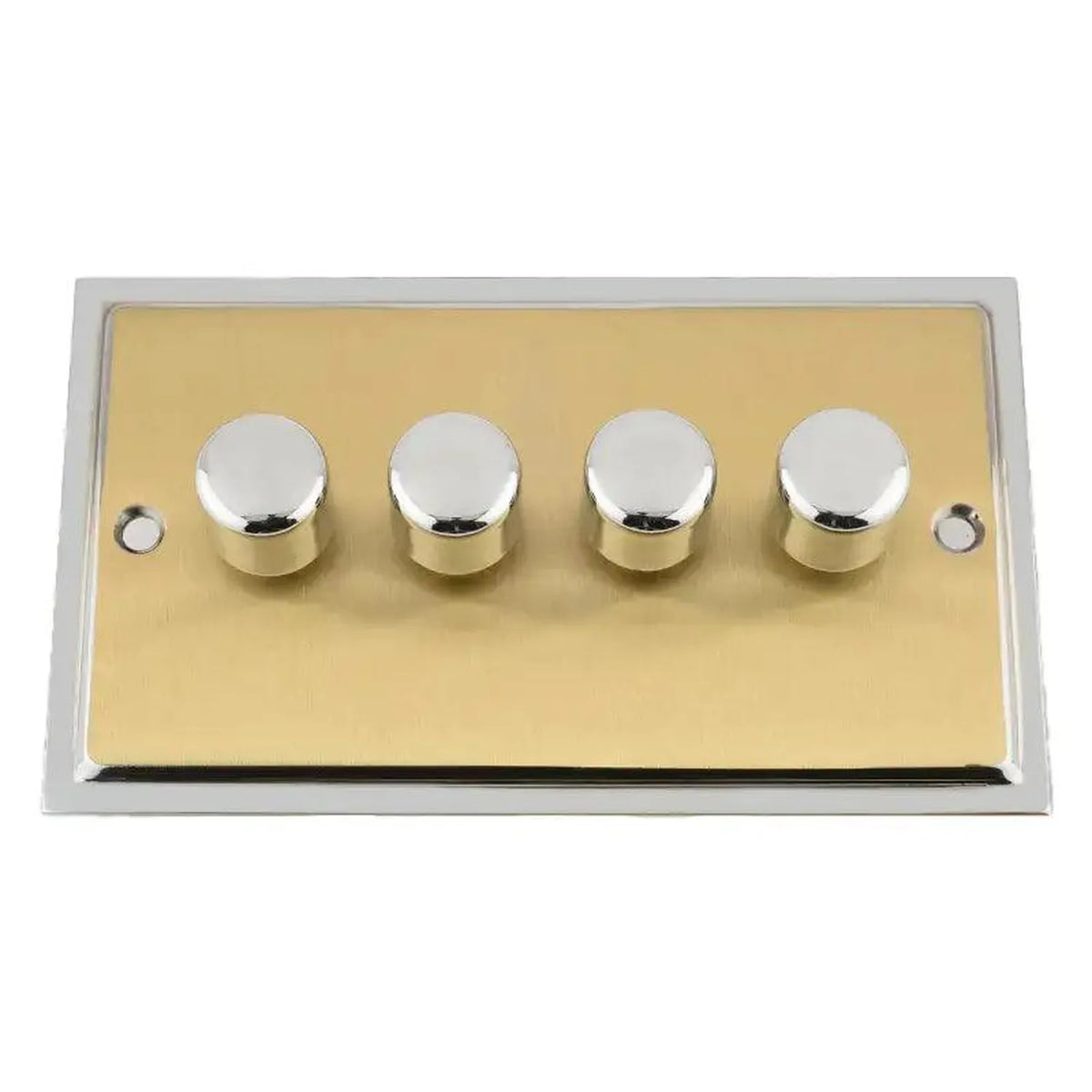

The Varilight V-Pro LED dimmer switch is a 4-gang, 0-240W programmable dimmer built for LED lighting circuits, with a maximum load per gang of 250W. It combines a push-on-off button with rotary dimming control, and includes a dual colour metal casing finished in Satin Brass with a Polished Chrome edge and rockers.

Key features of this led dimmer switch

• Load rating, 0-240W dimming range, max load per gang 250W
• Control style, push-on-off button with rotary dimming control
• Gang configuration, 4-gang, also available in 1/2 gang and 3/4 gang plates
• Finish, Satin Brass face with Polished Chrome edge, Dark Smooth Stepped with Flat Edge style
• Minimum brightness adjustment, can be set to match room luminosity in three steps, with a detailed data sheet included in the box

Dimensions and installation

The 3 and 4 gang plate measures 145mm x 86mm x 22mm and fits in a 25mm deep wall box. Clean the metal surface with a microfibre cloth to keep it looking sharp.

Switching circuits

This dimmer works in 2-way circuits, where one lighting point is controlled from two separate locations. To set this up, pair the V-Pro dimmer with a standard 2-way switch. It is not designed to be dimmed from two locations itself; for that, Varilight offers the V-Pro Multipoint Touch system, which allows dimming of the same light or lights from multiple points.

For 3-way switching an intermediate switch must be added into the circuit. The Varilight Touch and Multipoint Touch range is suited to 2 and 3-way circuits generally.

Applications

Suited to modern interiors where a slim-line, dual colour switch plate is wanted alongside dimmable LED lighting, in homes or offices needing precise brightness control across multiple gangs.
