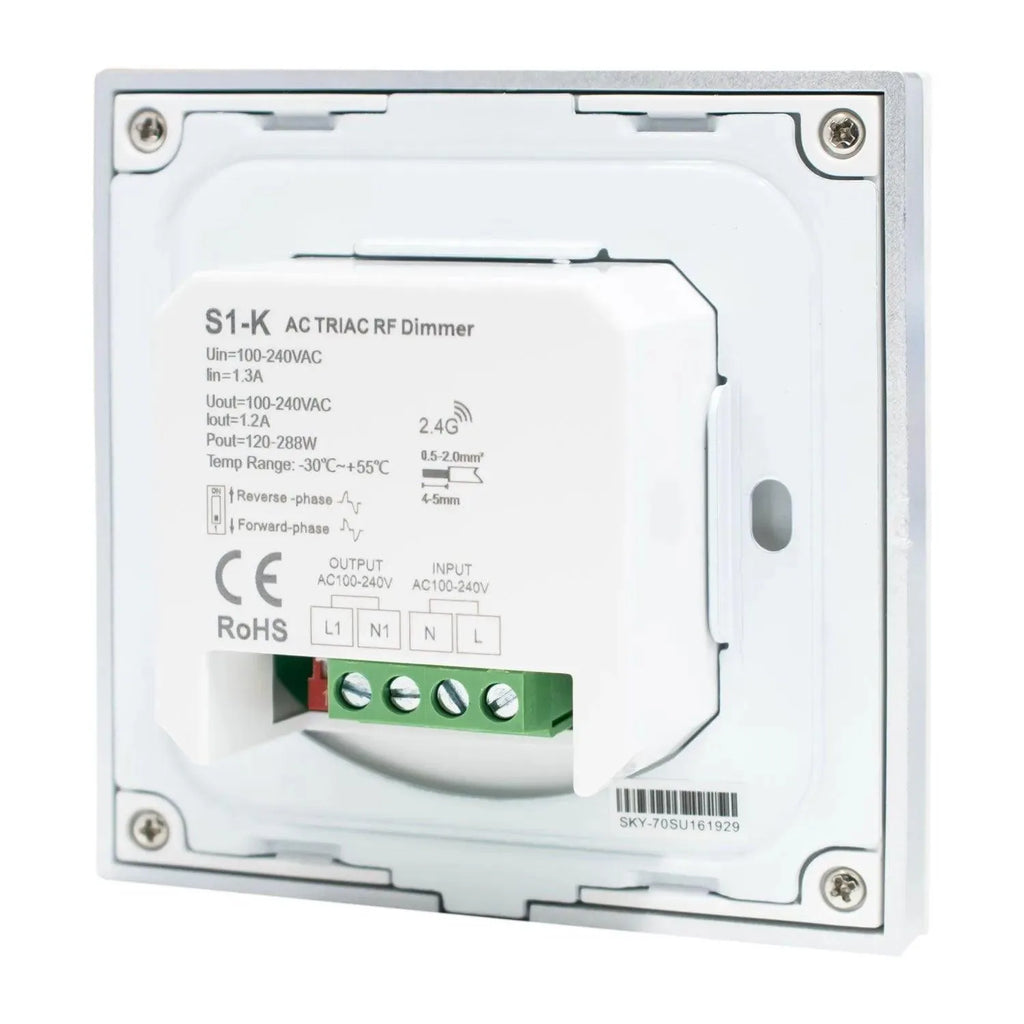

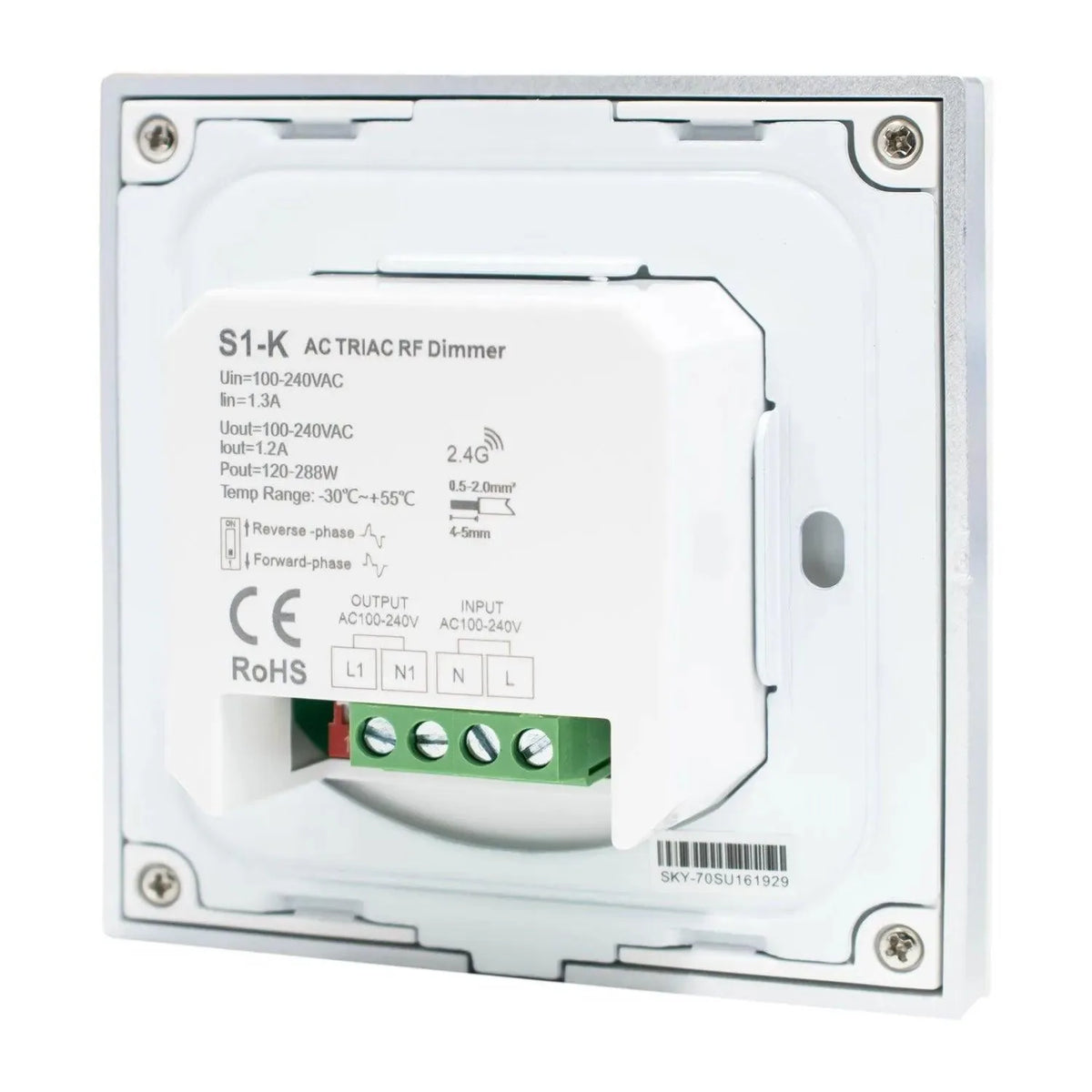

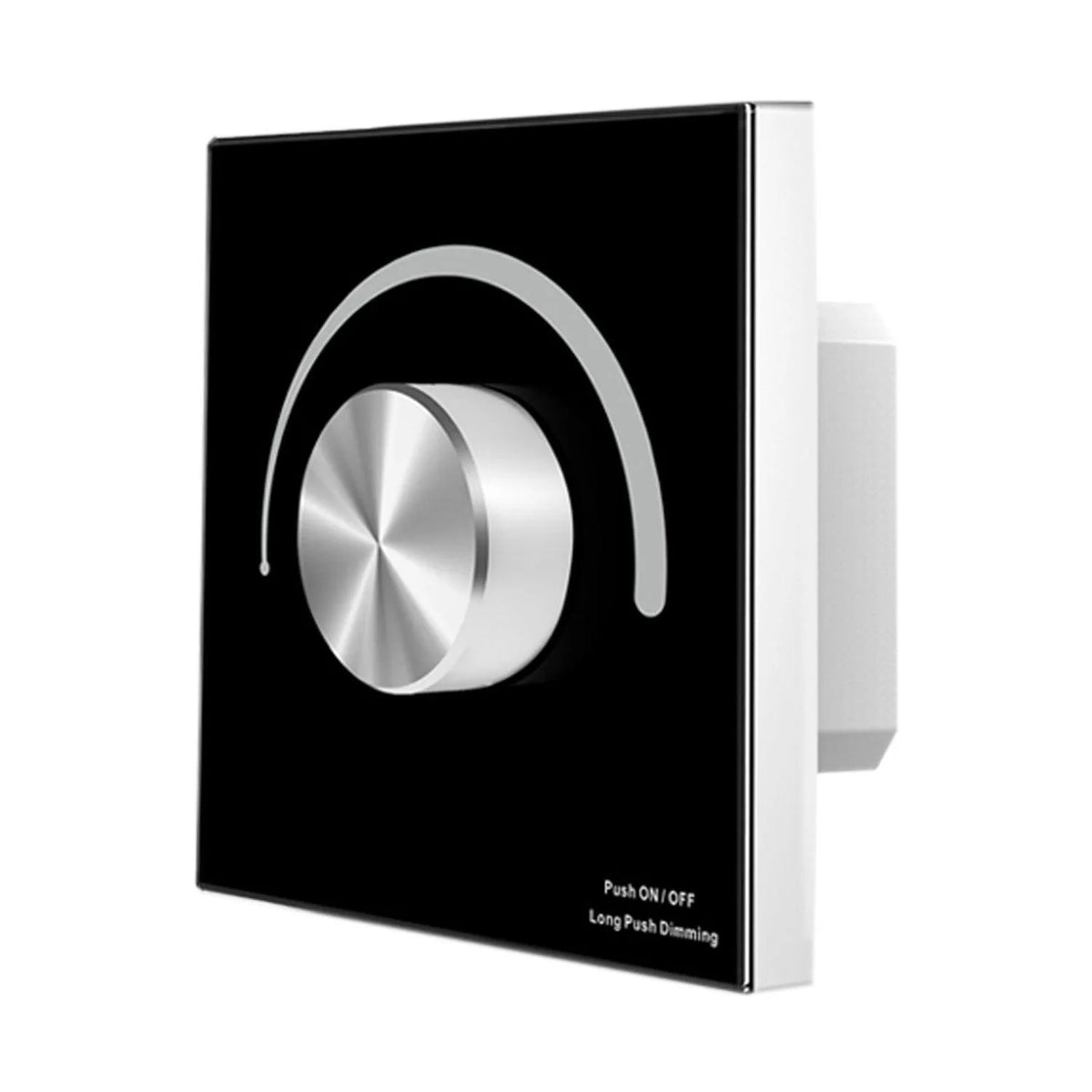

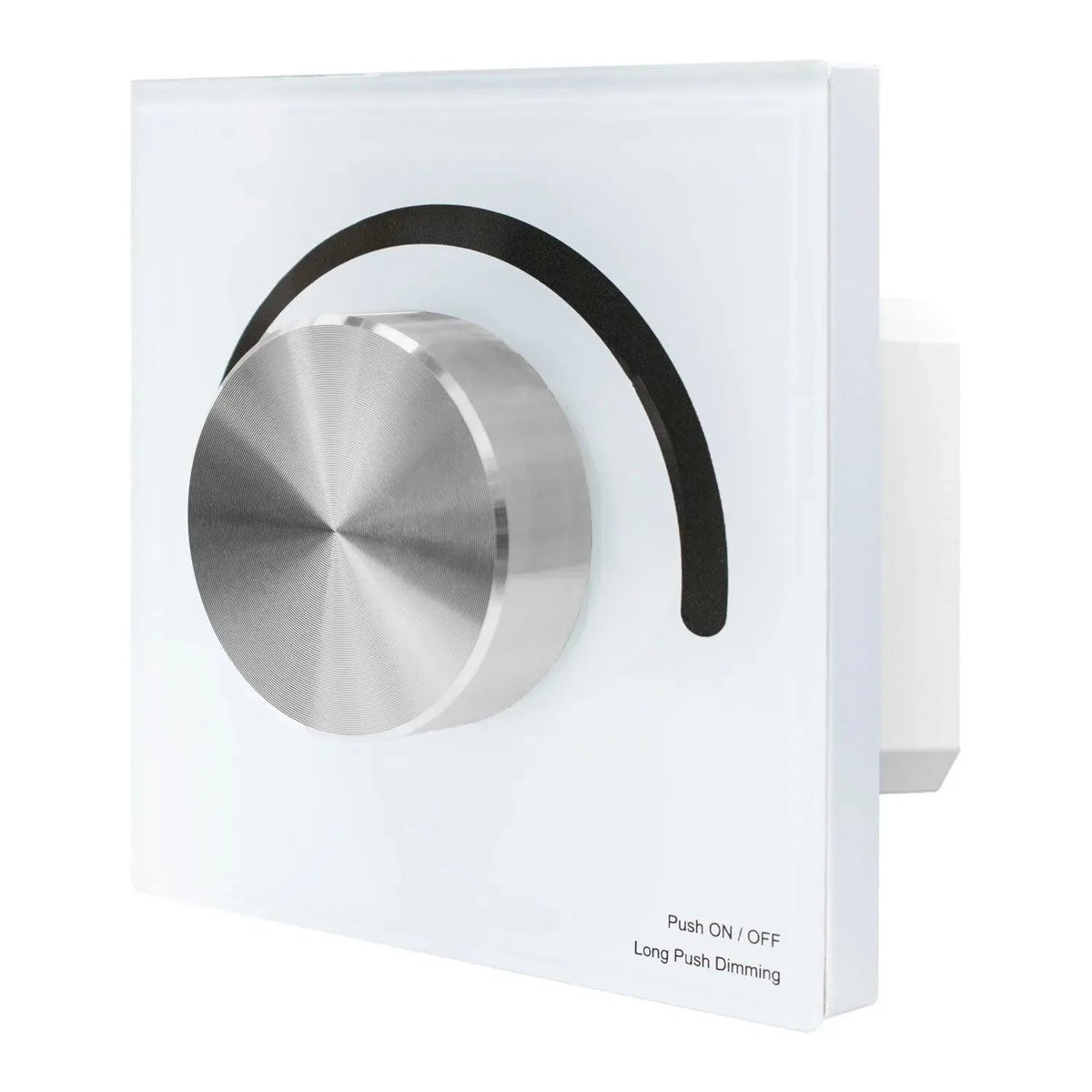

The Ledison S1-K is a wall mounted rotary dimmer switch that controls LED lighting straight from the 230V supply, no separate control interface needed. It uses just two wires and works with leading edge and trailing edge dimmable lights.

Key features

• Panel type, rotary glass panel AC phase-cut dimmer with 1 channel output.
• Compatible loads, single-colour dimmable LED lamps, traditional incandescent and halogen lights.
• Control method, turn the knob to change brightness, with push and long push operation supported.
• Dimming mode, leading edge or trailing edge dimming, set by dip switch.
• Remote compatibility, works with Skydance's 2.4G dimming remote control.

Knob function

A short push turns the light on or off. Once the light is on, rotating the knob adjusts brightness across 2.5 turns and 50 levels. Holding the knob down for 1 to 6 seconds gives continuous adjustment across 256 brightness levels.

Applications

Fits standard wall mount installations wherever a simple two-wire dimming solution is needed for single-colour LED, incandescent or halogen circuits, in homes or light commercial spaces.
