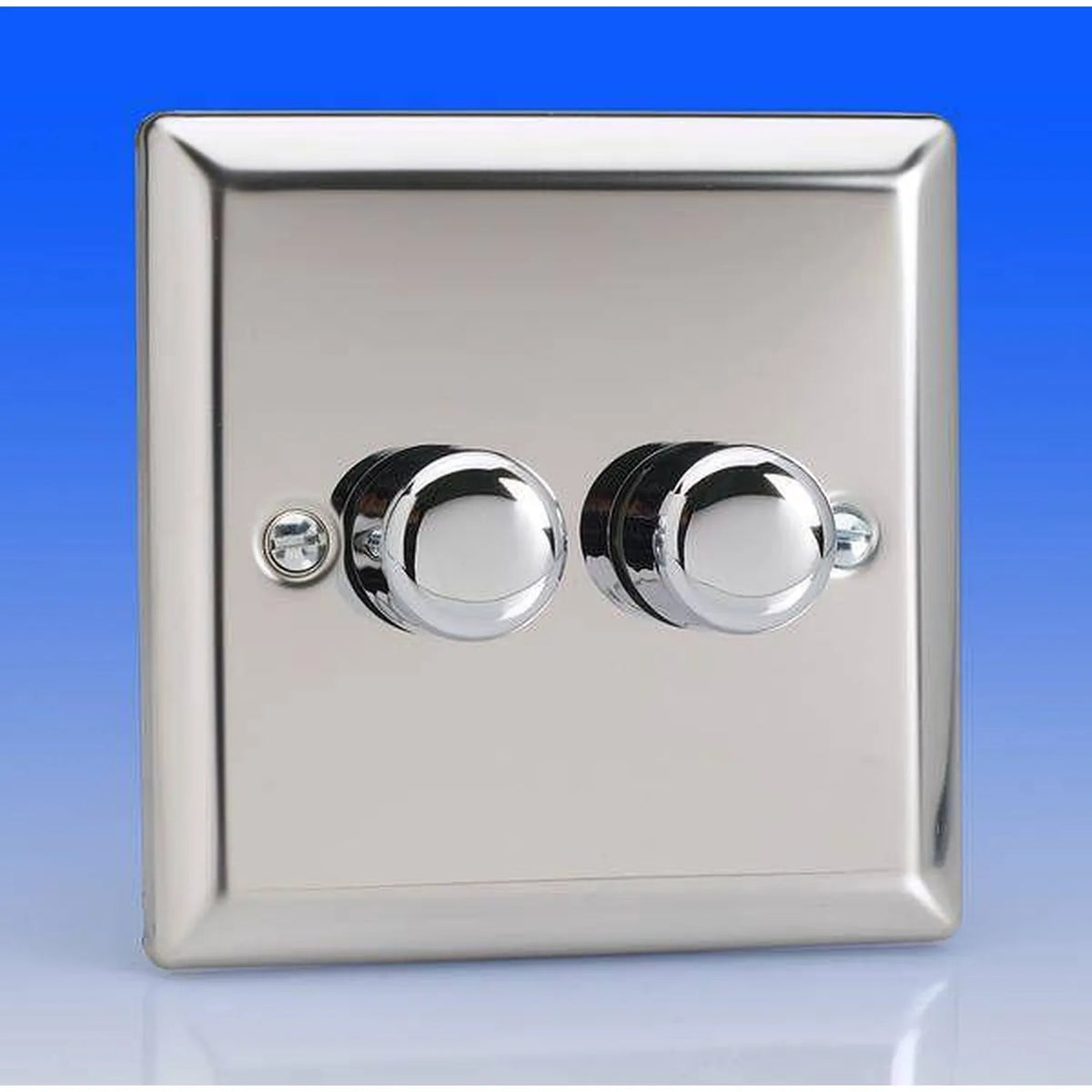

The Varilight JCP252 is a 2 gang, 1 or 2 way LED dimmer switch rated at 2 x 0-120W, with a maximum load per gang of 250W and a maximum LED load of 400W. It supports up to 10 LEDs and is finished in classic polished chrome plate on stainless steel.

Trailing edge dimmer switch features

• Load rating, 2 x 0-120W, up to 250W maximum per gang
• Maximum LED load, 400W
• Finish, Chrome plate on stainless steel
• Control type, Trailing edge, for smooth, silent and flicker-free dimming
• Soft start, Linear voltage increase on the lamp to extend LED lifespan
• Protection, Automatic reset from overload and thermal protection

Compatibility

This switch works with leading edge and trailing edge dimming loads, dimmable CFL, dimmable mains LED and dimmable LED lights with external drivers, and very low wattage loads including CFL and incandescent lamps. It also includes smart detection of the connected lamp technology for adaptive control.

It is not suitable for dimmable ballast or fluorescent tubes.

Applications

Suited to homes and installations where two lighting circuits need independent dimming from one plate, such as a living room with ceiling and wall lights, or a kitchen with two zones. Designed and manufactured in the UK.
