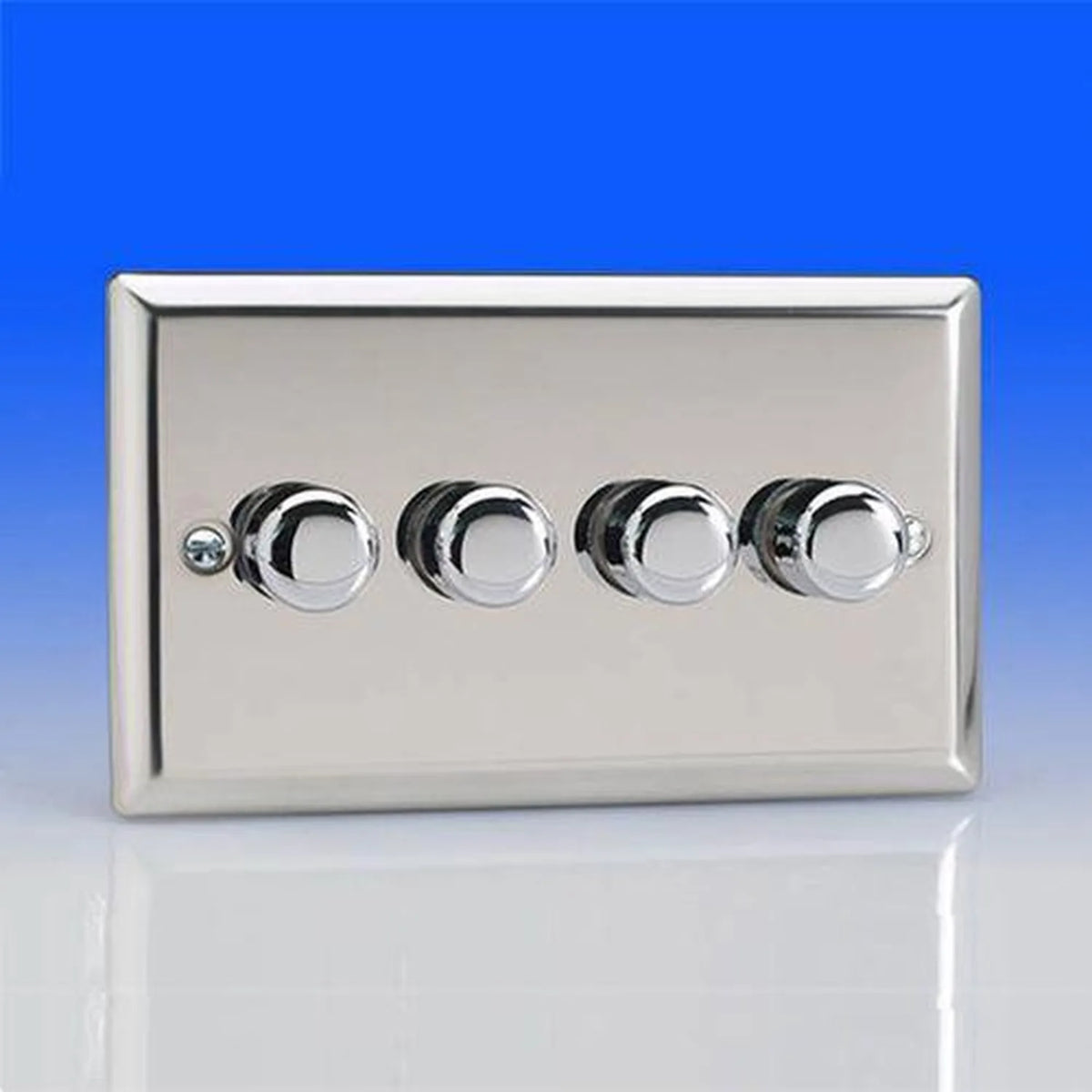

The Varilight V-Pro JCDP254 is a 4 gang, 1 or 2 way trailing edge dimmer switch built for LED lighting circuits. Each gang handles up to 0-120W (1-10 LEDs), with a combined maximum LED load of 250W. The finish plate is chrome on a stainless steel plate, giving a polished look for kitchens, living rooms and hallways where several lighting circuits sit on one plate.

Key features of this trailing edge dimmer switch

• LED load, 4 x 0-120W per gang, 250W maximum LED load overall
• Operation, silent trailing edge dimming, flicker-free
• Soft starter, linear voltage increase on switch-on to help extend LED lamp life
• Finish, chrome plate on a stainless steel twin plate
• Manufacture, designed and made in the UK

Compatible loads

This switch works with leading edge and trailing edge dimming loads, dimmable CFL, dimmable mains LED and dimmable LED fittings with external drivers, and very low wattage loads including CFL and incandescent lamps.

Not suitable for

Do not use this dimmer with dimmable ballast or fluorescent tubes.

Applications

Suited to homes fitting multiple dimmable LED circuits from a single wall plate, where a 1 or 2 way trailing edge dimmer is needed on each gang and a chrome finish is wanted to match other fittings.
