A coplanar mounting kit for fitting solar panels to tiled roofs in portrait orientation, using adjustable stainless steel hooks and aluminium rails. No drilling or cutting is needed: the hook slides under the tile and locks onto the batten, then the rail clips onto the hook to hold the panel flush against the roof pitch. Supplied per module, with kits available from 1 to 20 modules.

Roof rails for solar panels: key features

• Coplanar fit, panels sit flush to the roof pitch rather than raised on brackets
• Hooks, adjustable stainless steel, designed for standard tile profiles
• No drilling, hooks engage under the tile without penetrating it
• Rails, AL6005-T5 anodised aluminium, 1200mm per module, natural finish
• Extendable, rails join end to end with included connectors for any row length
• Clamps, mid and end clamps included for each module

How it installs

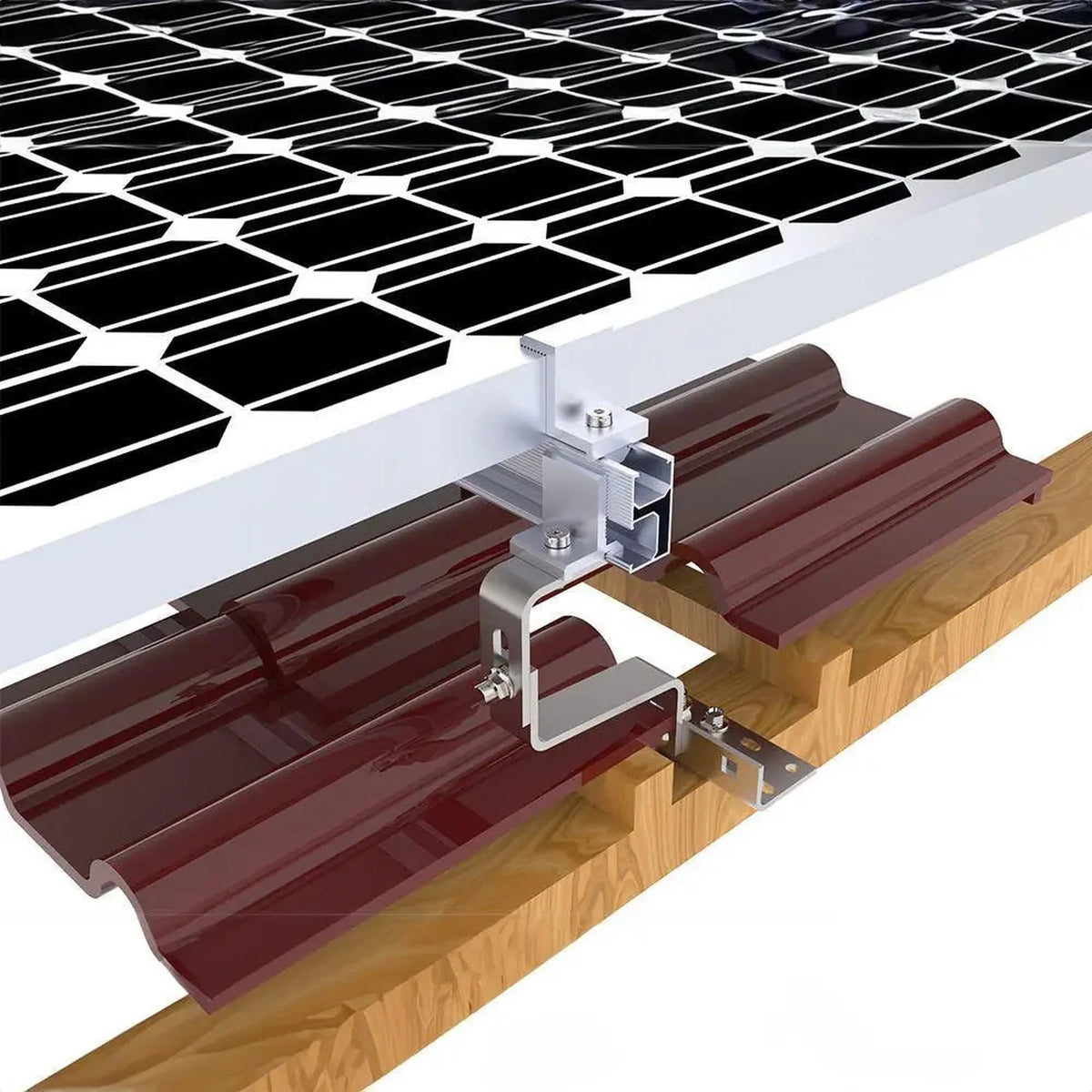

The installer lifts the tile, positions the hook on the batten, and lays the tile back over it. The hook protrudes through the gap between tiles, and the rail clamp clips onto the hook to carry the rail and panel. Because the rails connect with included connectors, rows of any length can be built without cutting on site.

Applications

Suited to coplanar solar PV installations on standard interlocking tiled roofs, in portrait orientation, for arrays of 1 to 20 modules. It gives a flush, low-profile mounting for residential installations.

What's in the box, per module

• 1x Easy Roof aluminium rail, 1200mm
• Middle and end clamps (aluminium)
• Adjustable stainless steel hooks
• M8 nut with plastic clip (stainless steel)
• Allen bolt DIN 912 (stainless steel)
• Rail connectors

Installation notes

Fit by a qualified solar installer only. Hooks must be fixed to sound, load-bearing roof battens, and the hook profile should be checked against the specific tile type before fitting. Do not use where battens are undersized or deteriorated.
