Description

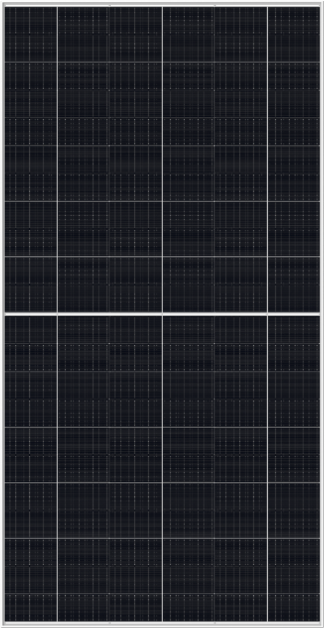

TCL Solar T Class 700W–725W N-Type TOPCon Bifacial Dual-Glass Solar Panel
Built for high-output commercial and large-scale solar installations, the TCL Solar T Class HSM-ND66-GK series combines N-Type TOPCon cells, bifacial energy generation and framed glass-glass construction in outputs from 700W to 725W. The range reaches up to 23.3% module efficiency and is engineered for strong long-term yield in demanding operating conditions.
Availability: In stock and available for sale now.
Key benefits
- 700W–725W output options for large commercial, industrial and utility-scale arrays.
- N-Type TOPCon cell technology for high efficiency, strong low-light performance and lower degradation.
- Bifacial generation with 80% ±5% Pmax/Isc bifaciality.
- Dual-glass construction using 2.0mm + 2.0mm heat-strengthened glass.
- Up to 23.3% efficiency on the 725W variant.
- Low -0.28%/°C power temperature coefficient for improved hot-weather performance.
- IP68 junction box with 3 bypass diodes and Stäubli MC4-EVO2A connectors.
- Heavy-duty mechanical strength: 5400Pa snow load and 2400Pa wind load.
Electrical specifications by model
| Model | Power | Efficiency | Vmp | Imp | Voc | Isc |
|---|---|---|---|---|---|---|
| HSM-ND66-GK700 | 700W | 22.5% | 40.31V | 17.37A | 48.26V | 18.40A |
| HSM-ND66-GK705 | 705W | 22.5% | 40.50V | 17.41A | 48.48V | 18.44A |
| HSM-ND66-GK710 | 710W | 22.9% | 40.69V | 17.45A | 48.70V | 18.48A |
| HSM-ND66-GK715 | 715W | 23.0% | 40.89V | 17.49A | 48.92V | 18.52A |
| HSM-ND66-GK720 | 720W | 23.2% | 41.08V | 17.53A | 49.14V | 18.56A |
| HSM-ND66-GK725 | 725W | 23.3% | 41.27V | 17.57A | 49.36V | 18.60A |
Mechanical & system specifications
| Series | TCL Solar T Class HSM-ND66-GK |
| Cell Technology | N-Type TOPCon |
| Construction | Framed bifacial glass-glass |
| Dimensions | 2384 × 1303 × 33mm |
| Weight | 38.2kg |
| Glass | 2.0mm + 2.0mm heat-strengthened glass; AR coating on front glass |
| Frame | Anodized aluminium alloy |
| Junction Box | IP68, 3 bypass diodes |
| Connector | Stäubli MC4-EVO2A |
| Maximum System Voltage | 1500V IEC |
| Maximum Series Fuse | 35A |
| Operating Temperature | -40°C to +70°C |
| Power Temperature Coefficient | -0.28%/°C |
| Wind Load | 2400Pa front & rear |
| Snow Load | 5400Pa front |
| Impact Resistance | 25mm hail at 23m/s |
| Standard Tests | IEC 61215, IEC 61730 |
| Fire Rating | Class A |
Bifacial output potential
Rear-side irradiance can lift total power beyond the front-side STC rating. TCL specifies approximately 770W–798W with 10% bifacial gain across the 700W–725W range, depending on mounting height, tilt, surface reflectivity and installation conditions.
Warranty
TCL Solar specifies 15-year product coverage and 30-year power coverage for this T Class range, with a minimum warranted output of 99% in year one and maximum annual degradation of 0.40%, subject to manufacturer warranty terms.
Important installation note
At 2384 × 1303mm and 38.2kg, this is a large-format high-voltage module intended primarily for commercial, industrial and power-plant style installations. Confirm structural loading, mounting system compatibility, inverter/MPPT voltage and current limits, string design, cable sizing and all applicable Australian electrical requirements before installation. It is not a nominal 12V battery panel.
