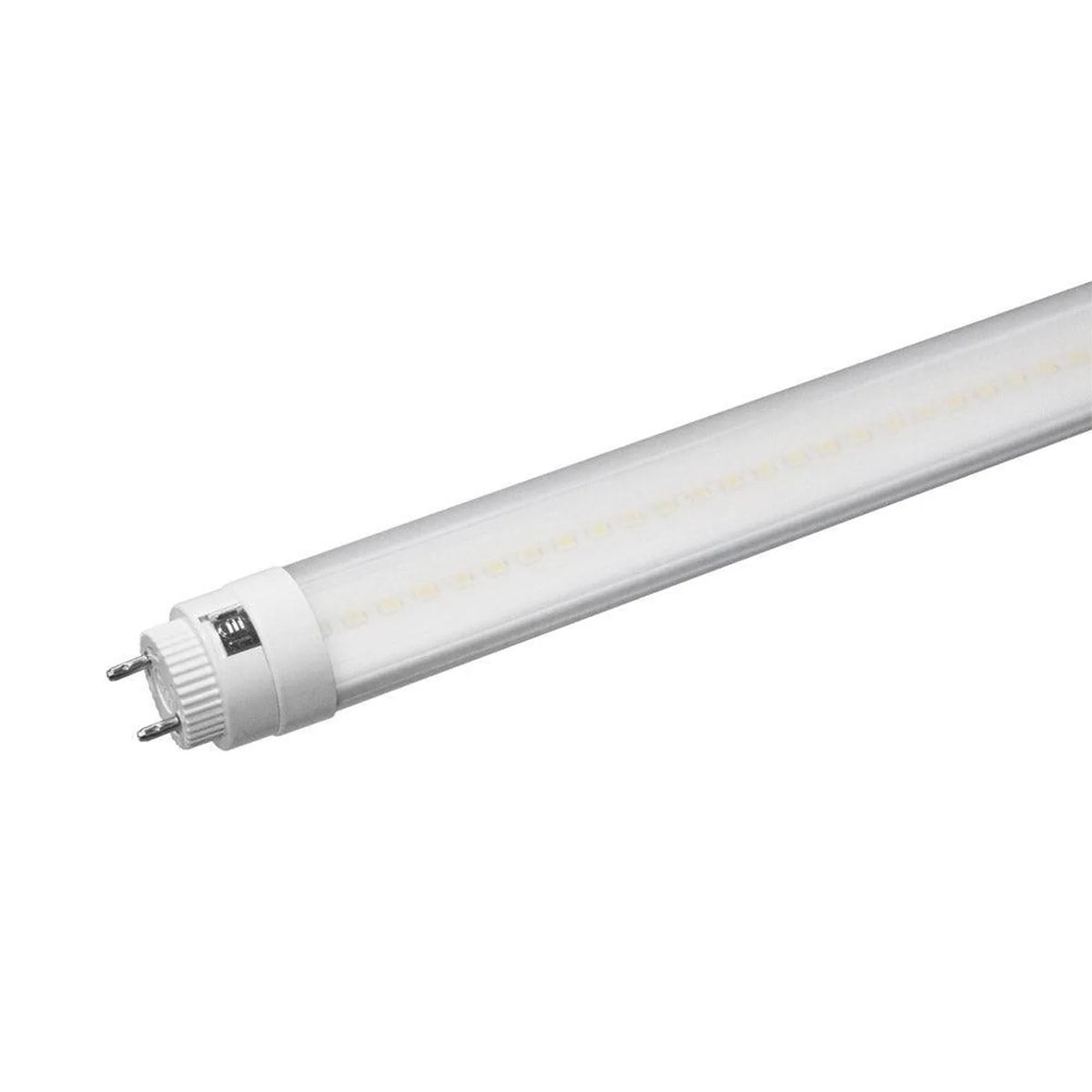

Ledison's Ultra Efficient T8 LED tube delivers 200lm/W from a Natural White 4000K light source, built as a direct replacement for fluorescent T8 fittings. It uses LED chips from Nichia, Honglitronic and CREE, with a colour rendering index above 80.

Key features of this T8 LED tube

• Luminous efficacy, 200lm/W
• Wattage, 6/12/16/24W depending on tube length
• Voltage, 100-265Volt, 50/60Hz
• Colour rendering index, greater than 80
• Beam angle, 120deg
• Average lifetime, 50,000 hours
• Dimmable, No
• Warranty, 5 Years
• Certification, TUV, RoHS Compliant, CE, UL

Testing over thousands of hours found the tubes retained 80% of original luminosity after 50,000 hours of operation.

Installing the T8 LED tube

These tubes fit into existing T8 fixtures without rewiring. Remove the old starter and fit the LED starter supplied with the tube, then power on. Where the fitting uses an electronic ballast, the tube must connect directly to the mains and the ballast should be removed or bypassed.

Compliance

Every tube ships with installation instructions and a warranty certificate, and meets EU and British Standards for protection against electric shock.

Operating temperature range and net weight per piece are listed in the specification table.
