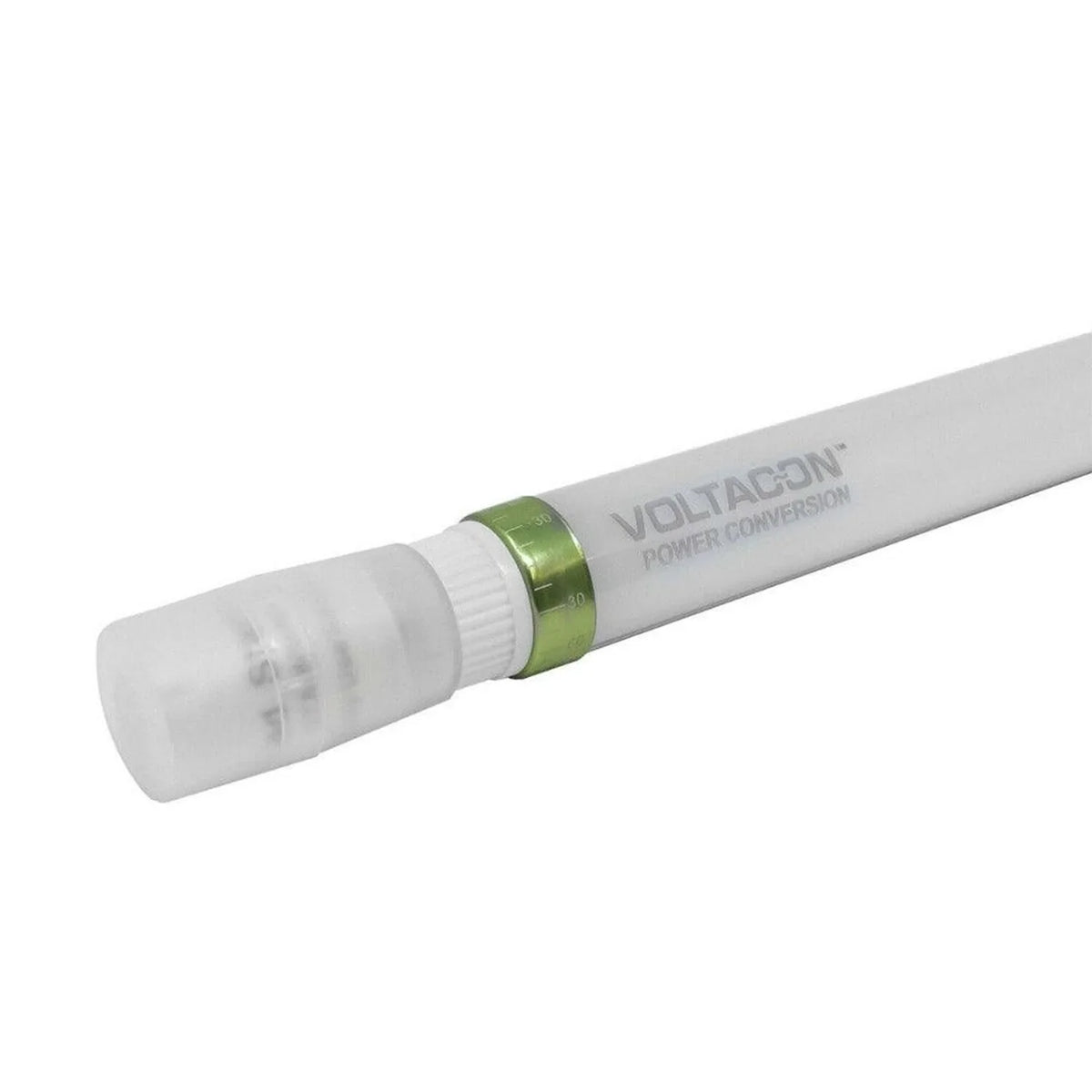

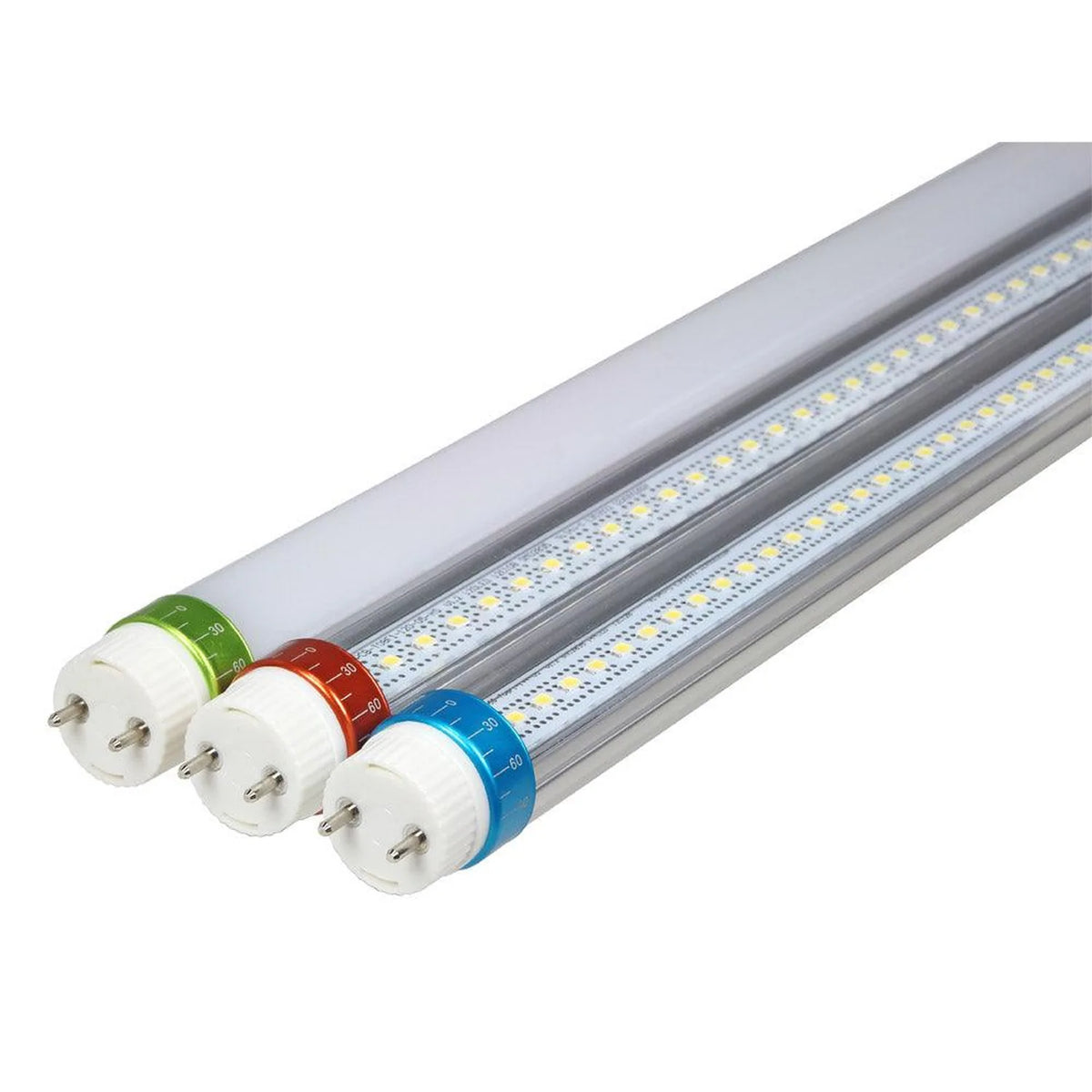

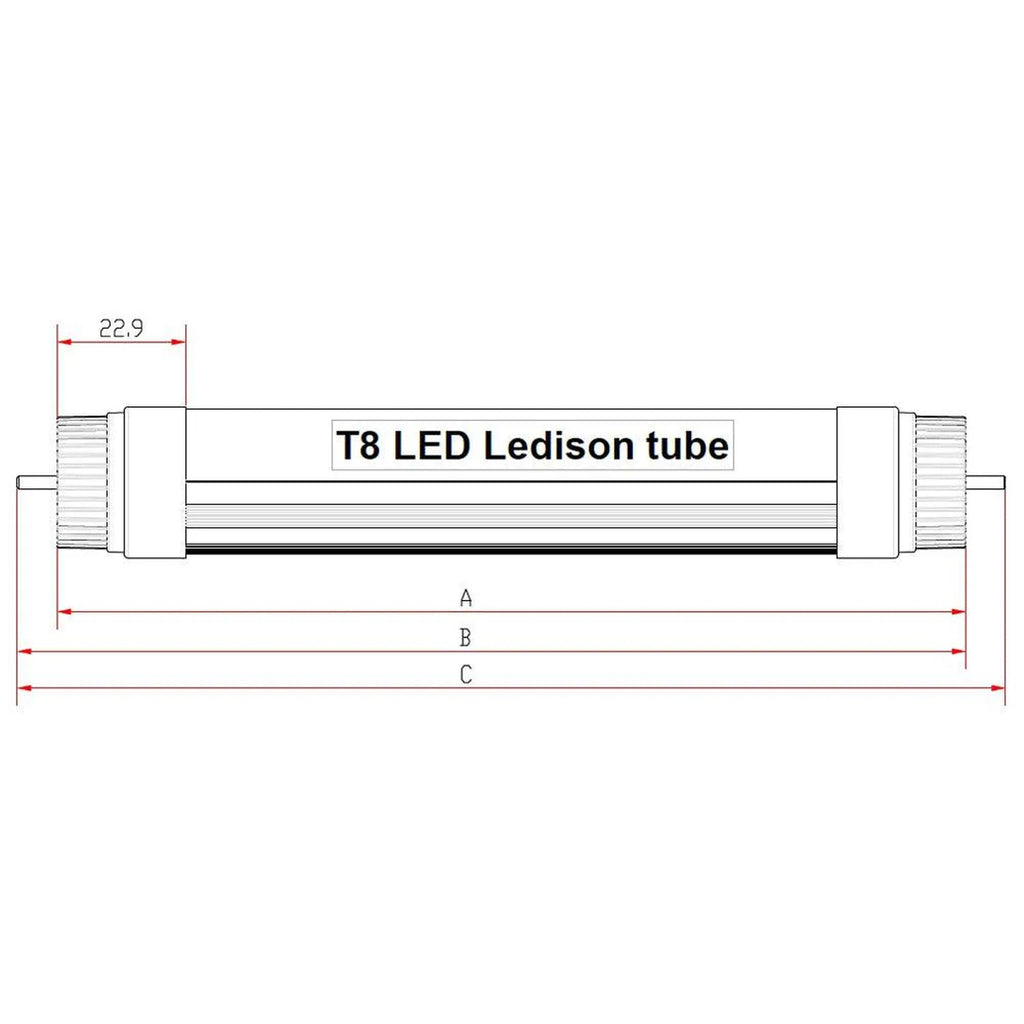

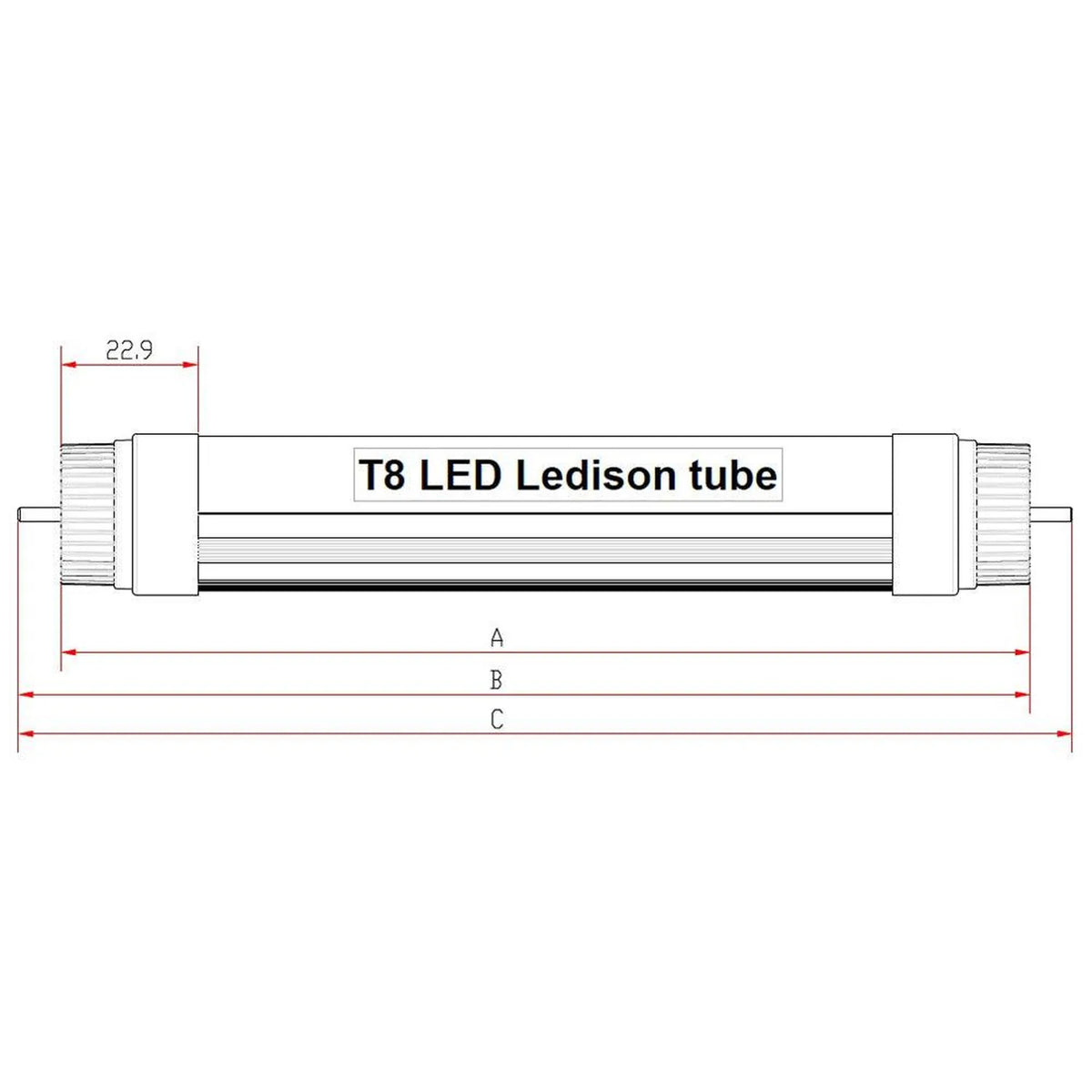

The Ledison T8 LED Tube measures 150cm (1514mm) pin to pin and runs at 22W, producing 2640lm as a direct replacement for 56W fluorescent tubes.

T8 LED tube key features

• Luminous flux: 2640lm
• Colour rendering index: greater than 80
• Voltage: 100-265V, 50/60Hz
• Average lifetime: 50,000 hours
• Beam angle: 120 degrees
• Diameter and weight: 26mm, 200gr per tube

Installation

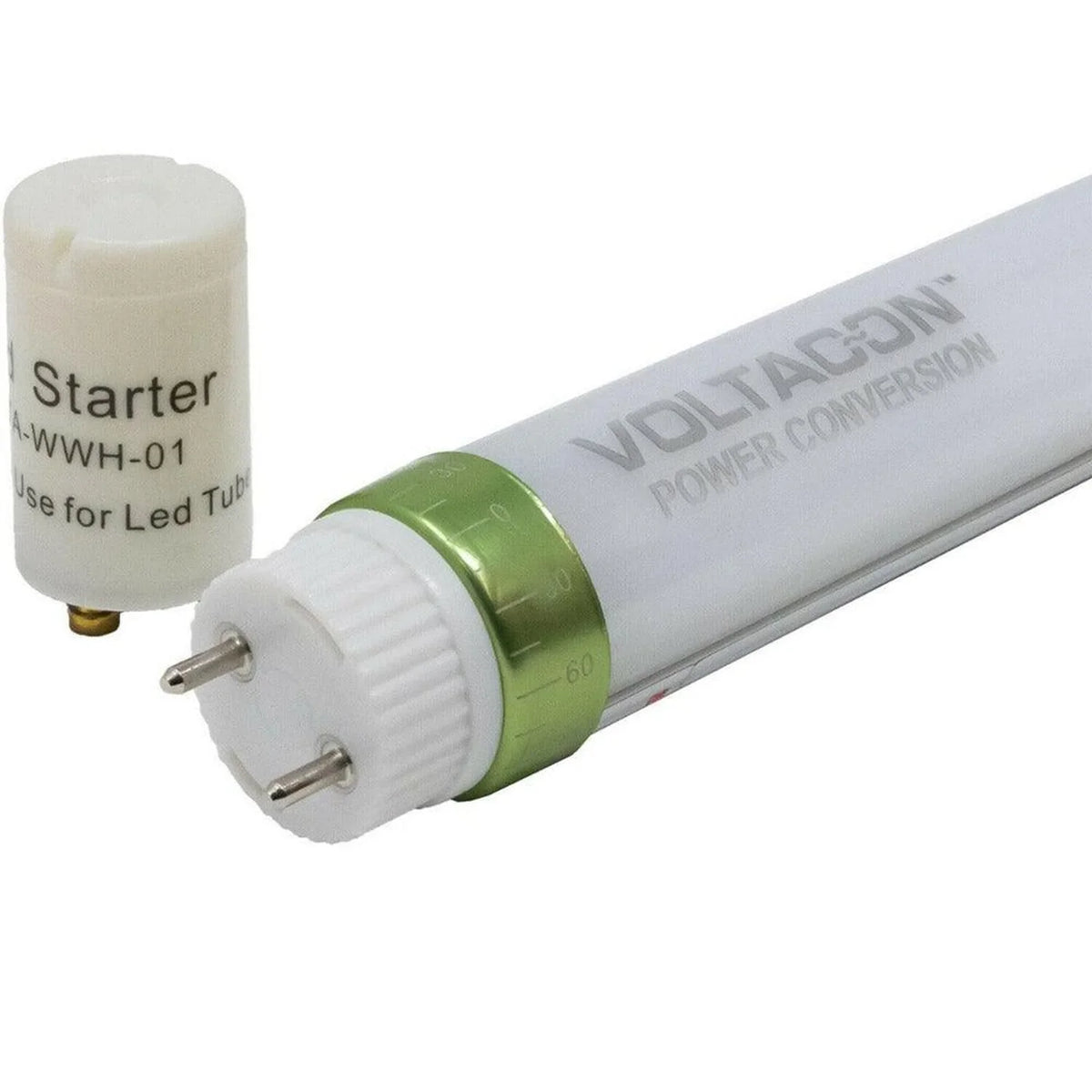

Fit the tube by removing the old starter and replacing it with the LED starter supplied. It installs into a conventional T8 fitting without extra wiring in most cases. Double-ended fittings need a quick rewire because this tube uses a single-ended power connection. Where the existing fixture has an electronic ballast, remove or bypass it so the tube connects directly to mains voltage.

Applications and colour options

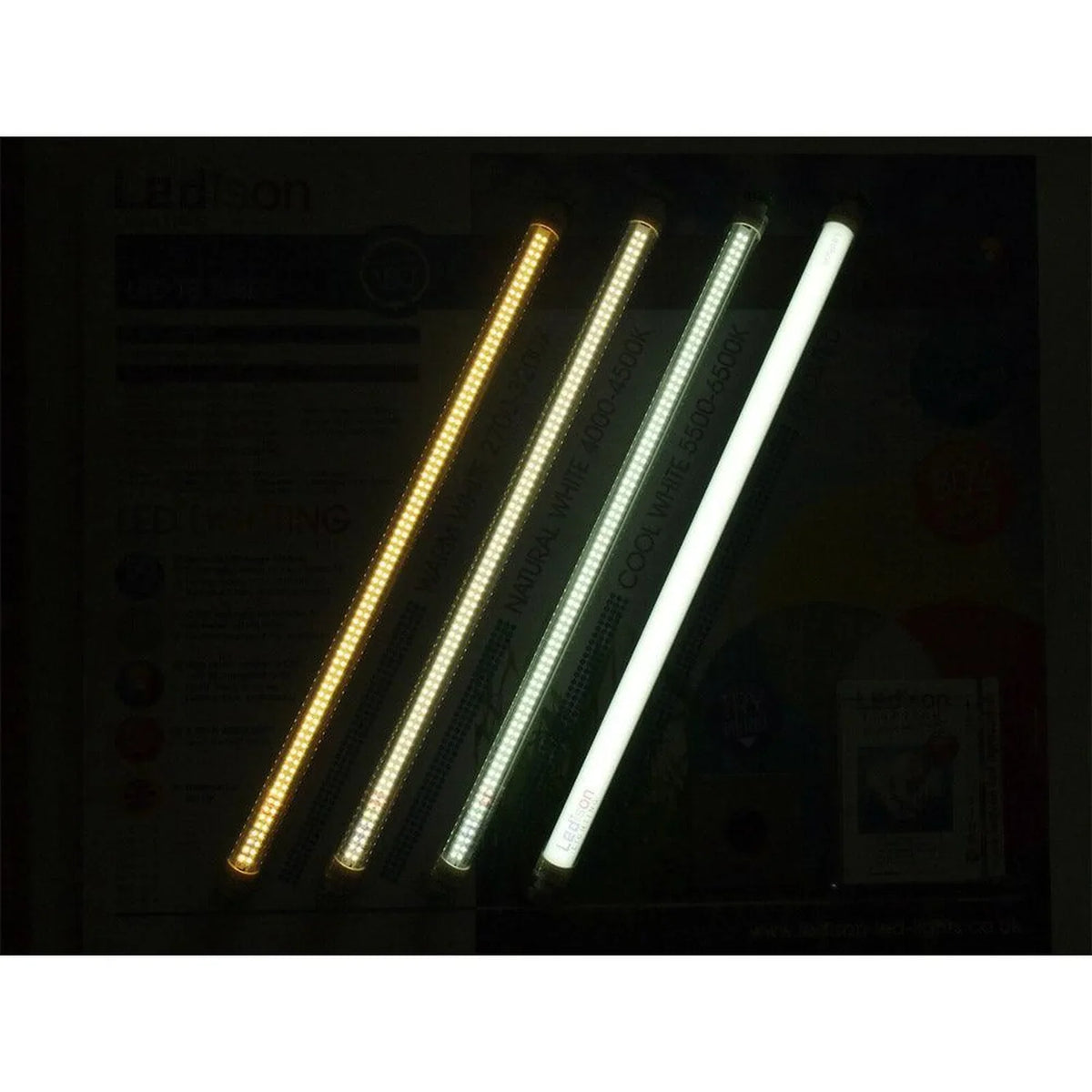

Suited to retrofitting existing 150cm T8 fluorescent fittings in offices, workshops, retail units and homes. It is available in 3000K warm white, 4000K natural white and 5500K cool white, each finished with a frosted cover for even light spread rather than a harsh point source.

Certification and warranty

Carries TUV, RoHS, CE and UL certification and comes with a 5 year warranty. Operating temperature range is -25°C to 50°C. The tube is not dimmable, and installation instructions plus a warranty certificate are included with every unit.
