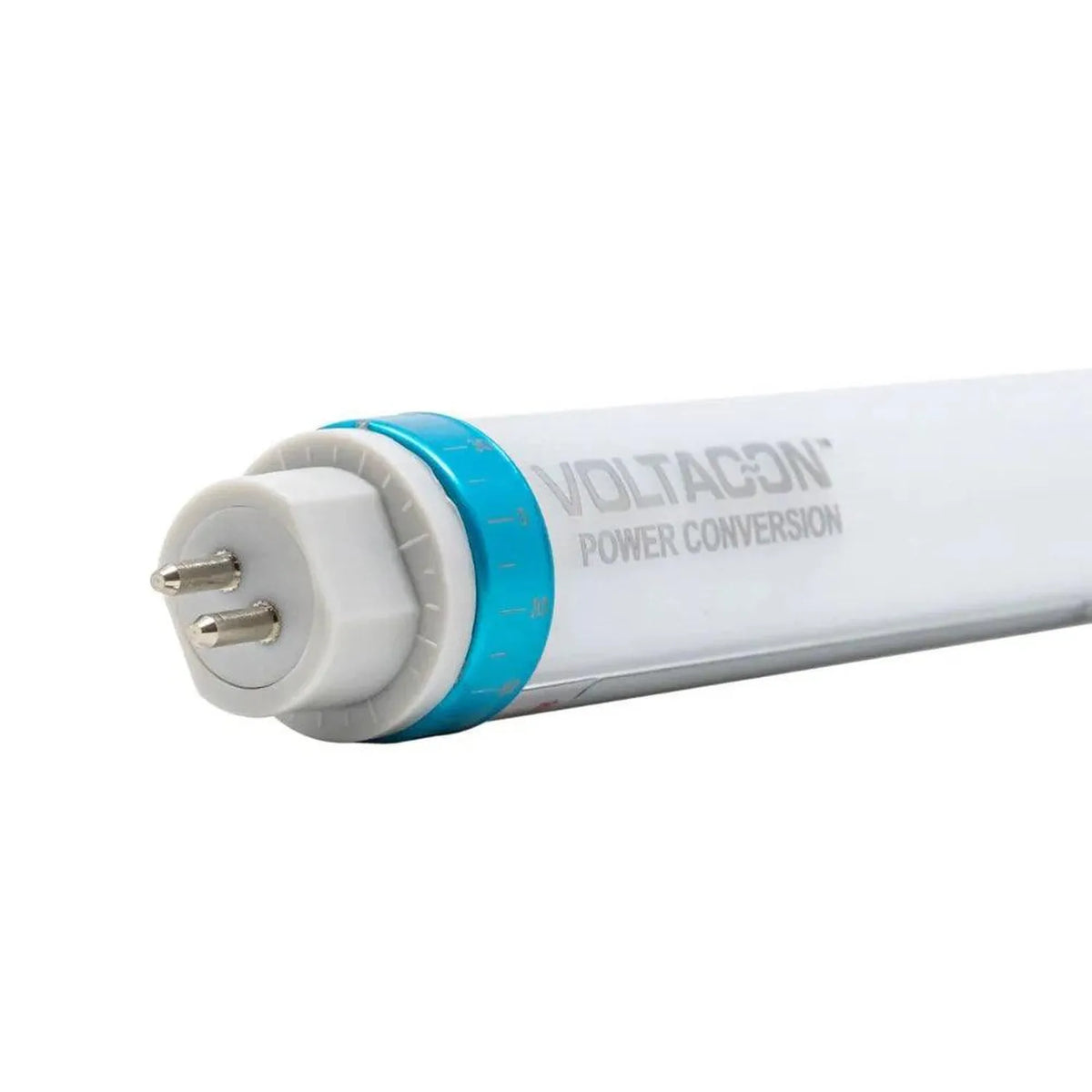

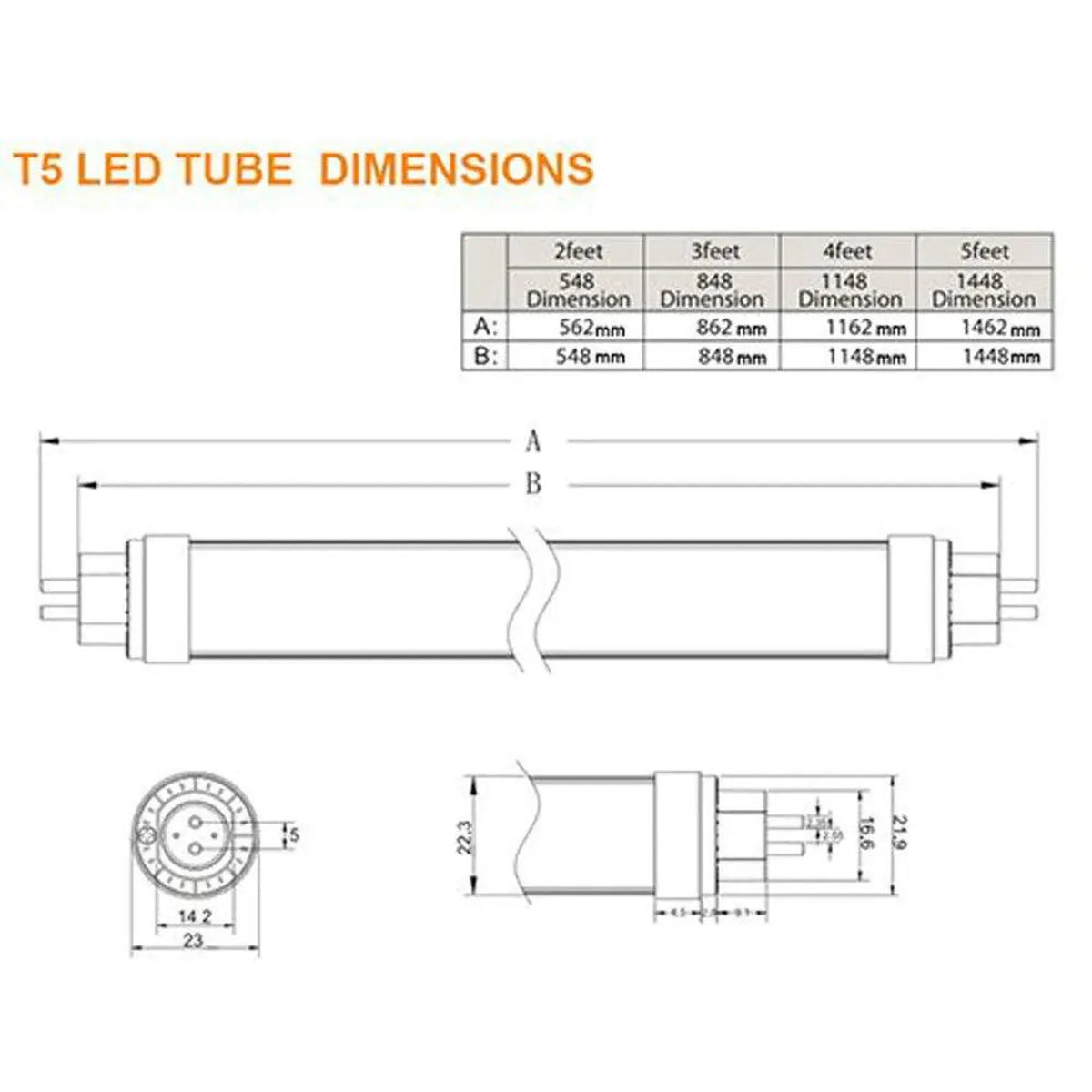

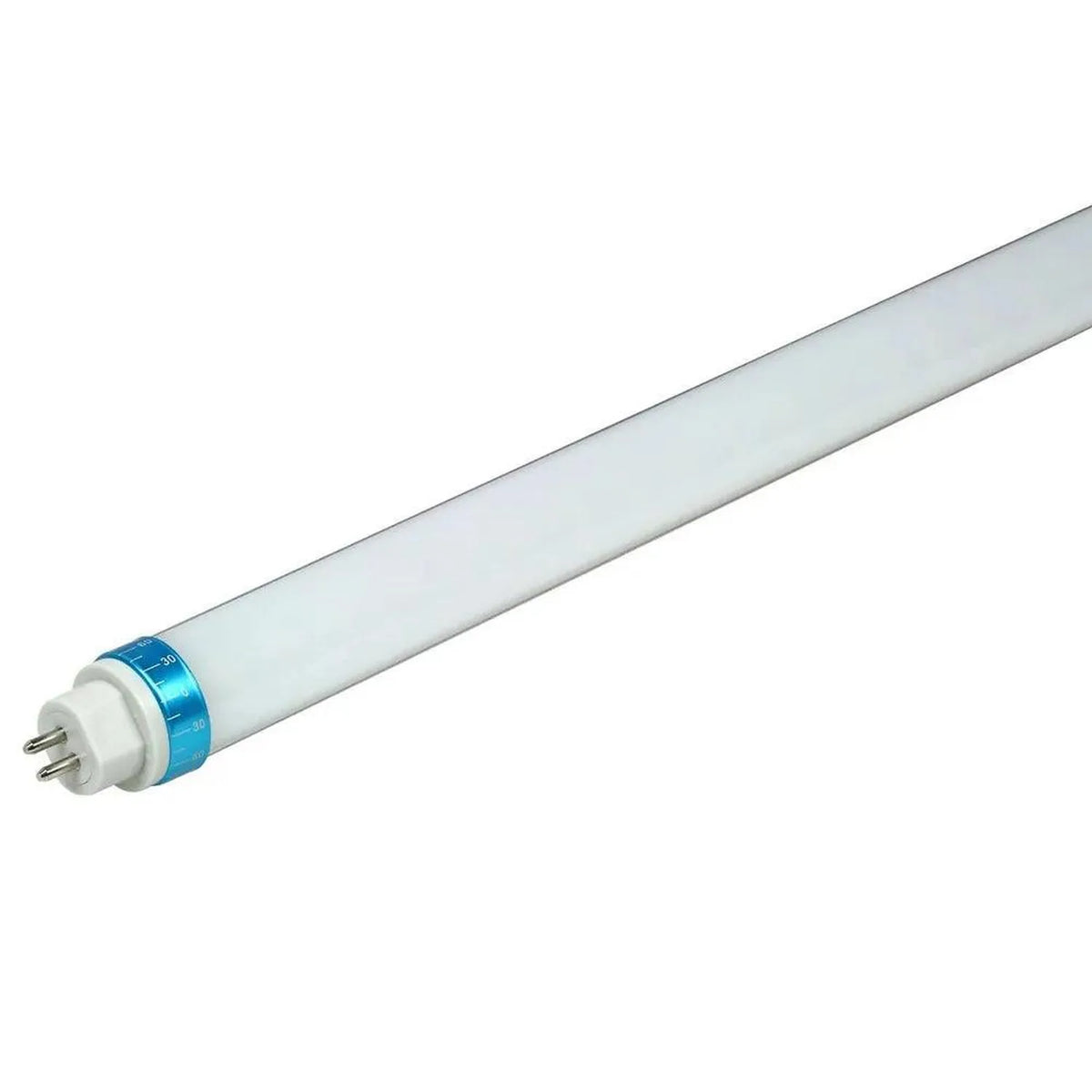

This T5 LED tube light measures 150cm (1463mm pin to pin) and runs on 22W, wired directly to the mains with no external ballast needed. It is a retrofit replacement for fluorescent T5 tubes, built with a driver housed inside the tube itself.

Key features of this T5 LED tube light

• Light output, 2640lm at 120lm/W
• Colour rendering index, >76 CRI
• Input voltage, 100-305VAC, 50/60Hz
• Beam angle, 120 degrees
• Lifespan, up to 50,000 hours
• Housing, aluminium body, 22mm diameter, with rotating end caps that lock into position for easier fitting

The tube uses SMD 2835 LED chips for even light distribution, and thermal vias on the board help carry heat away from the LEDs. It runs cooler than fluorescent tubes and emits no UV light.

Fitting notes

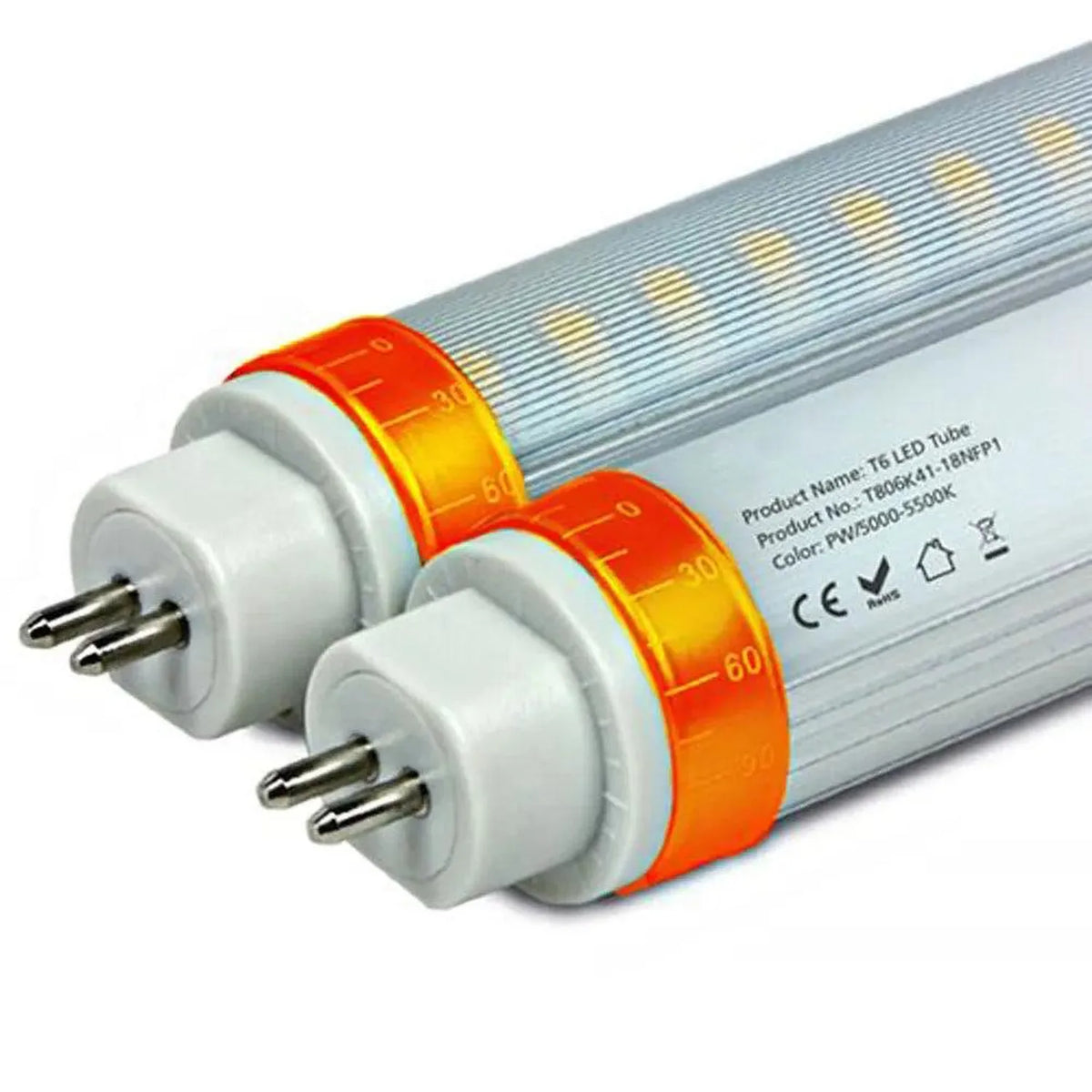

This is a T6/T5 hybrid tube. It matches standard T5 length and fitting compatibility, but the body is a wider 22mm T6 profile to fit the internal driver. It is single-ended, so if your existing fitting is double-ended, a quick rewire will be needed. It is not dimmable.

Applications

Suited to replacing existing fluorescent T5 tubes in commercial and domestic fittings where a direct mains connection is wanted, without the need for a separate driver unit.

Certification and warranty

Certified to TÜV Rheinland, CE, RoHS and UL standards, and covered by a 5 year warranty. Available in warm white (2700-3200K), natural white (4000-5000K) and cool white (5500-6500K).
