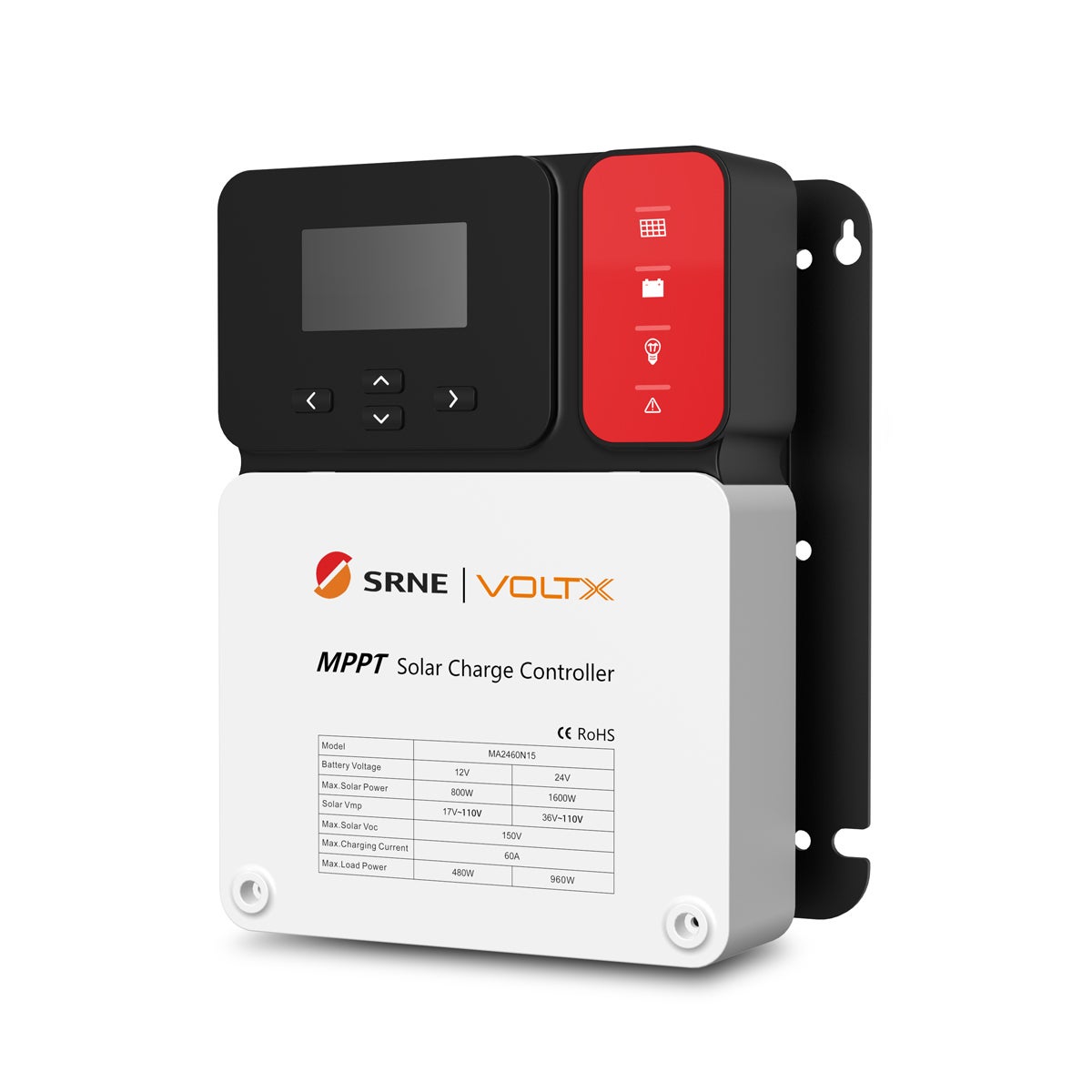

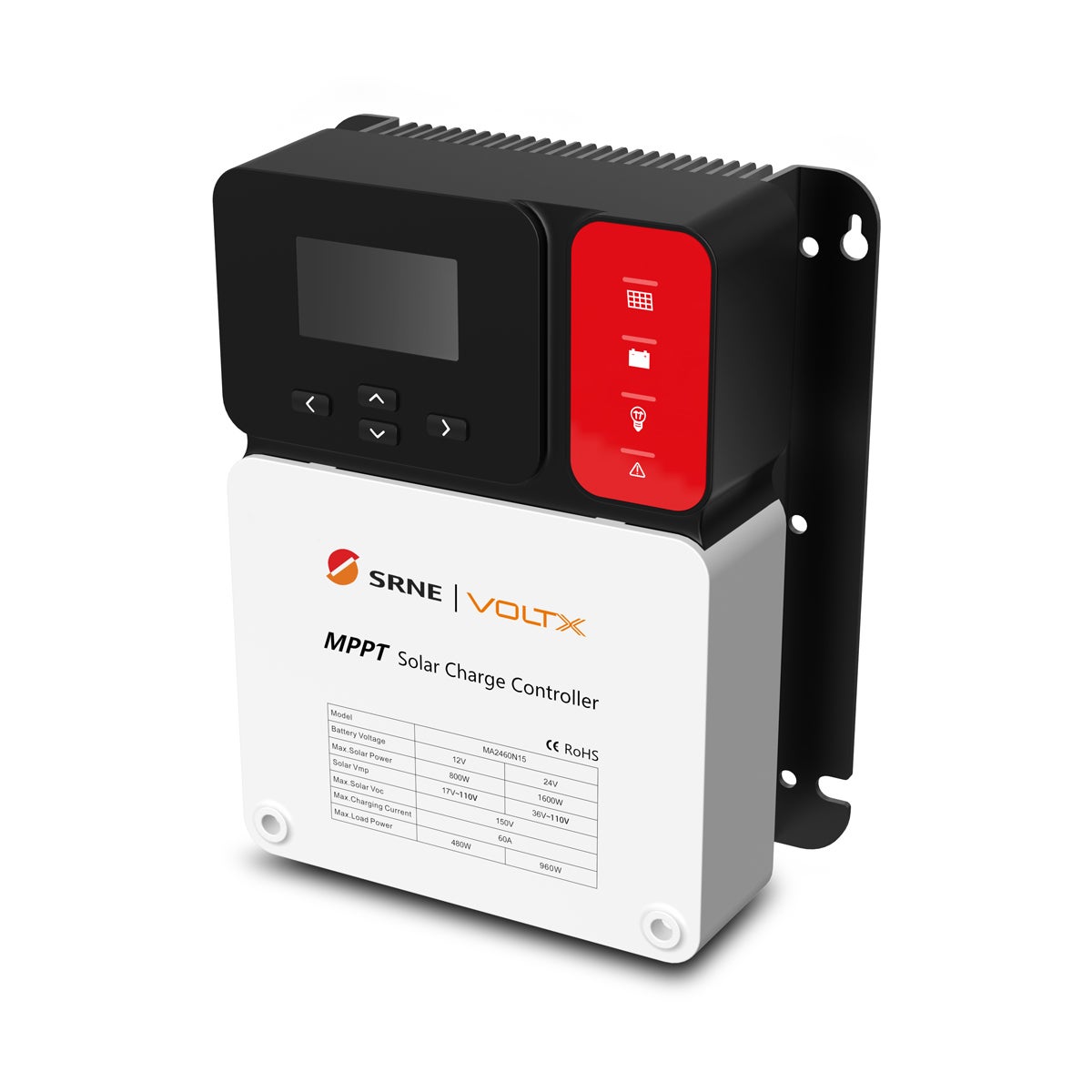

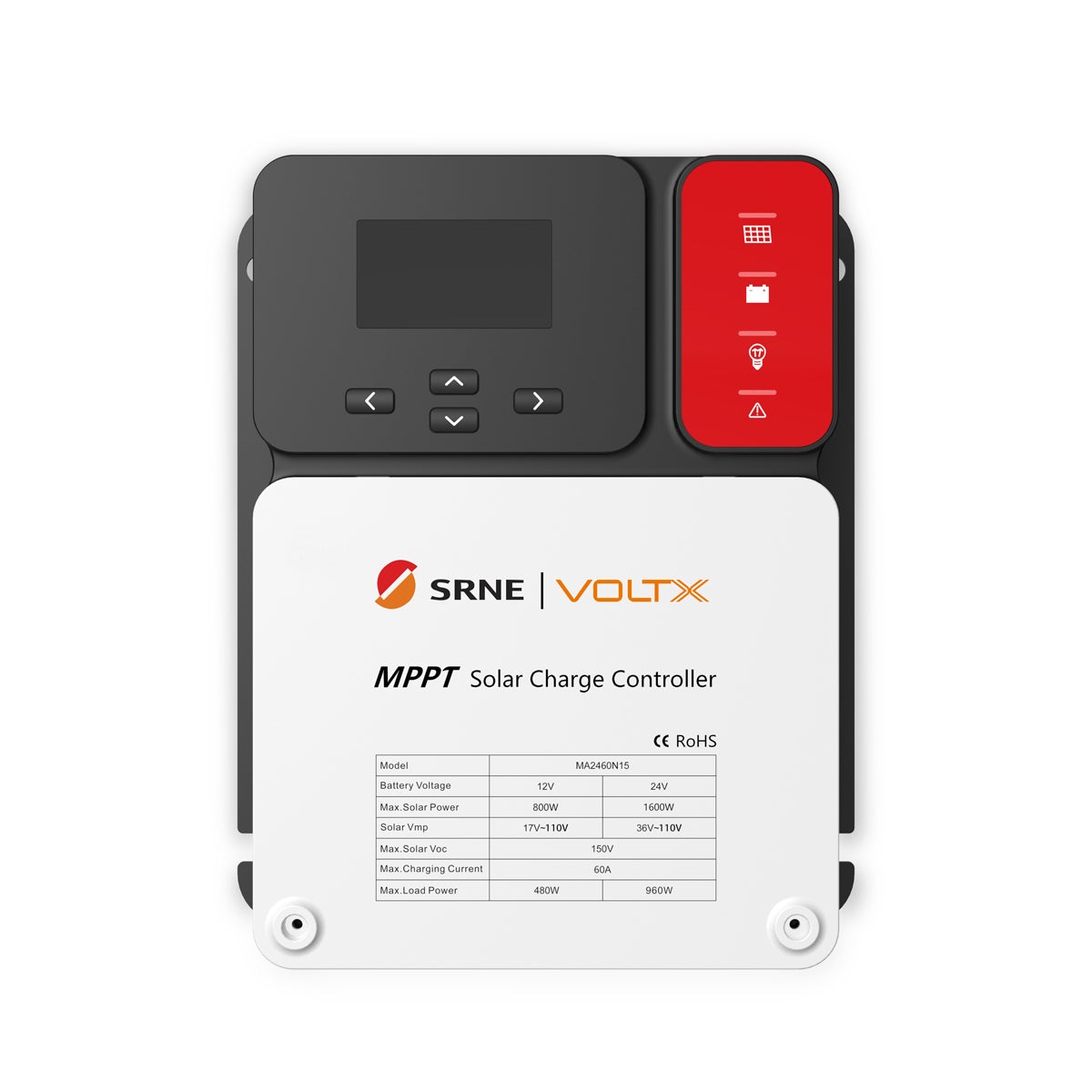

The SRNE VoltX 60A MPPT Solar Charge Controller is a state-of-the-art device that employs advanced Maximum Power Point Tracking (MPPT) technology, achieving an exceptional efficiency of up to 99.9%. This high level of efficiency enables users to optimize the energy harvested from their solar panels, maximizing overall solar power generation.

One of the standout features of this charge controller is its real-time temperature monitoring, which is facilitated by an included Remote Temperature Sensor. This feature helps in maintaining optimal operating conditions and prolongs the lifespan of the batteries by preventing overheating.

In terms of communication capabilities, the VoltX 60A offers several options to ensure seamless integration with different systems. It supports TTL (Transistor-Transistor Logic), CAN (Controller Area Network), and Bluetooth communication protocols. These options enhance the versatility of the device, allowing users to monitor and control their solar power systems remotely and efficiently.

Additionally, the VoltX 60A comes equipped with a variety of robust protection functions. These protections help safeguard the system against overcharging, short circuits, and reverse polarity, ensuring safe and reliable operation.

This charge controller is also compatible with standard off-grid solar panels operating at both 12V and 24V, making it suitable for a wide range of solar applications—from small residential systems to larger off-grid installations. With its proven ability to significantly enhance the efficiency of solar power systems, the SRNE VoltX 60A MPPT Solar Charge Controller is an excellent choice for anyone looking to improve their solar energy setup.

Specifications

System voltage 12V/24V

Rated charging current 60A

Maximum solar panel power 800W/12V; 1600W/24V

Maximum PV open-circuit voltage 150V

Charging conversion efficiency 85%-98% (10%-100% of rated power)

Rated load current 40A

Bluetooth communication Built-in

Grounding type Co-negative design and negative grounding

Cooling mode Natural Cooling

Dimension 260 x 216 x 98.5mm

Weight 3.4kg
