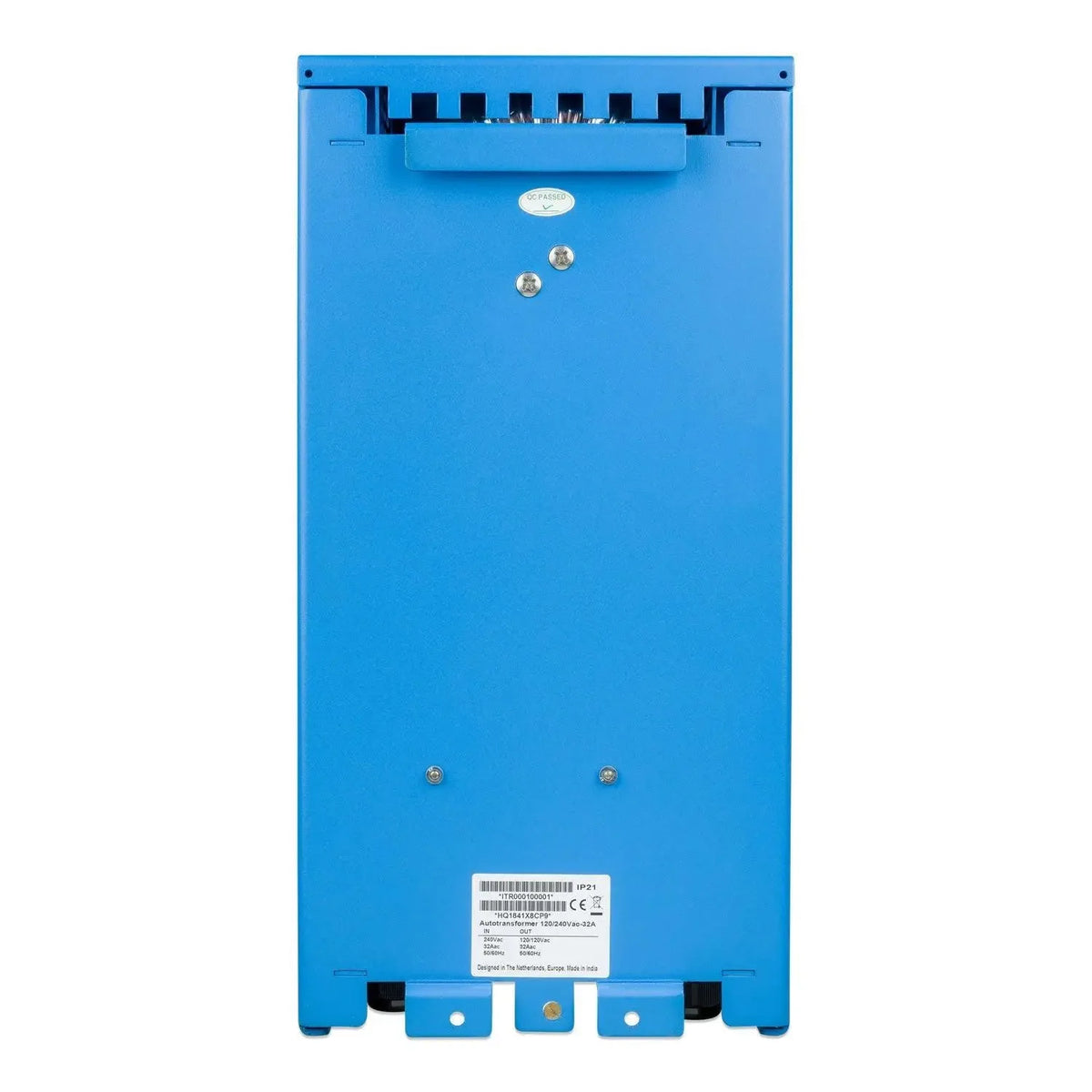

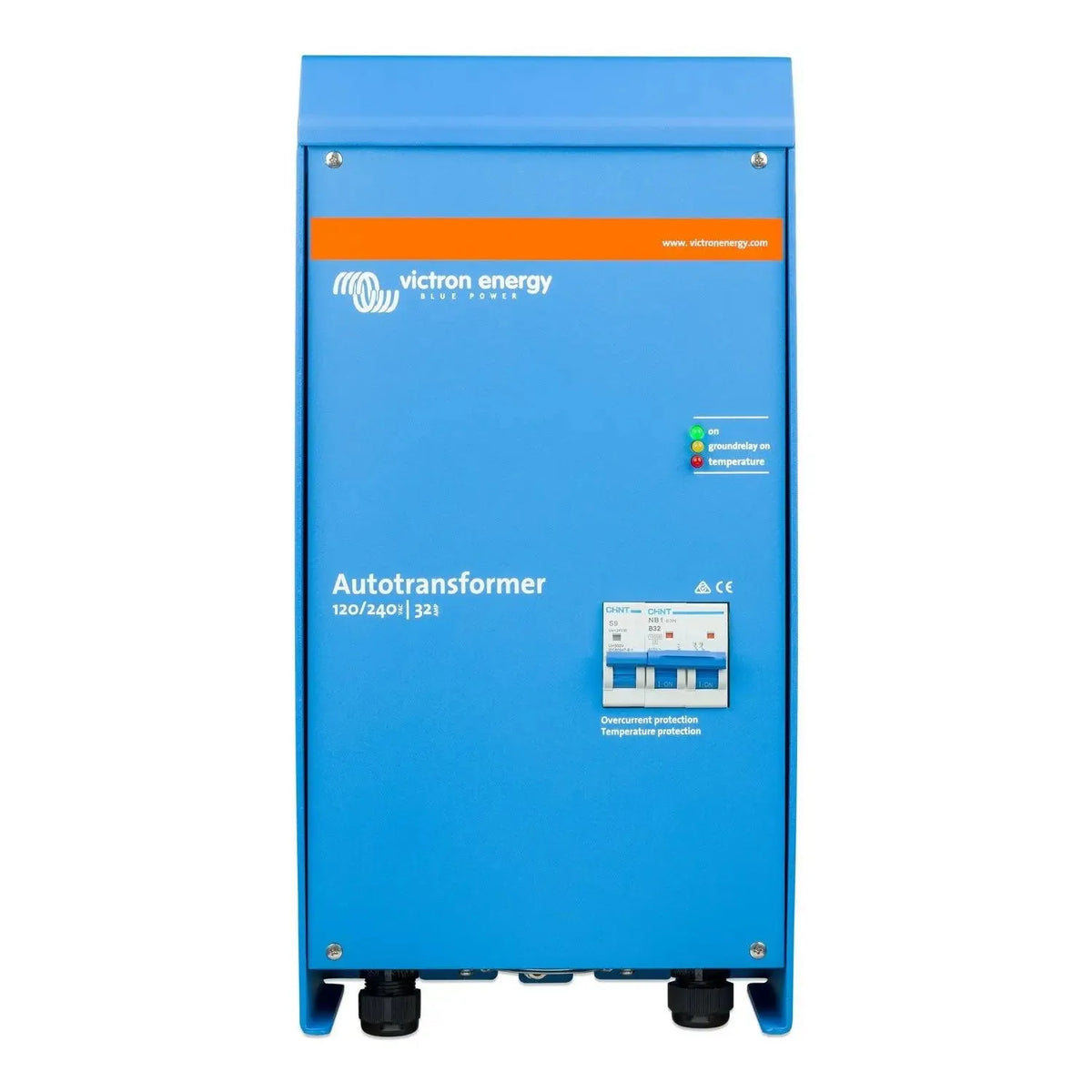

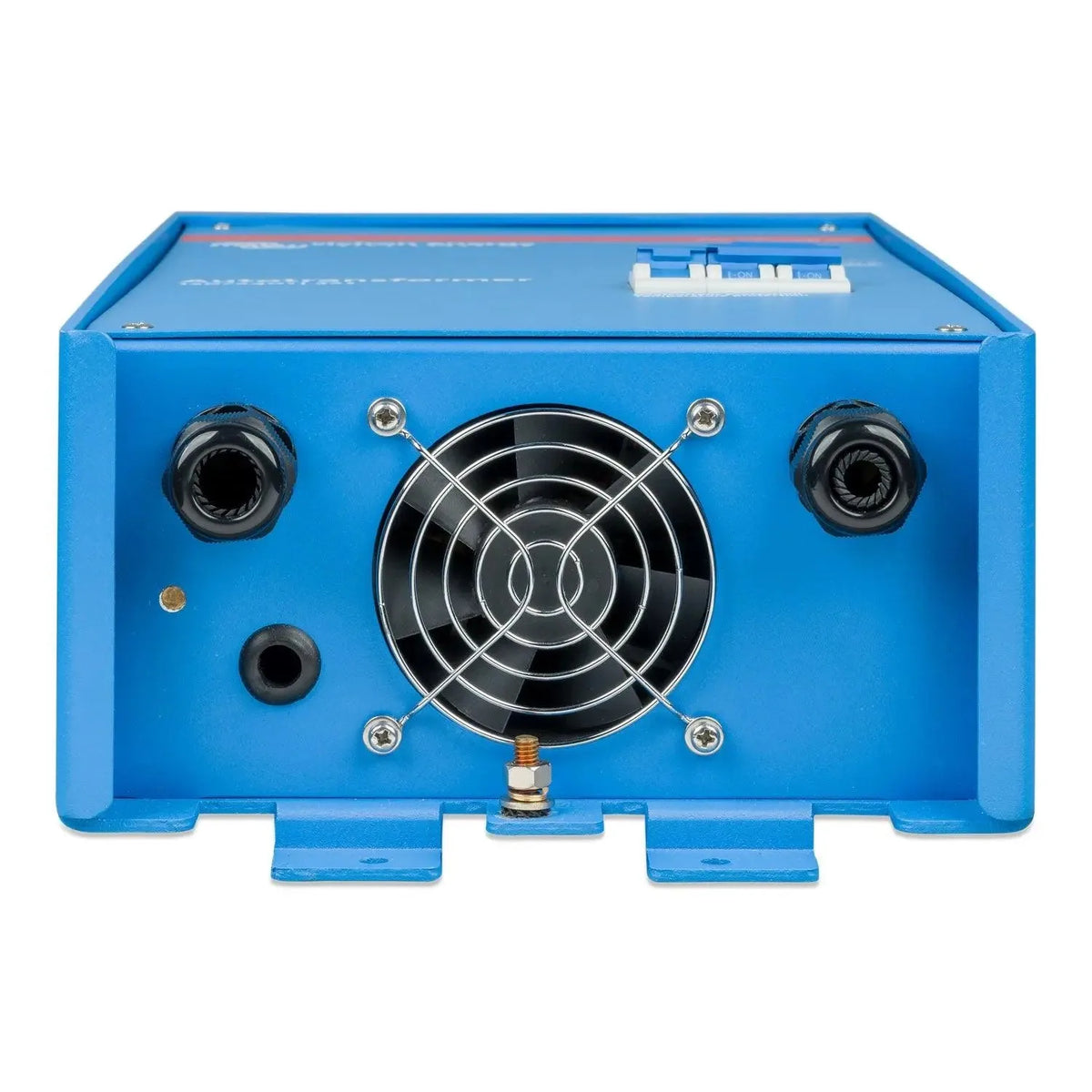

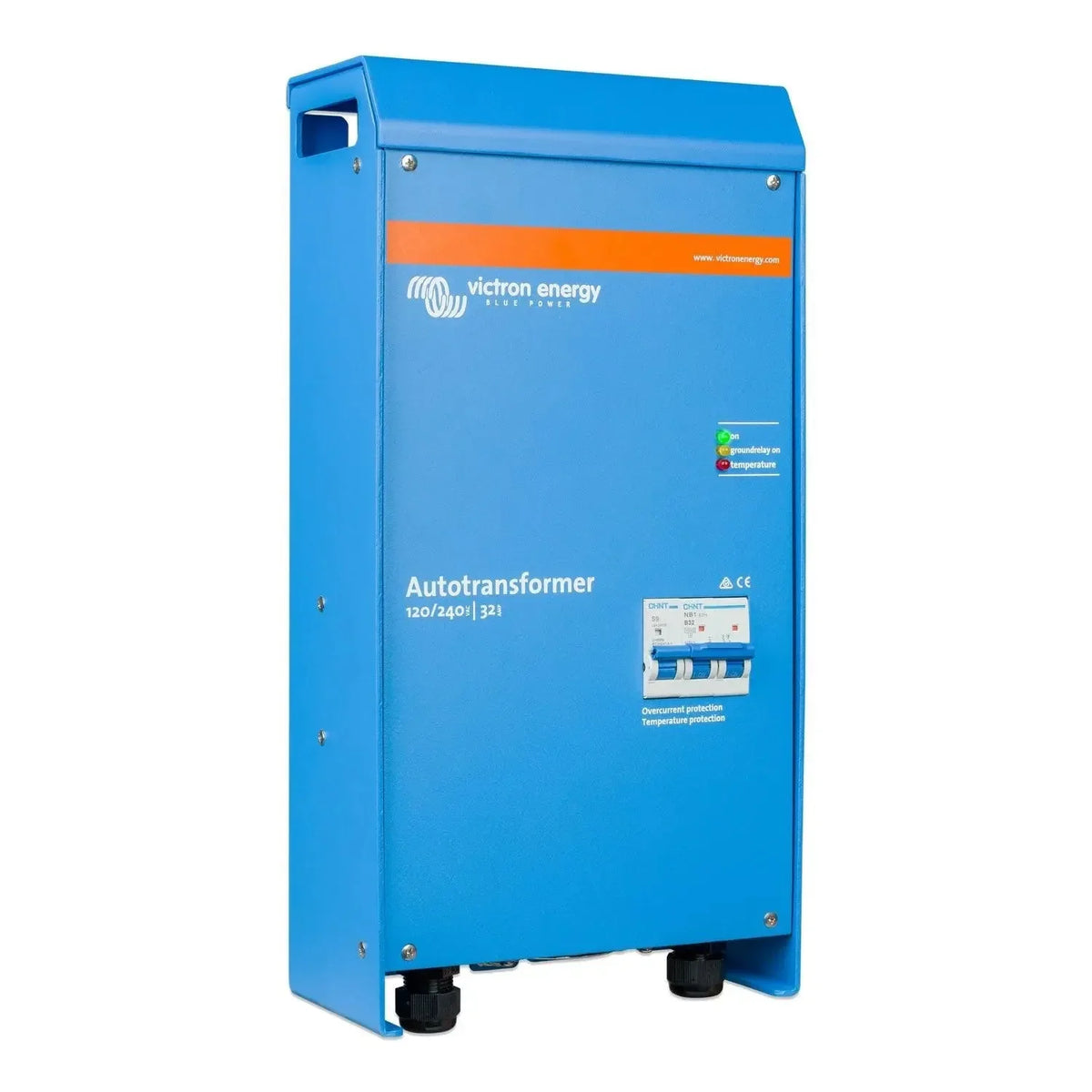

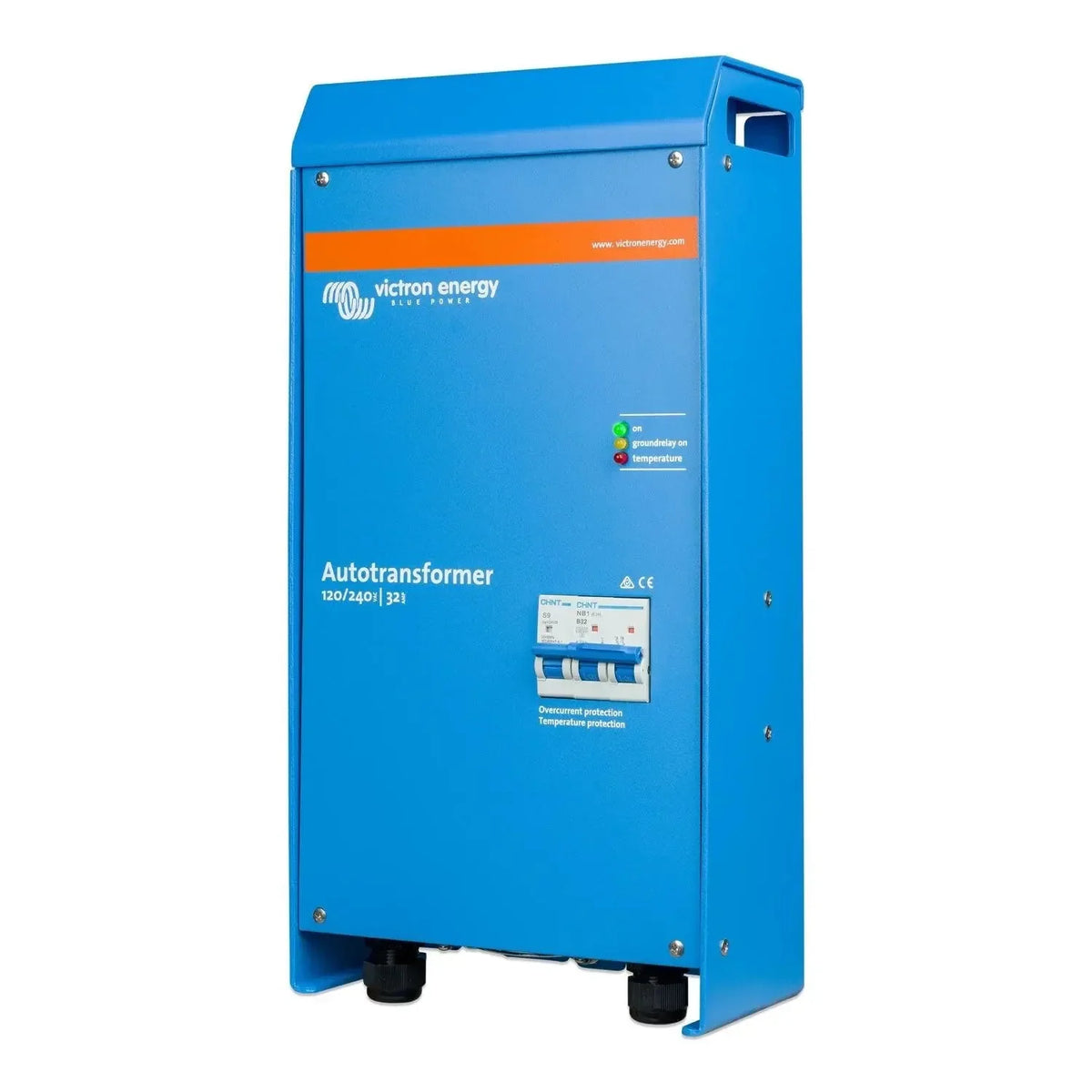

The Victron Autotransformer 120/240V-32A converts a single 240V AC source into a balanced 120V/120V split-phase supply, or combines two 120V legs into 240V. Rated at 32A continuous, it suits off-grid, marine and North American-standard electrical installations that need split-phase distribution from a single-phase source.

Victron autotransformer key features

• Voltage conversion: splits 240V single-phase into 120V/240V split-phase output, or combines two 120V legs into 240V.
• Continuous rating: 32A, suited to substantial loads across both legs.
• Autotransformer design: shared-winding construction is more compact than a full isolation transformer, though it does not provide galvanic isolation between input and output.
• Toroidal core: keeps no-load losses low and reduces audible hum.
• Weight: 12.8 kg, reflecting a substantial copper-wound core for the rated current.
• Inverter compatibility: works alongside Victron MultiPlus or Quattro units, allowing split-phase output from a single 240V inverter.

Applications

Fitted in off-grid systems using North American-standard 120V/240V distribution panels, in marine and yacht installations needing split-phase AC from one inverter, and in RV builds where appliances expect a balanced split-phase supply. It also covers light commercial off-grid sites with mixed 120V and 240V loads. At 32A and 240V, maximum throughput is approximately 7.68 kVA, covering most residential and light commercial off-grid demands.

Isolation and installation

Because primary and secondary windings share a connection, this unit does not isolate input from output electrically. Where isolation is a safety or regulatory requirement, a separate isolation transformer is needed instead. Installation should be carried out by a qualified electrician, with wiring and overcurrent protection rated for the full 32A load on both sides.

What's in the box

• 1 x Victron Autotransformer 120/240V-32A (ITR000100001)
