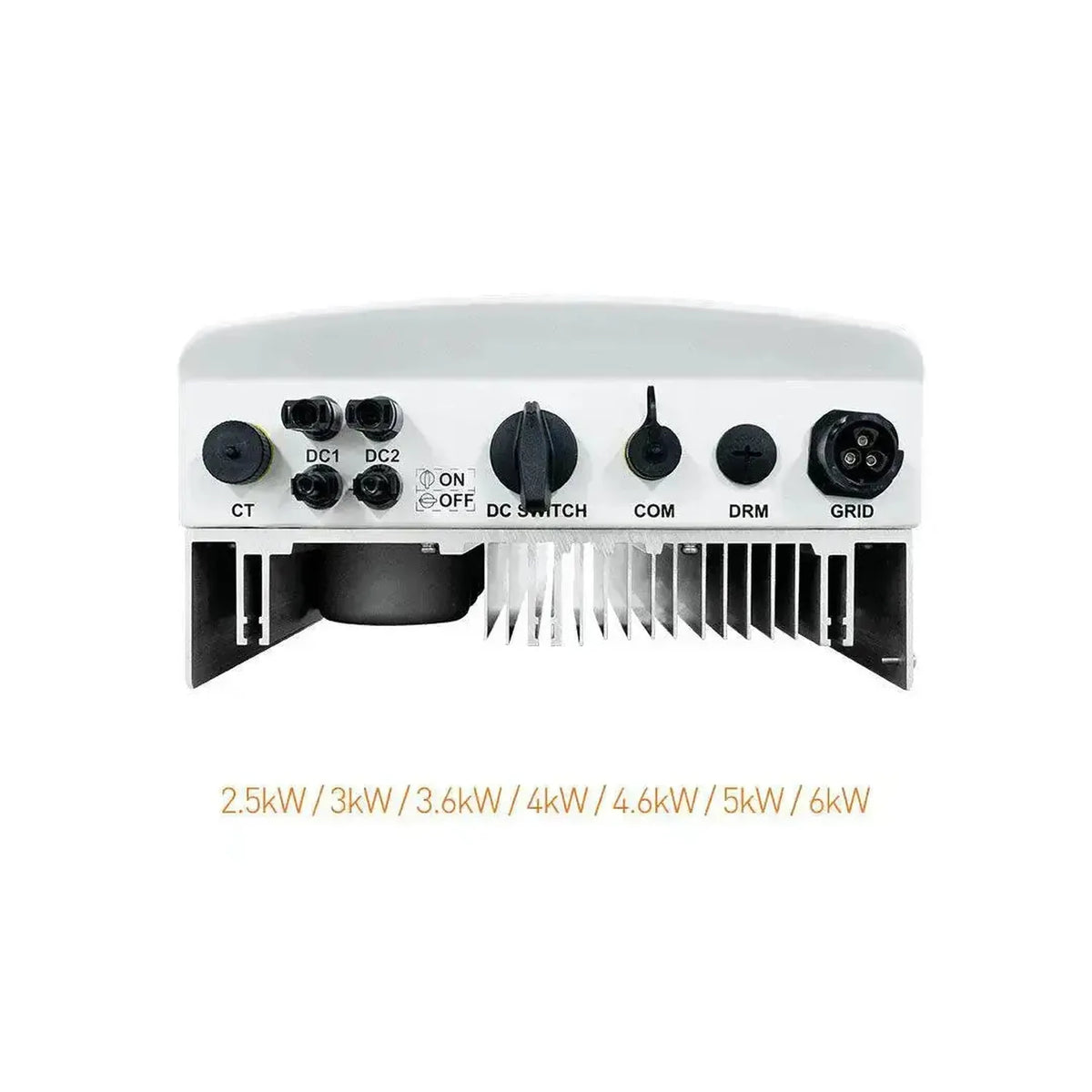

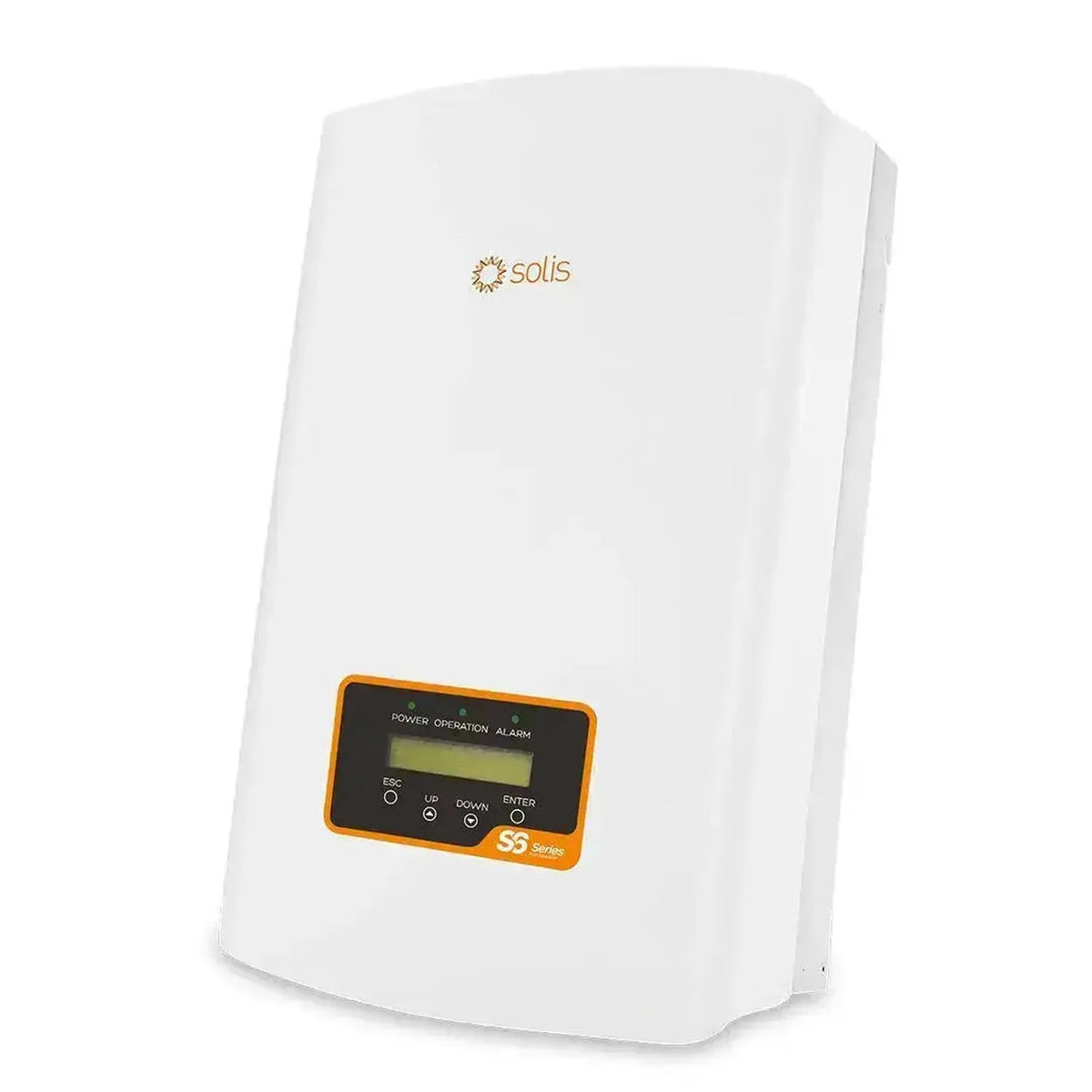

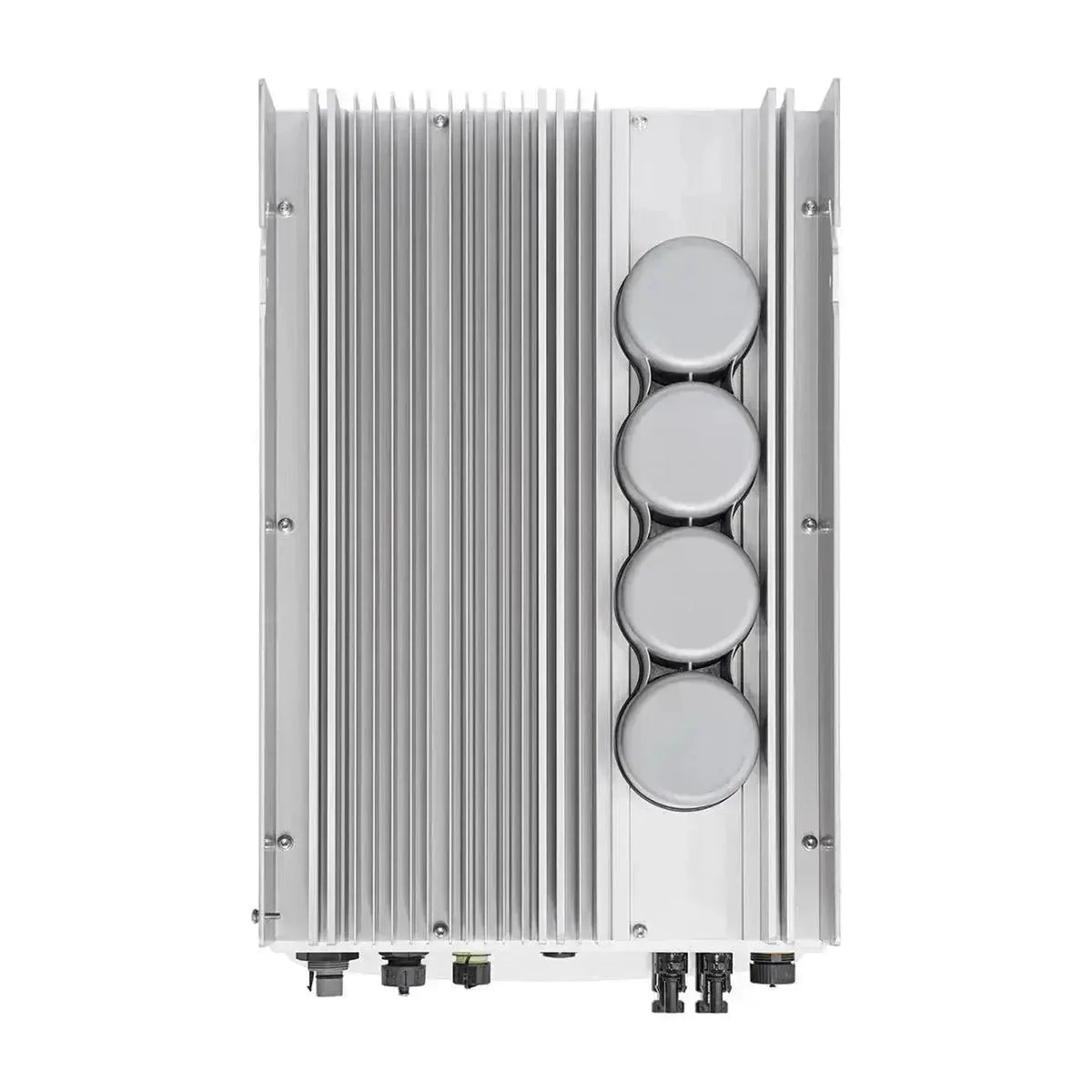

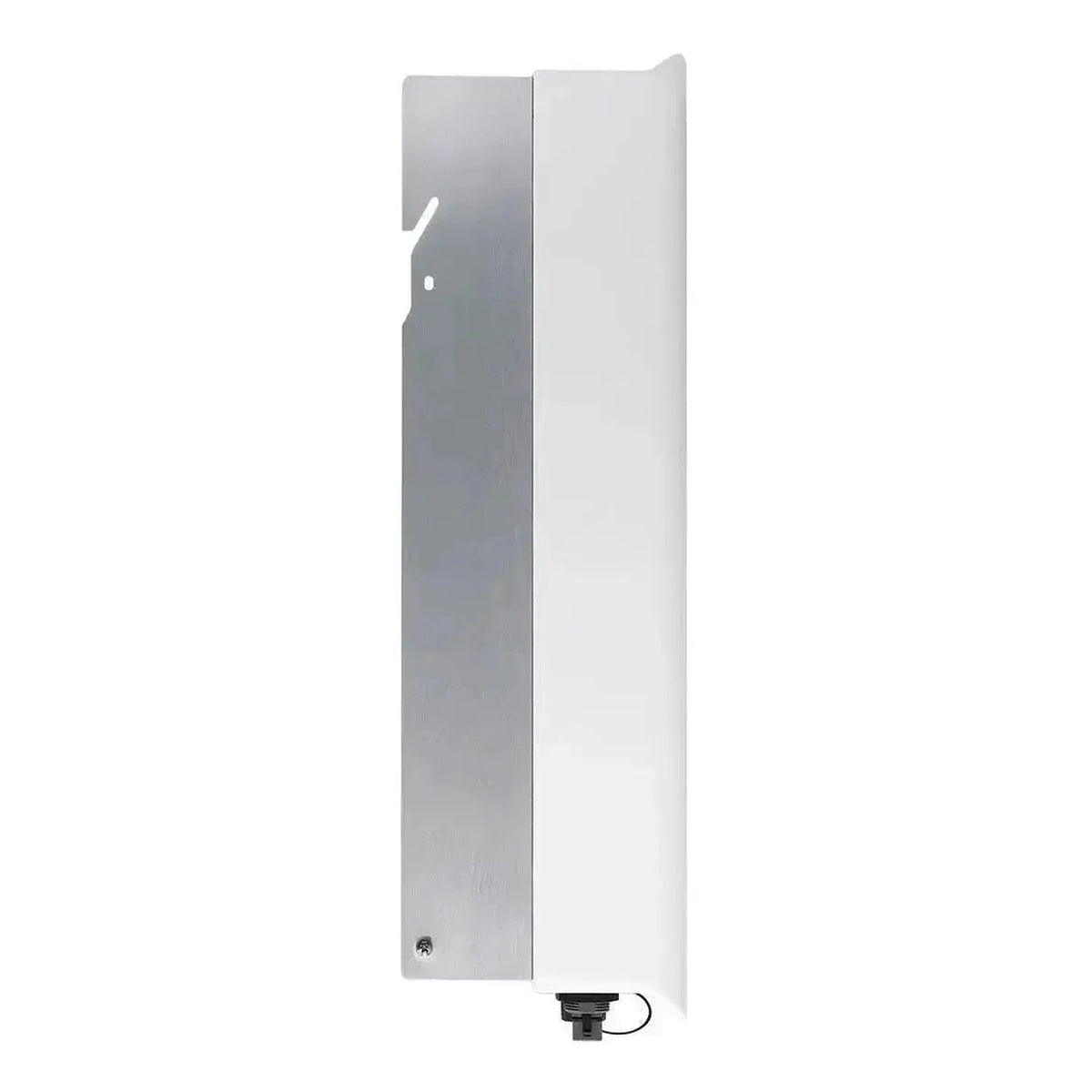

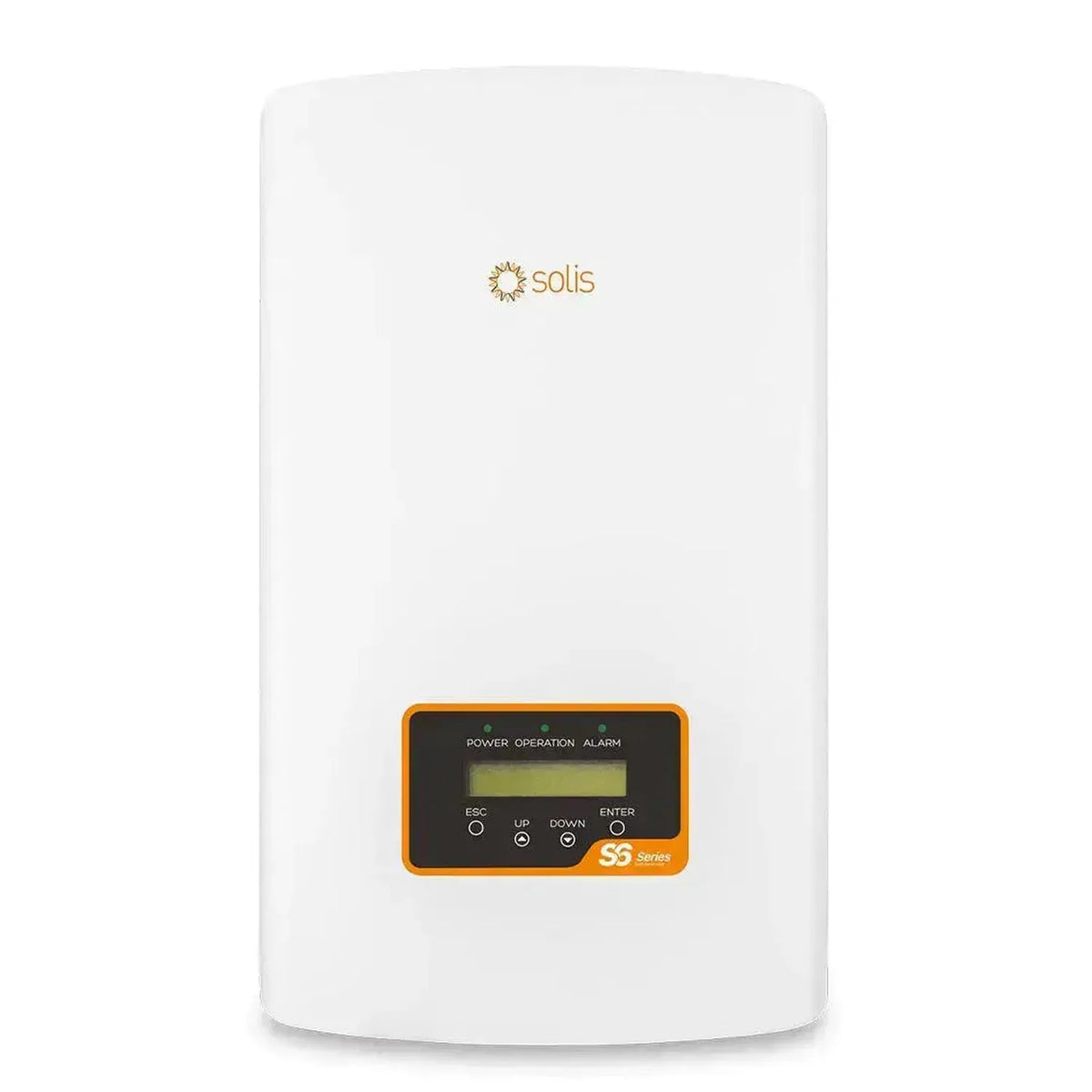

The Solis S6-GR1P3.6K-DC is a 3.6kW single-phase grid-tie inverter built for residential solar PV systems. It uses a dual MPPT design, has an integrated DC switch and export power manager, and carries an IP66 rating for outdoor mounting.

Key features

• Rated output, 3600W (3.6kW)
• MPPT inputs, 2 independent trackers, useful for roofs with different orientations or partial shading
• Max input current, 14A per string
• AFCI protection, integrated arc-fault detection shuts down the affected string before a fault develops
• Export Power Manager (EPM), integrated, for DNO export limitation under G98/G99
• Ingress protection, IP66
• Max efficiency, 97.3%
• Weight, 11.2kg

Product overview

Ginlong Solis has manufactured solar inverters since 2005 and is one of the larger inverter producers worldwide. The S6 series is its current residential platform, aimed at UK and European grid-connected installations. The dual MPPT strings are managed independently, so shaded or differently-angled arrays can still be handled by one unit. The AFCI function watches the DC circuit continuously and isolates a string if it detects an arc fault. The EPM lets an installer curtail export to a set level where a DNO connection agreement requires it.

Applications

• Residential single-phase grid-connected solar PV systems
• Roofs with two orientations or partial shading needing independent MPPT strings
• Installations where AFCI protection and export limitation are required

Installation and safety notes

Installation must be carried out by a qualified electrician or MCS-accredited installer. G98 notification or G99 application to the DNO is required before connecting to the grid in the UK. DC isolators, AC protection, surge protection and earthing must meet BS 7671 and the relevant MCS installation standard. This is not a DIY-connection product.
