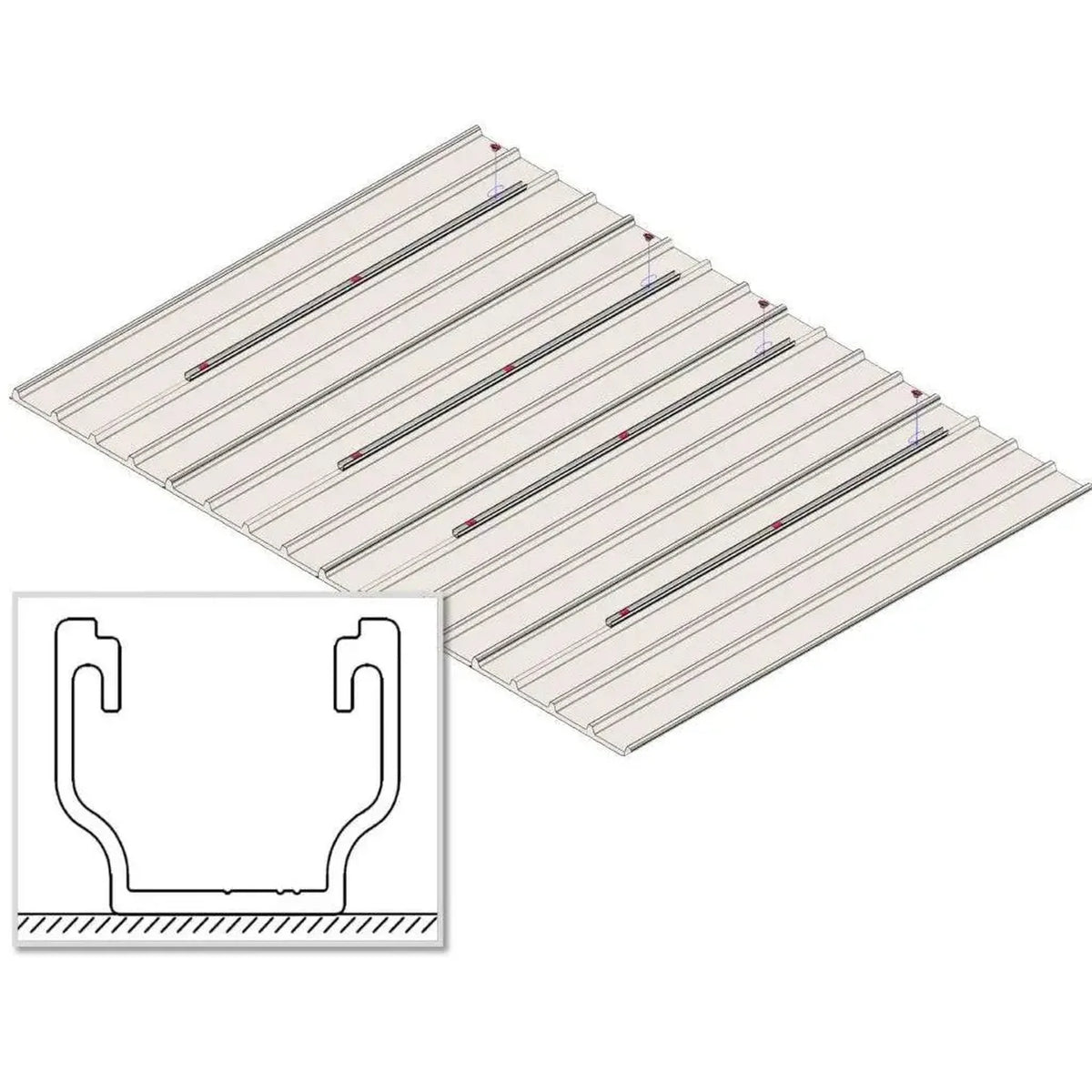

The Easy Plan Light Bar is a lightweight aluminium flat roof mounting system for solar PV panels set up in portrait orientation. It uses a screw-fixed profile bar that is both lighter and stronger than conventional mounting rails, making it suitable for residential and commercial flat roof installations. It's priced per module, with options from 1 to 20 modules per order.

Key features of this solar pv flat roof mounting system

• Orientation, portrait (a landscape version is available separately)
• Bar length, aluminium profile bar up to 4.5m maximum length
• Fixation, screw-fixed design for secure, stable long-term installation
• Support spacing, maximum 1m between supports
• Weight, 1.38kg per m2
• Scalability, order from 1 to 20 modules in one purchase, with a complete hardware kit included per module

Product overview

The screw-fixed connection gives positive, long-term engagement in all weather conditions. The low-profile aluminium bar reduces roof loading without compromising structural performance. A single order can cover one module or a row of up to 20, selected by quantity.

What's in the box (per module)

• Aluminium mounting bar (max 4.5m)
• Middle and end clamps (aluminium)
• Rail connector
• M8 nut with plastic clip (stainless steel A2)
• Allen bolt DIN 912 (stainless steel A2)
• Flanged nuts M10 (stainless steel)
• T-bolt (stainless steel A2)

Applications

Designed for flat roof solar PV installations using portrait panel orientation, on residential and commercial buildings where a lightweight mounting solution and roof load distribution are design considerations.

Installation and safety notes

Installation must be carried out by a qualified solar installer. Roof load capacity must be confirmed beforehand, and screw fixings must be sealed to maintain roof waterproofing. A structural design and wind load assessment should be completed for the specific site.
