Description

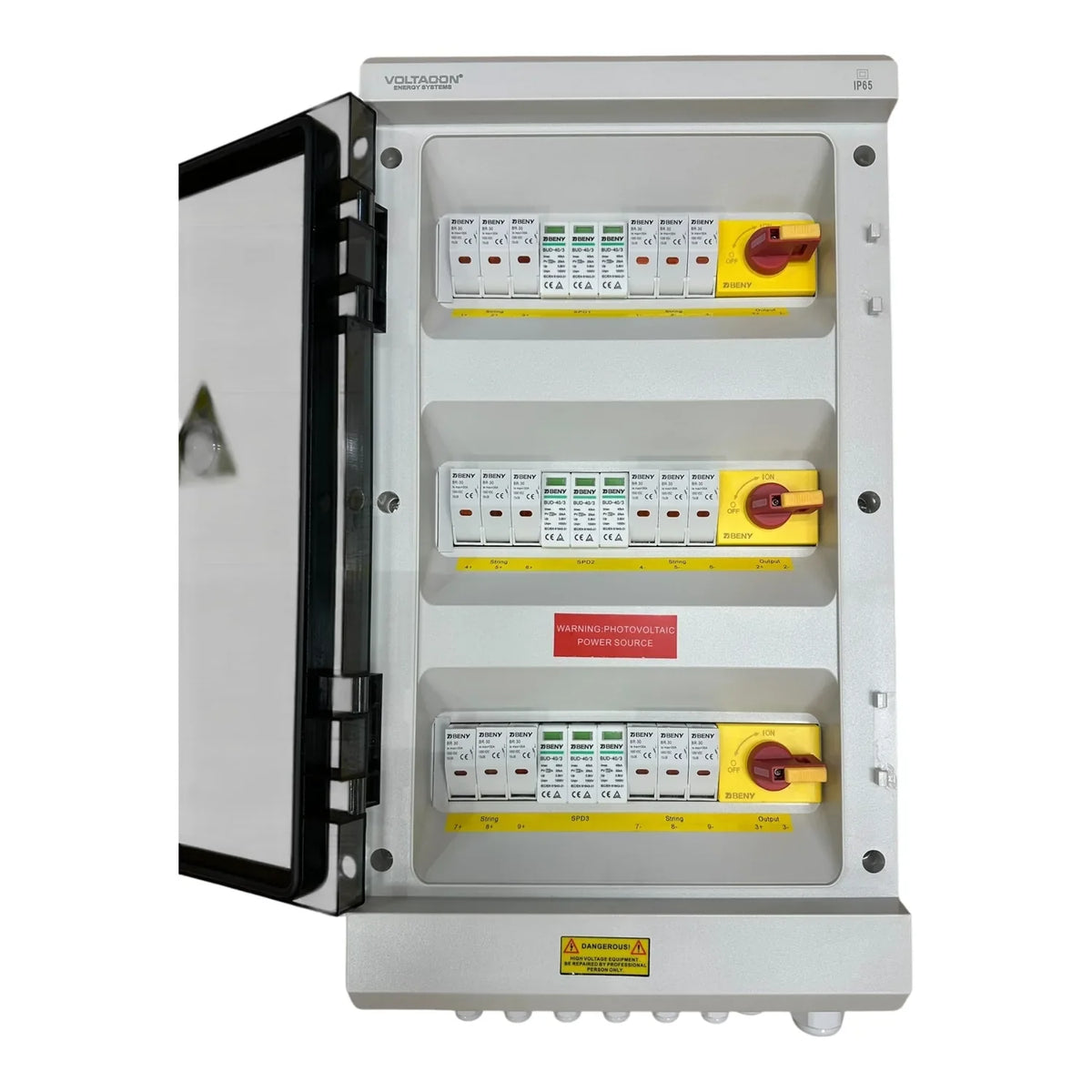

This pre-wired solar PV DC combiner box takes 9 fused string inputs and splits them across 3 independent outputs, each with its own surge protection. Built into an IP65 three-row plastic enclosure, it suits systems needing 3 separate MPPT charger inputs and accepts string voltages from 100VDC to 1000VDC.
Key features of this solar pv combiner box
- Inputs and outputs, 9 fused string inputs, 3 independent outputs with configurable allocation
- Voltage range, configurable string voltage from 100V to 1000VDC
- Fault indication, LED fuse fault indicators fitted per string
- Surge protection, DC SPD fitted per output
- Isolation, DC isolator included
- Enclosure, IP65 rated three-row plastic housing
Applications
Suited to DC string protection on 3-MPPT off-grid and hybrid solar inverters, and to commercial solar PV systems that need 3 independently protected DC outputs.
Installation and safety notes
DC solar circuits carry dangerous voltages. This unit must be installed by a qualified electrician, and all PV strings should be isolated before anyone works on the internal connections.
