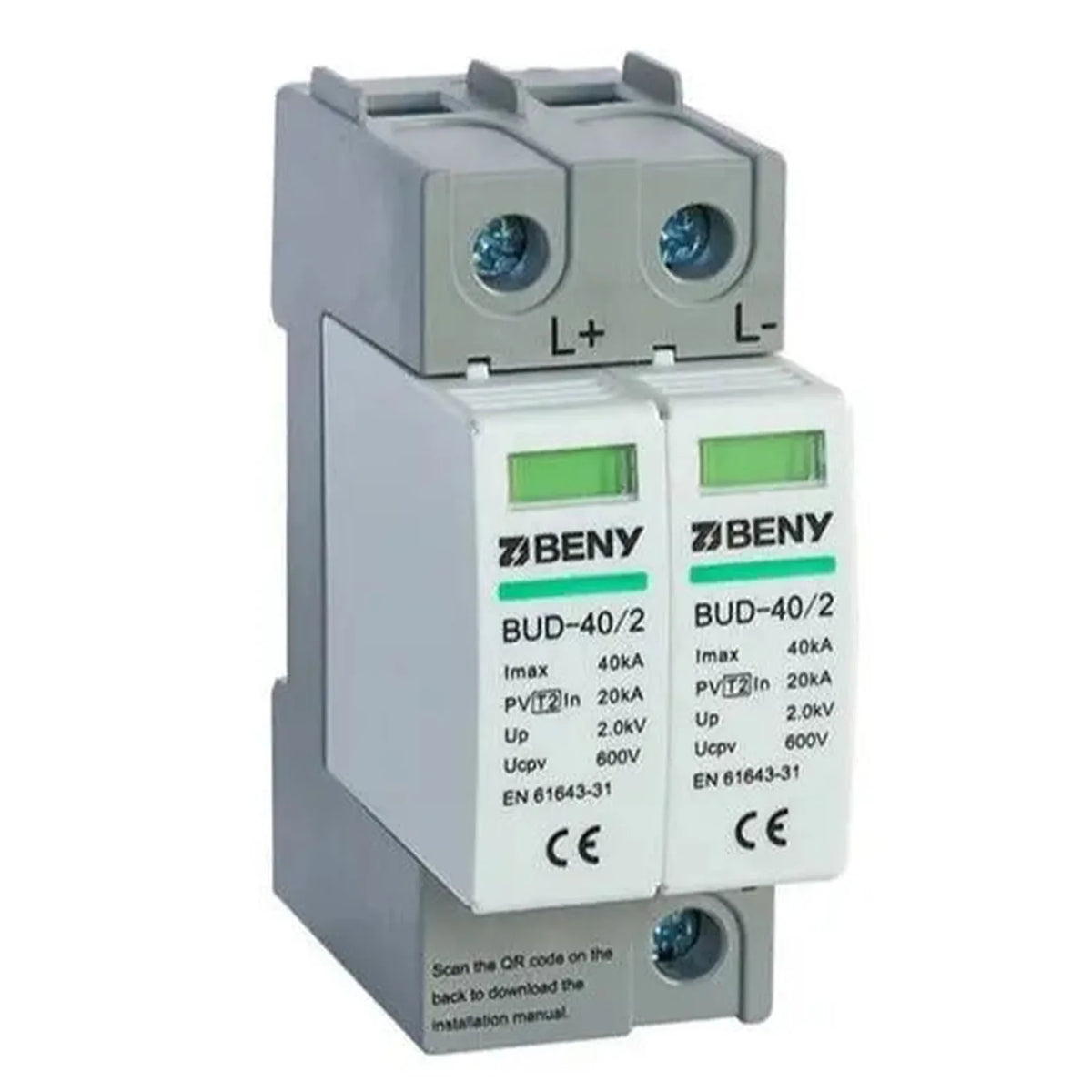

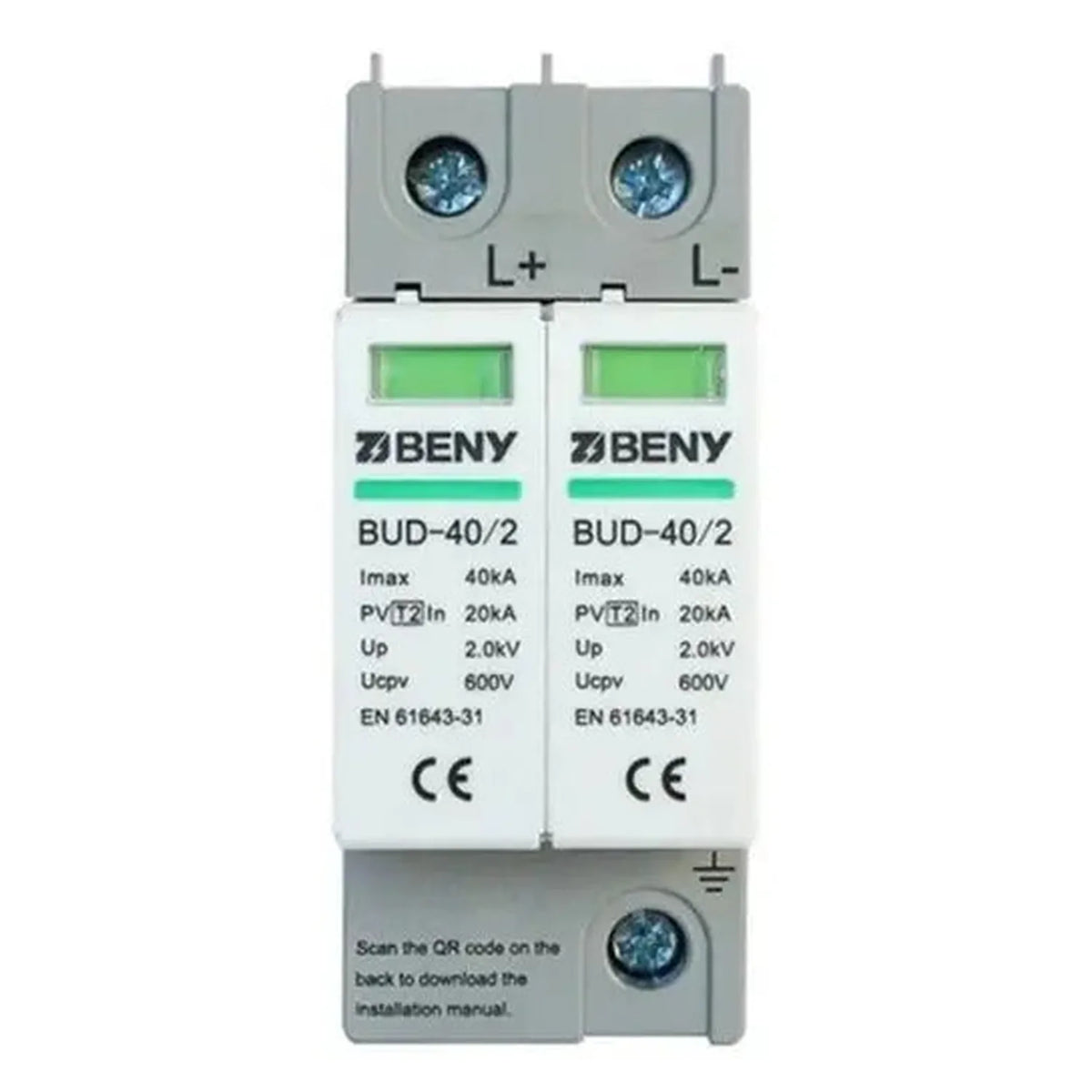

PV-Guard-600 DC Surge Protection Device Type 2 600VDC 40kA
£14.00
Sale price
£14.00
Regular price
Skip to product information
PV-Guard-600 DC Surge Protection Device Type 2 600VDC 40kA
£14.00
Sale price
£14.00
Regular price
Shipping calculated at checkout.
738695
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
The PV-Guard-600 is a Type 2 DC surge protection device for solar panel arrays and off-grid inverters, rated 600VDC and 40kA. It meets EN50539-11 and uses a high energy varistor to protect DC circuits from lightning strikes and indirect surges. The unit is DIN rail mounted, making it straightforward to fit inside a combiner box or solar enclosure alongside other DC protection gear.
Key features
- Type, Type 2 / Class II PV SPD
- Rated voltage, 600VDC
- Discharge current, Imax 40kA
- Protection method, high energy varistor
- Standard, EN50539-11 compliant
- Mounting, DIN rail
Applications
This surge protection device sits in the DC combiner box of an off-grid or grid-tie solar inverter system, wired across the string conductors up to 600VDC. It guards the solar panels and the inverter against damage from lightning strikes and indirect surge events reaching the DC side of the installation.
Installation notes
Connect the PV-Guard-600 in parallel with the DC PV string conductors. Installation must be carried out by a qualified electrician. Do not fit this device on systems where the string voltage exceeds 600VDC.
