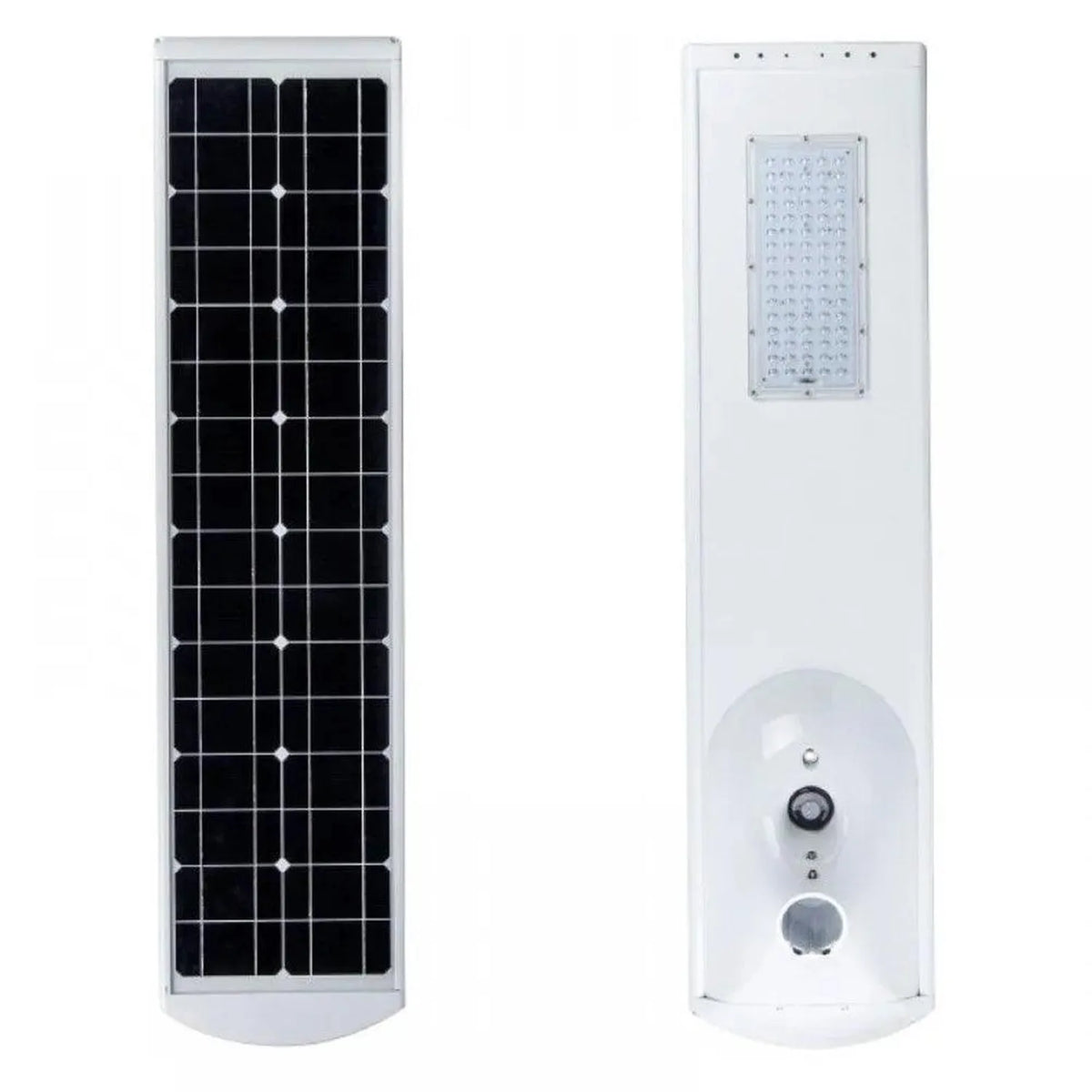

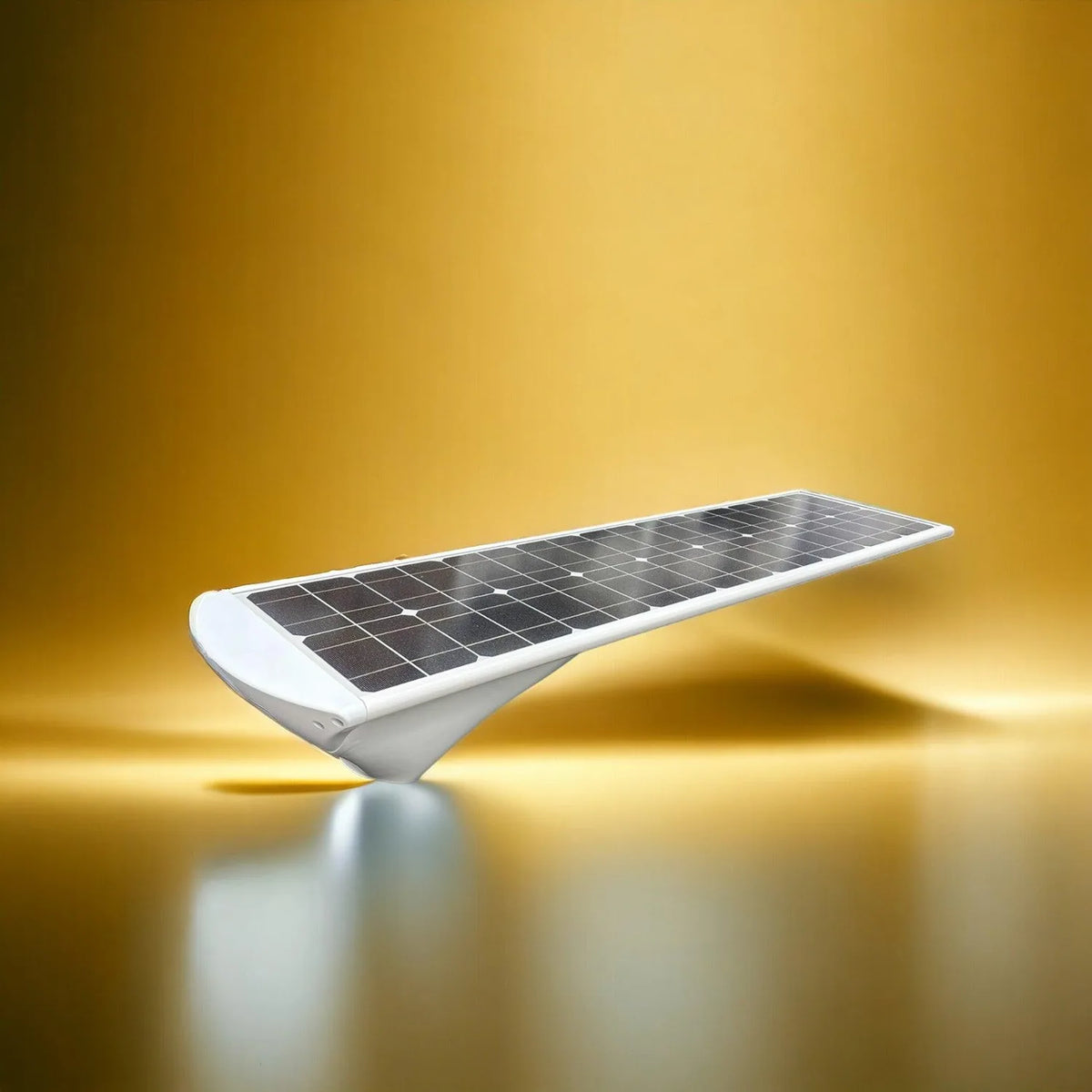

This 60W LED solar street light combines a photovoltaic panel, a lithium battery and a high-power LED array in one waterproof, IP65 aluminium housing. Everything needed to run the light is built in, so there is no mains wiring and no separate mounting structure for a solar panel.

60W solar street light with motion sensor

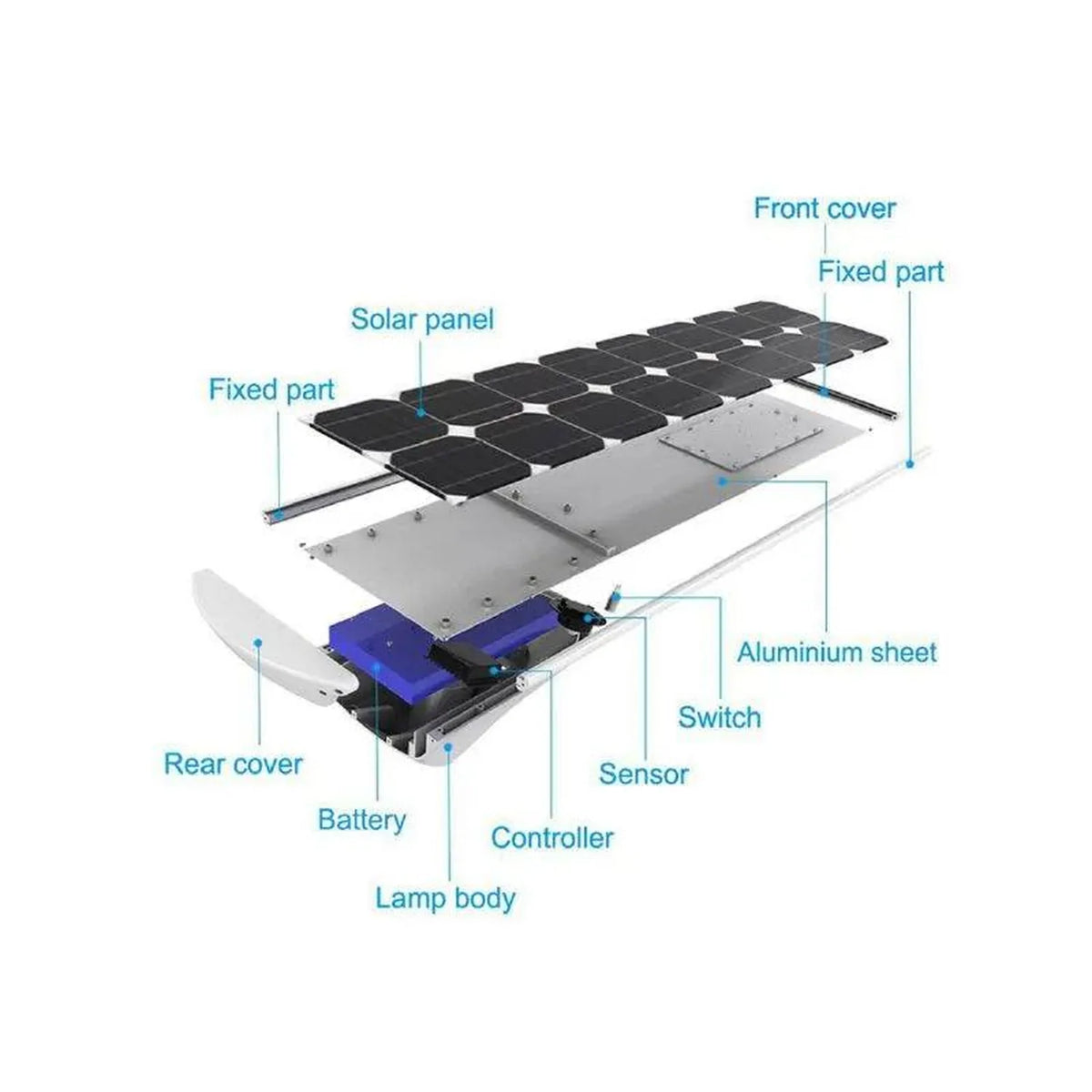

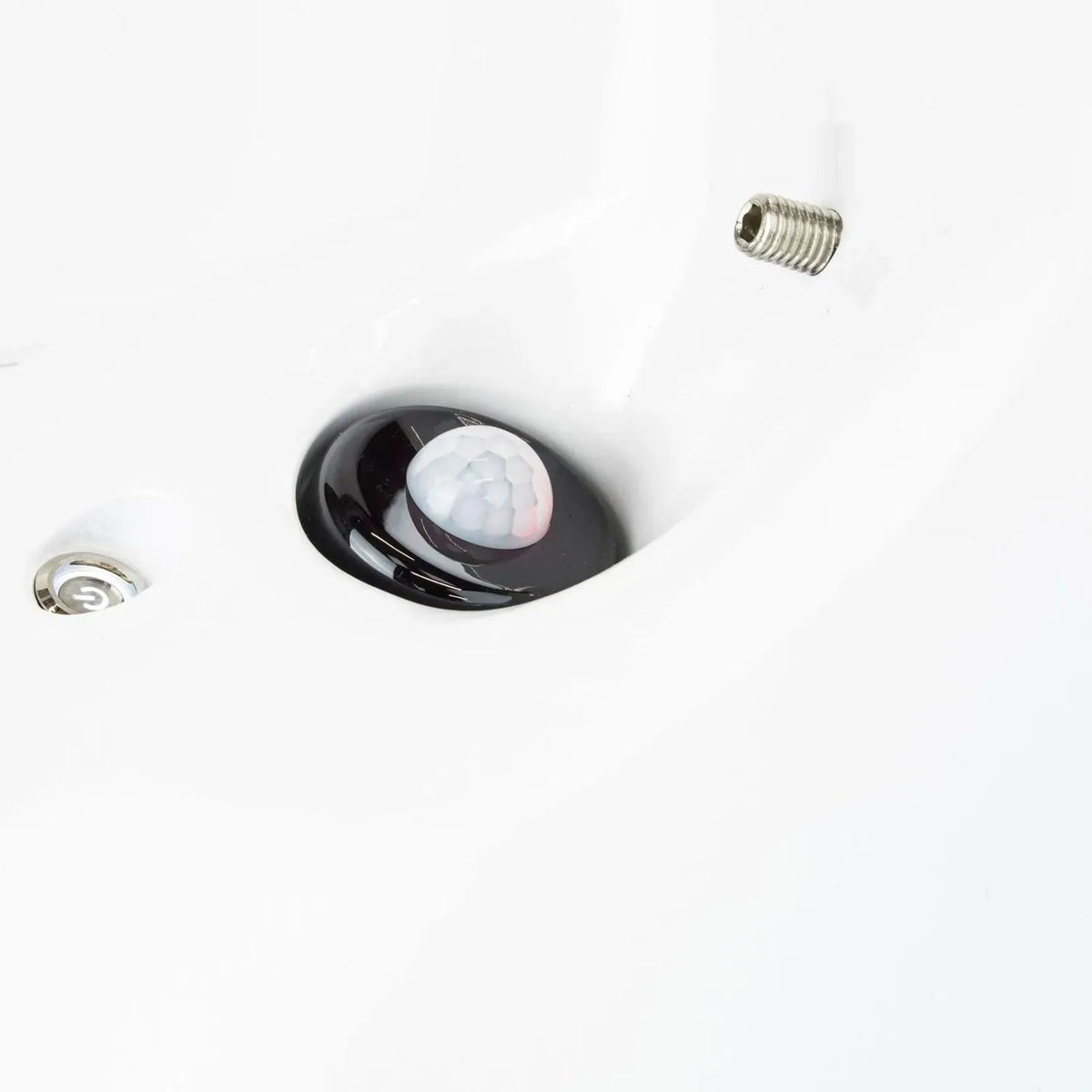

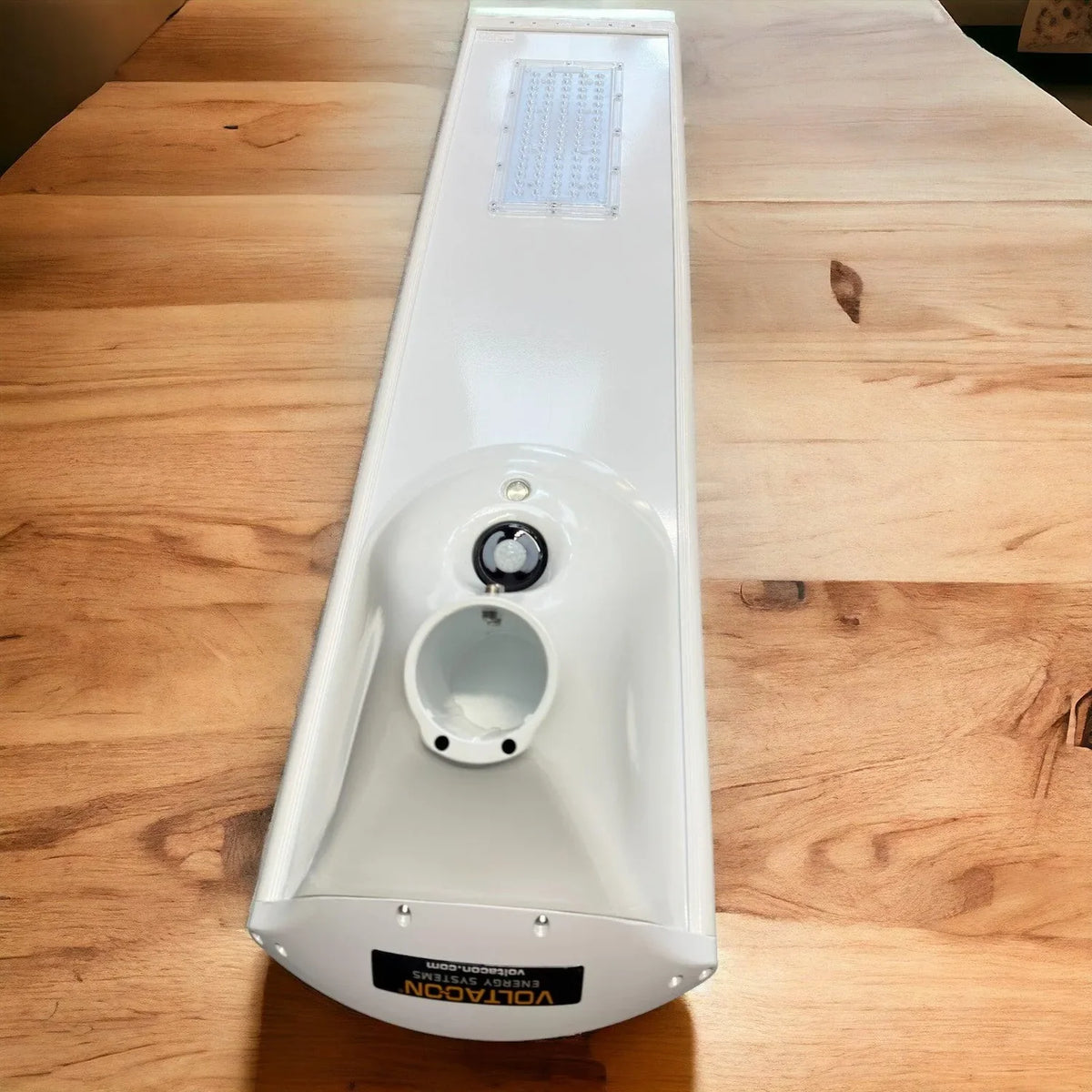

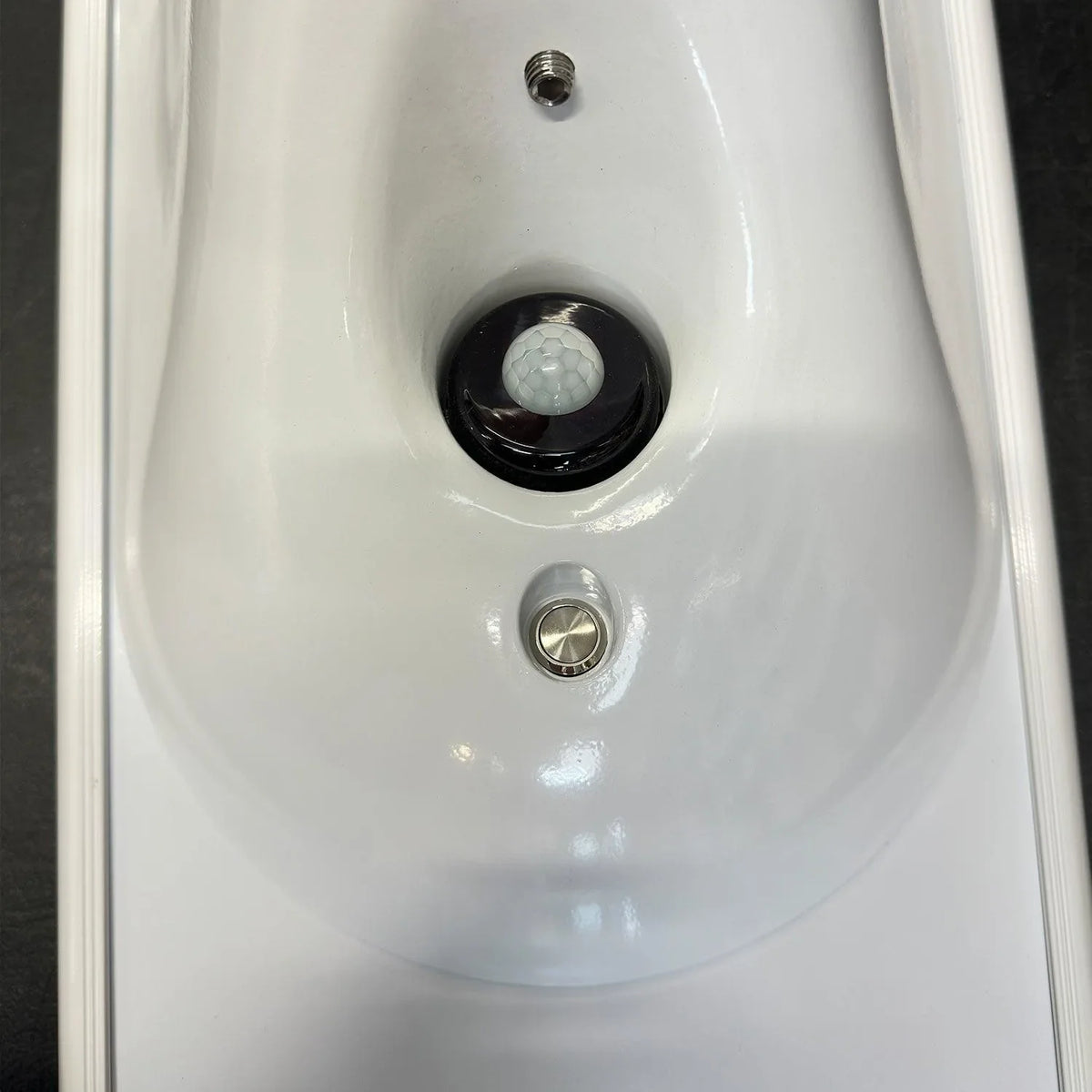

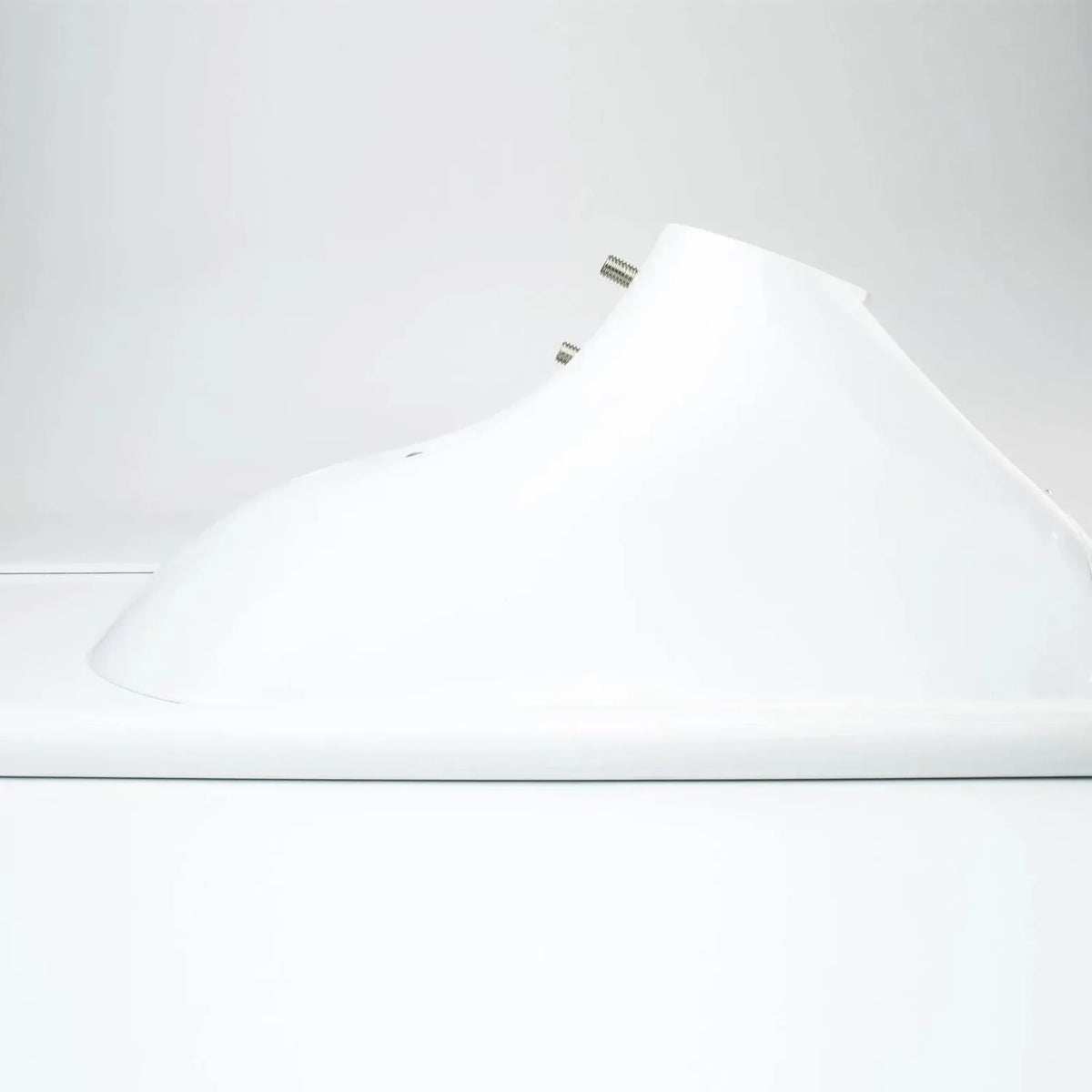

The light fits directly onto a post using two M10x80 brackets and stainless steel screws, and all electrical connections are made under the solar panel at IP67 rating before the unit ever leaves the factory. A built-in light sensor and PIR motion sensor work together with the charge controller and LED driver, dimming the light according to daylight level and boosting it on motion detection.

Key features

• Total flux, 6800lm

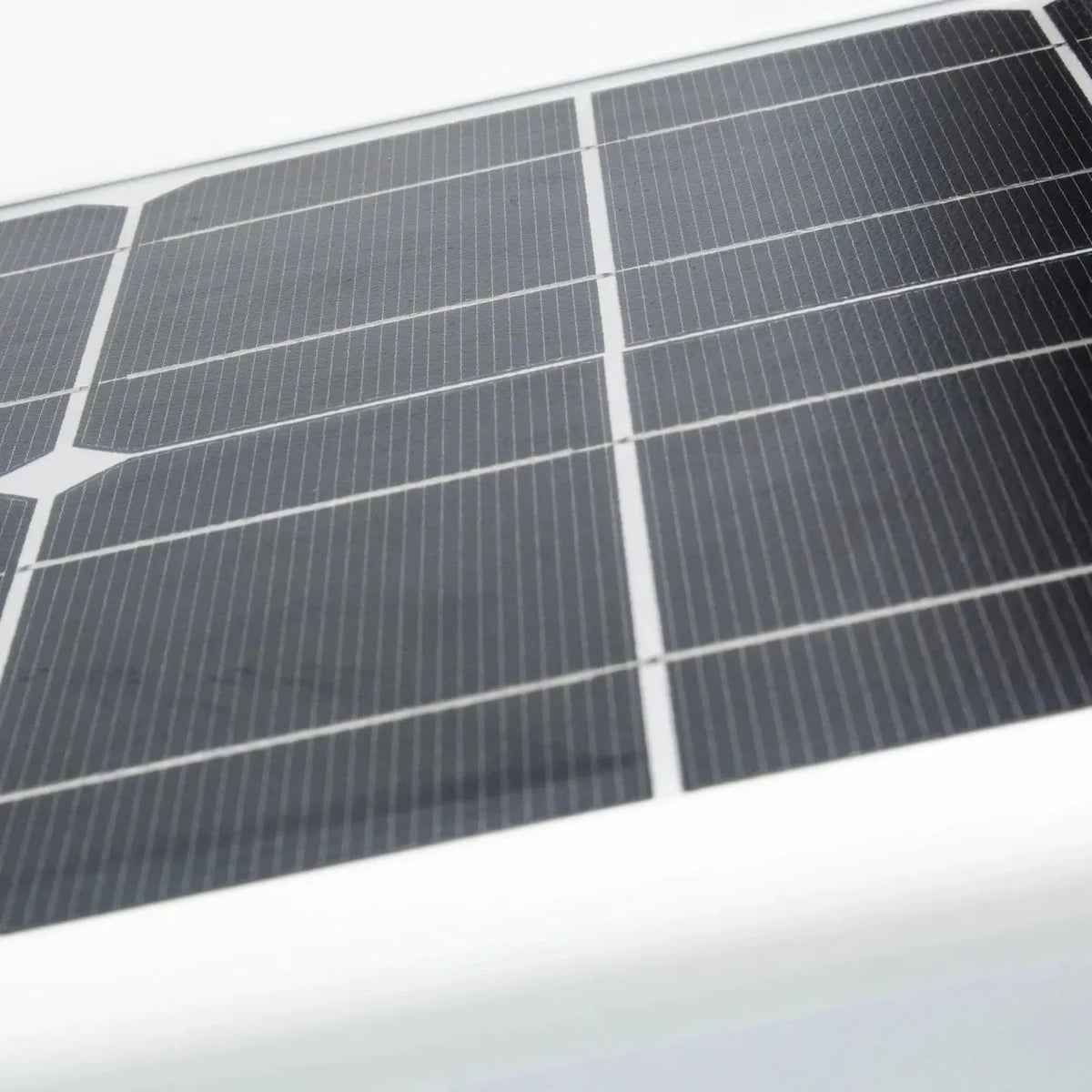

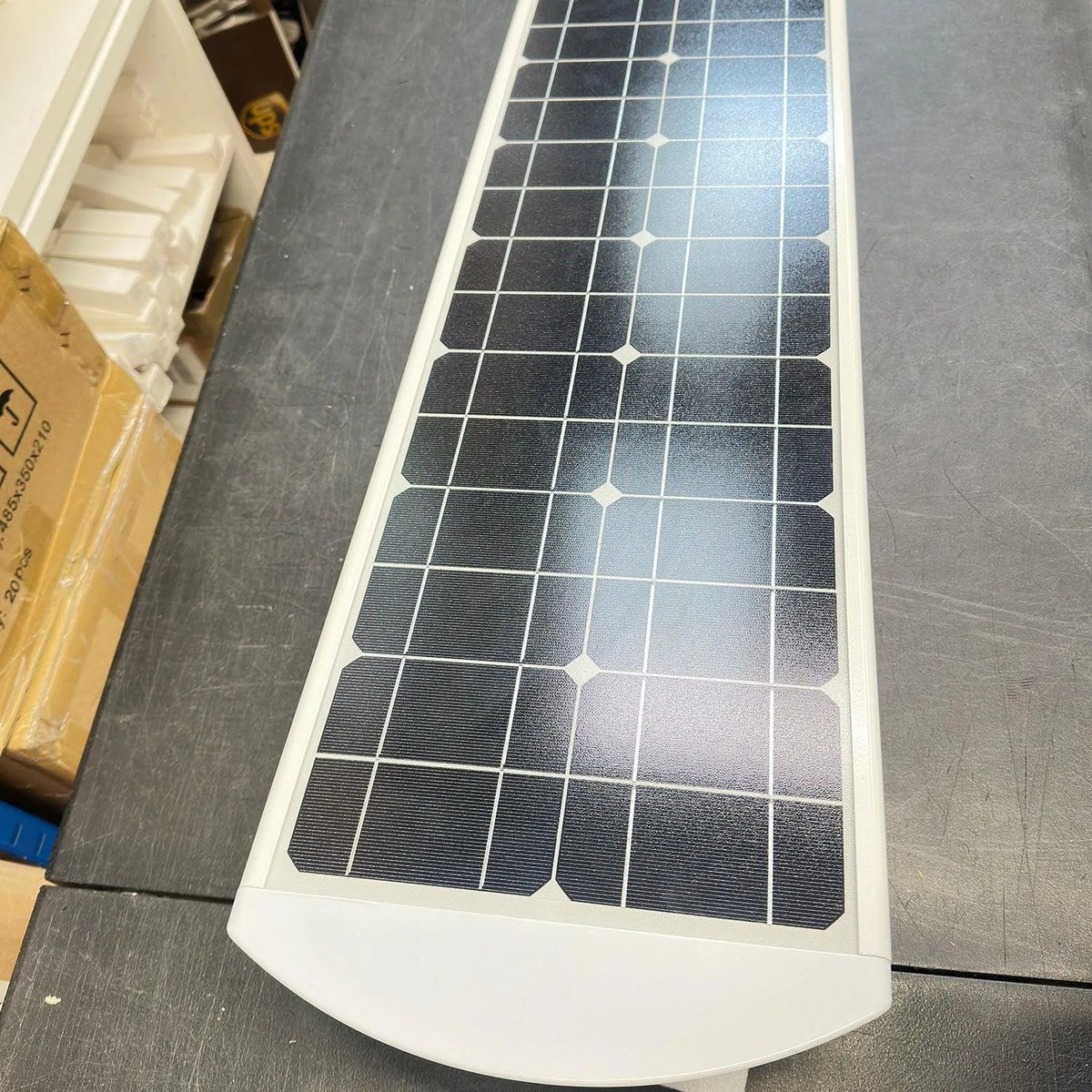

• Solar panel, 18V 48W monocrystalline

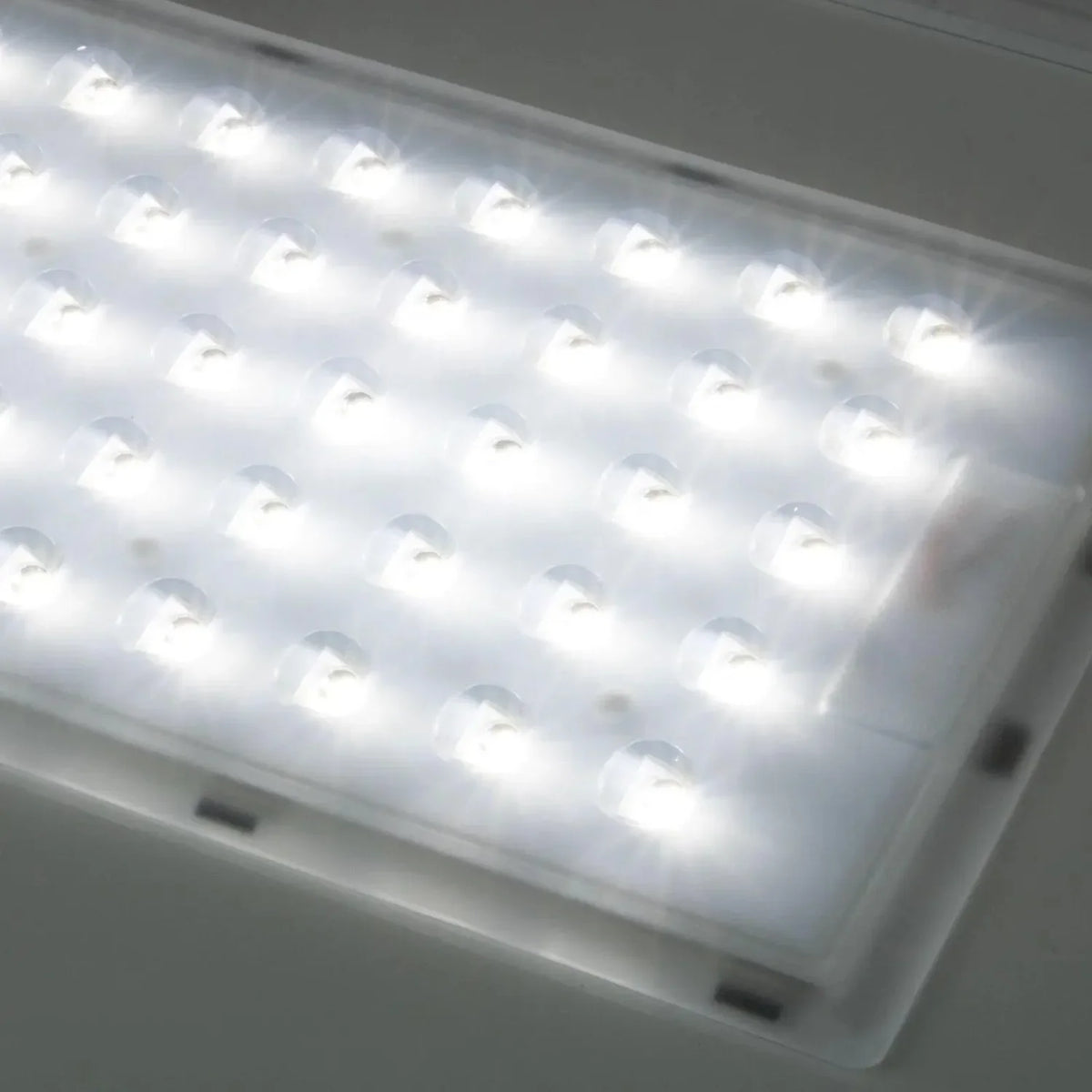

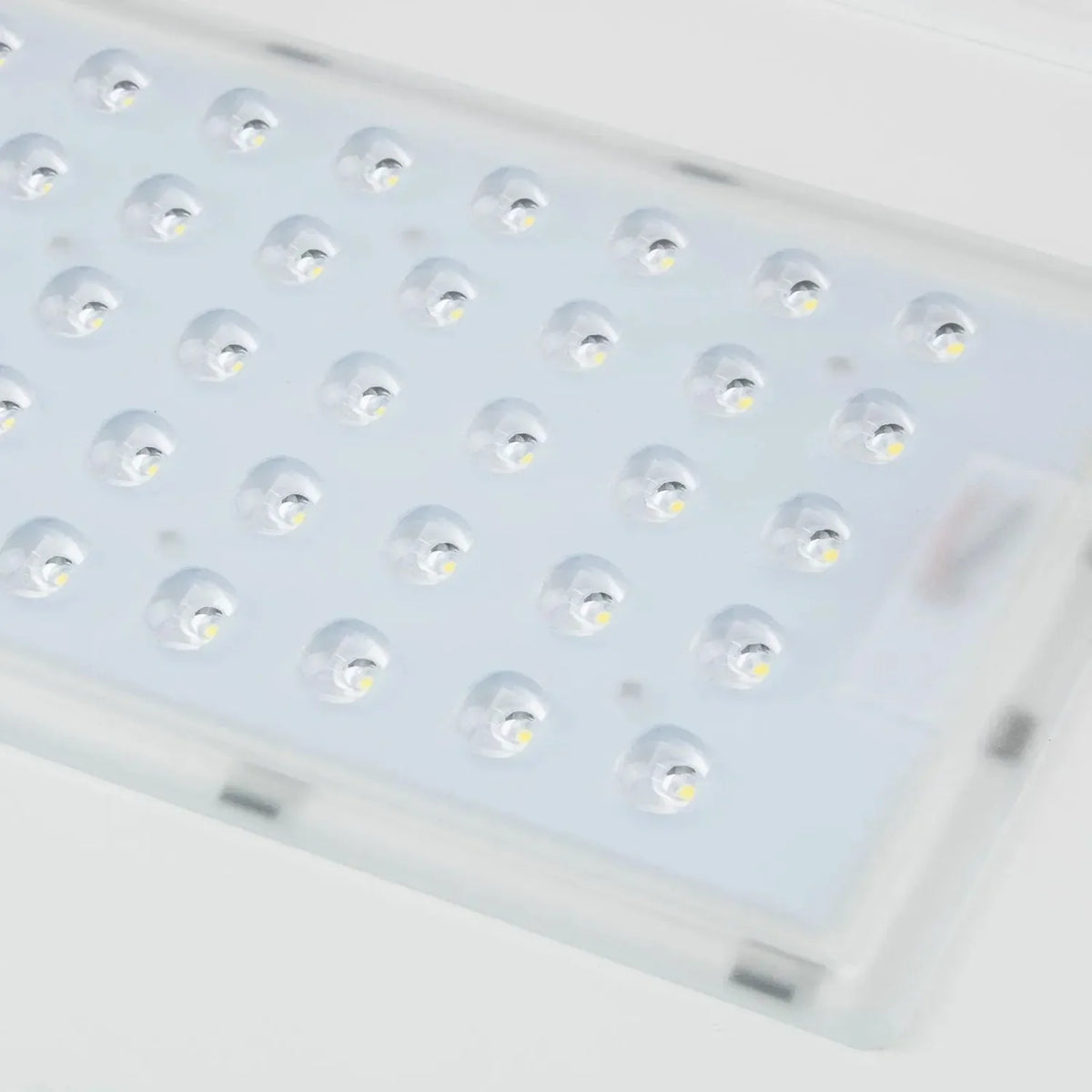

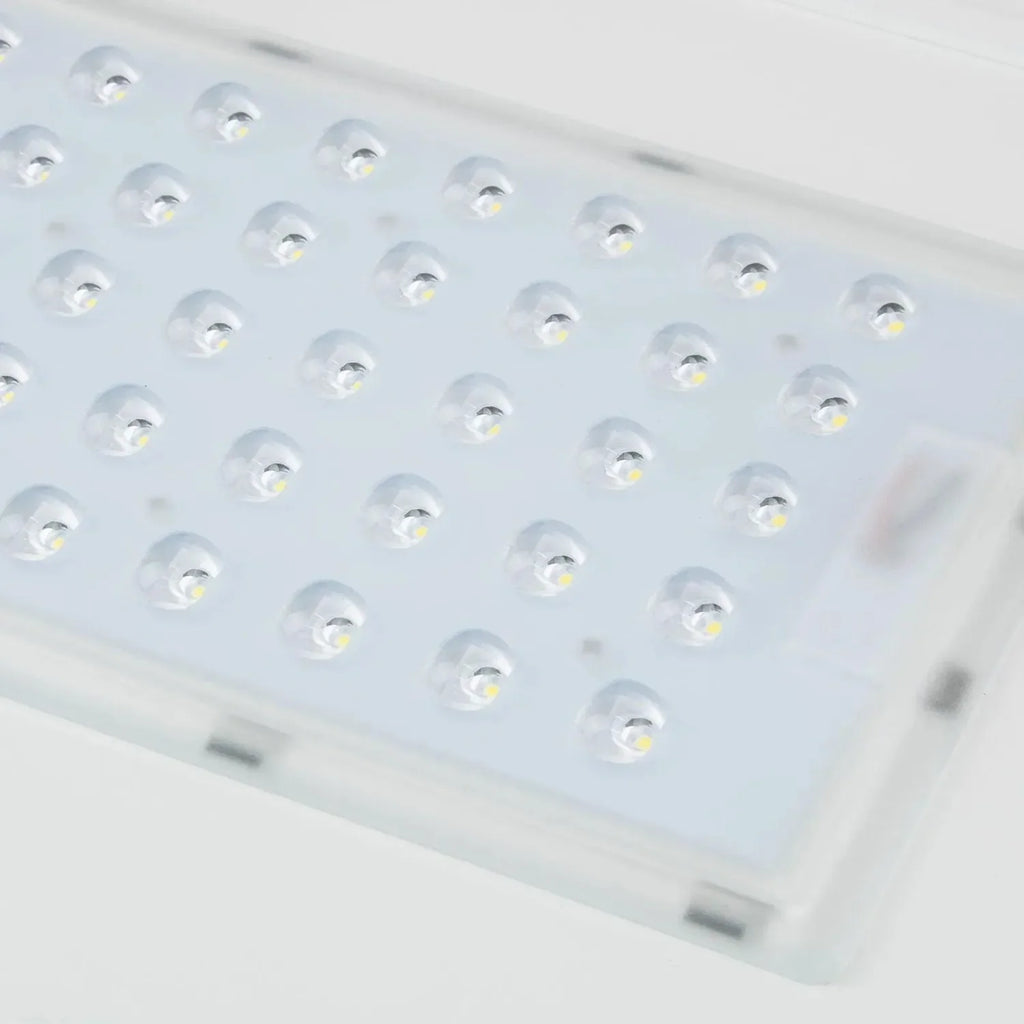

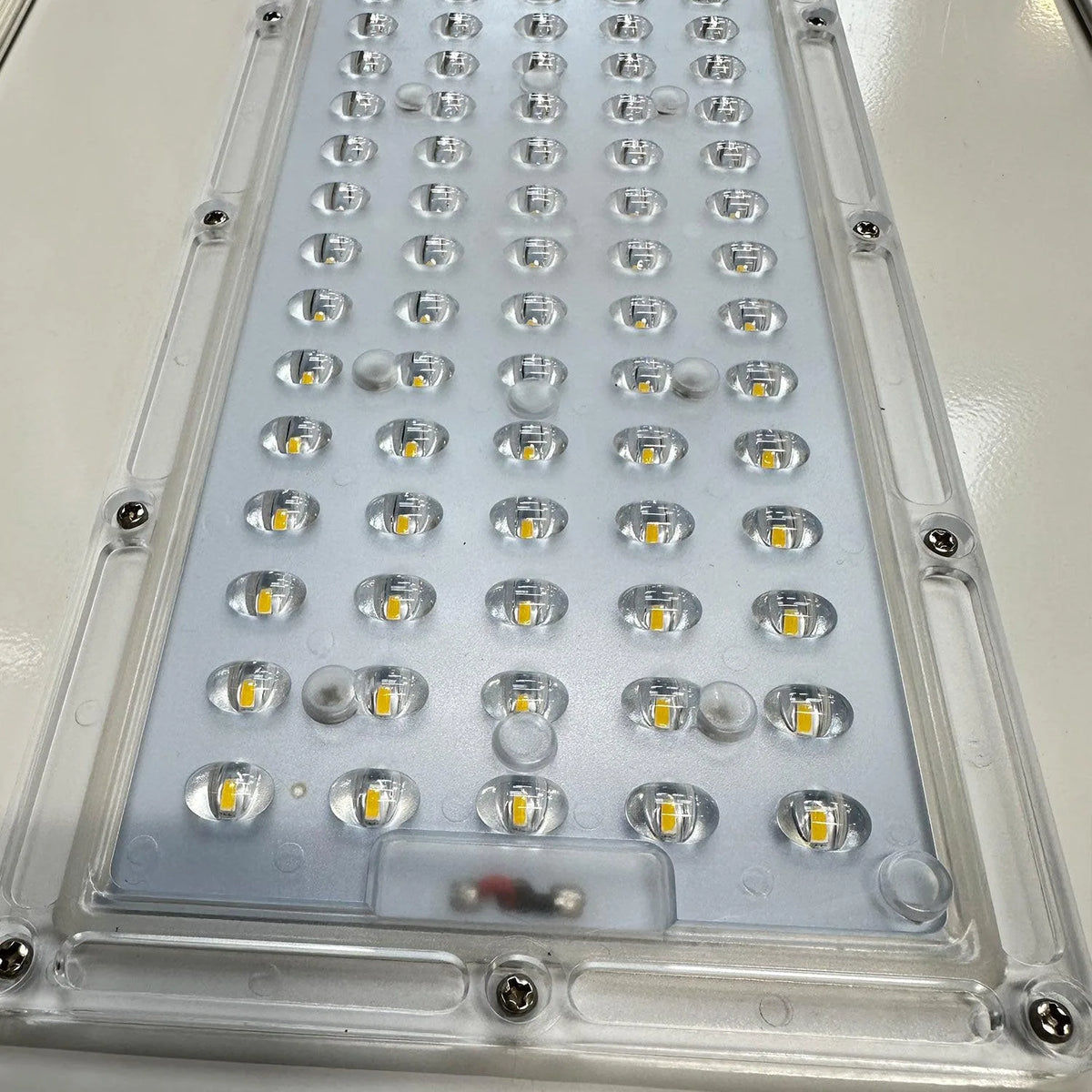

• LED chip, 80 LEDs, Philips3030
• Battery, LiFePO4 lithium 12.8V 18AH
• Install height, 5-7m
• Beam angle, 60°x150°

Operating hours

Running fully automatically, the unit delivers 6 hours at full power, 12 hours at 50% power, or 24 hours at 30% power on a single charge, with recharge and backup allowing for up to 3 rainy days.

Applications

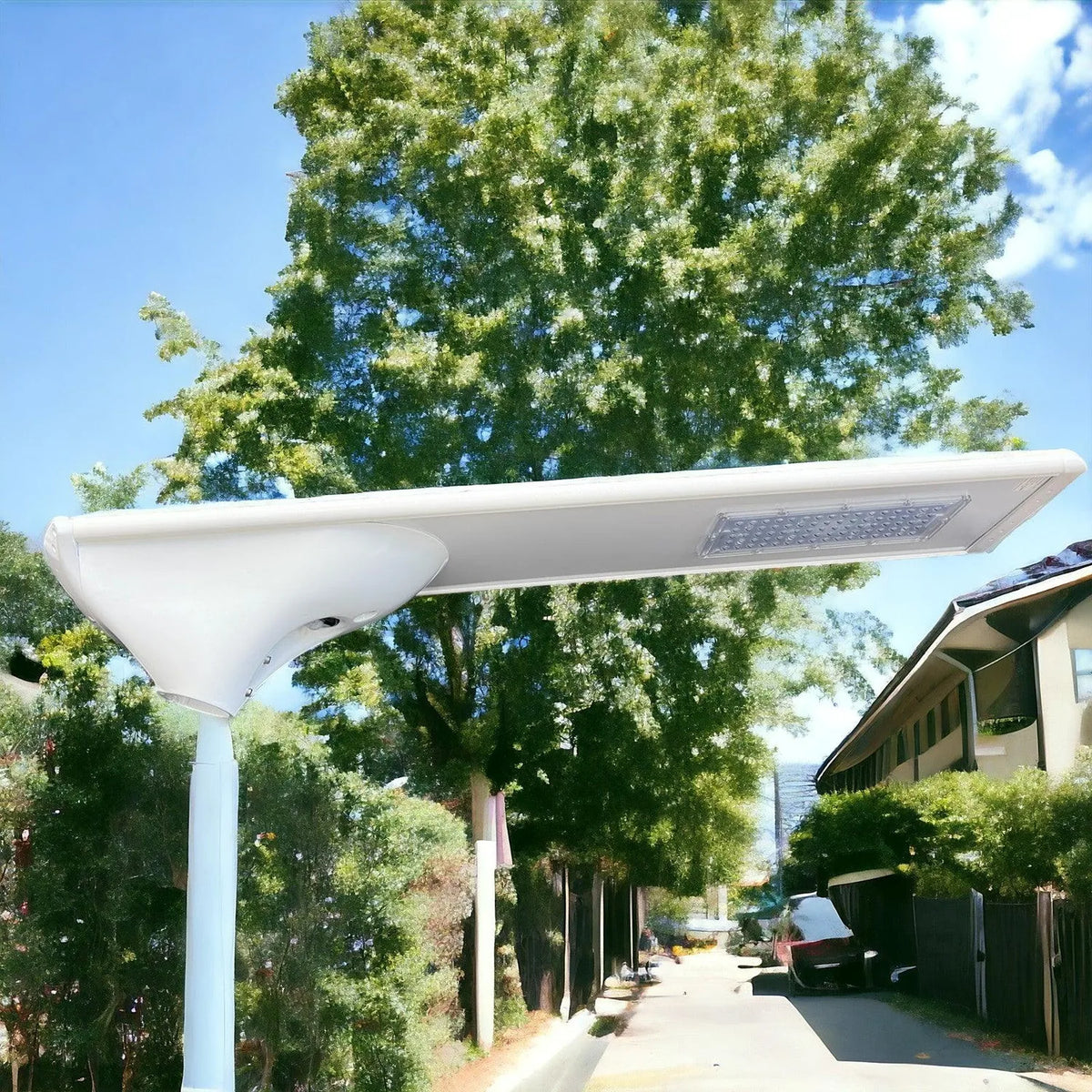

Suited to installation anywhere without access to mains voltage, on a single pole with an adjustable mounting angle. The lithium battery is rated for over 10 years of life expectancy, and the light sensor plus PIR control means it operates without manual switching once installed.
