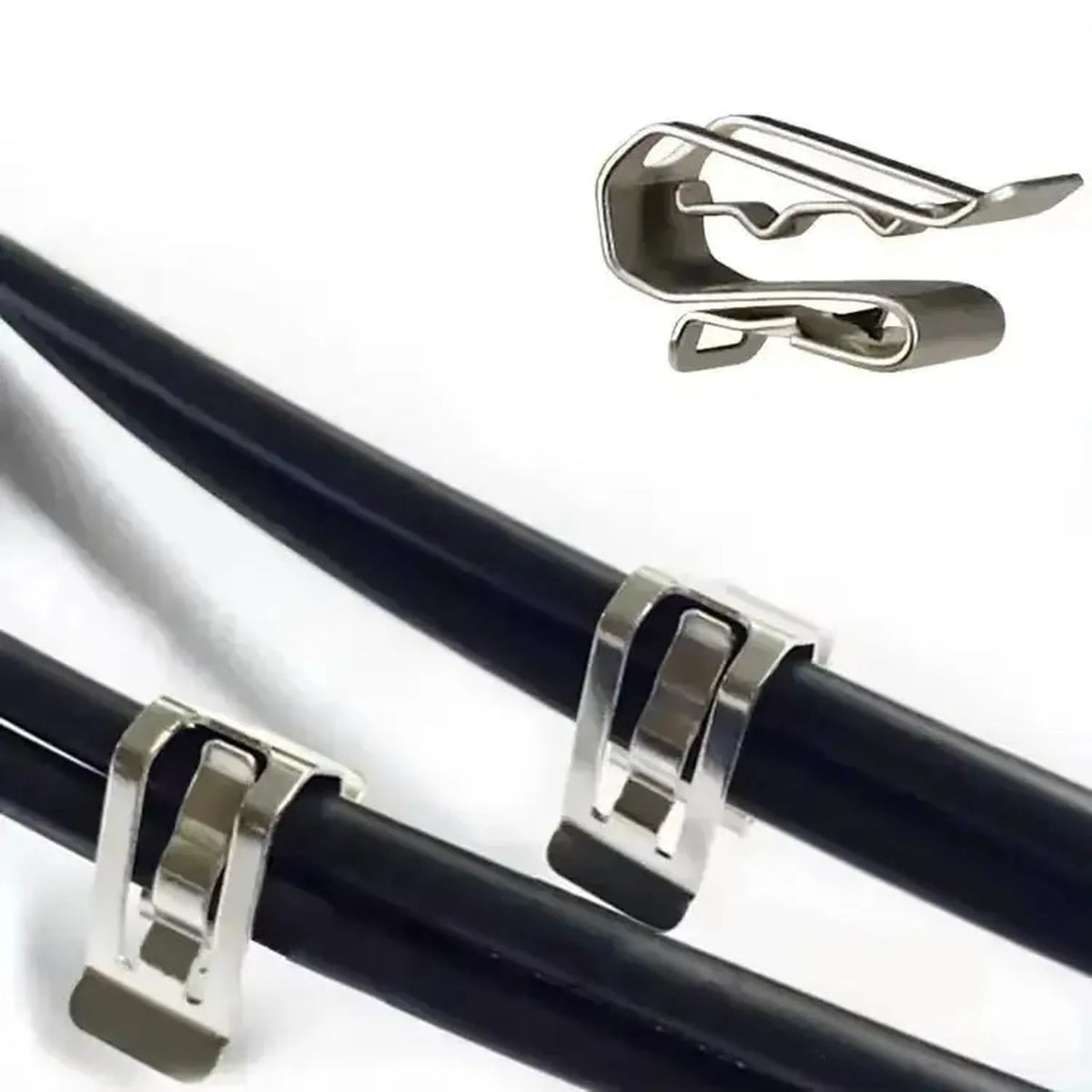

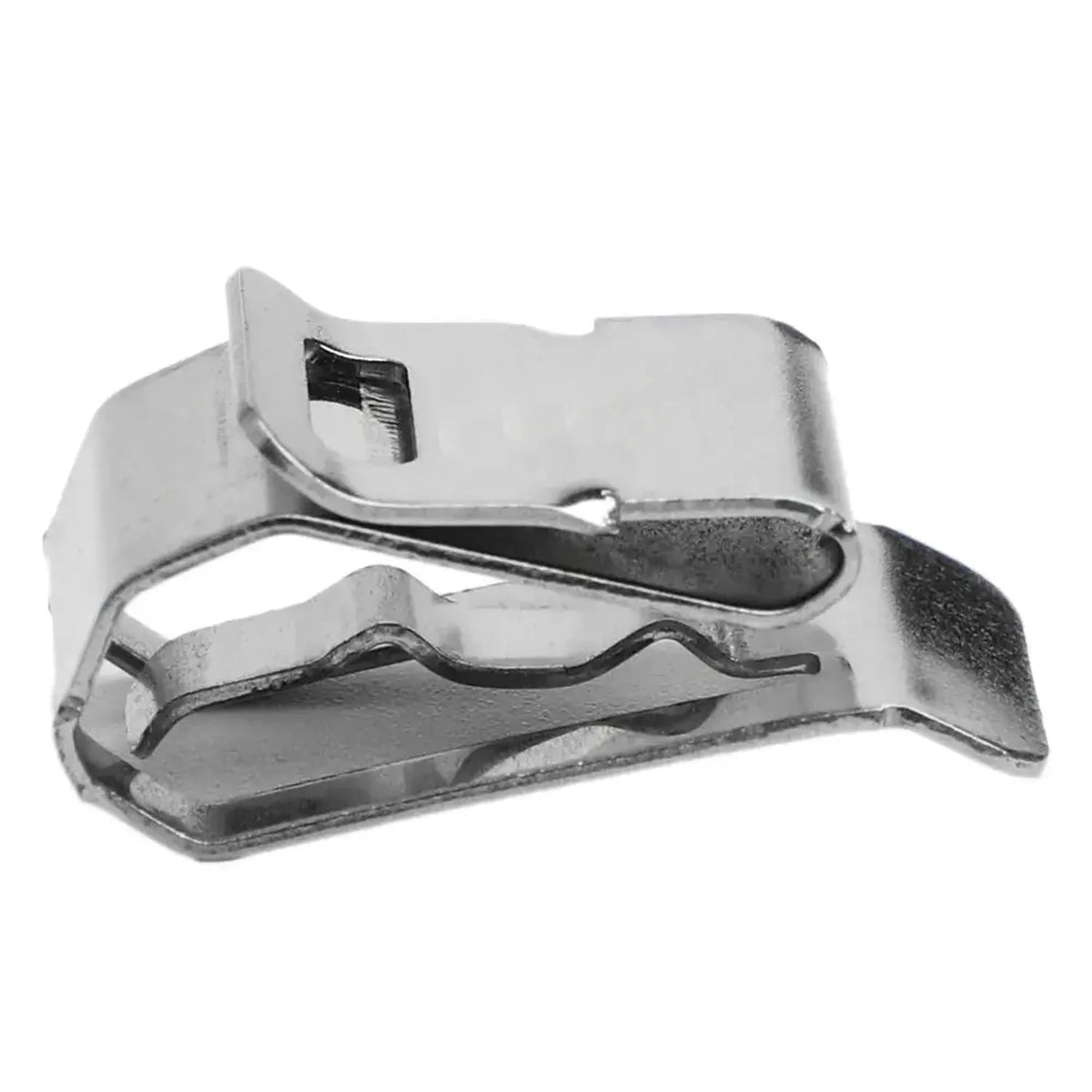

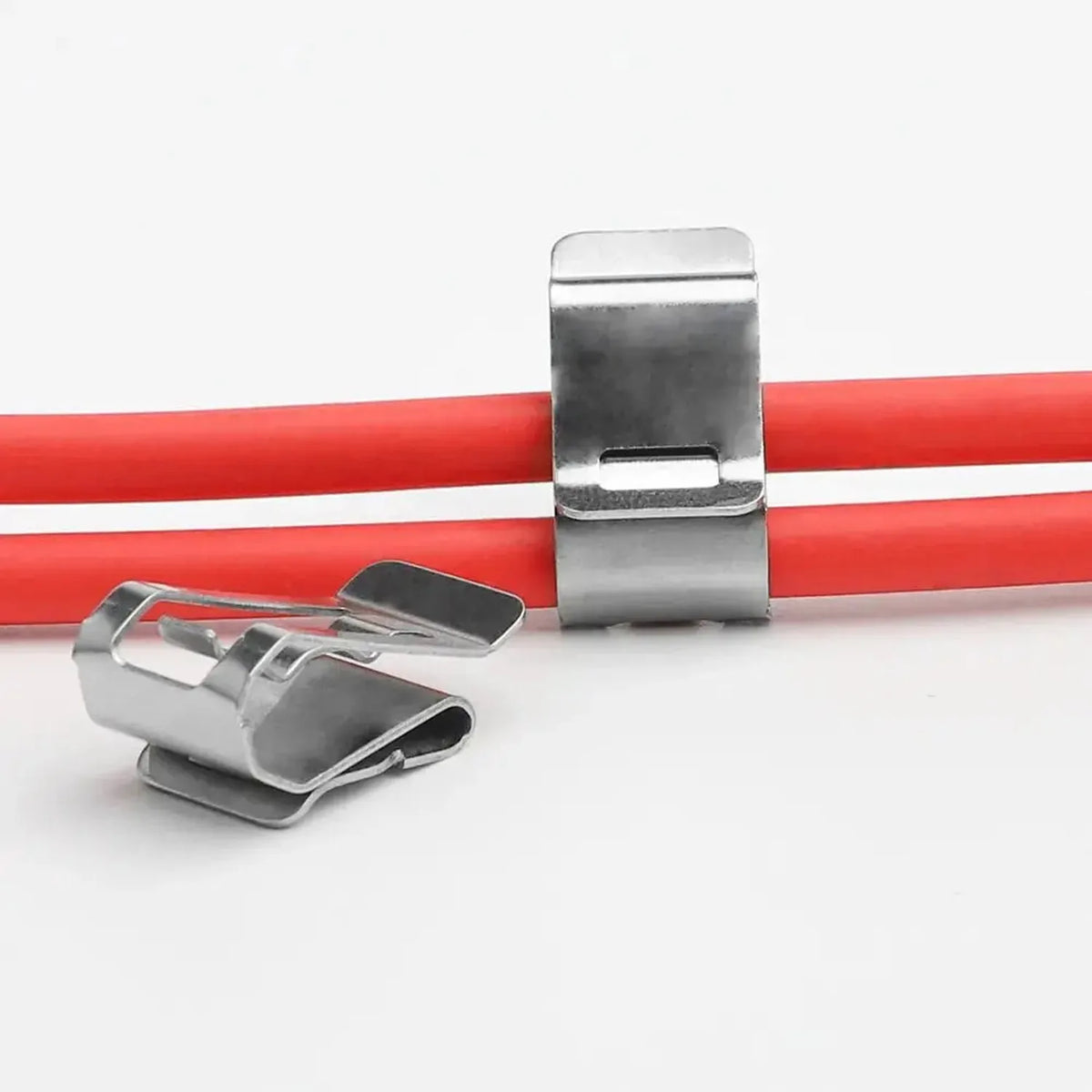

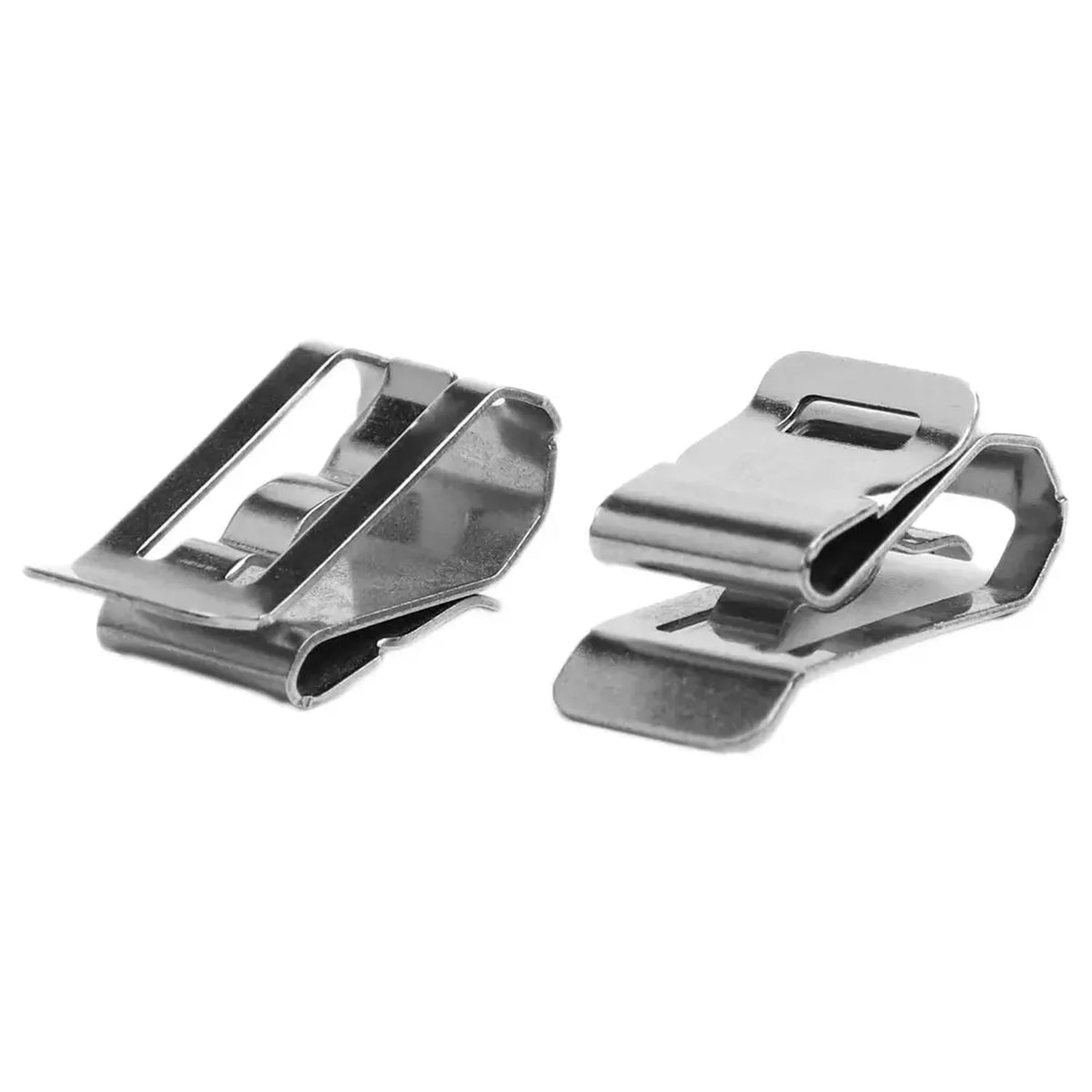

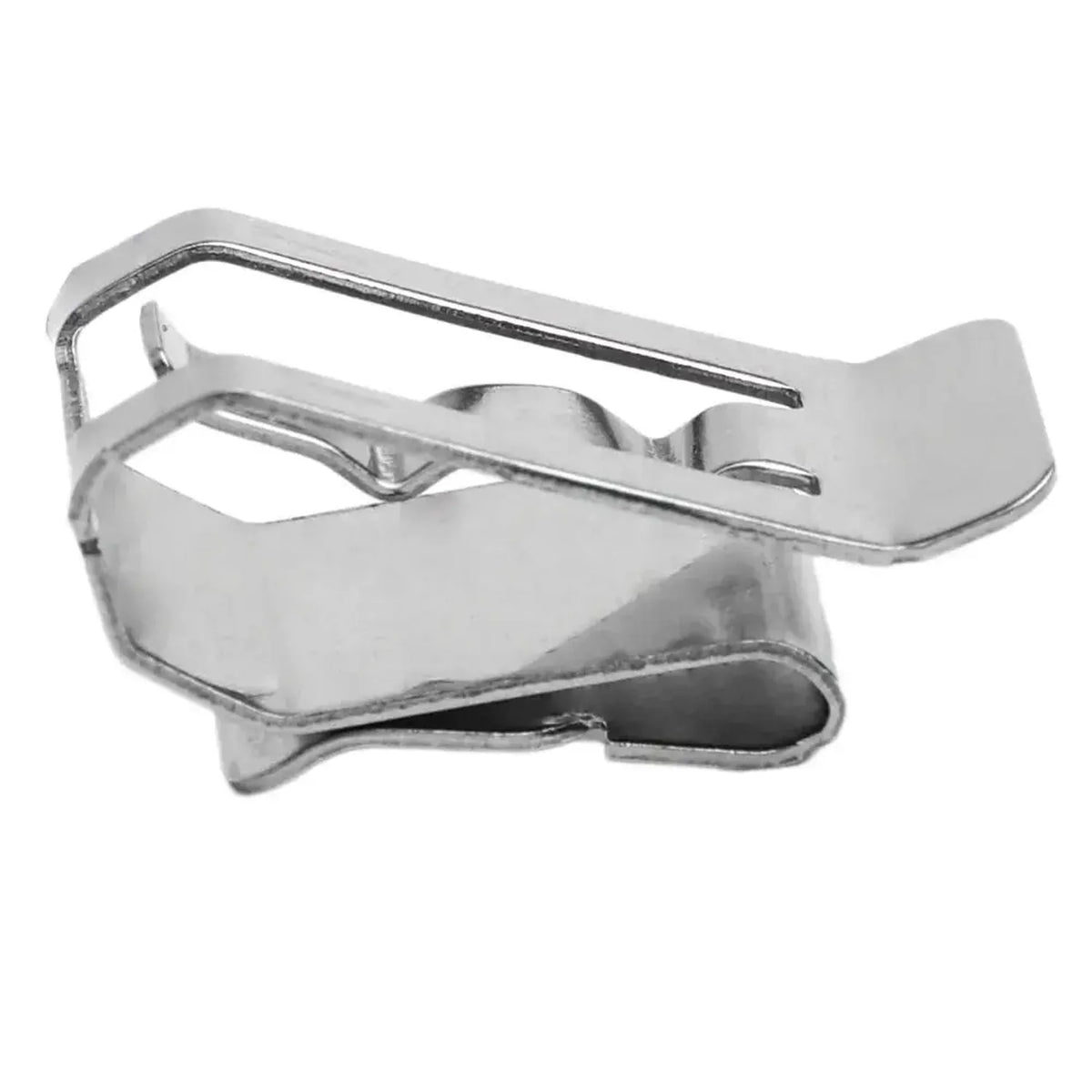

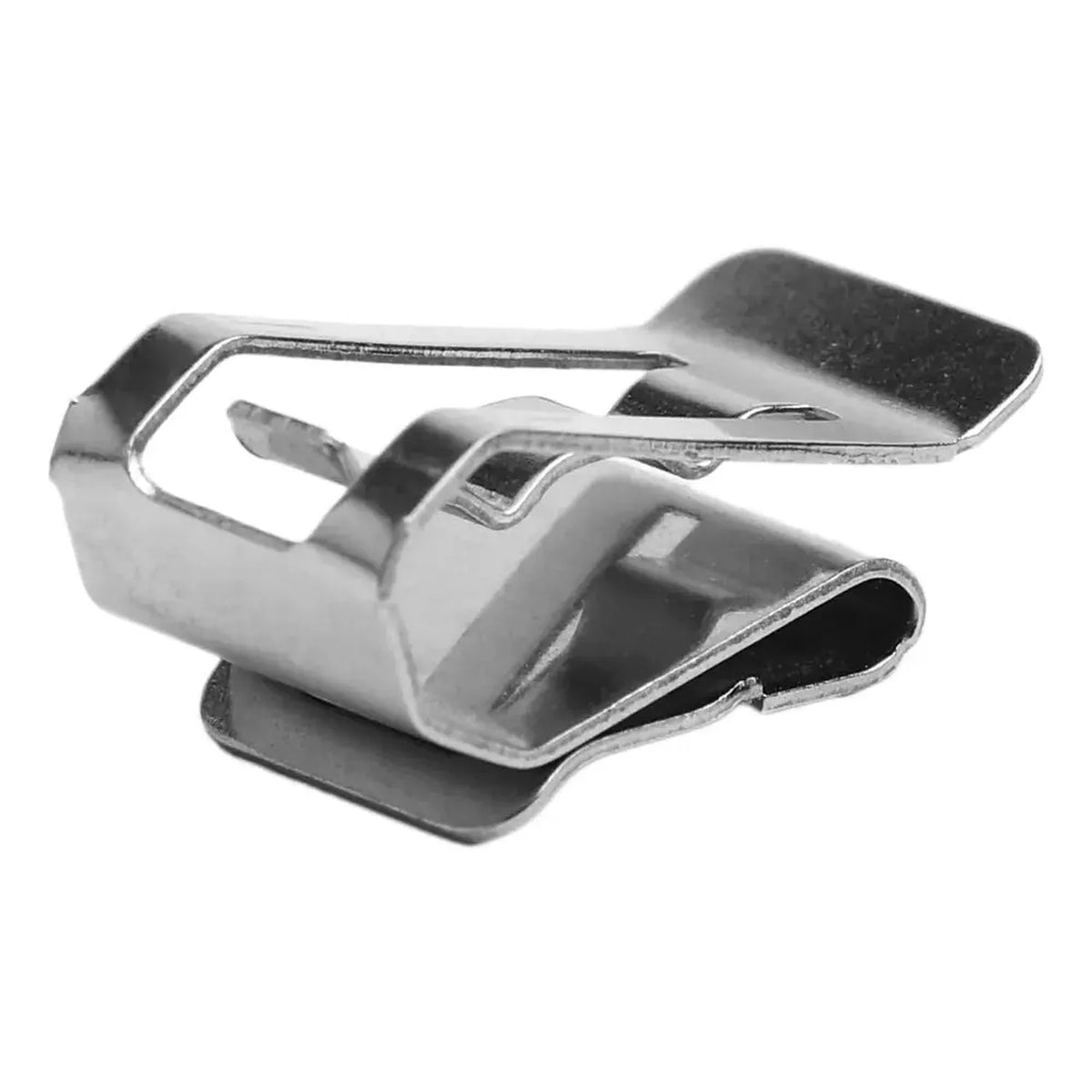

These stainless steel cable clips manage and secure DC cables within solar PV panel frames. Made from 304 or spring-grade stainless steel, they clip directly onto the panel frame flange without tools and hold cables neatly in place, cutting the risk of chafing, movement or UV damage over the life of the installation. Sold per clip.

Solar cable clips: key features

• Material, 304 or spring-grade stainless steel for long-term corrosion resistance.
• Cable sizes, suitable for 4mm and 6mm solar DC cables.
• Fitting, tool-free installation and removal via a special tab design.
• Edge finish, coined edges protect cable insulation from damage.
• Frame fit, compatible with panel frame flange thickness of 1.3 to 2.5mm.
• Cable types, accommodates PV, AC module and microinverter cables.

Product overview

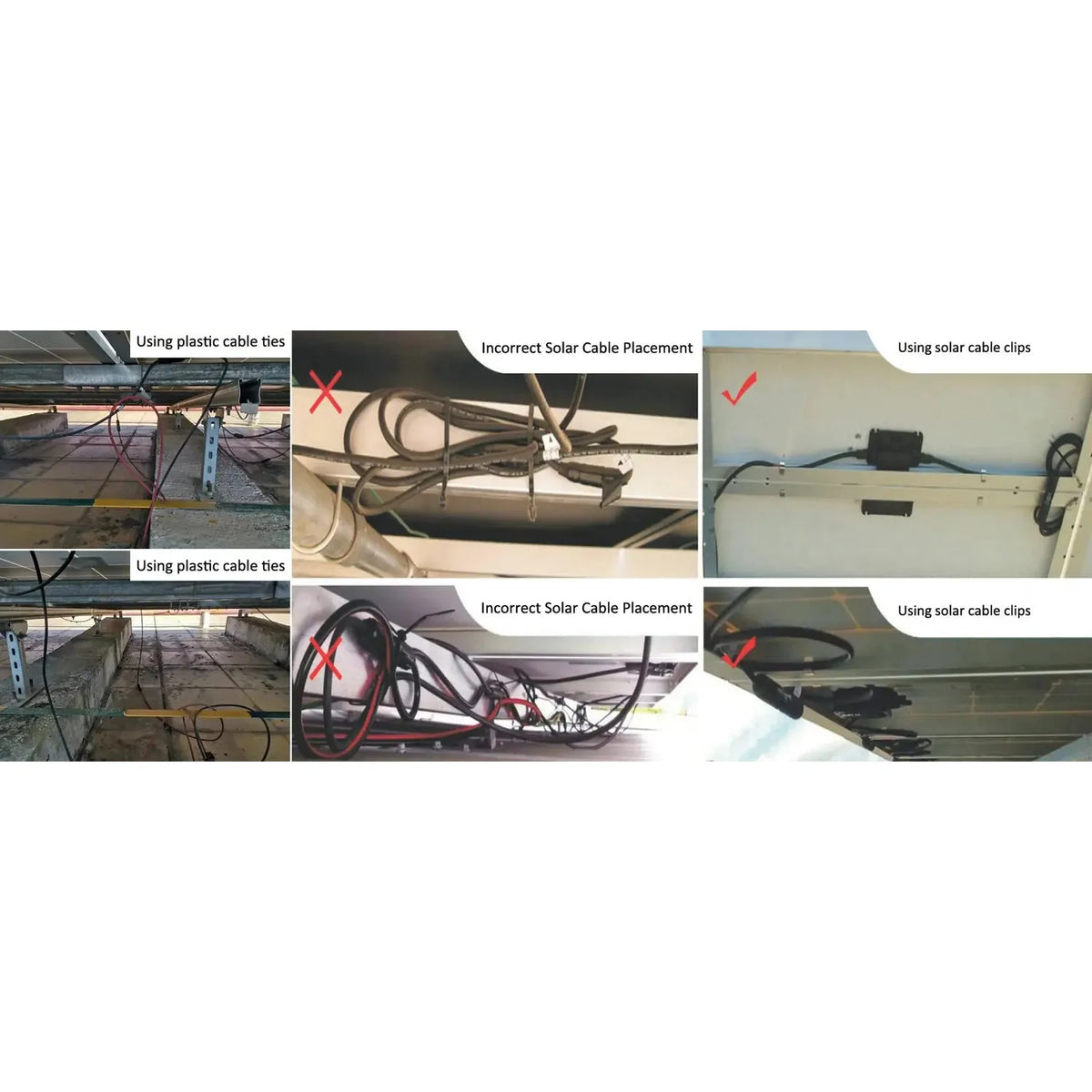

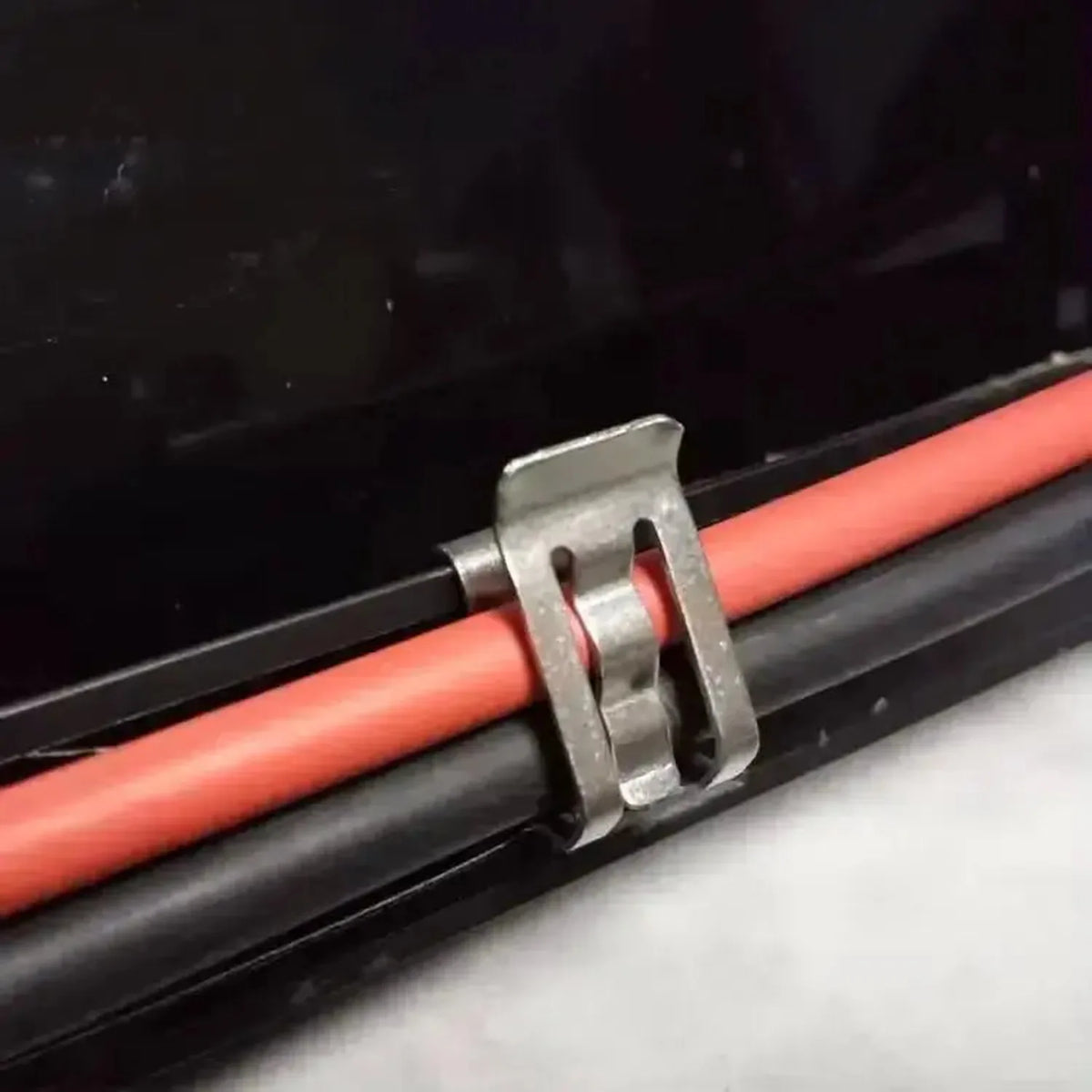

The clips attach to the aluminium frame of the solar panel, routing DC cables along the underside of the module without adhesive pads, cable ties through holes, or extra fixings. The spring-grade steel version grips harder, useful for larger cable diameters or installations facing more vibration or wind loading.

Coined edges stop sharp contact points cutting into cable insulation over time, a common failure point with cheaper stamped-steel clips. They are reusable, so cable routing can be adjusted later. Sold individually, allowing the correct quantity to be ordered for any array size.

Applications

• DC cable management on residential and commercial rooftop solar arrays.
• Securing microinverter and AC module cables to panel frames.
• Cable routing on ground-mounted solar structures.

Installation and safety notes

These clips are for cable management and organisation only; they do not provide electrical insulation or protection. All DC cabling must be correctly rated, double-insulated solar cable, installed by a qualified electrician or MCS-accredited solar installer in accordance with IET Wiring Regulations.
