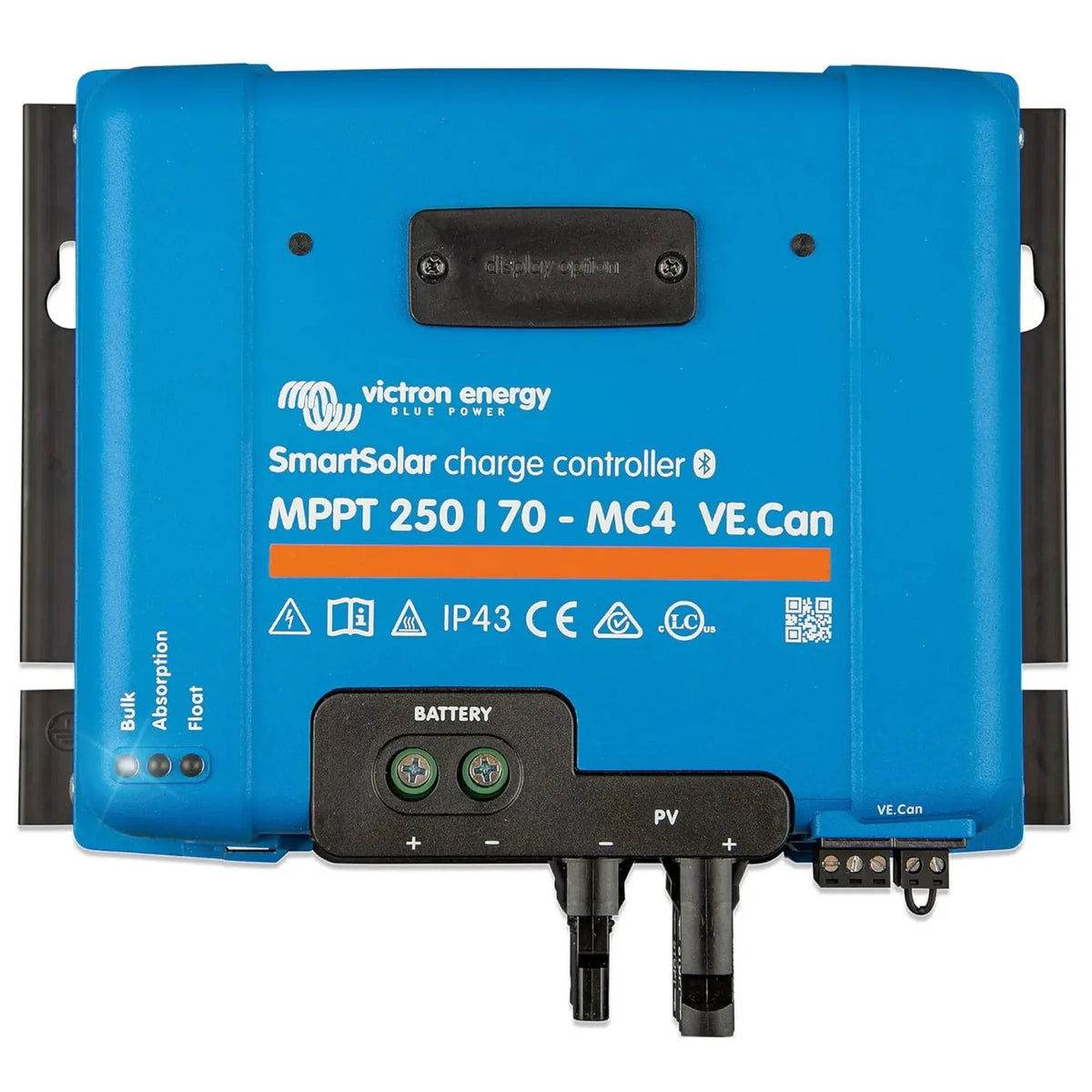

The Victron SmartSolar MPPT 250/70-MC4 VE.Can is a high-voltage solar charge controller built for larger off-grid, marine and commercial systems. It accepts a maximum PV open-circuit voltage of 250V and delivers up to 70A of charge current, with integrated MC4 connectors on the PV input and a VE.Can port for network integration into Victron systems.

Victron SmartSolar MPPT 250/70-MC4 VE.Can features

• Maximum PV open-circuit voltage of 250V, suitable for longer series string configurations
• 70A maximum charge current for substantial battery bank charging from solar
• Integrated MC4 connectors on the PV input, removing the need for separate adaptor cables
• VE.Can port for integration with the Victron GX device ecosystem, monitoring and control
• Built-in Bluetooth via the VictronConnect app for wireless configuration and firmware updates
• Programmable relay output for load control, generator start or alarm functions
• Supports lithium-ion, AGM, gel, flooded and user-defined battery profiles

Product overview

This model sits at the higher end of Victron's MPPT range. The 250V PV input rating allows installers to wire more panels in series, reducing cable losses on larger roof arrays or ground-mount systems with long string runs. Battery voltage is auto-detected on first connection, and the unit supports 12V, 24V and 48V banks.

VE.Can connects directly to a Victron Cerbo GX or other GX device for full telemetry, remote monitoring via the VRM portal, and coordinated charging across multiple devices on the same CAN bus. This suits installations where a MultiPlus or Quattro inverter-charger is also present. Bluetooth is built in as standard, so an installer can set charge profiles and view live power data through VictronConnect without a separate dongle.

Applications

• Large off-grid residential and rural systems with 48V battery banks
• Marine and narrowboat installations needing high PV input voltage tolerance
• Commercial and agricultural off-grid systems on a Victron GX network
• Motorhome and vehicle conversions with substantial solar array capacity
• Hybrid systems alongside Victron MultiPlus or Quattro inverter-chargers using VE.Can coordination

What's in the box

• 1x Victron SmartSolar MPPT 250/70-MC4 VE.Can charge controller

Installation notes

This controller operates at up to 250V DC on the PV input. Installation should be carried out by a qualified electrician or MCS-accredited installer familiar with high-voltage DC solar systems. PV string open-circuit voltage must not exceed 250V under any temperature condition. VE.Can termination resistors must be fitted correctly at both ends of the CAN bus network.
