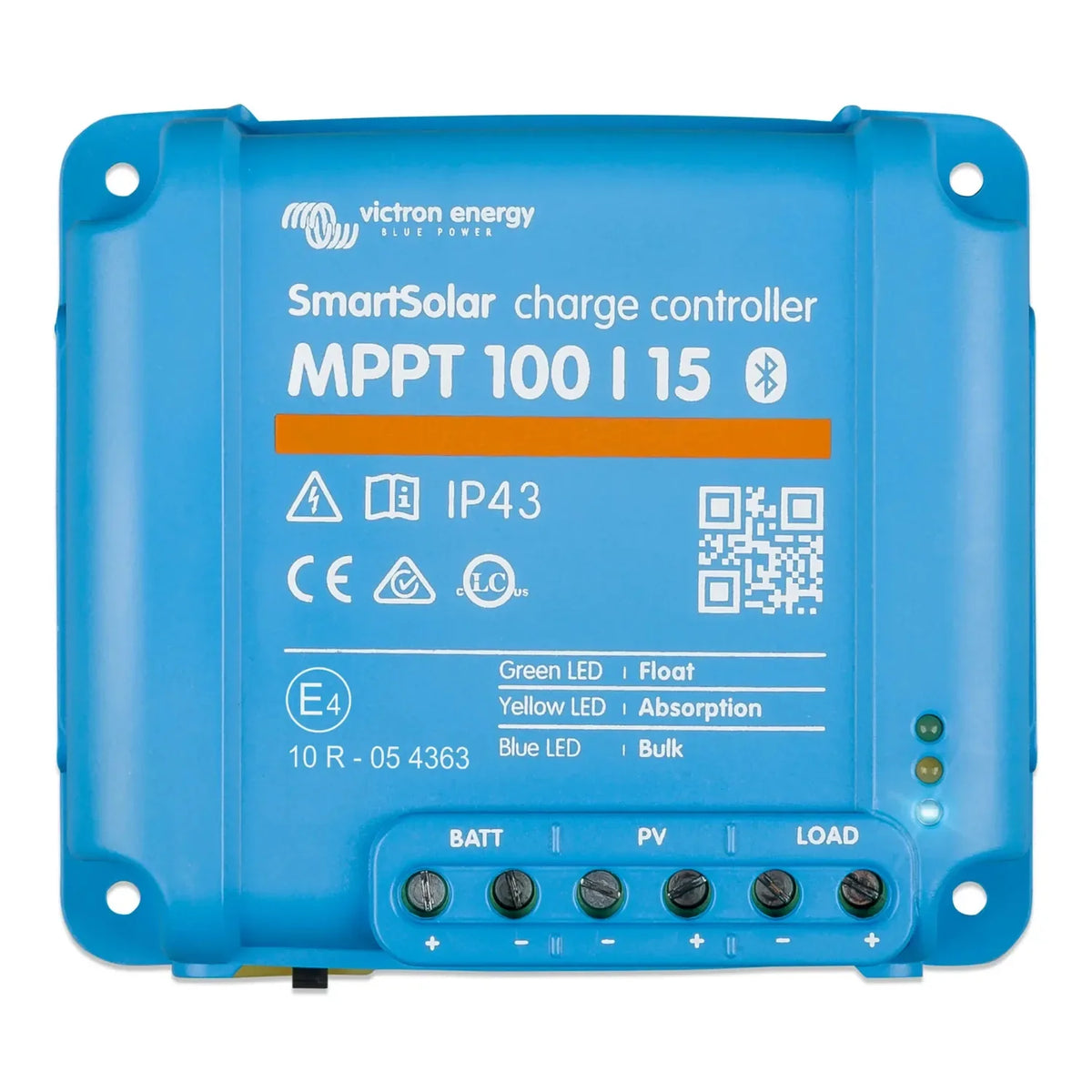

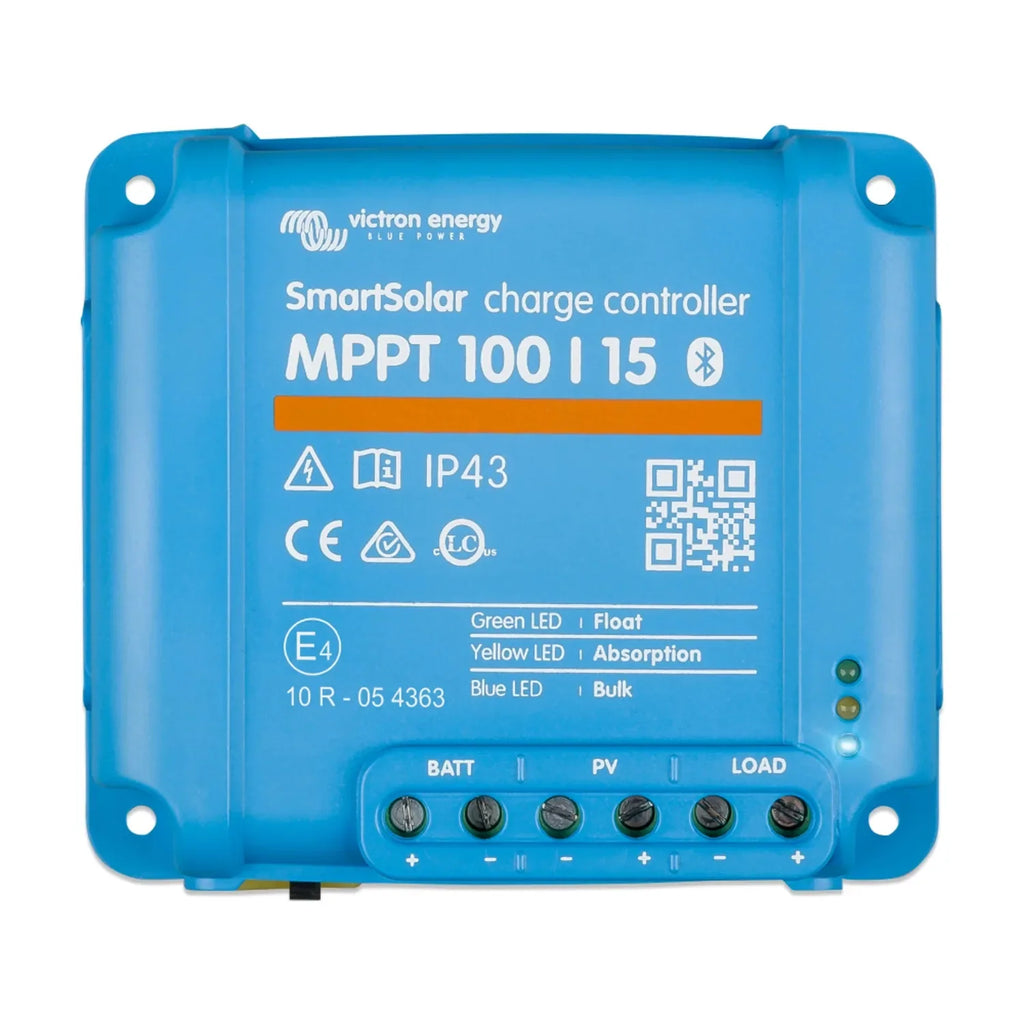

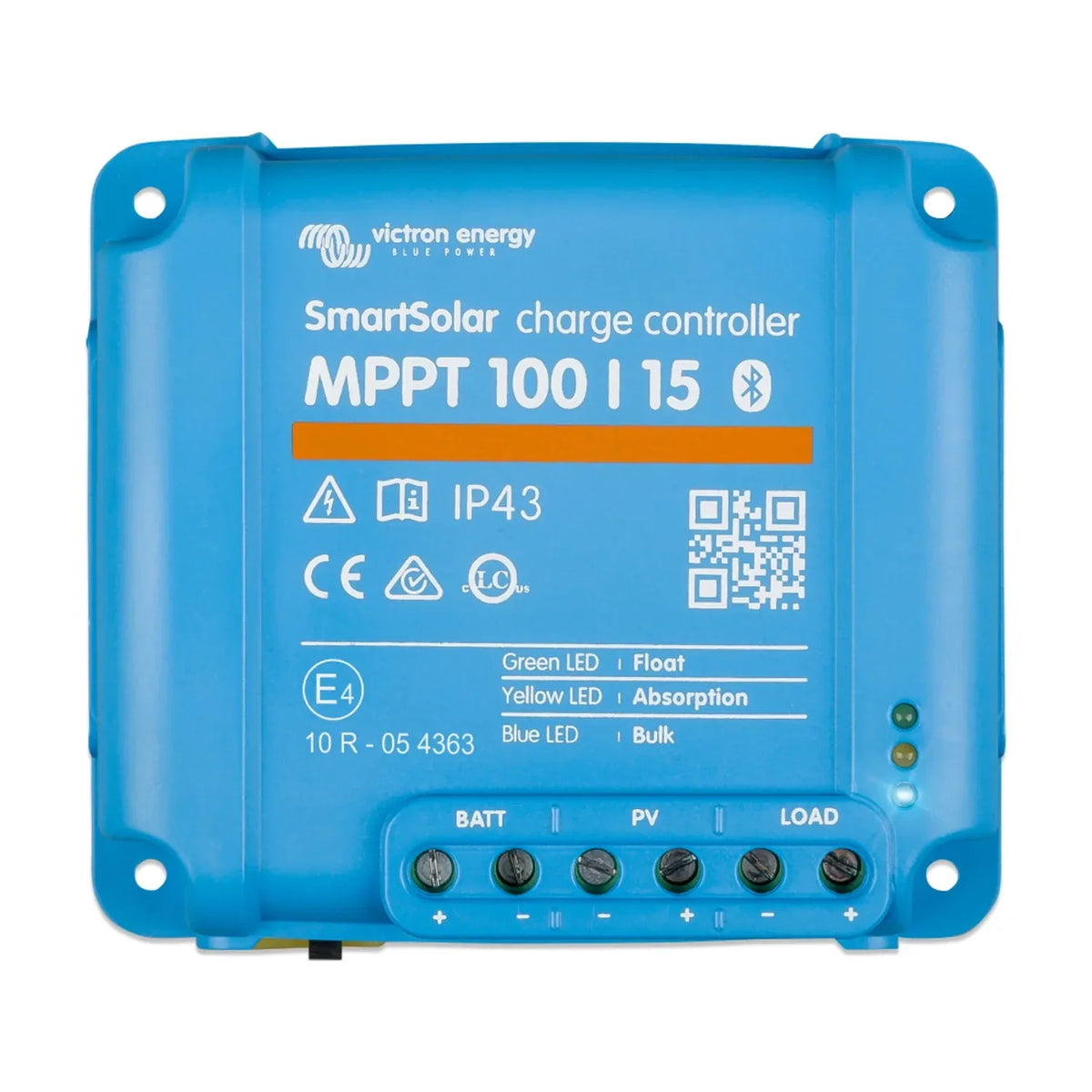

The Victron SmartSolar MPPT 100/15 is a solar charge controller for small to medium off-grid systems. It accepts a maximum PV open-circuit voltage of 100V and delivers up to 15A of charge current, suiting 12V and 24V battery systems. Built-in Bluetooth lets you configure and monitor the unit from a phone without any extra hardware.

Victron SmartSolar MPPT 100/15 key features

• PV input, maximum open-circuit voltage of 100V, maximum charge current of 15A.
• Battery compatibility, works with 12V and 24V systems, with automatic voltage detection.
• Bluetooth built in, wireless setup and monitoring through the VictronConnect app on iOS and Android.
• Charging algorithm, multi-stage adaptive charging for flooded, gel, AGM and lithium batteries.
• Load output, integrated output with programmable street lighting and timer functions.
• VE.Direct port, optional connection to a GX device, MPPT Control display or data logger.

How MPPT tracking helps

An MPPT controller adjusts the operating point of the solar array continuously, pulling more usable energy from the panels than a PWM controller managing the same array. The 100V input rating gives some flexibility when stringing panels, which matters in cold weather when open-circuit voltage rises above its rated figure.

Monitoring and control

Bluetooth means no separate dongle is needed. Through VictronConnect you can set battery type and charge voltages, configure the load output, and check live data or yield history from a phone or tablet. Pairing with a Victron GX device such as the Cerbo GX extends this to full system monitoring through the VRM portal.

Applications

• Off-grid cabins, garden buildings and outbuildings running 12V or 24V systems.
• Campervans, motorhomes and narrowboats needing compact solar charge management.
• Remote monitoring stations, telecoms enclosures and security installations.
• Solar lighting systems using the programmable load output for dusk-to-dawn or timer control.
• Small rural or agricultural sites without grid power.

What's in the box

• Victron SmartSolar MPPT 100/15 charge controller, retail packaging.

Installation notes

Fitting should be done by a competent electrician or solar installer. Keep the array's open-circuit voltage under 100V at all times, including during cold-weather Voc rises. Size cabling and fusing to the charge current rating and applicable wiring regulations. For lithium batteries, check the BMS is compatible with the charge profiles available in VictronConnect. The load output is not intended for AC or unprotected inductive loads.
