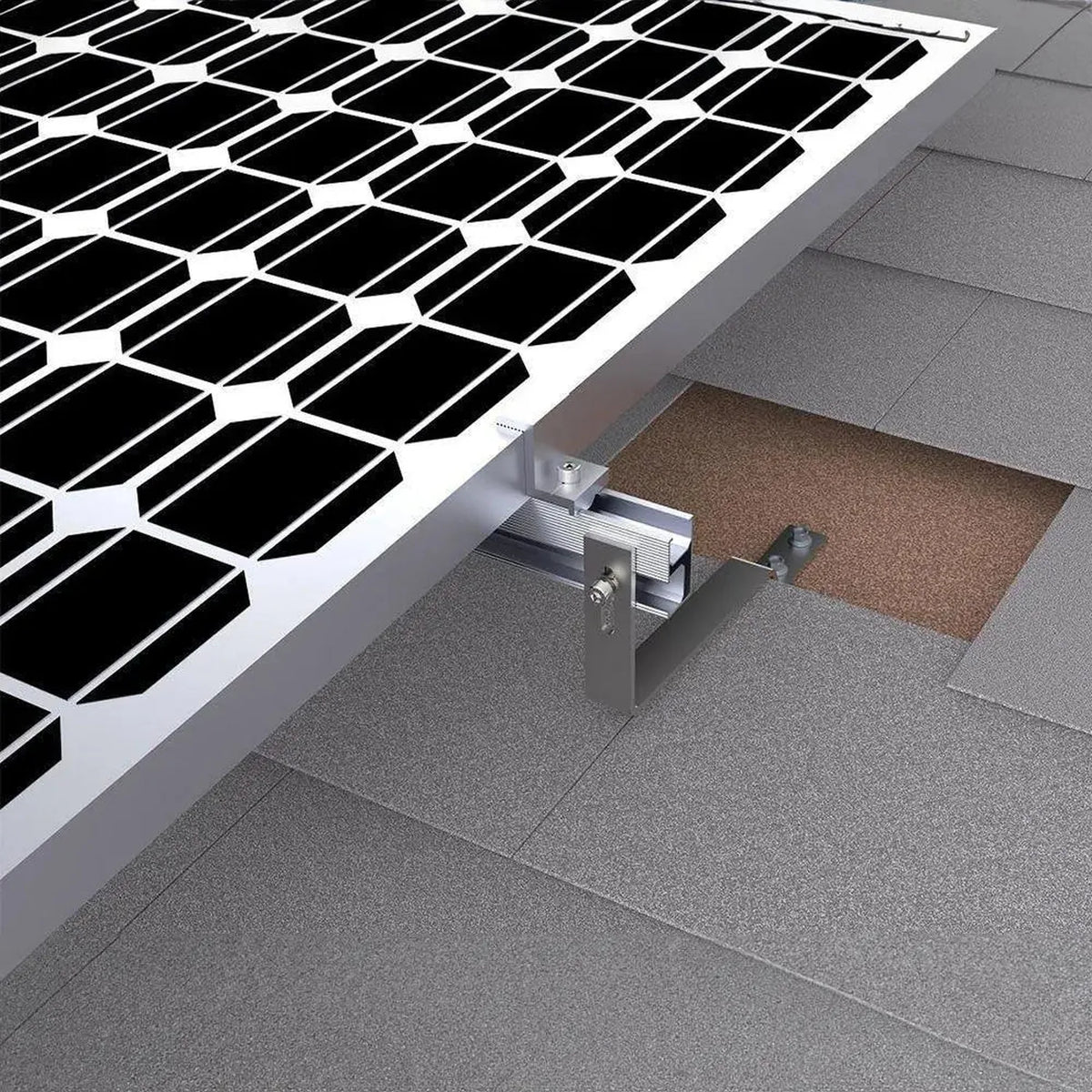

A complete per-module mounting kit for fitting solar panels to rosemary-style and concrete tile roofs in landscape orientation. Angled stainless steel hooks locate under the tile edge rather than through it, so no tile drilling is needed. Rails and clamps are AL6005-T5 aluminium with an anodised finish. Kits are supplied for 1 to 10 modules per order.

Key features of this tile roof mounting kit

• No drilling, hooks sit under the tile edge, keeping the tile surface intact
• Hook types, 90° and 180° bend stainless steel hooks included
• Rail material, AL6005-T5 anodised aluminium rails and clamps
• Rail length, 1.2m Easy Roof rail per module, with connectors for extending the run
• Compatibility, works with standard aluminium-framed solar panels
• Orientation and quantity, landscape orientation, 1 to 10 modules per order

Applications

Suited to residential rooftop PV installs on rosemary-style and concrete tile roofs, and slate, where drilling through the tile is not wanted or permitted. Designed for landscape-orientation arrays from a single module up to ten.

Installation notes

Fitting should be carried out by a qualified solar installer in line with local building regulations. Check that the hook profile suits the actual tile before starting, and make sure wood screws are torqued correctly into sound roof battens. Do not exceed the maximum rail span without extra support.

What's in the box (per module)

• 1x Easy Roof aluminium rail, 1200mm
• Middle and end clamps (aluminium)
• 90° and 180° stainless steel hooks
• Mounting screws with washers, wood-compatible
• Rail connectors
• Rail clamps
