A polyamide shore power inlet for marine, caravan and off-grid installations that need a weatherproof, panel-mounted AC connection point. Rated at 16A/250Vac in a 2-pole/3-wire configuration, it accepts a standard shore power cable and gives a protected mains entry point into a vessel, vehicle or static installation.

Key features

• Rating, 16A at 250Vac, for standard single-phase shore power connections.
• Configuration, 2-pole/3-wire (2P/3W), covering live, neutral and earth.
• Body material, polyamide (nylon), resistant to UV exposure, moisture and mechanical impact.

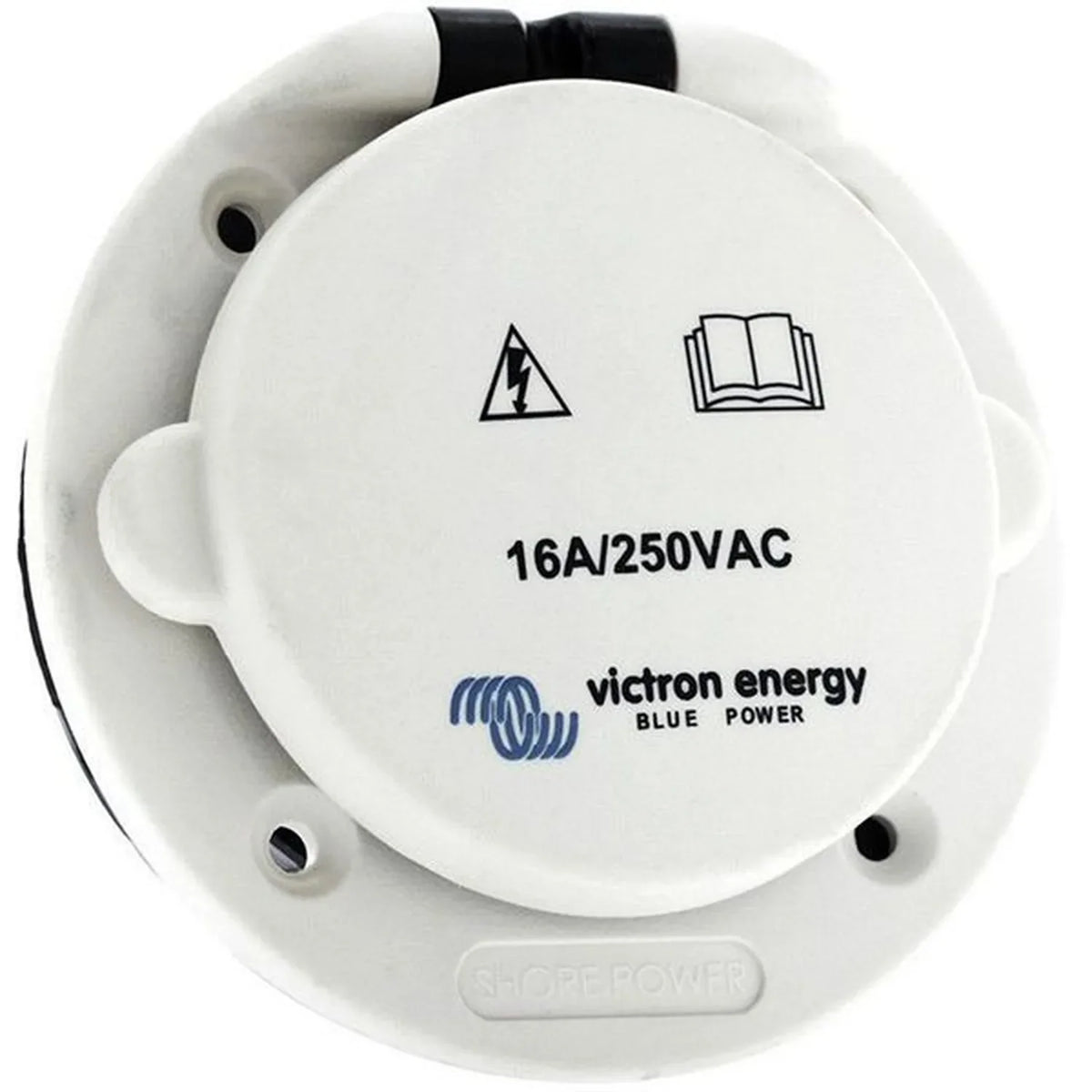

• Cover, protective cover included, sealing the inlet when no cable is connected.
• Mounting, panel-mount design for flush or surface fitting into bulkheads, enclosures or vehicle bodywork.
• Weight, 0.23 kg.

Product overview

This inlet is the fixed connection point on the vessel or vehicle side of a shore power hookup. Once a shore cable is plugged in, mains AC feeds through to the onboard distribution system, usually via a shore power isolator, RCD or an inverter/charger such as a Victron MultiPlus or Quattro. The polyamide body suits damp or outdoor locations where a metal fitting isn't wanted.

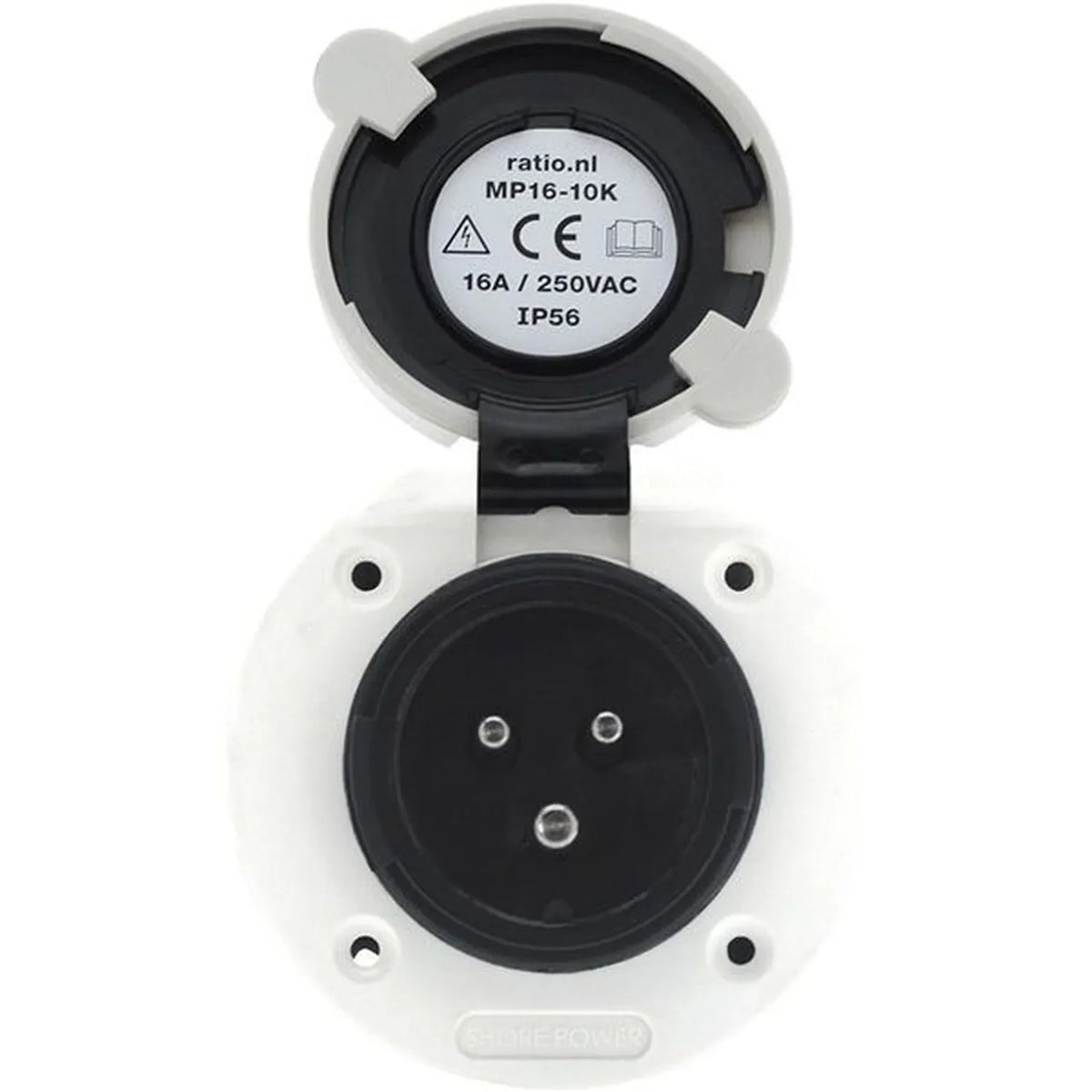

The 2P/3W wiring carries one live conductor, a neutral and a protective earth, the standard arrangement for single-phase 16A shore connections in leisure marine and caravan use across the UK and EU. A hinged cover keeps the socket face clean and dry when the shore cable is disconnected.

Applications

• Shore power inlet on sailing yachts, motorboats and canal boats.
• Mains AC entry point on motorhomes, campervans and caravans.
• Panel-mounted AC inlet on off-grid cabins, site offices and portable power enclosures.
• Replacement inlet where an existing fitting has degraded.

What's in the box

• 1 x Power Inlet Polyamide 16A/250Vac (2P/3W)
• 1 x Protective cover

Installation notes

This inlet carries mains AC voltage and should be fitted by a qualified electrician or competent marine/vehicle electrical engineer. Leisure craft wiring should follow the relevant BS EN ISO marine electrical standards; caravans and motorhomes should follow BS 7671 (IET Wiring Regulations) and applicable leisure vehicle standards. The inlet must be correctly earthed as part of the 2P/3W circuit, and the cover kept closed whenever the shore cable isn't connected.
