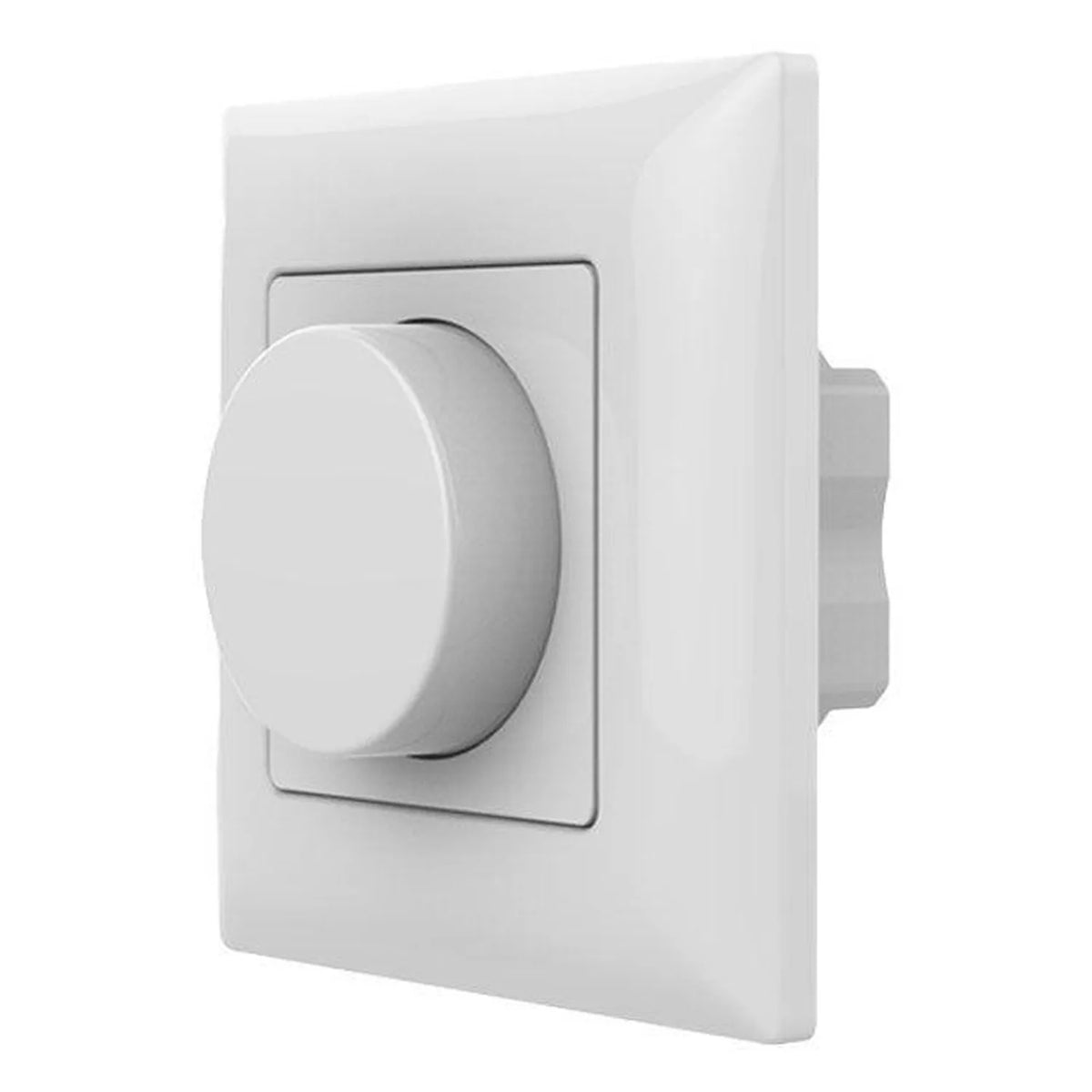

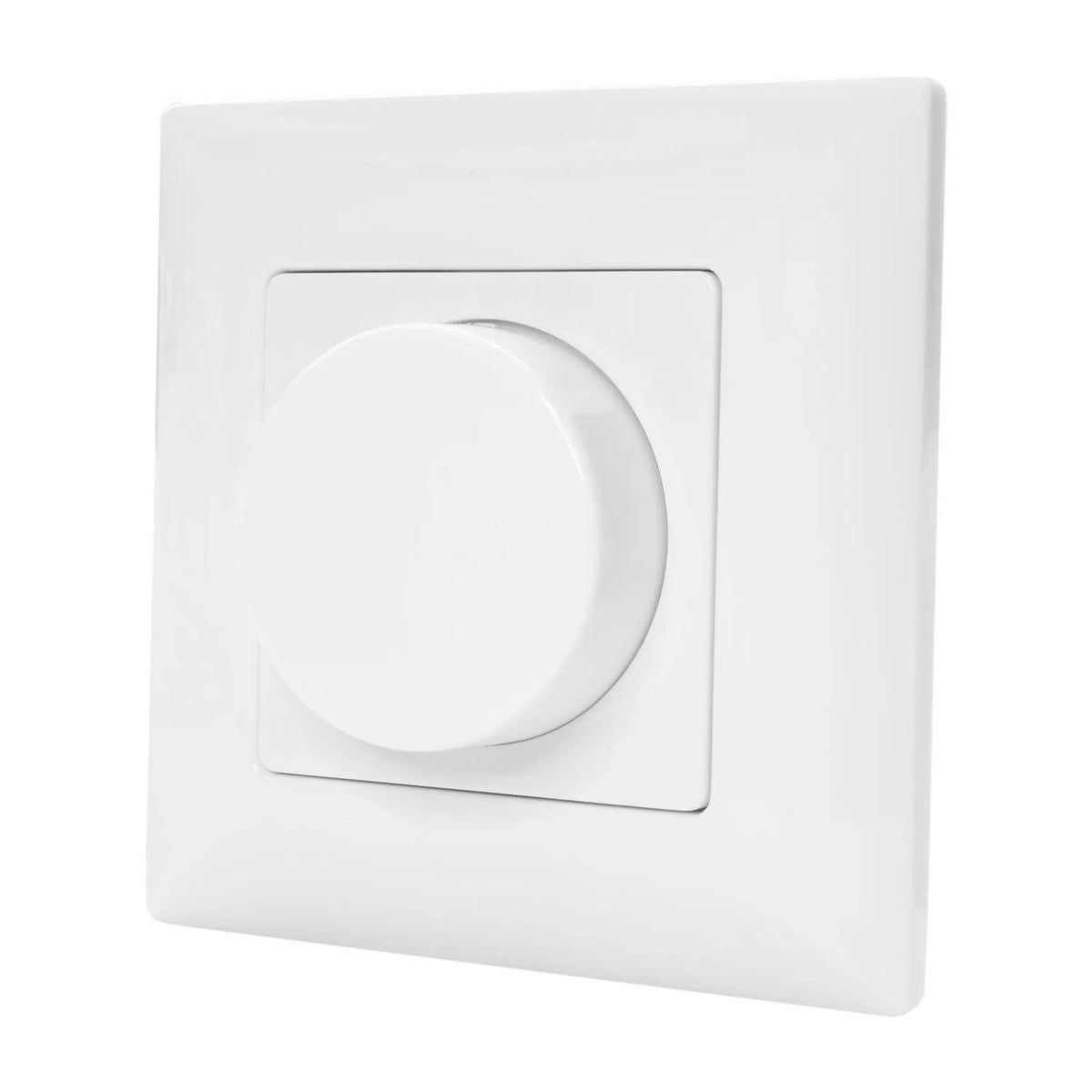

This rotary panel dimmer gives you a 1-channel 0-10V/1-10V output for controlling constant voltage LED drivers from a single knob. It takes a high voltage AC input and switches via a high voltage AC relay output, so it wires straight into an existing lighting circuit without extra control gear.

Key features of this 1-10v dimmer

• Output, 1 channel 0-10V/1-10V signal, for connection to a 0/1-10V dimmable driver
• Input/output, high voltage AC input with high voltage AC relay output
• Control method, rotate the knob to change brightness, with push and long-push operation supported
• Remote compatibility, works with Skydance's 2.4G dimming remote control

Knob function

• Push, turns the light on or off
• Rotate, adjusts brightness across 2.5 turns, giving 50 levels once the light is on
• Long push (1-5s), continuous adjustment across 256 brightness levels

Applications

Fit this panel dimmer wherever a wall-mounted rotary control is wanted for constant voltage LED drivers running on a 0-10V or 1-10V dimming signal. It suits domestic and commercial rooms where a simple manual control point is preferred over an app or remote, while still allowing pairing with a Skydance 2.4G remote for extra flexibility.
