The Ledison RGB 4 Zones Remote Control is a wall mounted touch glass panel that works as a DMX512 master or an RF 2.4GHz remote, controlling up to four zones from one wall plate. It runs from a 100-240VAC input.

LED RGB remote control features

• 4 zone touch panel functions as a DMX512 master or an RF remote for LED colour control.
• DMX signal output follows the standard DMX512 protocol and works with DMX decoders from any supplier.
• Each zone can control multiple RF 2.4G LED controllers when used in RF remote mode.

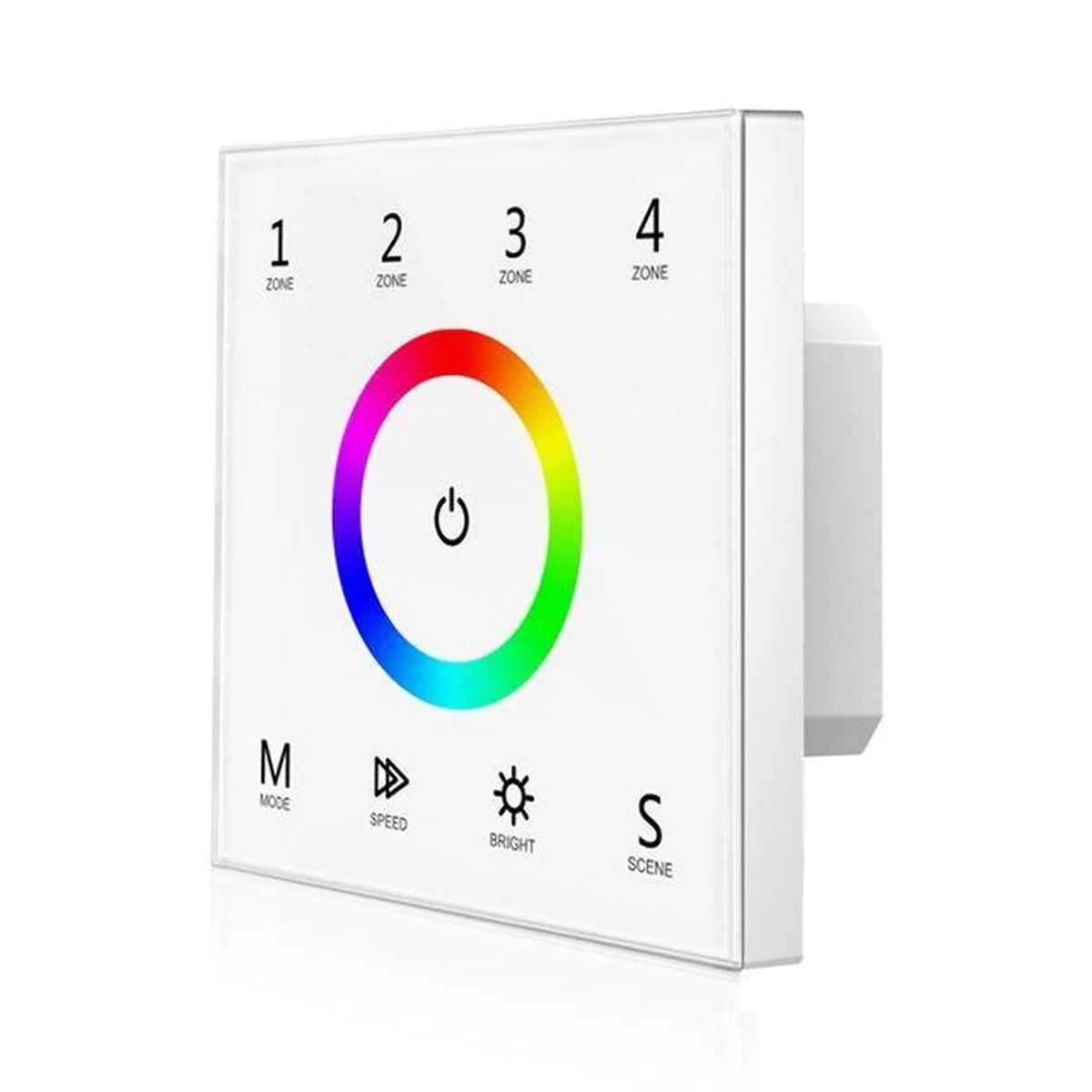

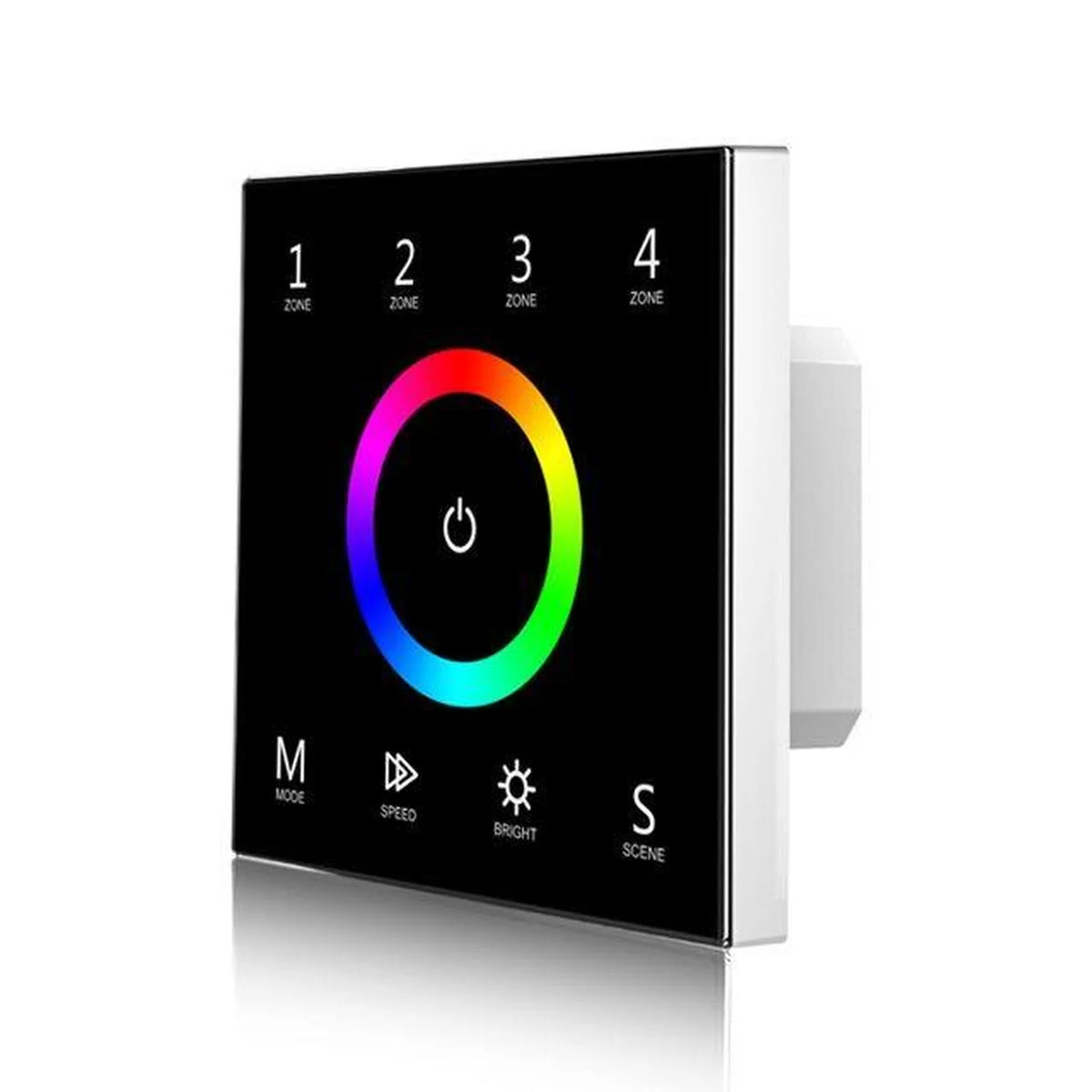

• Touch colour wheel sits at the centre of the glass panel, with backlit touch keys and LED indicators.

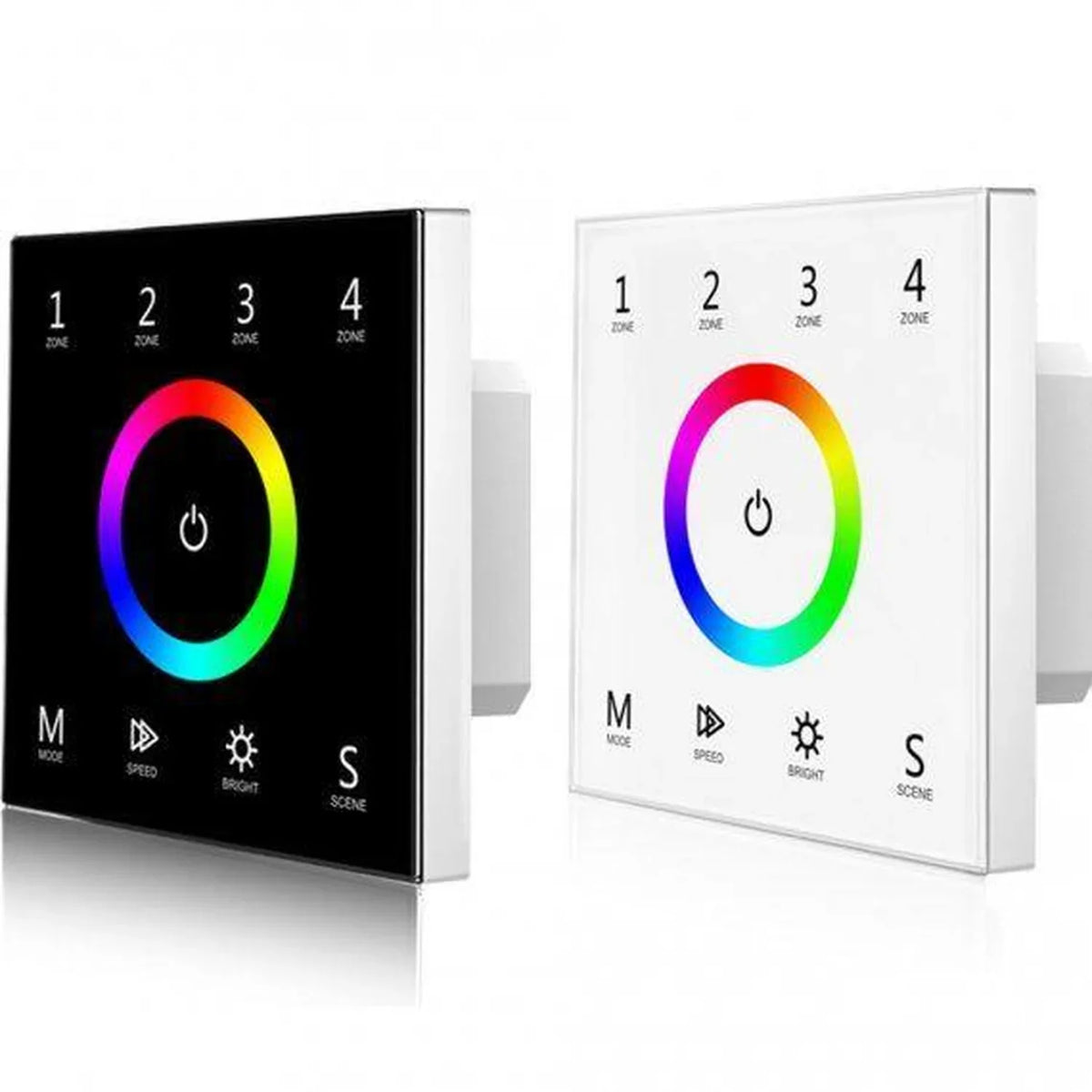

• White and black glass panel finishes are available.

Applications

Fits on a standard wall plate for controlling RGB LED lighting in homes, offices or retail spaces where separate zones need independent colour control. The DMX output suits installations already running DMX512 fixtures, while the RF mode covers standalone RGB controller setups without wiring back to a controller.

Electrical specifications

• Input voltage: 100-240VAC
• Input current: Max 0.1A
• Output signal: DMX512, RF 2.4GHz
• Input signal: Touch key + RF 2.4GHz
• RF control distance: 30m
• Dimming level: 256 Levels
• Dimming range: 0-100%
• Output DMX channel number: 12

Dimensions

86x86x33mm.
