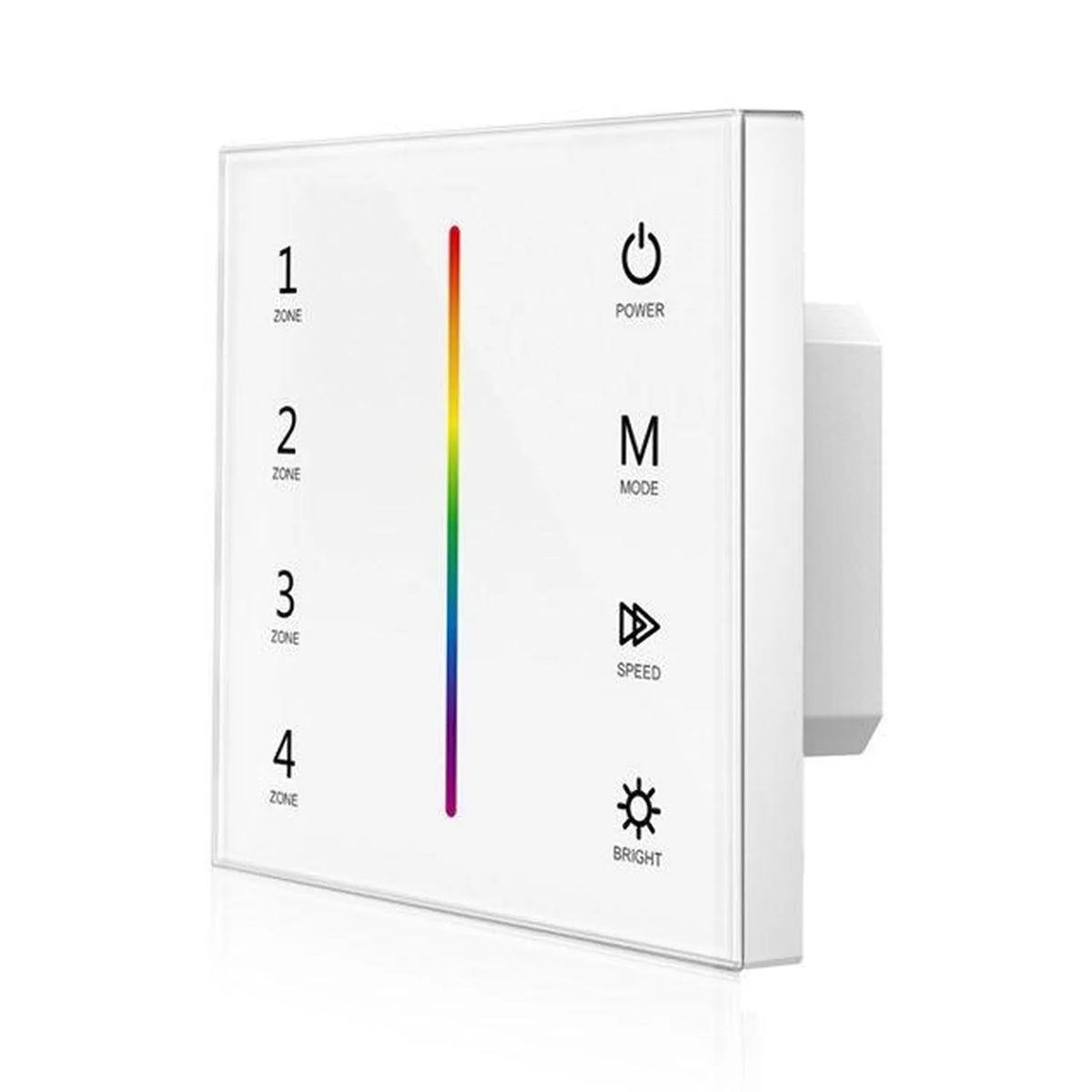

The RGB Controller 4 Zone is a wall mounted touch panel for LED lighting installations that need separate control across several areas. It combines a glass panel with backlit touch keys and supports both DMX512 signal output and RF 2.4GHz remote control, so it can run as a DMX512 master or as a standalone 4 zone RF remote.

Key features of this rgb led dimmer controller

• Zones, 4 independently controlled zones from one panel
• Control methods, DMX512 master output and RF 2.4GHz remote control
• Colour adjustment, touch colour slide for smooth adjustment across 256 dimming levels
• Dimming range, 0-100%

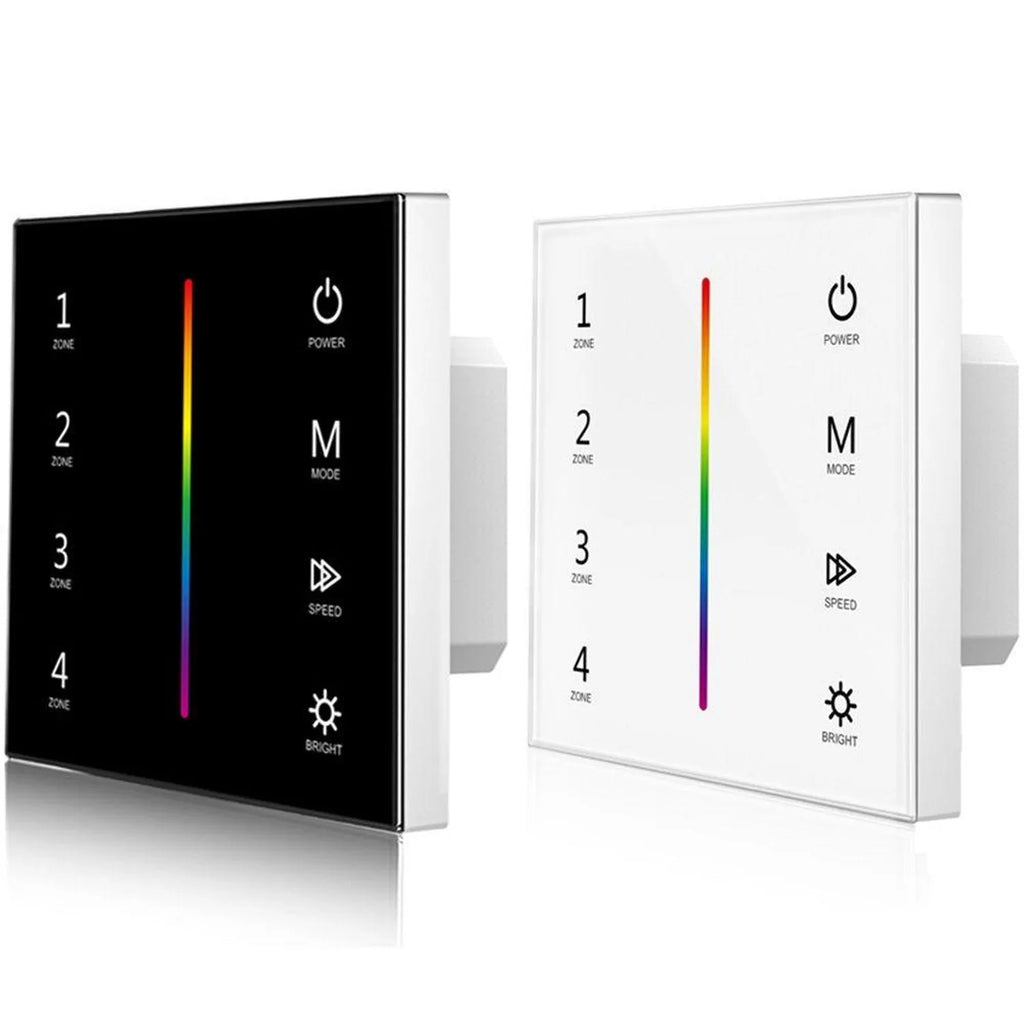

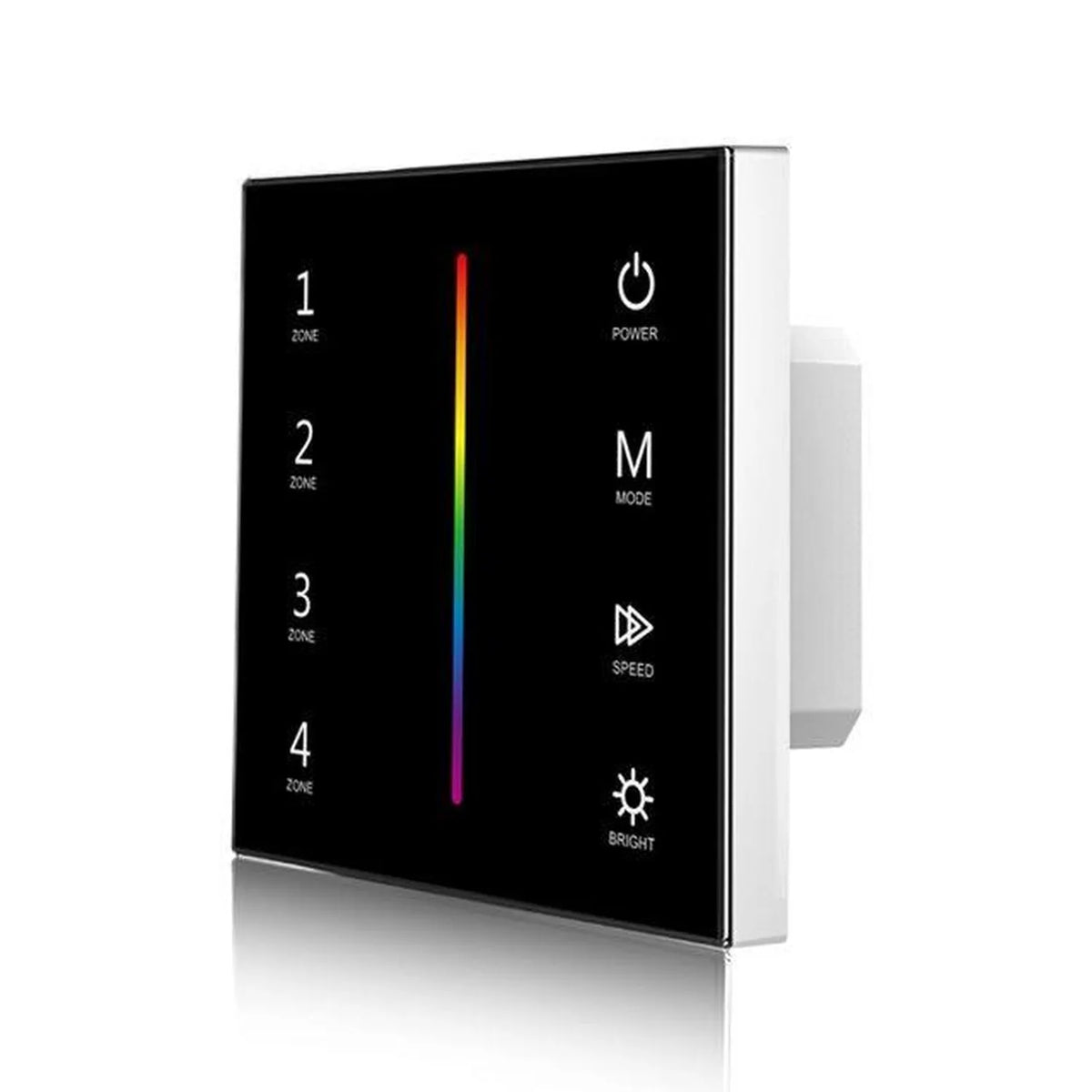

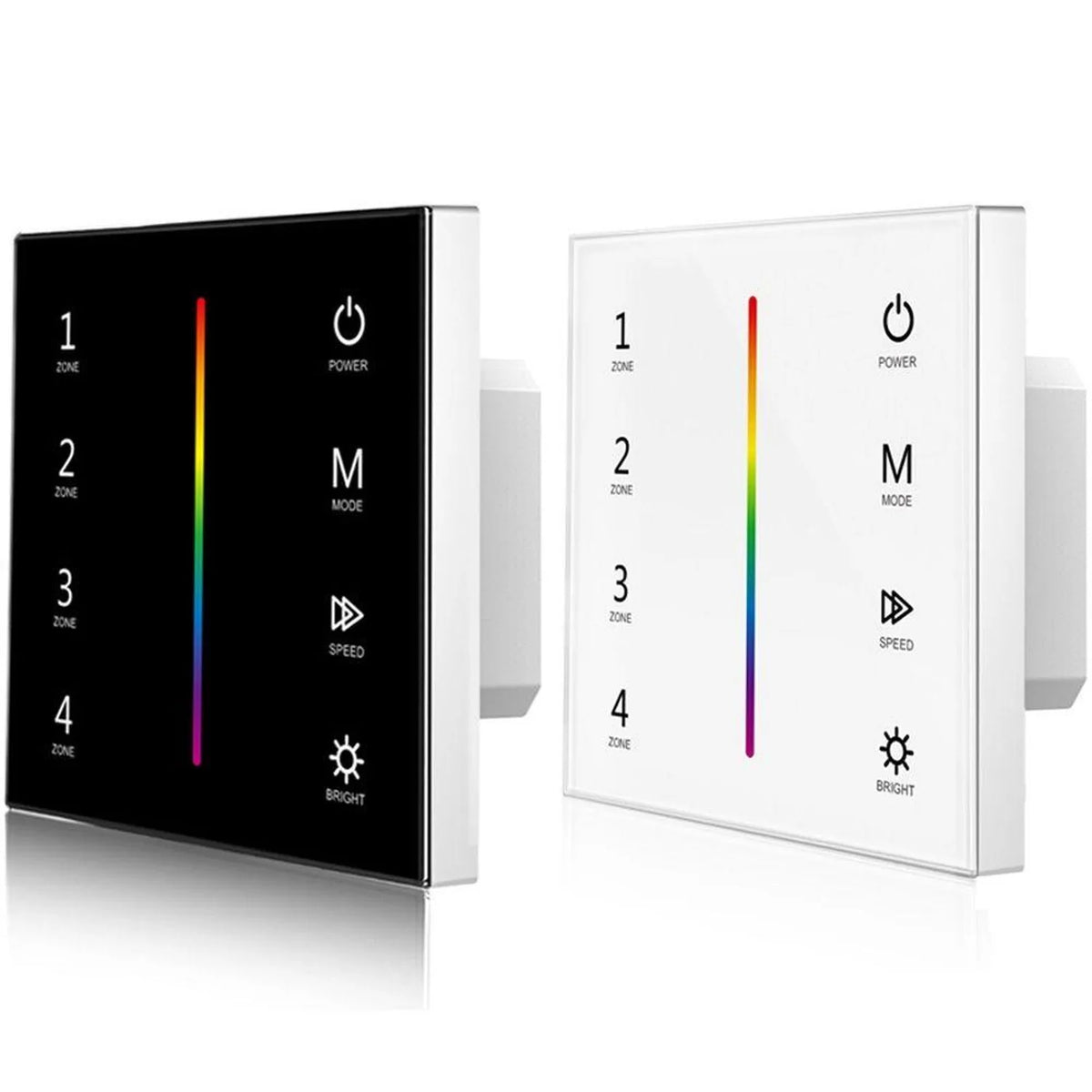

• Panel finish, backlit glass touch panel with LED indicators, available in white or black
• Compatibility, works with standard DMX512 protocol and DMX decoders from other suppliers

Electrical specifications

• Input voltage: 100-240VAC
• Input current: Max 0.1A
• Output signal: DMX512, RF 2.4GHz
• Input signal: Touch key + RF 2.4GHz
• RF control distance: 30m
• Output DMX channel number: 12

Dimensions

86 x 86 x 33mm

Applications

Suited to RGB LED strips and colour changing LED systems where each zone needs its own control, including hospitality lighting, shop displays, bars, restaurants, reception areas and home interiors. Each zone can control multiple RF 2.4G LED controllers, and the DMX512 output allows the panel to work alongside professional DMX lighting systems.
