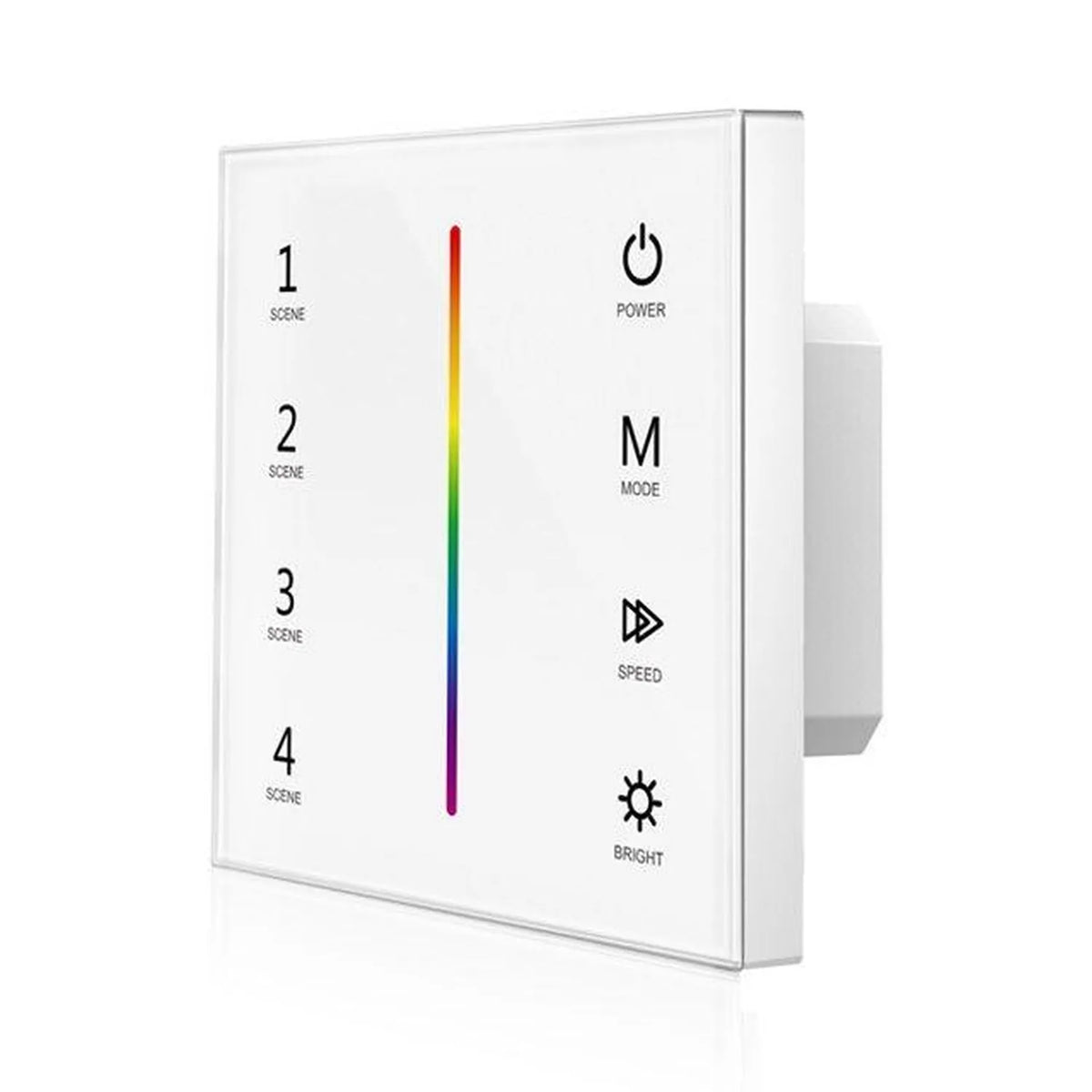

This RGB LED dimmer is a wall mounted controller for low voltage RGB LED lighting, built around a glass touch panel with a responsive touch colour wheel. It suits constant voltage RGB LED strip systems running on 12V to 24V DC, giving smooth control over colour and brightness from a single wall plate.

Key features

• Wall mounted RGB LED dimmer switch for low voltage LED lighting
• Glass touch panel with ultra-sensitive operation
• Touch colour wheel for RGB colour selection
• Compatible with RF 2.4G single zone or multi-zone remote controls

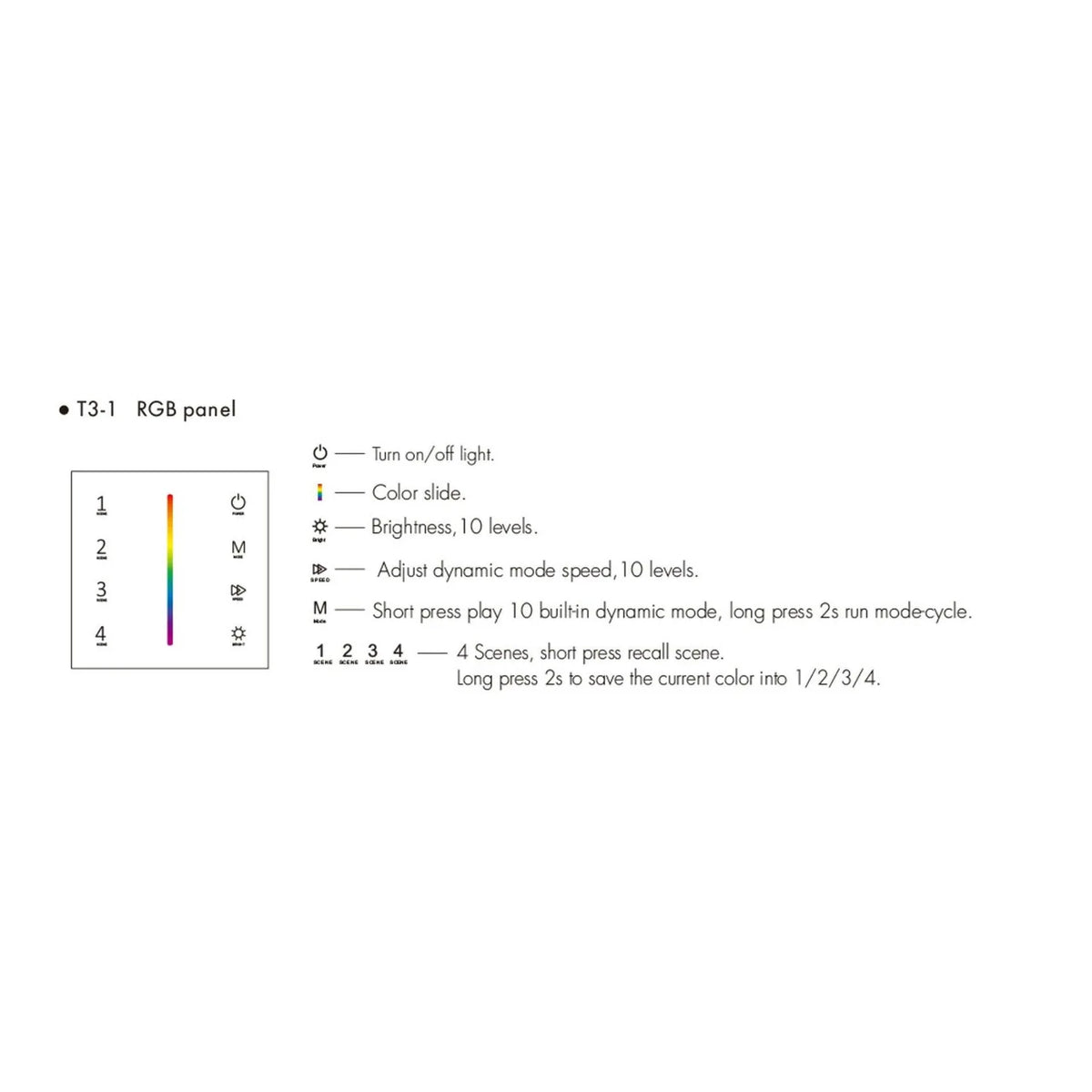

• Backlit touch keys with LED status indication

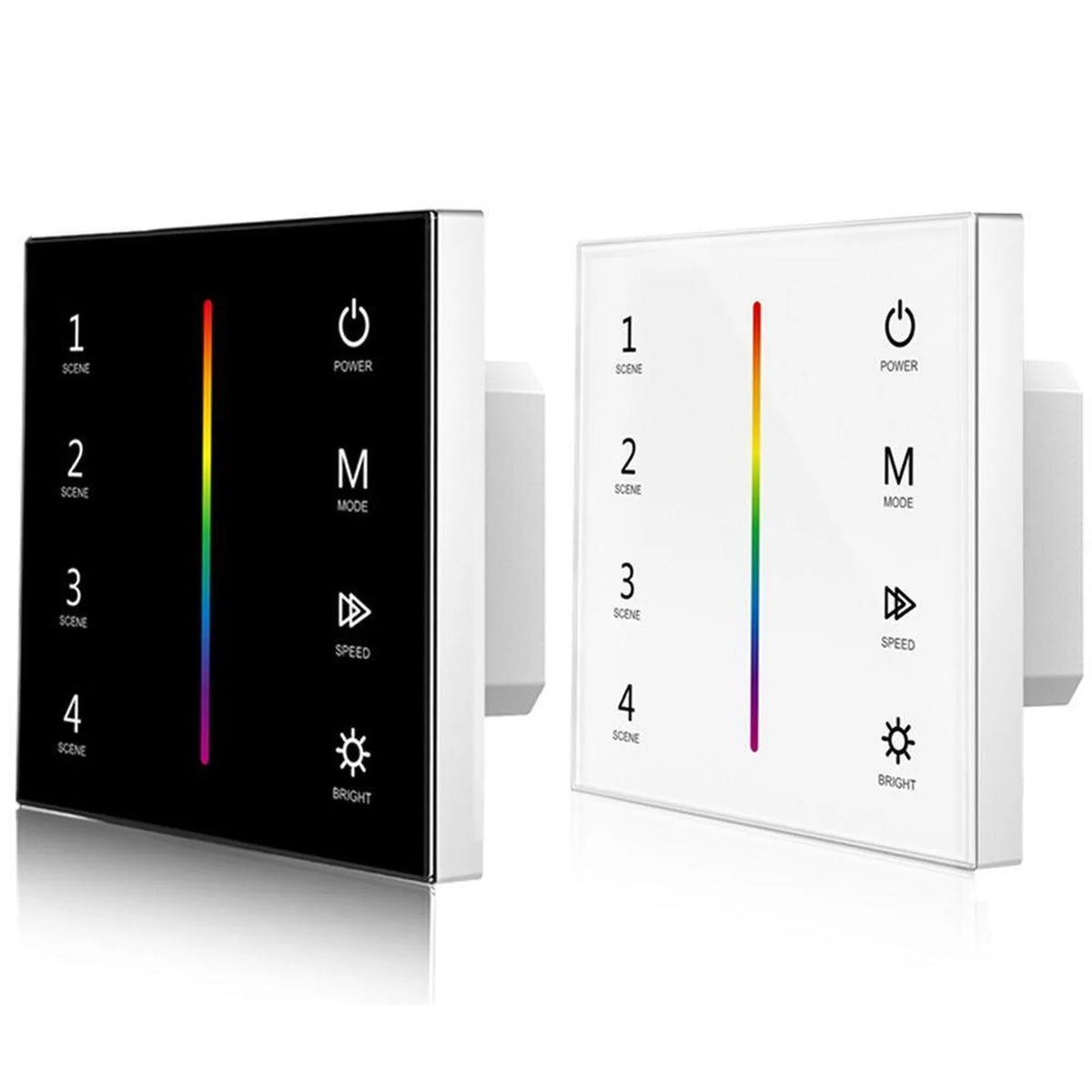

• Available in white and black glass finishes

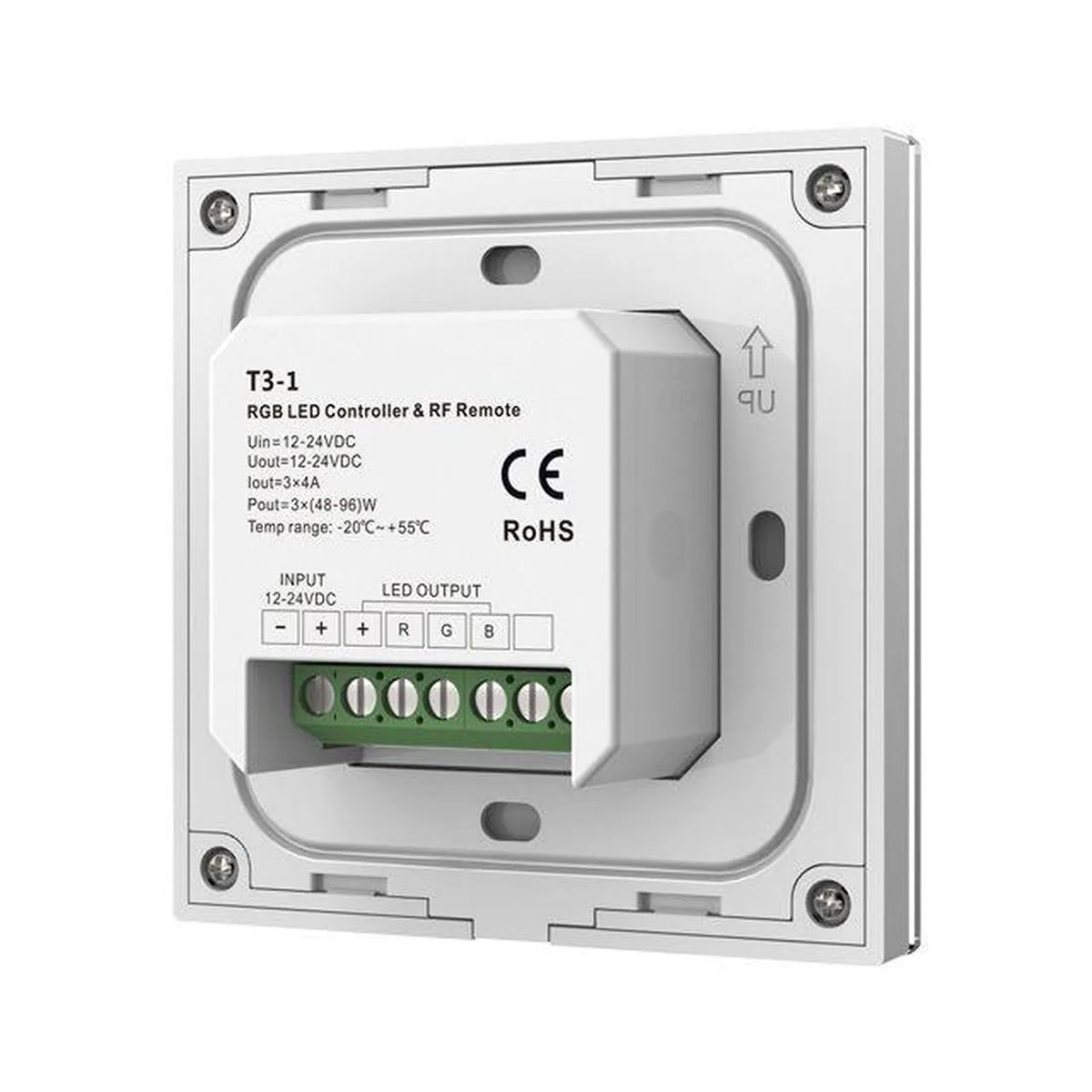

Electrical specification

• Input voltage: 12-24V DC
• Input current: 12.5A
• Output voltage: 3 x (12-24)V DC
• Output current: 3CH, 4A per channel
• Output power: 144-288W
• Output type: Constant voltage
• Light type: RGB

Dimensions

86 x 86 x 33mm

Applications

Suited to RGB LED strips and other constant voltage colour changing LED lighting in homes, bars, restaurants, hotels and retail or display areas. It works well for feature lighting, cove lighting, under-cabinet lighting and reception areas where a neat wall mounted touch dimmer switch for LED lights is wanted.

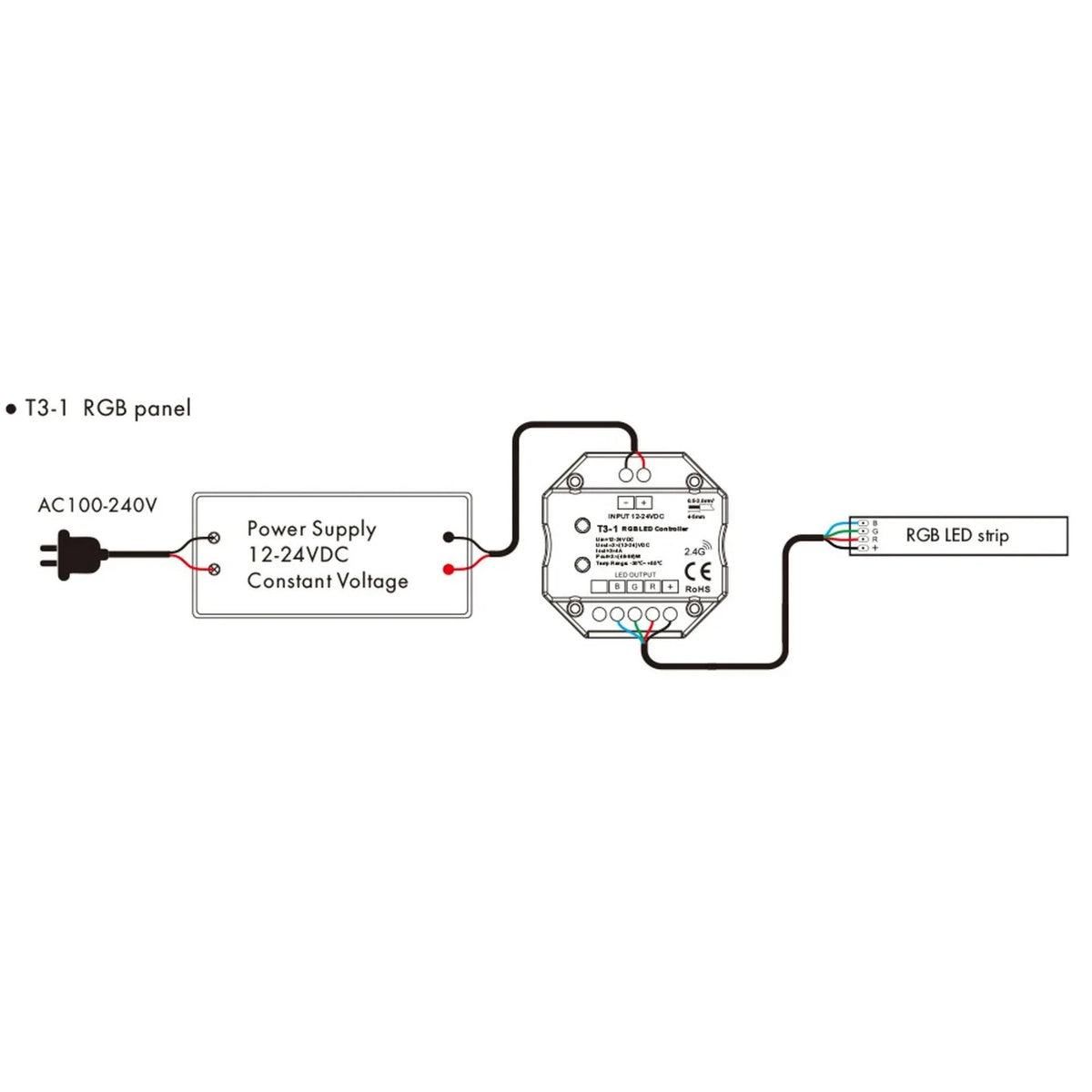

Installation

The wall mounted design keeps wiring tidy and the panel easy to reach, and the backlit soft touch keys make day to day operation straightforward.
