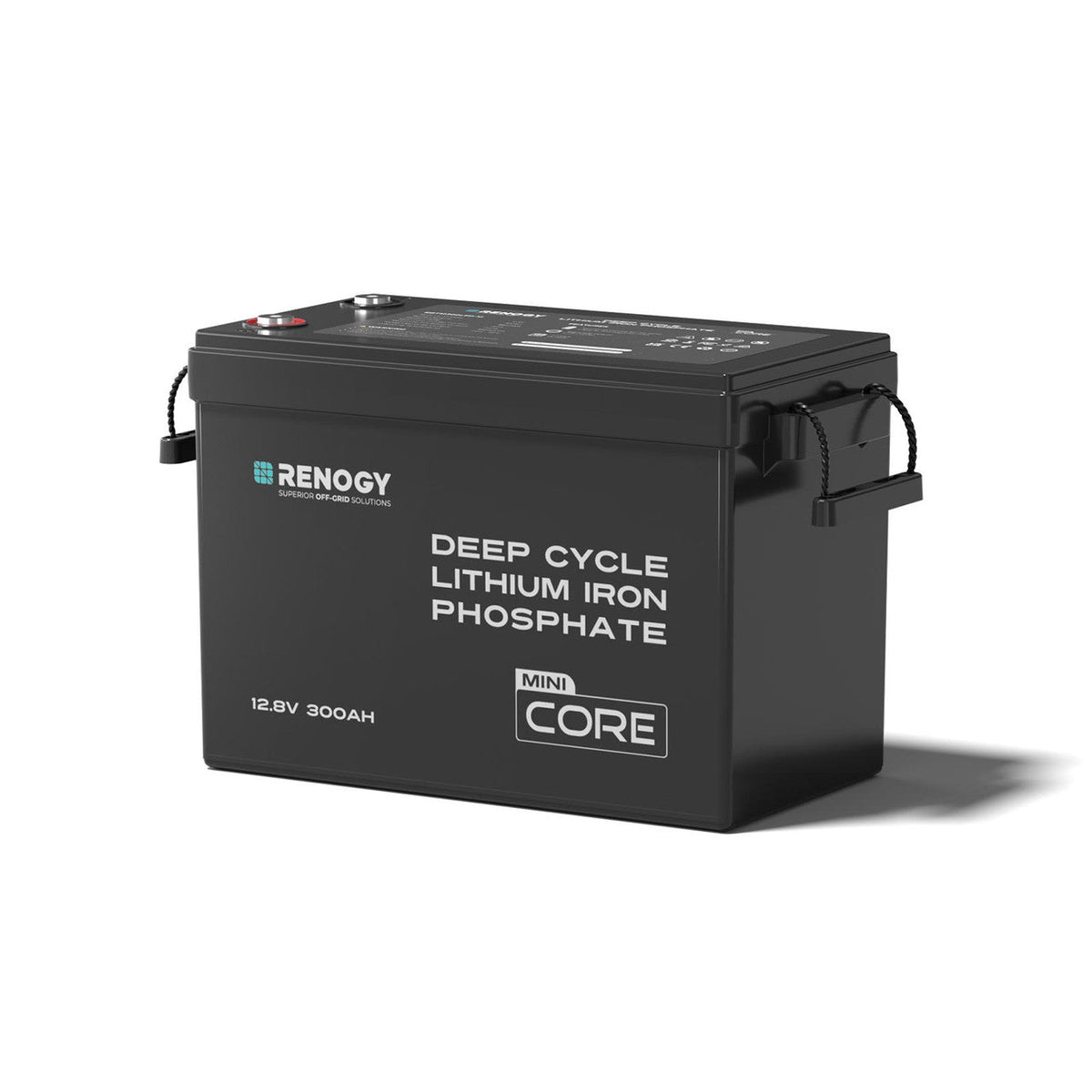

High Capacity. Light Weight. Mini Sized.

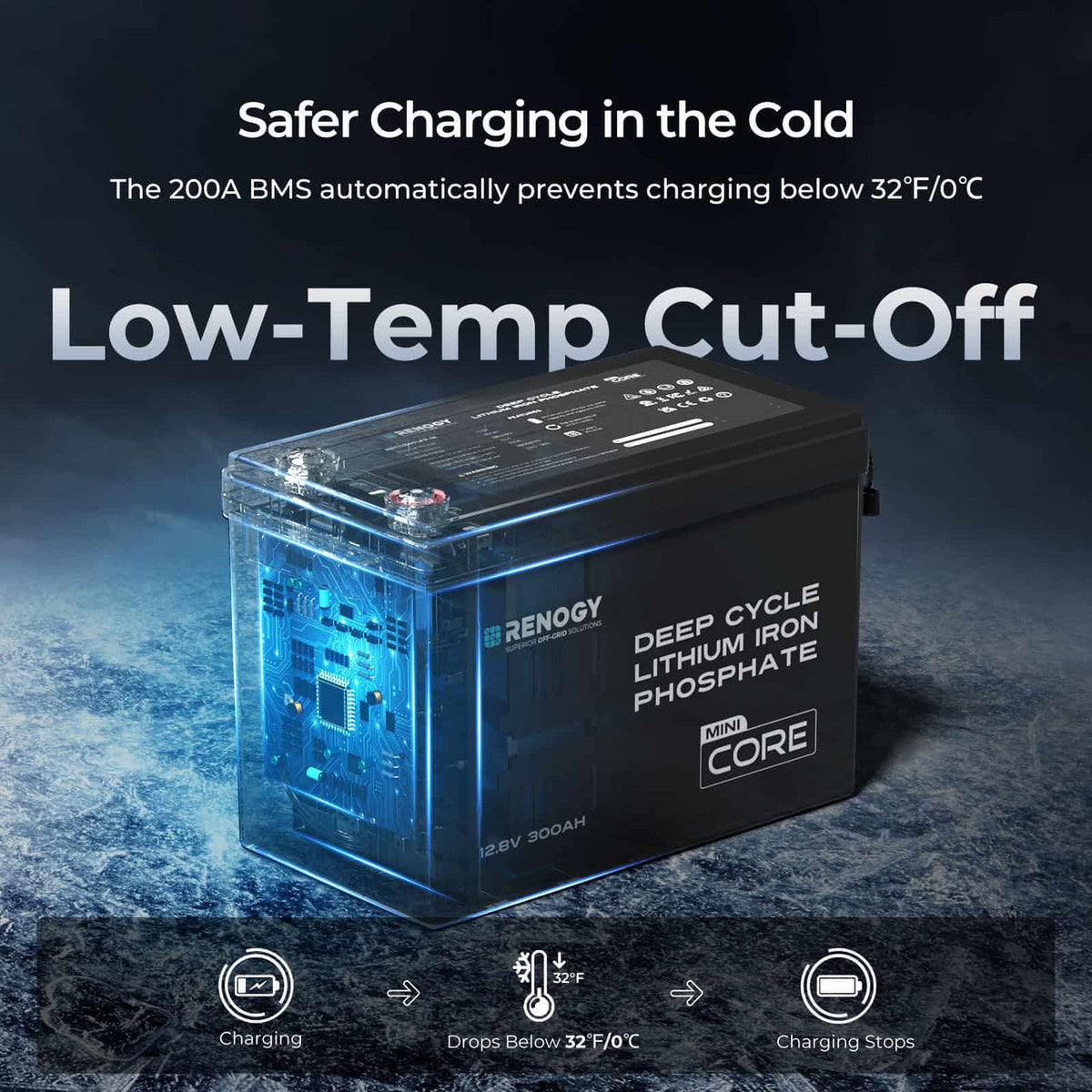

You won't find a lighter 12V 300Ah Lithium Battery anywhere. With its ultralightweight, compact design, and low-temperature cut-off, this battery is perfect for both travel and home use.

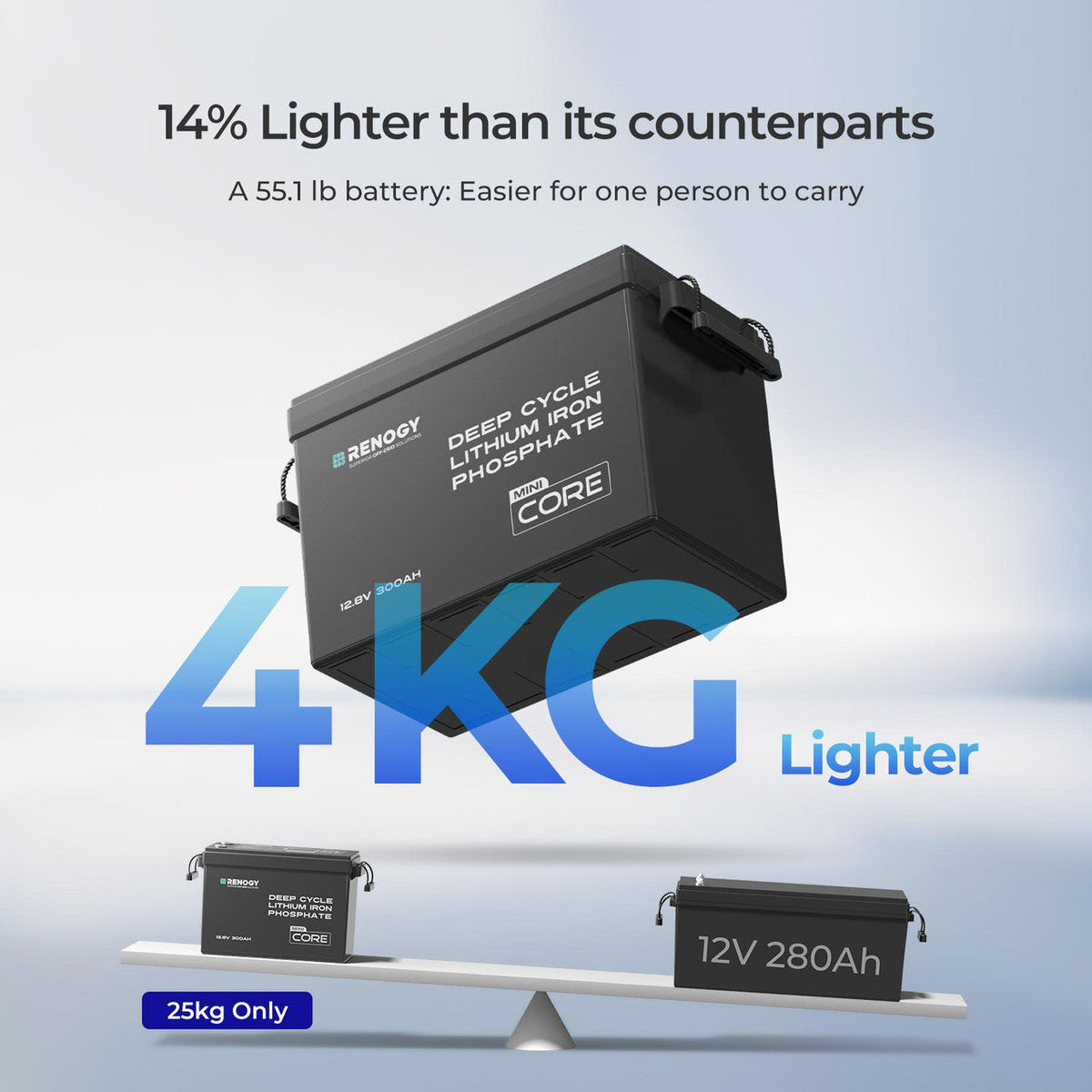

Lighter Than Ever, Easier to Carry.

At only 55.1 lb/25 kg, this battery is easy for one person to carry. That's 9 lb/4 kg lighter than its counterparts! Its lightweight, compact design makes handling and installation hassle-free.

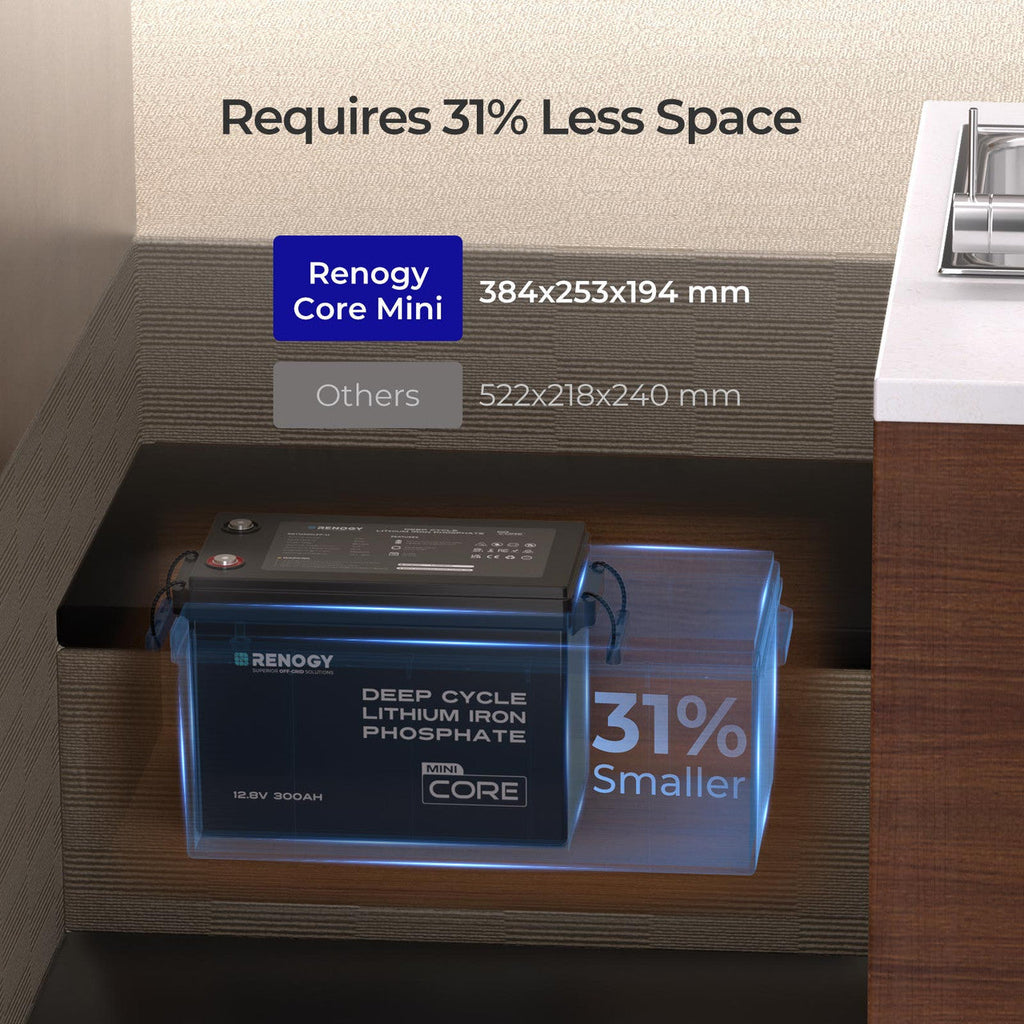

31% Smaller Than Its Counterparts

This battery's compact and sleek design saves space, provides more room for easier connections and maintenance. and fits in various battery boxes, including 8D and 4D sizes.

Specifications:

Rated Capacity (0.5C, 25°C): 300Ah

Nominal Voltage: 6000W

Nominal output Voltage RMS: 12.8V

Energy: 3840Wh

Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD)

opc:

Charging Parameters

Voltage Range: 10V to 14.8V

Maximum Continuous Charge Current: 150A

Discharging Parameters

Maximum Continuous Discharge Current: 200A

Peak Discharge Current: 380A @ 10s

Temperature Parameters
Operation Temperature Range: Charge: 32°F to 140°F (0°C to 60°C)

Operation Temperature Range: Discharge: -4°F to 149°F (-20°C to 65°C)

Storage Temperature Range: -4°F to 140°F (-20°C to 60°C)

Operation Relative Humidity: 5% to 95%

Mechanical Specifications

Dimension (L x W x H): 15.12 x 7.64 x 9.96 in / 384 x 194 x 253 mm

Weight: 55.1 lbs / 25.0 kg

Terminal Bolt Size: M8 × 1.25 × 12 mm & M8 × 1.25 × 16 mm

Protection Rating: IP65

Certifications
MSDS, UN38.3, FCC, CE, PSE, RCM, RoHS and UKCA: YES

Warranty 5-year material warranty: Yes

Download Product Manual
