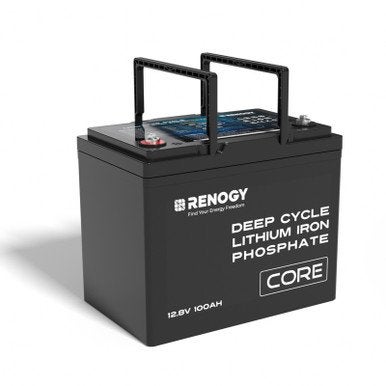

Meet Renogy 12V 100Ah Core Series Battery, your trusted, one-stop solution for upgrading from Lead to Lithium. Compatible with Renogy's solar panels, solar charge controllers, and inverters, this battery delivers a seamless upgrade experience without compatibility issues.

With a positive capacity tolerance of up to 6%, the Core series batteries provide extra power beyond their rated capacity, ensuring that you're covered during outages, hurricane season, and other emergencies. Connect multiple batteries in series-parallel to keep your system running longer.

Off-grid living can be challenging, but the Renogy 12V 100Ah Core Battery offers a true 100A battery management system (BMS), low-temp cut-off (for charging), and IP65 protection, giving you the confidence to tackle any obstacles.

Whether you are planning an upgrade from old lead-acid batteries, or starting to build your first-ever off-grid power system, the Renogy 12V 100Ah Core LiFePO4 Battery is your go-to option to get your project done right in an easier & faster way.

Specifications:

Charge Voltage: 14.4V

Maximum Charge Current: 100A

Maximum Discharge Current: 100A

Charge Temperature Range: 0°C to 55°C / 32°F to 131°F

Discharge Temperature Range: -20°C to 60°C / -4°F to 140°F

Connection Method: Series (Up to 4); Parallel (Up to 8); Series & Parallel (4P4S)

Communication Protocol: N/A

Recommended Terminal Torque: 10 N·m

Protection Rating: IP65

Housing Material: ABS

Terminal Bolt Size: M8

Dimensions: 260 x 169 x 211 mm / 10.24 x 6.65 x 8.31 inch

Weight: 10.5 kg / 23.15 lbs

ACCESSORIES

Long Terminal Bolts (2): M8

CERTIFICATIONS

MSDS, UN38.3, FCC , PSE, CE, UKCA, IEC62619: YES

WARRANTY

Material and Workmanship Warranty: 5 Years Warranty
